HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111720

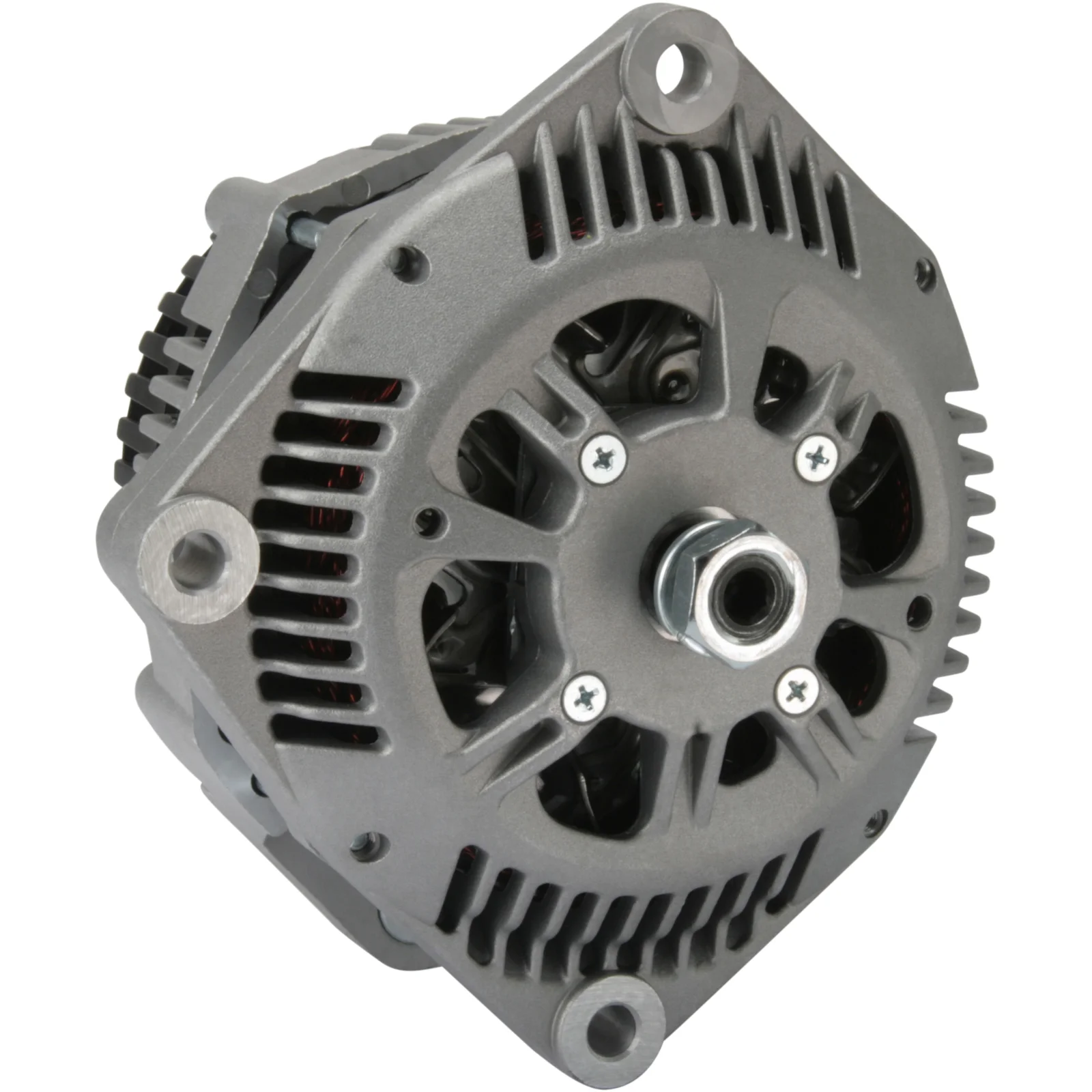

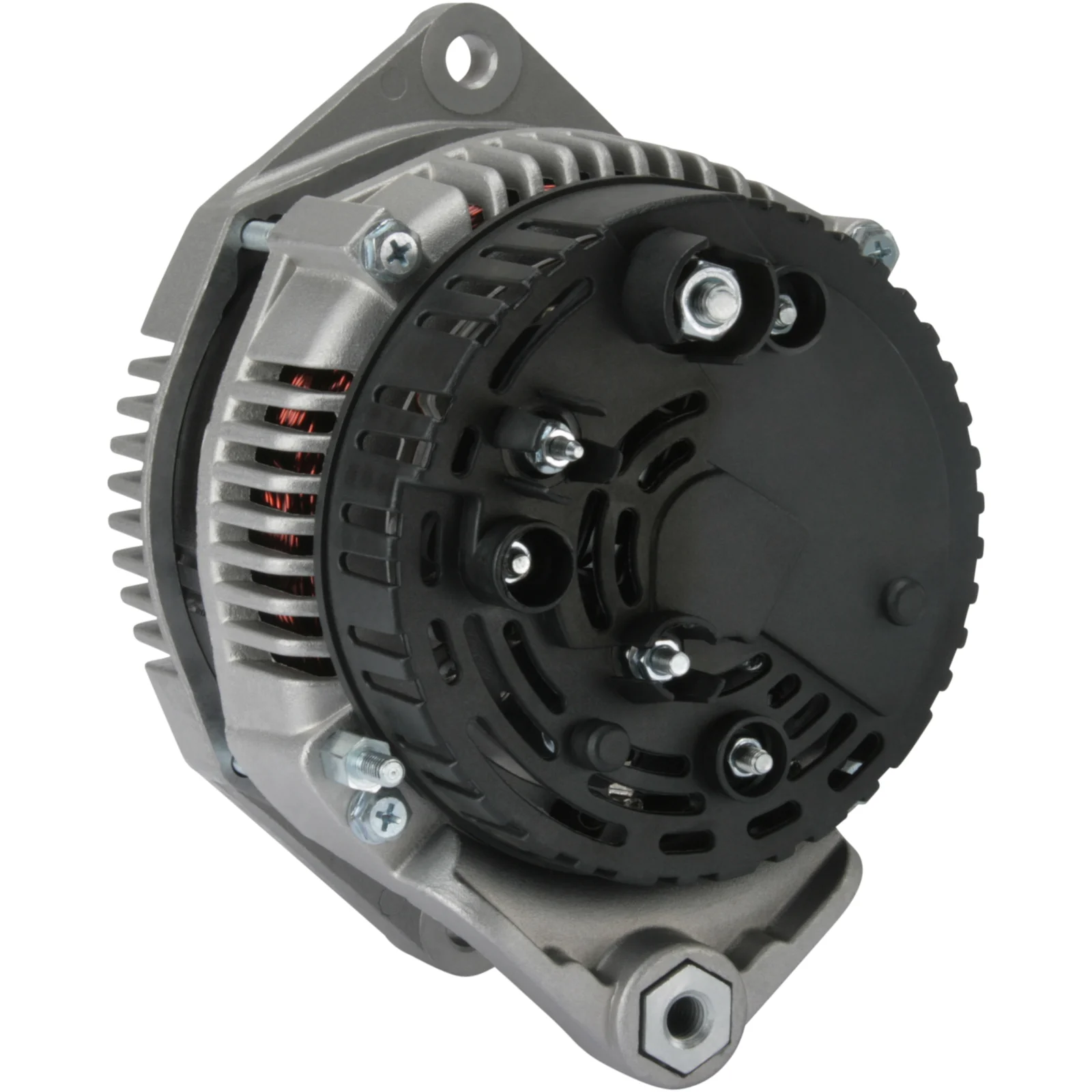

HC-Cargo Alternator

Technical info:

Voltage: 28, Amps: 90, Rotation: CW, Mounting bracket distance: 68.70

Description

Voltage: 28
Amp: 90
Terminal: W
Width/holder arm: 22.70
Mounting bracket distance: 68.70
Bracket hole: 10.20
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole position 2: 60
Belt adjustment bracket hole 1: 10.20
Belt adjustment bracket hole 2: 10.20
Radius: 93.00
Radius 2: 90.00
Radius 3: 90.00
B+: M8
Position/B+ in min.: 55
D+ Size: M4
Rotation: clockwise
W plug type: M5
Total length mm: 175.50
Pulley: w/o
Voltage regulator type: IR
Product info: BN
Servicing: Scania

Files

  • OEM
    A004TR5191ZT, a14vi19, a14vi20, F032111720, 90s010, 90s011, 90s013, 90S013ZD, 90s014, 90S014ZD, 90S016ZD, 90s017zd, 90S019ZD, 90S020ZD, 1310ir, 549276, 549277, 571523, 571527, 571529, 1371679, 1377400, 1433688, 1433689, 1440768, 1440769, 2541873, 2541916, 2542415, 2542415A, 2542416, 2542416A, 2542433, 2542433A, 2542479, 2542479A, 2542813, 2542813A, 2542814, 2809249, 2809249A, 2809251, 46430530, 63321414

  • Normalised article numbler
    a004tr5191zt, a14vi19, a14vi20, a3018, a5039sr, alt33003, cal15600, dra1453, dra3456, dra4036, dra4075x, f032111720, lra02486, mita4tr5191, na506, 8el012584491, 8el737452001, 90s010, 90s011, 90s013, 90s013zd, 90s014, 90s014zd, 90s016zd, 90s017zd, 90s019zd, 90s020zd, 1310ir, 5950, 20365n, 23486n, 119500, 119646, 202113, 210925, 210925a, 210981, 210981a, 301310ri, 436673, 436674, 444405, 482851, 482852, 549276, 549277, 571523, 571527, 571529, 849140, 1371679, 1377400, 1433688, 1433689, 1440768, 1440769, 2541873, 2541916, 2542415, 2542415a, 2542416, 2542416a, 2542433, 2542433a, 2542479, 2542479a, 2542813, 2542813a, 2542814, 2809249, 2809249a, 2809251, 9990430, 12090128, 46430530, 63321414, 532104904, 0986049890, 063321859010
  • Description
    Voltage: 28
    Amp: 90
    Terminal: W
    Width/holder arm: 22.70
    Mounting bracket distance: 68.70
    Bracket hole: 10.20
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole position 2: 60
    Belt adjustment bracket hole 1: 10.20
    Belt adjustment bracket hole 2: 10.20
    Radius: 93.00
    Radius 2: 90.00
    Radius 3: 90.00
    B+: M8
    Position/B+ in min.: 55
    D+ Size: M4
    Rotation: clockwise
    W plug type: M5
    Total length mm: 175.50
    Pulley: w/o
    Voltage regulator type: IR
    Product info: BN
    Servicing: Scania

    Files

  • Suitable for these vehicles

    • OEM
      A004TR5191ZT, a14vi19, a14vi20, F032111720, 90s010, 90s011, 90s013, 90S013ZD, 90s014, 90S014ZD, 90S016ZD, 90s017zd, 90S019ZD, 90S020ZD, 1310ir, 549276, 549277, 571523, 571527, 571529, 1371679, 1377400, 1433688, 1433689, 1440768, 1440769, 2541873, 2541916, 2542415, 2542415A, 2542416, 2542416A, 2542433, 2542433A, 2542479, 2542479A, 2542813, 2542813A, 2542814, 2809249, 2809249A, 2809251, 46430530, 63321414

    • Normalised article numbler
      a004tr5191zt, a14vi19, a14vi20, a3018, a5039sr, alt33003, cal15600, dra1453, dra3456, dra4036, dra4075x, f032111720, lra02486, mita4tr5191, na506, 8el012584491, 8el737452001, 90s010, 90s011, 90s013, 90s013zd, 90s014, 90s014zd, 90s016zd, 90s017zd, 90s019zd, 90s020zd, 1310ir, 5950, 20365n, 23486n, 119500, 119646, 202113, 210925, 210925a, 210981, 210981a, 301310ri, 436673, 436674, 444405, 482851, 482852, 549276, 549277, 571523, 571527, 571529, 849140, 1371679, 1377400, 1433688, 1433689, 1440768, 1440769, 2541873, 2541916, 2542415, 2542415a, 2542416, 2542416a, 2542433, 2542433a, 2542479, 2542479a, 2542813, 2542813a, 2542814, 2809249, 2809249a, 2809251, 9990430, 12090128, 46430530, 63321414, 532104904, 0986049890, 063321859010
