Article no.: F032112160

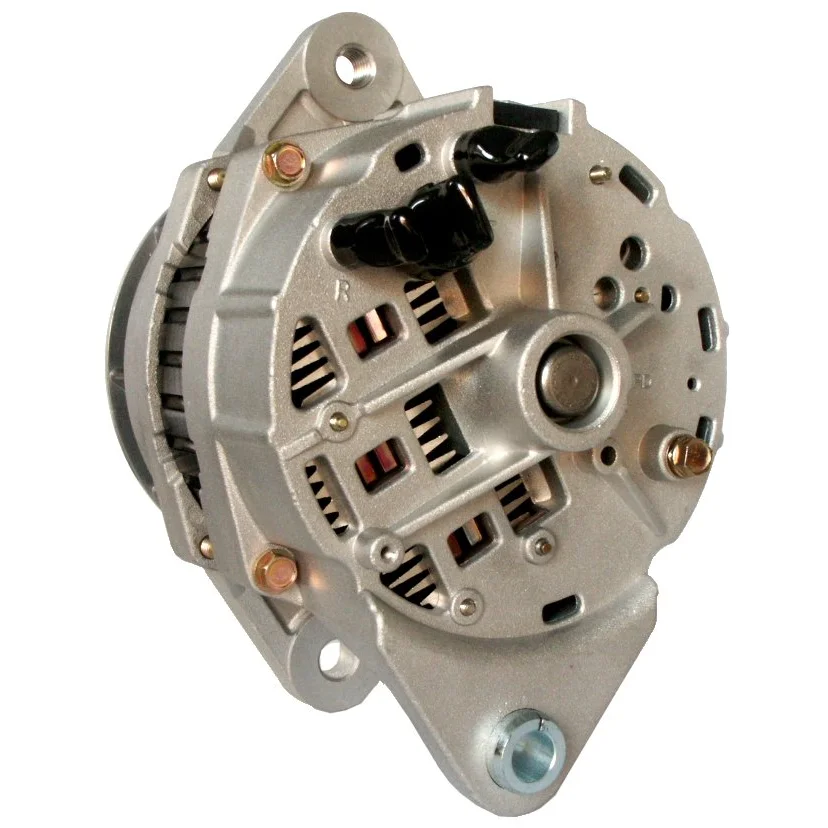

HC-Cargo Alternator

Technical info:

Voltage: 28, Amps: 75, Rotation: CW, Mounting bracket distance: 101.50

Description

Delco Alternator 24V-70A 24V - 70A For Yourex product order GE-8003 Voltage: 28 Amp: 75 Width/holder arm: 14.20 Mounting bracket distance: 101.50 Bracket hole: 13.00 Belt tensioner bracket hole position: 60 Belt tensioner bracket hole 1: 1/2" UNC Radius: 98.00 Radius 2: 98.00 B+: M6 Position/B+ in minutes: 53 D+ Size: M4 Rotation: CW Total length mm: 215.50 One wire hookup (Self-exciting): Yes Pulley: without Voltage regulator type: IR Product info: BN Servicing: Cummins Remarks: Replacing: 21SI. One wire system.

Files

  • OEM
    0-35000-0390, 0-35000-0391, 0-35000-0392, 0-35000-0402, 0-35000-0460, 0-35000-0461, 0-35000-0462, 0-35000-0471, 0-35000-0480, 0R8279, CU 3923624, F032112160, F054034, F434805, MDA3946, T 107-7977, ua1620ir, 21EA-00040, 107-7977, 0120 468 054, 0120 468 147, 132-2156, 600-825-3120, 600-825-3150, 600-825-3151, 600-825-3160, 600-825-3161, 600-861-3111, 1022-03500, 1022-03510, 11087, 219072, 219079, 860568, 1117897, 1117900, 1305787H91, 1307203H1, 3251135, 3675174RX, 3675201RX, 3675226RX, 3675242rx, 3920617, 3920618, 3920618RX, 3935530, 3935531, 3935538, 4000590, 10459026, 10459261, 10459306, 10459311, 10459333, 19010108, 19010111, 19010148, 19010182, 19010185, 19010193, 19010195, 19010199, 19010200, 19011192, 19011210, 19020307, 19020346, 19020376, 19020382, 19020383, 19020391, 76085195, 0986081030

  • Normalised article numbler
    0r8279, a1018, adr0047, adr271, alt1101, alt1101a, alt1102, alt22000, alt22003, alt22004, alt22014, alt40021, bao3160, bao3276, cal50622, cal60606, cal60607, cal60608, cal60609, cal60612, cal60613, cal60628, cu3923624, f032112160, f042300062, f042300063, f042300064, f042300203, f042a00062, f042a00063, f042a00064, f042a00203, f054034, f434805, ga11100, lra02997, mda3946, t1077977, ua1620ir, 21ea00040, 7197n, 7197r, 7642, 8003, 8003n, 8003r, 8367n, 8367r, 11087, 12259n, 42704, 42704p, 111284, 201114, 209280, 209280a, 219072, 219079, 485610, 487555, 501620ri, 554404ri, 726991, 860568, 1077977, 1117897, 1117900, 1229100dr, 1229100dr1, 1305787h91, 1307203h1, 1322156, 3251135, 3675174rx, 3675201rx, 3675226rx, 3675242rx, 3920617, 3920618, 3920618rx, 3935530, 3935531, 3935538, 4000590, 10459026, 10459261, 10459306, 10459311, 10459333, 12090149, 19010108, 19010111, 19010148, 19010182, 19010185, 19010193, 19010195, 19010199, 19010200, 19011192, 19011210, 19020307, 19020346, 19020376, 19020382, 19020383, 19020391, 76085195, 102203500, 102203510, 0120468054, 0120468147, 0350000390, 0350000391, 0350000392, 0350000402, 0350000460, 0350000461, 0350000462, 0350000471, 0350000480, 646003050, 646051075, 946027035, 946028035, 0986081030, 6008253120, 6008253150, 6008253151, 6008253160, 6008253161, 6008613111
  • Description
    Delco Alternator 24V-70A 24V - 70A For Yourex product order GE-8003 Voltage: 28 Amp: 75 Width/holder arm: 14.20 Mounting bracket distance: 101.50 Bracket hole: 13.00 Belt tensioner bracket hole position: 60 Belt tensioner bracket hole 1: 1/2" UNC Radius: 98.00 Radius 2: 98.00 B+: M6 Position/B+ in minutes: 53 D+ Size: M4 Rotation: CW Total length mm: 215.50 One wire hookup (Self-exciting): Yes Pulley: without Voltage regulator type: IR Product info: BN Servicing: Cummins Remarks: Replacing: 21SI. One wire system.

    Files

  • Suitable for these vehicles

    • OEM
      0-35000-0390, 0-35000-0391, 0-35000-0392, 0-35000-0402, 0-35000-0460, 0-35000-0461, 0-35000-0462, 0-35000-0471, 0-35000-0480, 0R8279, CU 3923624, F032112160, F054034, F434805, MDA3946, T 107-7977, ua1620ir, 21EA-00040, 107-7977, 0120 468 054, 0120 468 147, 132-2156, 600-825-3120, 600-825-3150, 600-825-3151, 600-825-3160, 600-825-3161, 600-861-3111, 1022-03500, 1022-03510, 11087, 219072, 219079, 860568, 1117897, 1117900, 1305787H91, 1307203H1, 3251135, 3675174RX, 3675201RX, 3675226RX, 3675242rx, 3920617, 3920618, 3920618RX, 3935530, 3935531, 3935538, 4000590, 10459026, 10459261, 10459306, 10459311, 10459333, 19010108, 19010111, 19010148, 19010182, 19010185, 19010193, 19010195, 19010199, 19010200, 19011192, 19011210, 19020307, 19020346, 19020376, 19020382, 19020383, 19020391, 76085195, 0986081030

    • Normalised article numbler
      0r8279, a1018, adr0047, adr271, alt1101, alt1101a, alt1102, alt22000, alt22003, alt22004, alt22014, alt40021, bao3160, bao3276, cal50622, cal60606, cal60607, cal60608, cal60609, cal60612, cal60613, cal60628, cu3923624, f032112160, f042300062, f042300063, f042300064, f042300203, f042a00062, f042a00063, f042a00064, f042a00203, f054034, f434805, ga11100, lra02997, mda3946, t1077977, ua1620ir, 21ea00040, 7197n, 7197r, 7642, 8003, 8003n, 8003r, 8367n, 8367r, 11087, 12259n, 42704, 42704p, 111284, 201114, 209280, 209280a, 219072, 219079, 485610, 487555, 501620ri, 554404ri, 726991, 860568, 1077977, 1117897, 1117900, 1229100dr, 1229100dr1, 1305787h91, 1307203h1, 1322156, 3251135, 3675174rx, 3675201rx, 3675226rx, 3675242rx, 3920617, 3920618, 3920618rx, 3935530, 3935531, 3935538, 4000590, 10459026, 10459261, 10459306, 10459311, 10459333, 12090149, 19010108, 19010111, 19010148, 19010182, 19010185, 19010193, 19010195, 19010199, 19010200, 19011192, 19011210, 19020307, 19020346, 19020376, 19020382, 19020383, 19020391, 76085195, 102203500, 102203510, 0120468054, 0120468147, 0350000390, 0350000391, 0350000392, 0350000402, 0350000460, 0350000461, 0350000462, 0350000471, 0350000480, 646003050, 646051075, 946027035, 946028035, 0986081030, 6008253120, 6008253150, 6008253151, 6008253160, 6008253161, 6008613111
