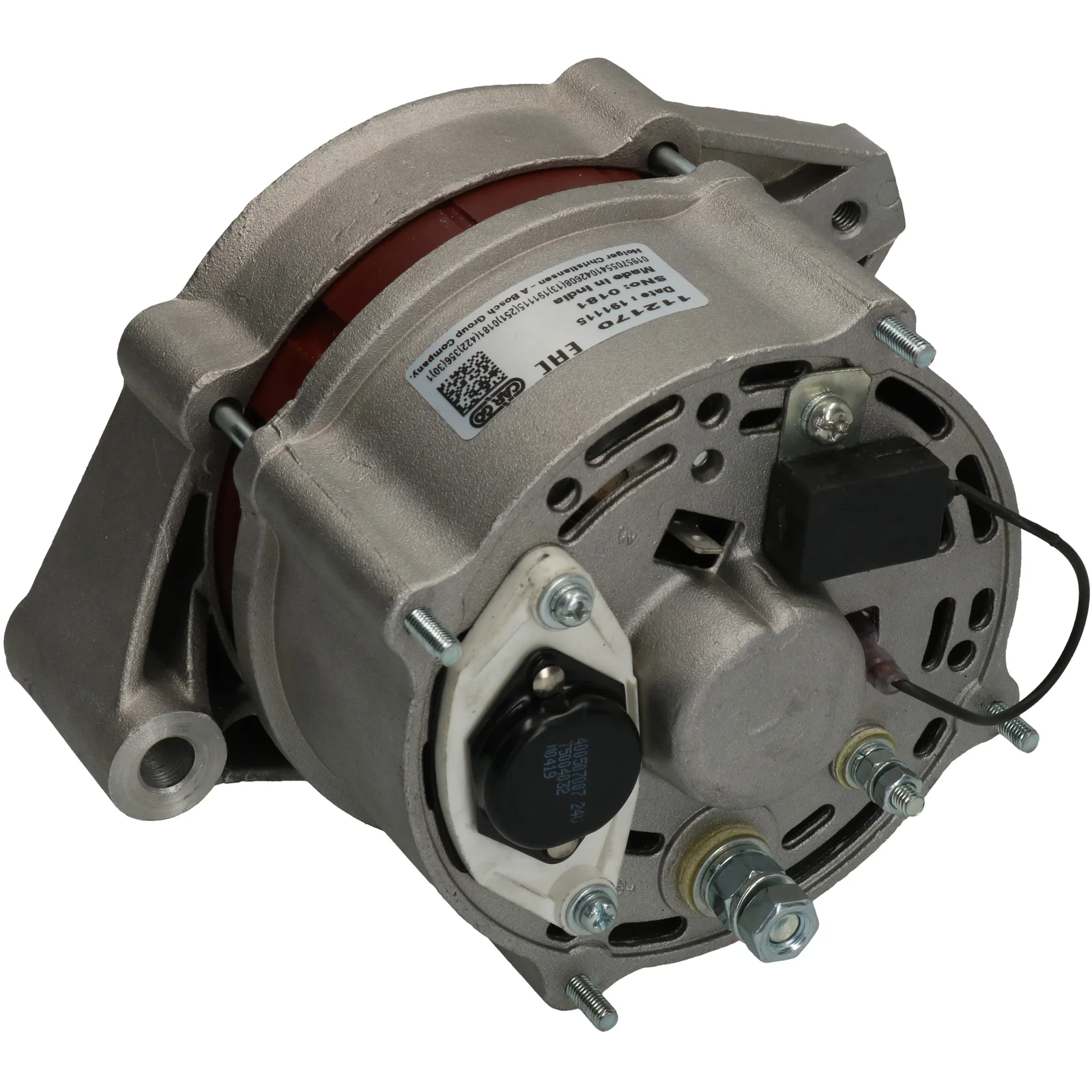

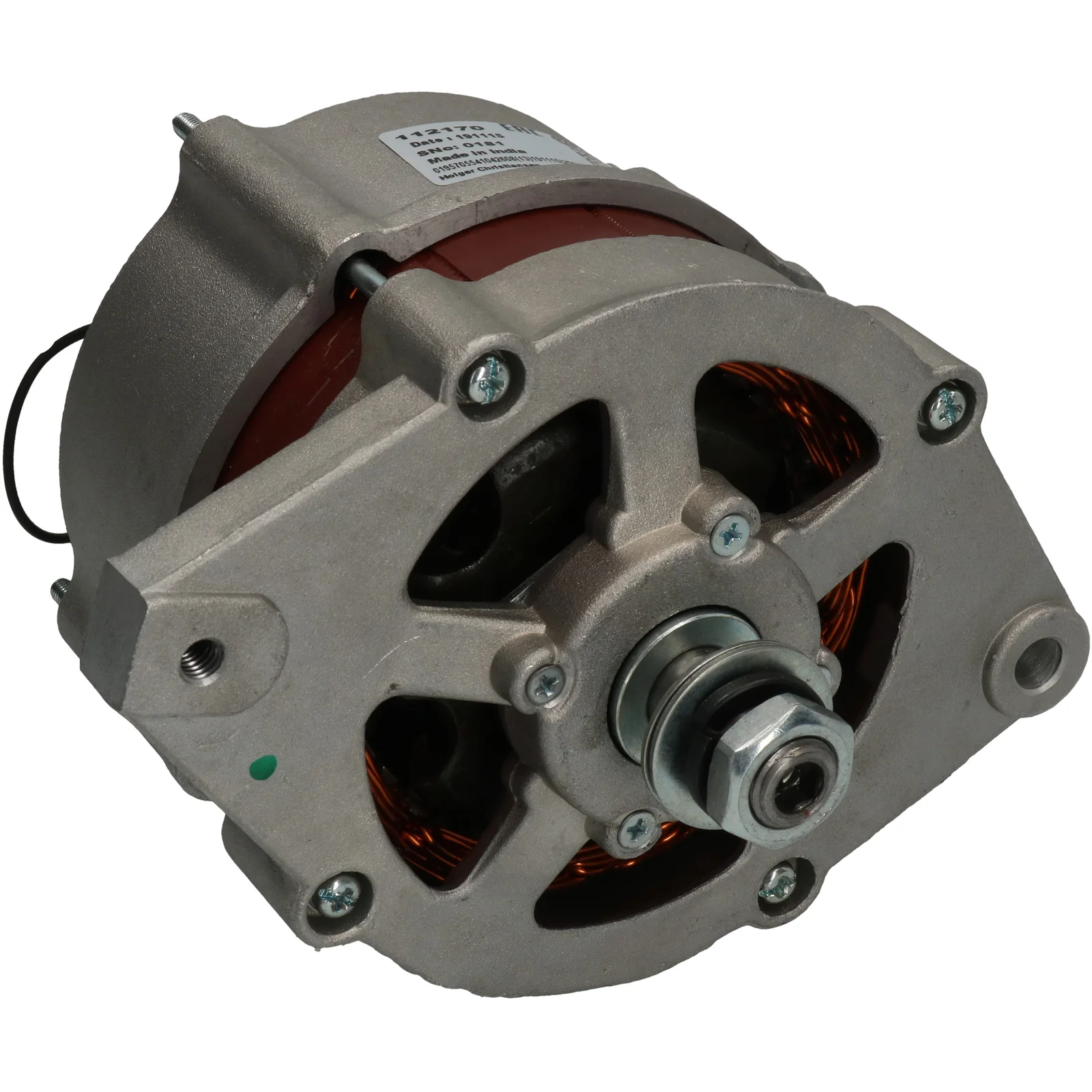

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112170

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 45, Rotation: CW, Radius: 84.00

Description

Voltage: 28
Amp: 45
Terminal: W
Width/holder arm: 51.00
Bracket hole: 10.00
Belt. adj. bracket hole position: 60
Belt. adj. bracket hole 1: M8
Radius: 84.00
Radius 2: 86.50
B+: M8
Position/B+ in min.: 50
D+ Size: M4
Rotation: CW
W plug type: M5
Total length mm: 172.50
Pulley: without
Fan: EF
Voltage regulator type: IR
Prod. info: BN
Servicing: Case
Remarks: Dustproof

Files

  • OEM
    A187916, aak1387, aak3336, AL12148, AR187916, at161324, AT175195, AT221116, AT228217, F032112170, P941518P, P941542, PO9415420, RE161324, RE507631, RE537146, TY24322, ty6774, 11.201.759, 11.201.941, 714-31500, 501341, 501835, 3020678, 3144988R93, 3284392, 3911247, 3920678, 3939028, 84172866, 0120488206, 0120488294, 0120489071, 0120489481

  • Normalised article numbler
    a0185, a187916, a9246letrika, aak1387, aak3336, al12148, al9940x, al9948x, alt20013, alt20014, alt2122, ar187916, at161324, at175195, at221116, at228217, bao3054, cal10642, f032112170, f042301136, f042a01136, ia0759, lra02495, lra03760, mg568, mg84, p941518p, p941542, po9415420, re161324, re507631, re537146, ty24322, ty6774, 12147, 12147n, 12148, 12148n, 12148r, 12587n, 209020, 209020a, 483684, 486870, 501341, 501835, 553043ri, 1251841bo, 3020678, 3144988r93, 3284392, 3911247, 3920678, 3939028, 11201759, 11201941, 12090405, 71431500, 84172866, 0120488206, 0120488294, 0120489071, 0120489481, 585101454, 585104454, 0986043257, 0986043404, 063534882060
  • Description
    Voltage: 28
    Amp: 45
    Terminal: W
    Width/holder arm: 51.00
    Bracket hole: 10.00
    Belt. adj. bracket hole position: 60
    Belt. adj. bracket hole 1: M8
    Radius: 84.00
    Radius 2: 86.50
    B+: M8
    Position/B+ in min.: 50
    D+ Size: M4
    Rotation: CW
    W plug type: M5
    Total length mm: 172.50
    Pulley: without
    Fan: EF
    Voltage regulator type: IR
    Prod. info: BN
    Servicing: Case
    Remarks: Dustproof

    Files

  • Suitable for these vehicles

    • OEM
      A187916, aak1387, aak3336, AL12148, AR187916, at161324, AT175195, AT221116, AT228217, F032112170, P941518P, P941542, PO9415420, RE161324, RE507631, RE537146, TY24322, ty6774, 11.201.759, 11.201.941, 714-31500, 501341, 501835, 3020678, 3144988R93, 3284392, 3911247, 3920678, 3939028, 84172866, 0120488206, 0120488294, 0120489071, 0120489481

    • Normalised article numbler
      a0185, a187916, a9246letrika, aak1387, aak3336, al12148, al9940x, al9948x, alt20013, alt20014, alt2122, ar187916, at161324, at175195, at221116, at228217, bao3054, cal10642, f032112170, f042301136, f042a01136, ia0759, lra02495, lra03760, mg568, mg84, p941518p, p941542, po9415420, re161324, re507631, re537146, ty24322, ty6774, 12147, 12147n, 12148, 12148n, 12148r, 12587n, 209020, 209020a, 483684, 486870, 501341, 501835, 553043ri, 1251841bo, 3020678, 3144988r93, 3284392, 3911247, 3920678, 3939028, 11201759, 11201941, 12090405, 71431500, 84172866, 0120488206, 0120488294, 0120489071, 0120489481, 585101454, 585104454, 0986043257, 0986043404, 063534882060
