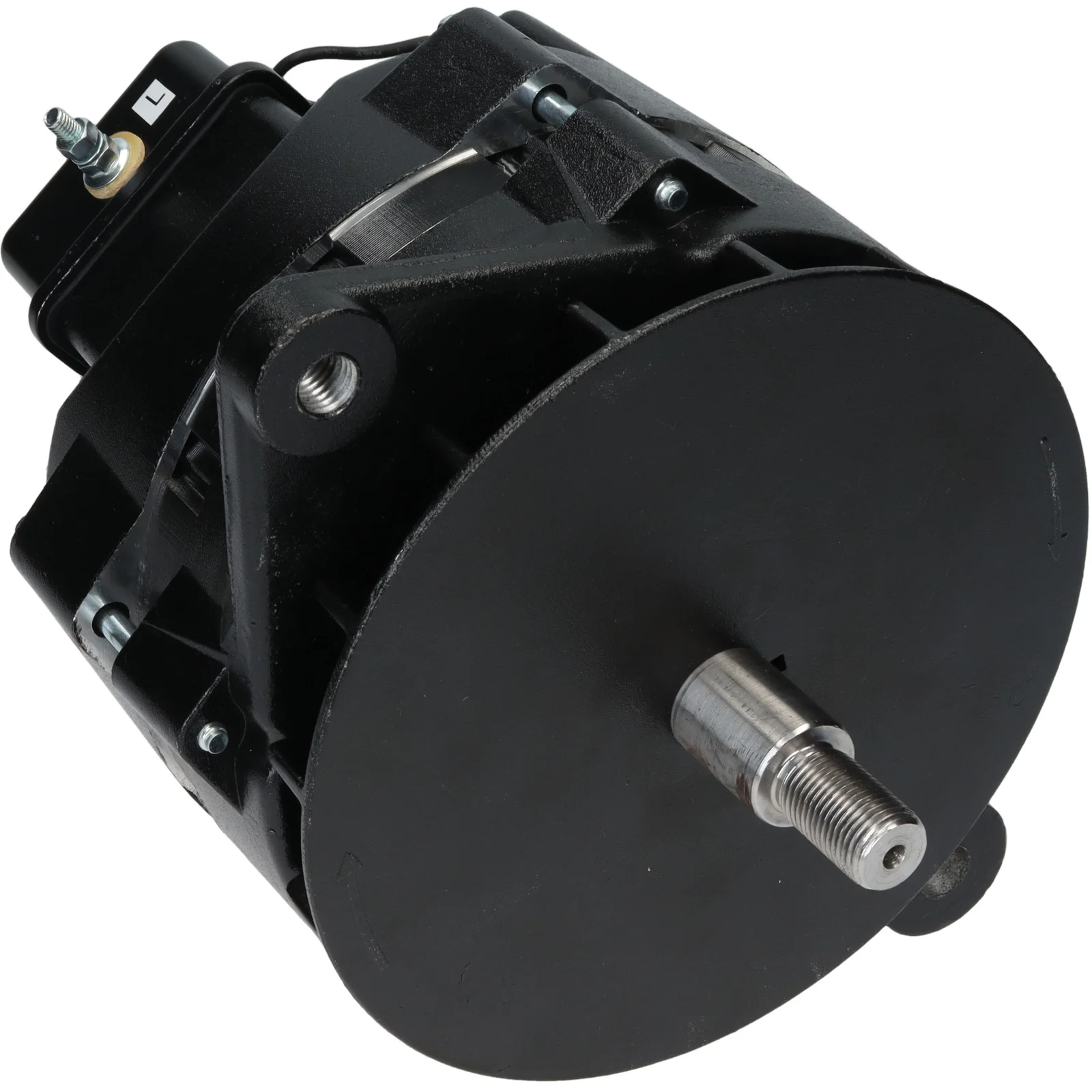

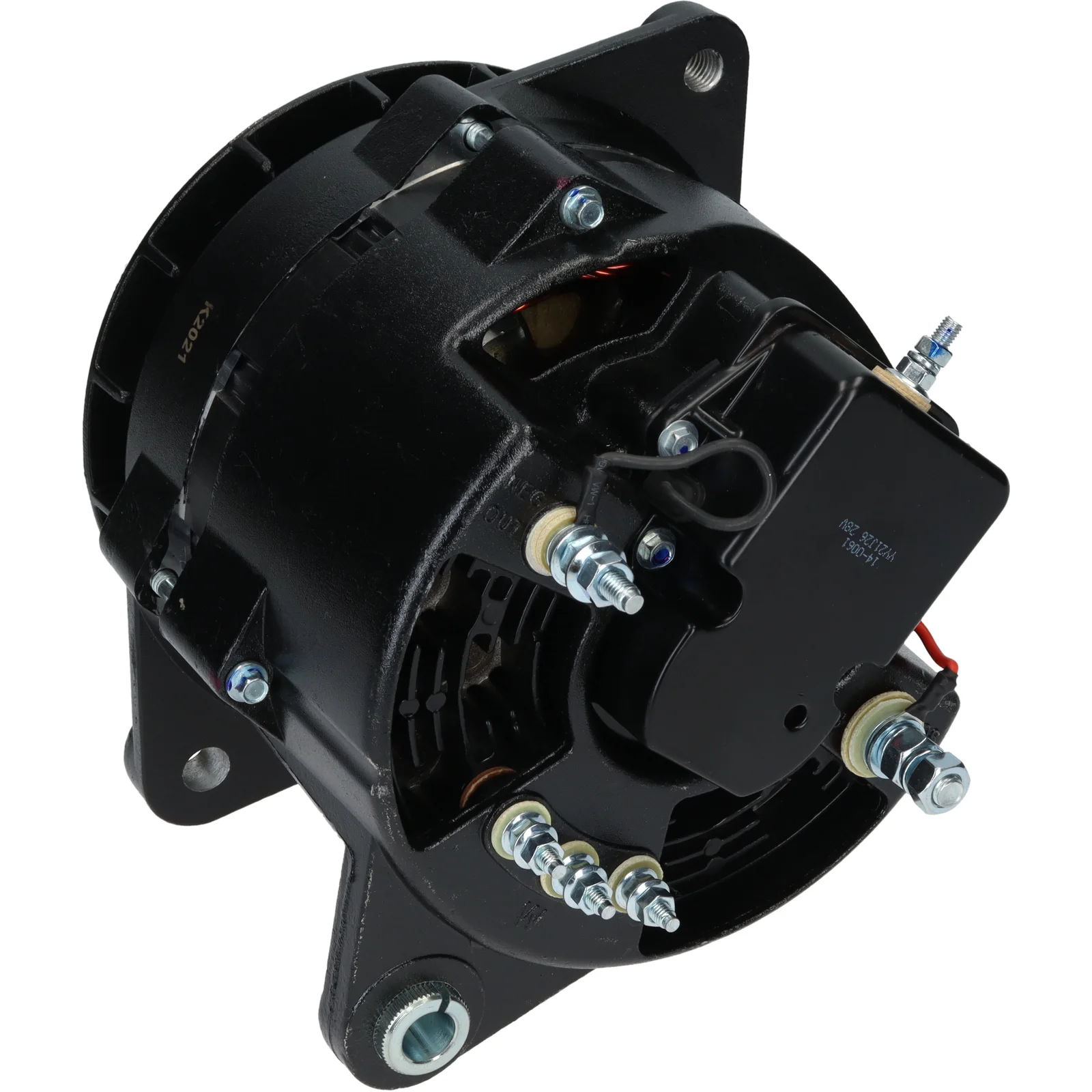

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112294

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 110, Rotation: CW, Mount. bracket dist.: 101.50

Description

Voltage: 28
Amp: 110
Insulated return: Yes
Terminal: W
Width/holder arm: 14.50
Mounting bracket distance: 101.50
Bracket hole: 12.70
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: M12
Radius: 109.00
Radius 2: 110.00
B+: M8
Position/B+ in min.: 10
Rotation: CW
W plug type: M6
Total length mm: 243.00
Pulley: without
Fan: EF
Voltage regulator type: IR
Product info: BN
Servicing: Caterpillar

Files

  • OEM
    F032112294, TM5594001, 8LHA3096, 8lha3096u, 8LHA3096UC, 110-459, 3332213, 4096532, 10459461

  • Normalised article numbler
    alt0170, alt32020, f032112294, f042308006, f042308010, f042511759, f042a08006, f042a08010, tm5594001, 8lha3096, 8lha3096u, 8lha3096uc, 7965n, 7965r, 7975r, 8392, 8392n, 42735, 110459, 553239ri, 3332213, 4096532, 10459461, 646001110
  • Description
    Voltage: 28
    Amp: 110
    Insulated return: Yes
    Terminal: W
    Width/holder arm: 14.50
    Mounting bracket distance: 101.50
    Bracket hole: 12.70
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: M12
    Radius: 109.00
    Radius 2: 110.00
    B+: M8
    Position/B+ in min.: 10
    Rotation: CW
    W plug type: M6
    Total length mm: 243.00
    Pulley: without
    Fan: EF
    Voltage regulator type: IR
    Product info: BN
    Servicing: Caterpillar

    Files

  • Suitable for these vehicles

    • OEM
      F032112294, TM5594001, 8LHA3096, 8lha3096u, 8LHA3096UC, 110-459, 3332213, 4096532, 10459461

    • Normalised article numbler
      alt0170, alt32020, f032112294, f042308006, f042308010, f042511759, f042a08006, f042a08010, tm5594001, 8lha3096, 8lha3096u, 8lha3096uc, 7965n, 7965r, 7975r, 8392, 8392n, 42735, 110459, 553239ri, 3332213, 4096532, 10459461, 646001110
