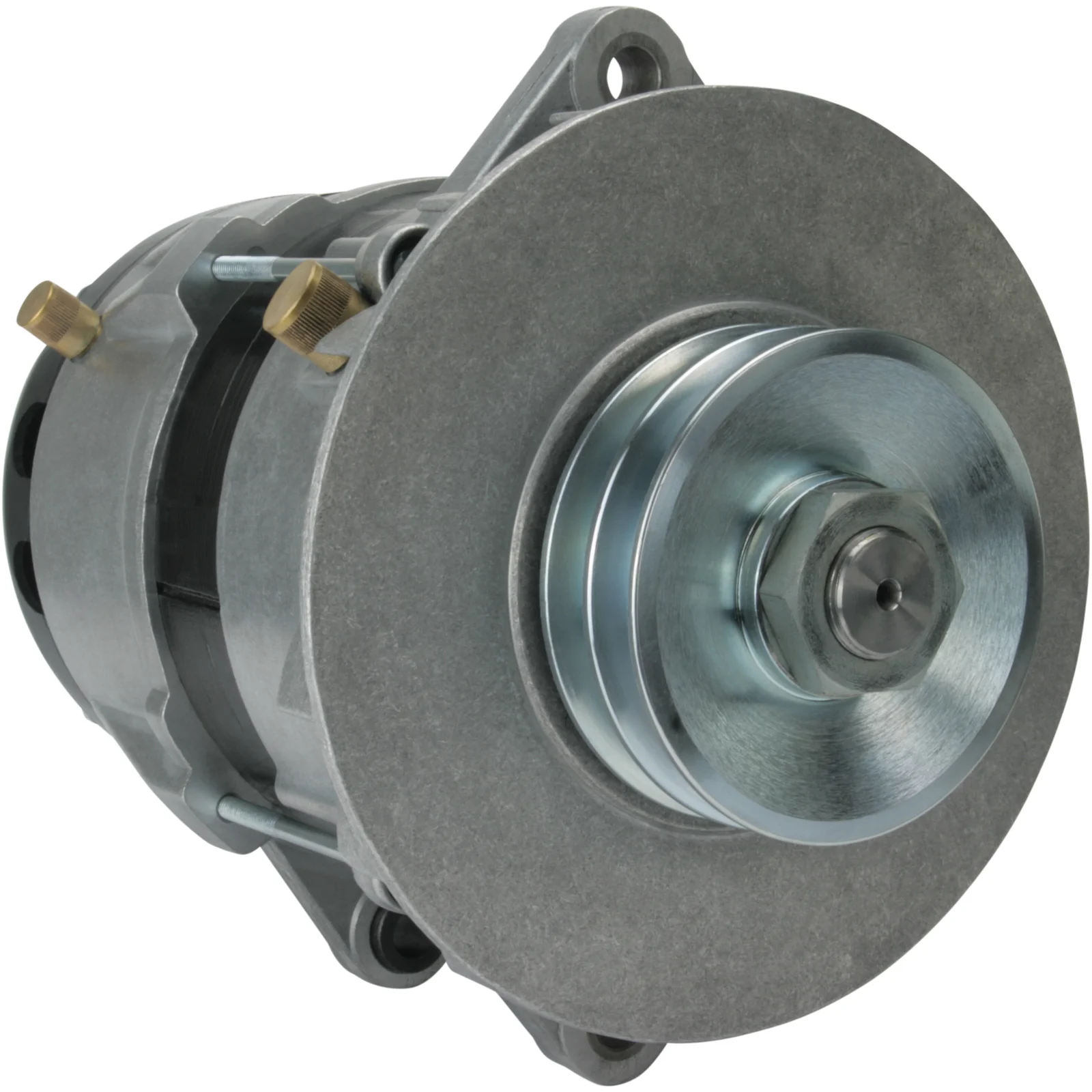

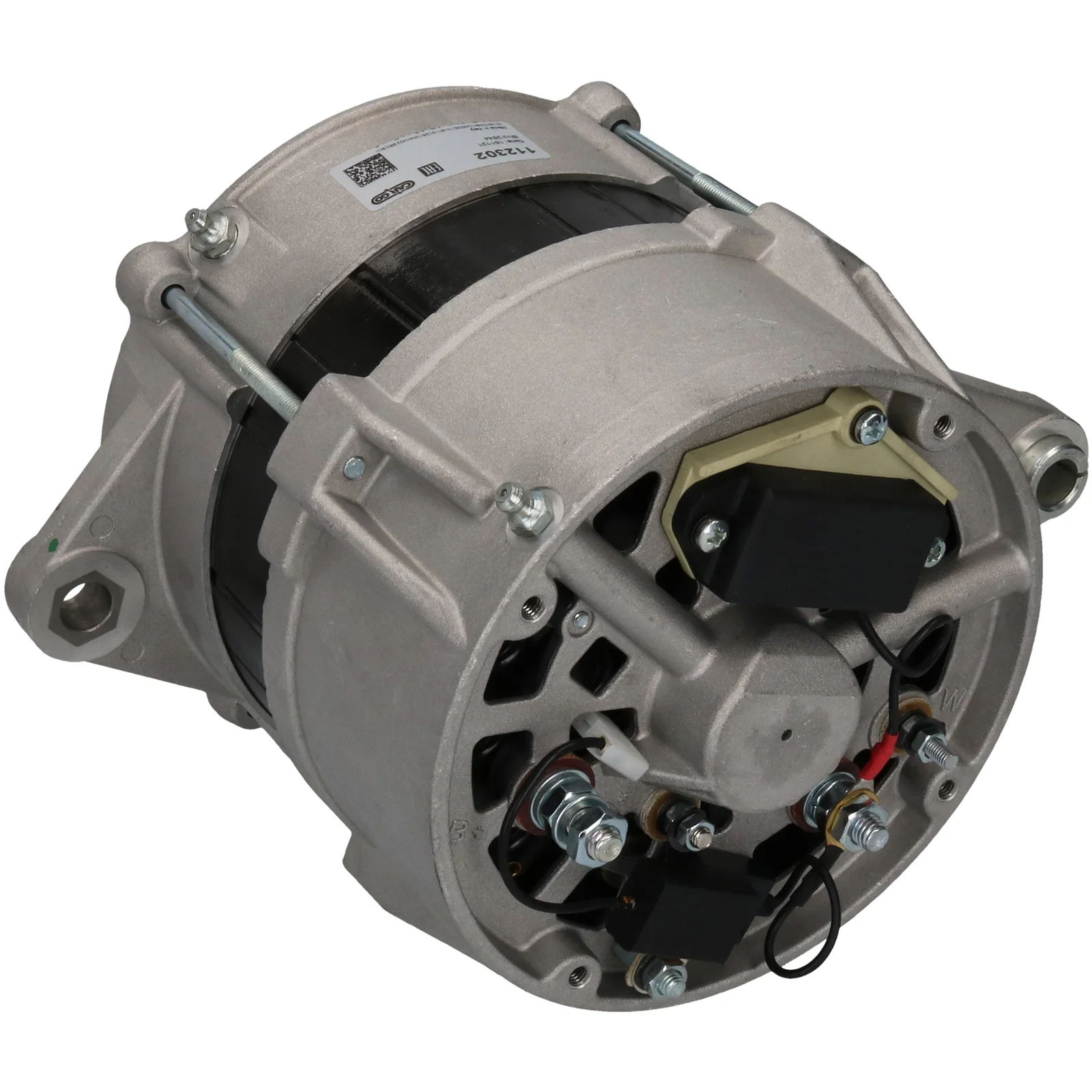

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112302

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 120, Rotation: CW, Mounting bracket distance: 86.00

Description

Voltage: 28
Amp: 120
Insulated return: Yes
Terminal: W
Width/holder arm: 16.00
Mount. bracket dist.: 86.00
Bracket hole: 13.40
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 13.50
Radius: 108.00
Radius 2: 108.00
B+: M8
Position/B+ in min.: 60
D+ Size: M5
Rotation: CW
W plug type: M6
Total length mm: 313.00
Pulley: w/o
Alternator type: IR
Product info: BN
Servicing: Iveco
Remarks: B-: M8.

Files

  • OEM
    A0121544702, A0121545002, aat1385, DLT609101, F032112302, 11.209.448, 1986A00010, 108922, 4775918, 4798922, 4831585, 42575000, 0120689516, 0120689524, 0120689538, 0120689539, 0120689550, 0121544702, 0121545002, 7421356000

  • Normalised article numbler
    a0024, a0121544702, a0121545002, aat1385, alt10161, alt10162, cal10631, cal10665, cal10709, dlt609101, dra0502, f032112302, lra02526, 1986a00010, 108922, 119928, 210292, 210292a, 553042ri, 4775918, 4798922, 4831585, 11209448, 42575000, 063536895, 0120689516, 0120689524, 0120689538, 0120689539, 0120689550, 0121544702, 0121545002, 506004120, 7421356000, 063536895380
  • Description
    Voltage: 28
    Amp: 120
    Insulated return: Yes
    Terminal: W
    Width/holder arm: 16.00
    Mount. bracket dist.: 86.00
    Bracket hole: 13.40
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 13.50
    Radius: 108.00
    Radius 2: 108.00
    B+: M8
    Position/B+ in min.: 60
    D+ Size: M5
    Rotation: CW
    W plug type: M6
    Total length mm: 313.00
    Pulley: w/o
    Alternator type: IR
    Product info: BN
    Servicing: Iveco
    Remarks: B-: M8.

    Files

  • Suitable for these vehicles

    • OEM
      A0121544702, A0121545002, aat1385, DLT609101, F032112302, 11.209.448, 1986A00010, 108922, 4775918, 4798922, 4831585, 42575000, 0120689516, 0120689524, 0120689538, 0120689539, 0120689550, 0121544702, 0121545002, 7421356000

    • Normalised article numbler
      a0024, a0121544702, a0121545002, aat1385, alt10161, alt10162, cal10631, cal10665, cal10709, dlt609101, dra0502, f032112302, lra02526, 1986a00010, 108922, 119928, 210292, 210292a, 553042ri, 4775918, 4798922, 4831585, 11209448, 42575000, 063536895, 0120689516, 0120689524, 0120689538, 0120689539, 0120689550, 0121544702, 0121545002, 506004120, 7421356000, 063536895380
