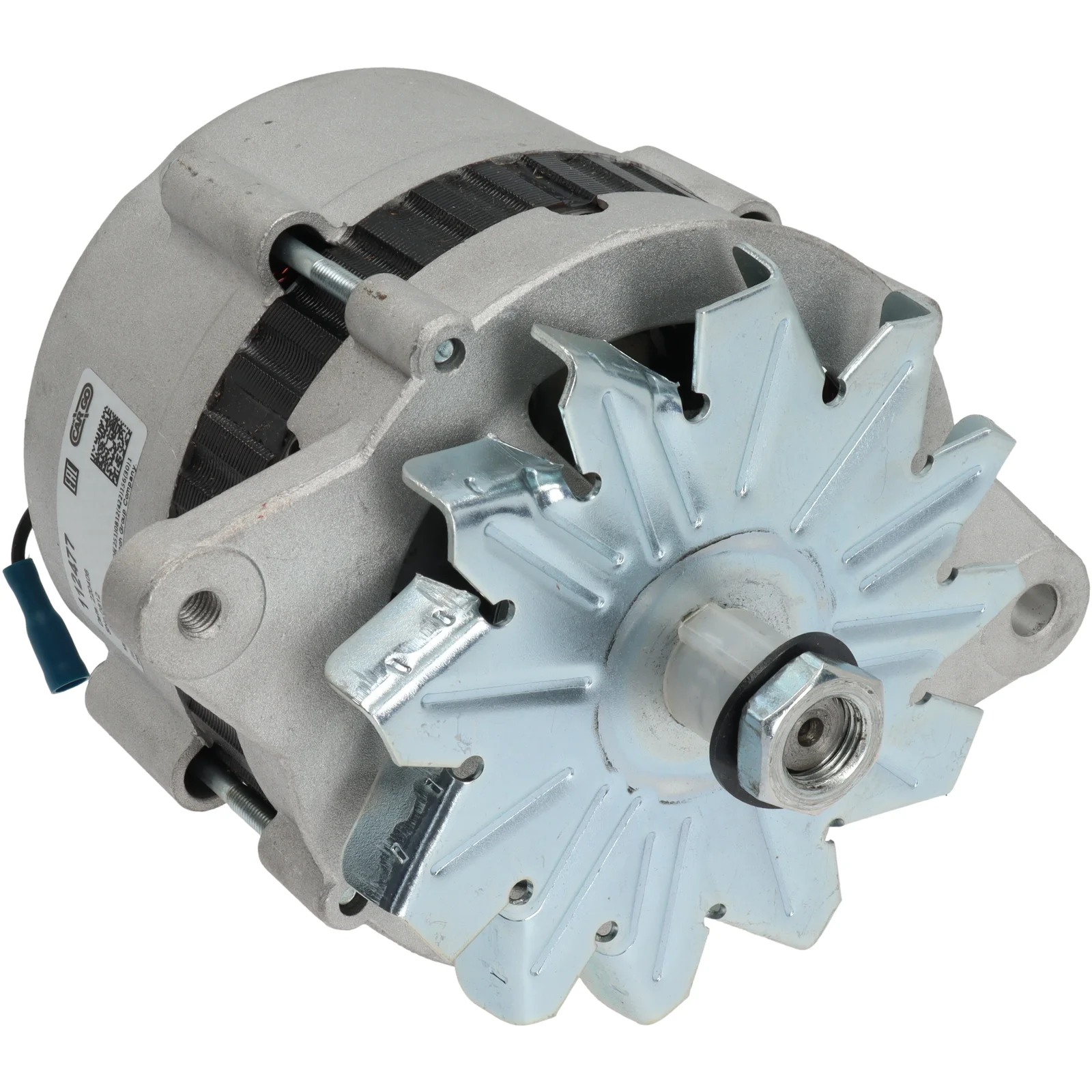

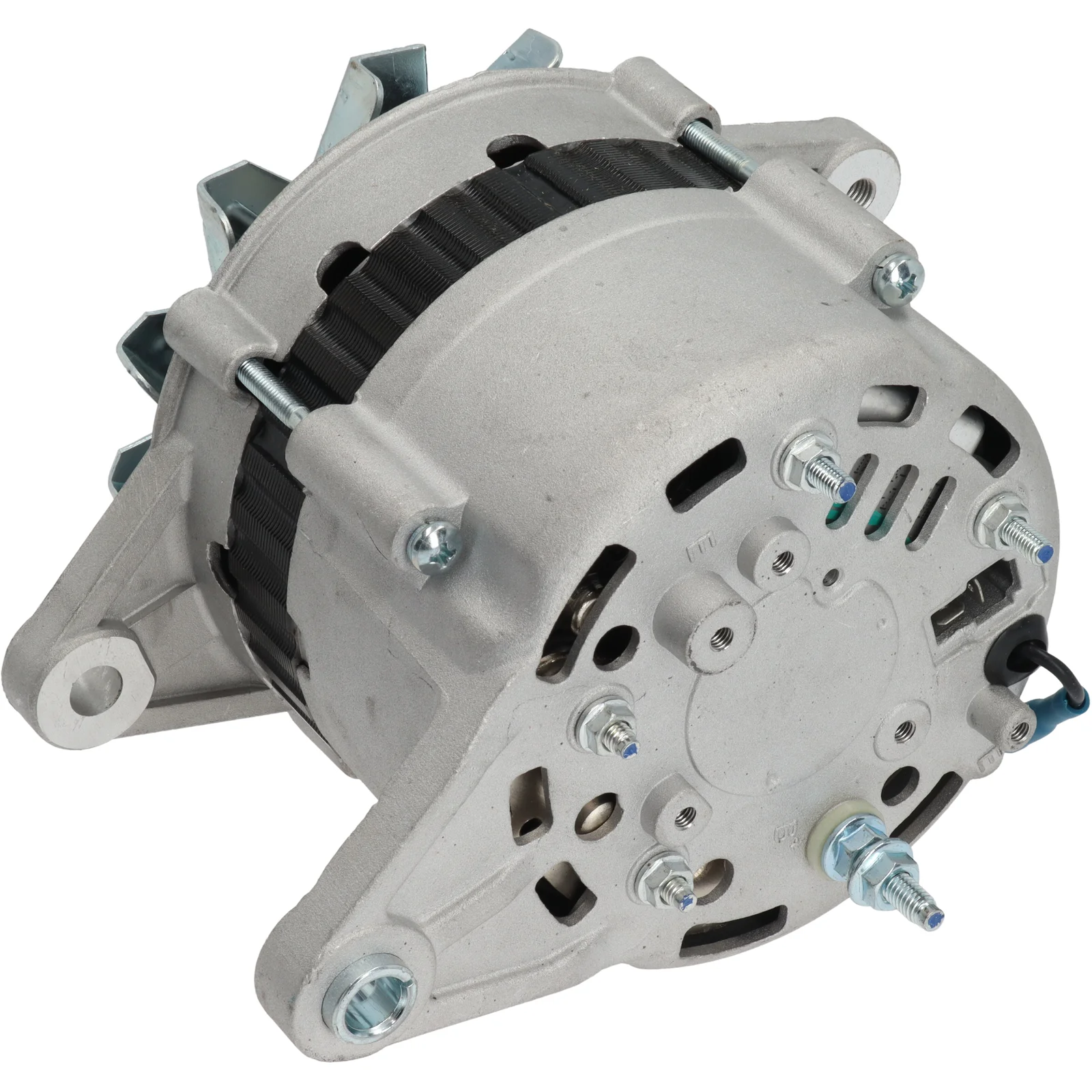

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112477

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 25, Rotation: CW, Mounting bracket distance: 84.00

Description

Voltage: 28
Amp: 25
Width/holder arm: 13.00
Mounting bracket dist.: 84.00
Bracket hole: 10.20
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: M8
Radius: 90.00
Radius 2: 85.00
B+: M6
Position/B+ in min.: 15
D+ Size: Plug
Rotation: CW
Plug no.: PL09
Total length mm: 185.00
Pulley: w/o
Voltage regulator type: IR
Prod. info: BN/OE
Servicing: Mercury

Files

  • Description
    Voltage: 28
    Amp: 25
    Width/holder arm: 13.00
    Mounting bracket dist.: 84.00
    Bracket hole: 10.20
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: M8
    Radius: 90.00
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 15
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL09
    Total length mm: 185.00
    Pulley: w/o
    Voltage regulator type: IR
    Prod. info: BN/OE
    Servicing: Mercury

    Files

  • Suitable for these vehicles
