Article no.: F032112493

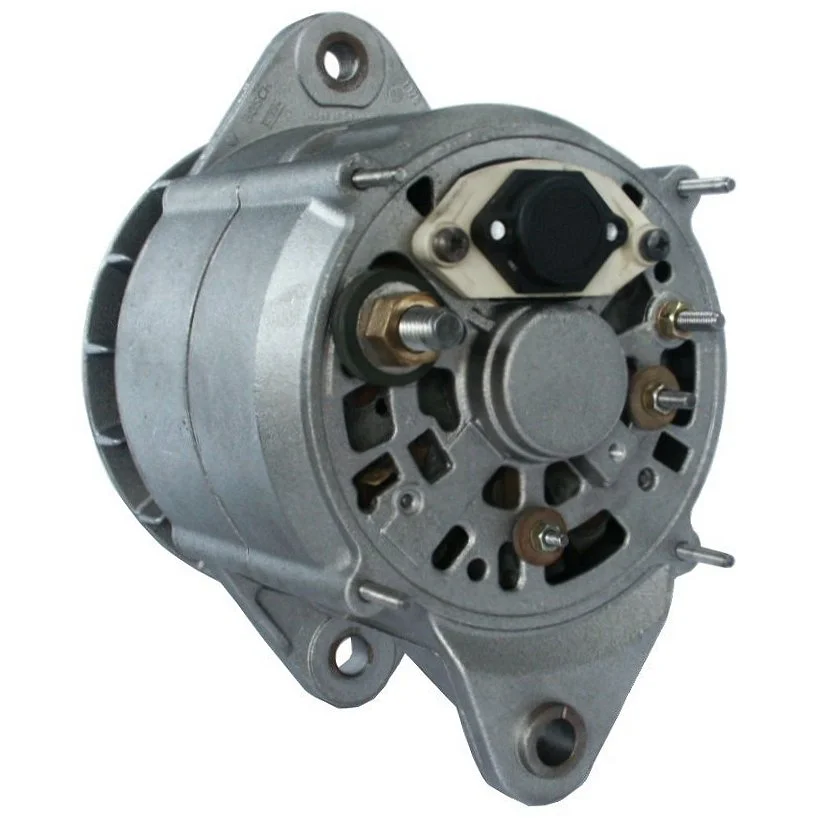

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 65, Rotation: CW, Mount. bracket dist.: 100.00

Description

Voltage: 28
Amp: 65
Terminal: W
Width/holder arm: 14.00
Mounting bracket distance: 100.00
Bracket hole: 13.00
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 1/2" UNC
Radius: 99.00
Radius 2: 99.00
B+: 7/16" UNC
Position/B+ in min.: 50
D+ Size: M4
Rotation: CW
W plug type: M5
Total length mm: 232.00
Pulley: w/o
Regulator type: IR
Product info: BN
Servicing: Case

Files

  • OEM
    F032112493, R941543, 1986A01124, 860568, 1964860A1, 1964860C1, 3923624, 76085195, 0120468054, 0120468147

  • Normalised article numbler
    alt10319, cal10643, dra0717, f032112493, r941543, 1986a01124, 12149, 12149n, 111948, 485887, 860568, 1964860a1, 1964860c1, 3923624, 12090721, 76085195, 0120468054, 0120468147, 646033065, 0986043507
  • Description
    Voltage: 28
    Amp: 65
    Terminal: W
    Width/holder arm: 14.00
    Mounting bracket distance: 100.00
    Bracket hole: 13.00
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 1/2" UNC
    Radius: 99.00
    Radius 2: 99.00
    B+: 7/16" UNC
    Position/B+ in min.: 50
    D+ Size: M4
    Rotation: CW
    W plug type: M5
    Total length mm: 232.00
    Pulley: w/o
    Regulator type: IR
    Product info: BN
    Servicing: Case

    Files

  • Suitable for these vehicles

    • OEM
      F032112493, R941543, 1986A01124, 860568, 1964860A1, 1964860C1, 3923624, 76085195, 0120468054, 0120468147

    • Normalised article numbler
      alt10319, cal10643, dra0717, f032112493, r941543, 1986a01124, 12149, 12149n, 111948, 485887, 860568, 1964860a1, 1964860c1, 3923624, 12090721, 76085195, 0120468054, 0120468147, 646033065, 0986043507
