HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112992

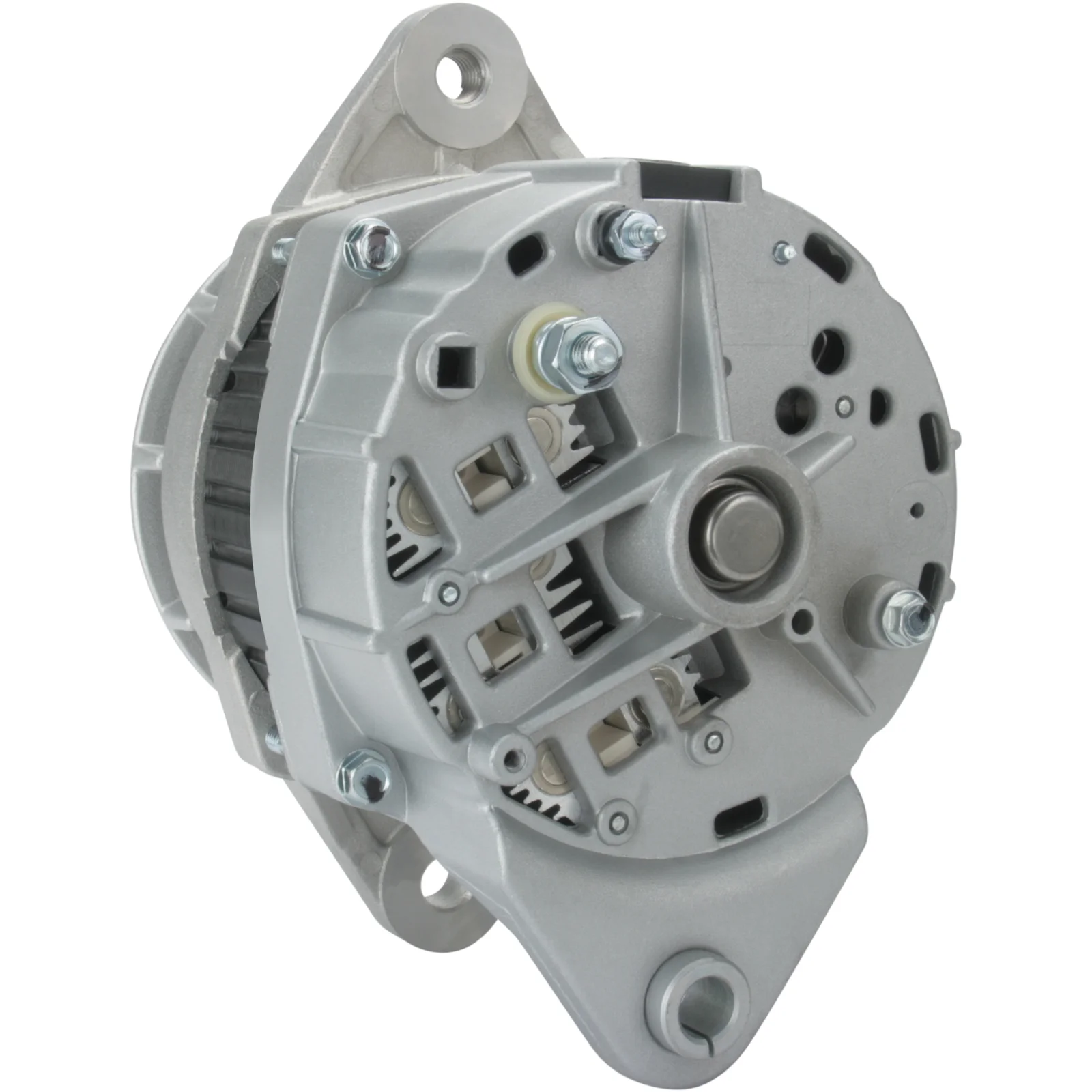

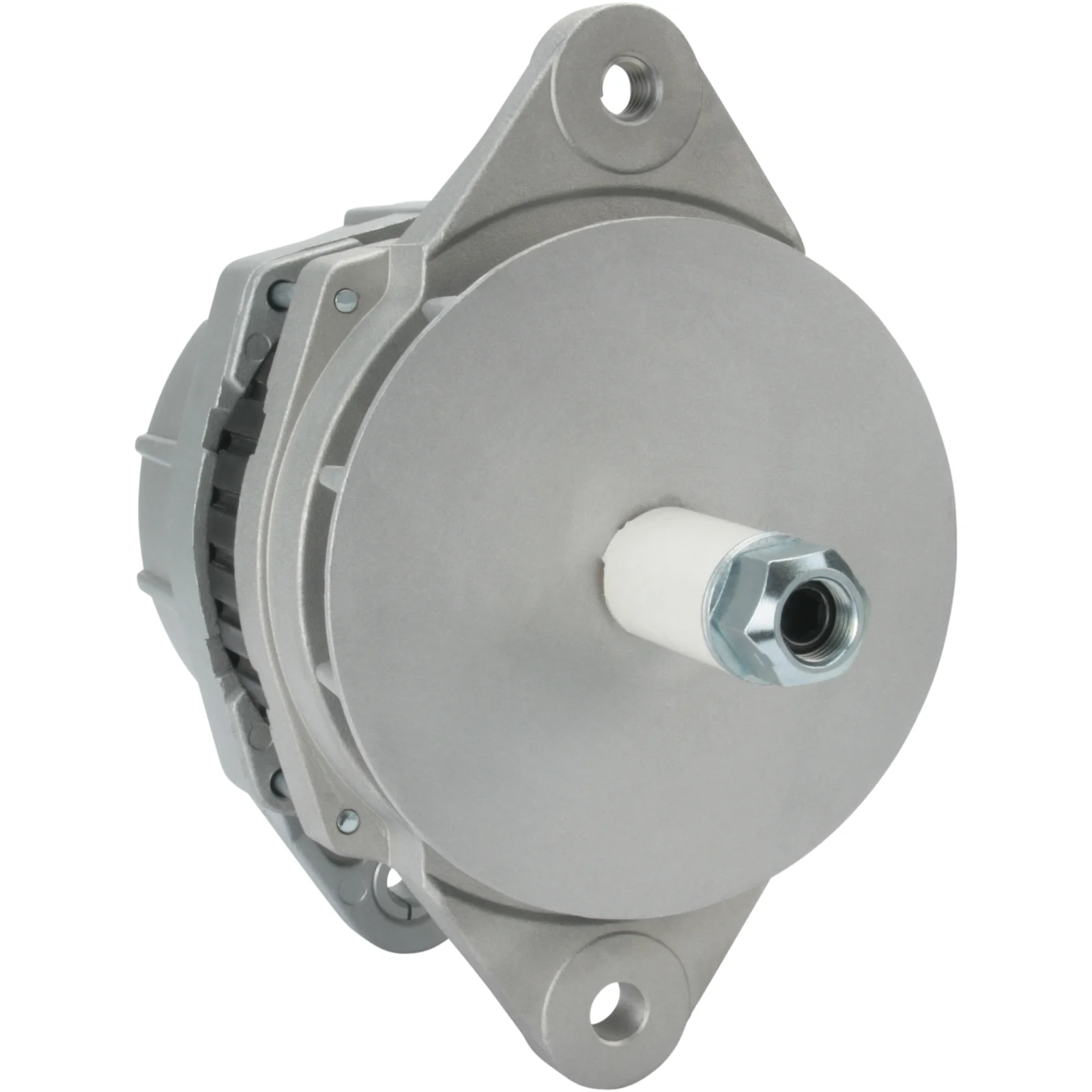

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 70, Rotation: CW, Mounting bracket distance: 101.50

Description

Voltage: 28
Amp: 70
Width/holder arm: 14.50
Mounting bracket dist.: 101.50
Bracket hole: 13.20
Belt adjustment bracket hole position.: 60
Belt adjustment bracket hole 1: 1/2" UNC
Radius: 98.00
Radius 2: 100.50
B+: 5/16" UNC
Position/B+ in min.: 50
Rotation: CW
Total length mm: 220.50
Pulley: w/o
Regulator type: IR
Prod. info: BN
Remarks: Replacing: 20SI. Negative grounding. One-wire system. B+: 5/16".

Files

  • Description
    Voltage: 28
    Amp: 70
    Width/holder arm: 14.50
    Mounting bracket dist.: 101.50
    Bracket hole: 13.20
    Belt adjustment bracket hole position.: 60
    Belt adjustment bracket hole 1: 1/2" UNC
    Radius: 98.00
    Radius 2: 100.50
    B+: 5/16" UNC
    Position/B+ in min.: 50
    Rotation: CW
    Total length mm: 220.50
    Pulley: w/o
    Regulator type: IR
    Prod. info: BN
    Remarks: Replacing: 20SI. Negative grounding. One-wire system. B+: 5/16".

    Files

  • Suitable for these vehicles
