HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113457

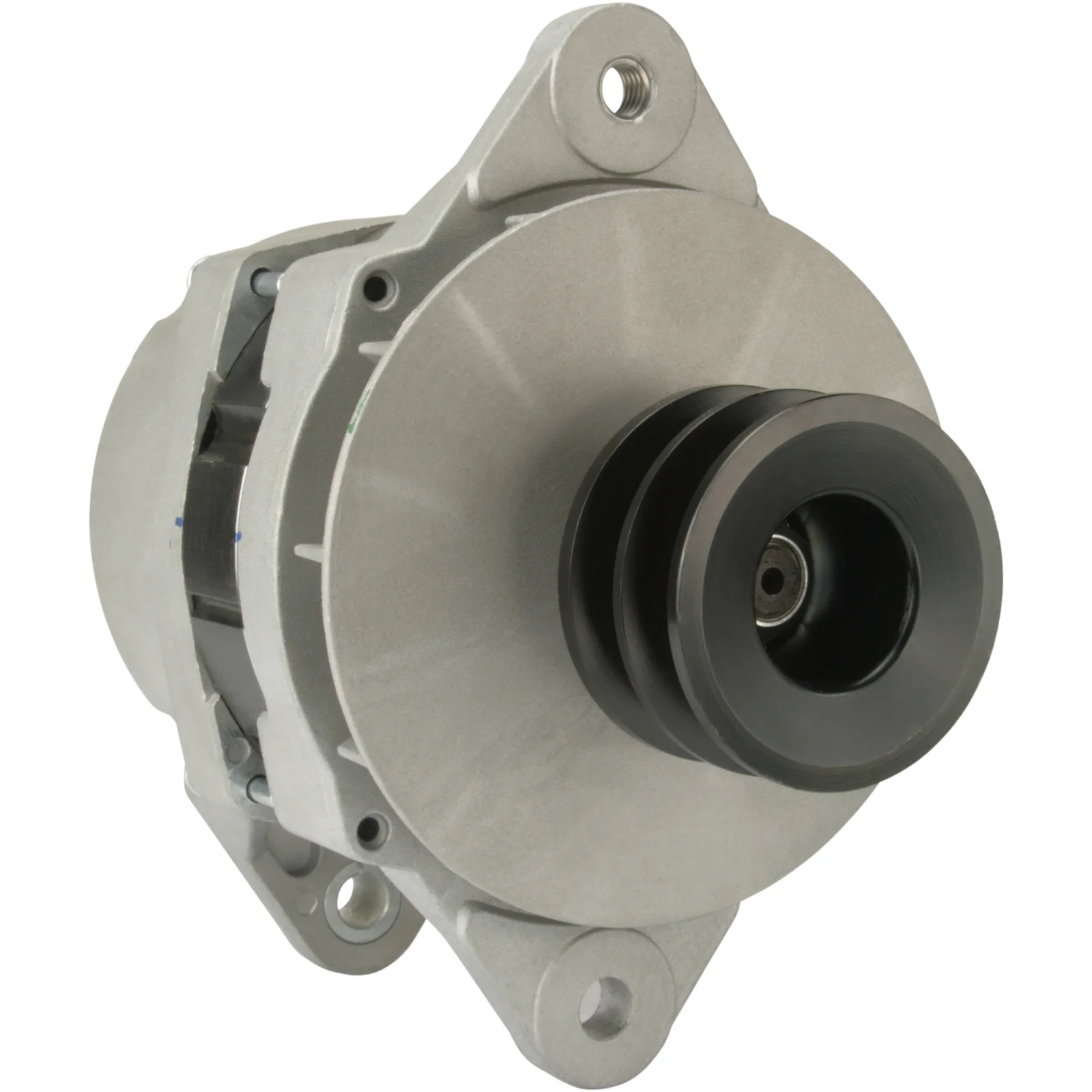

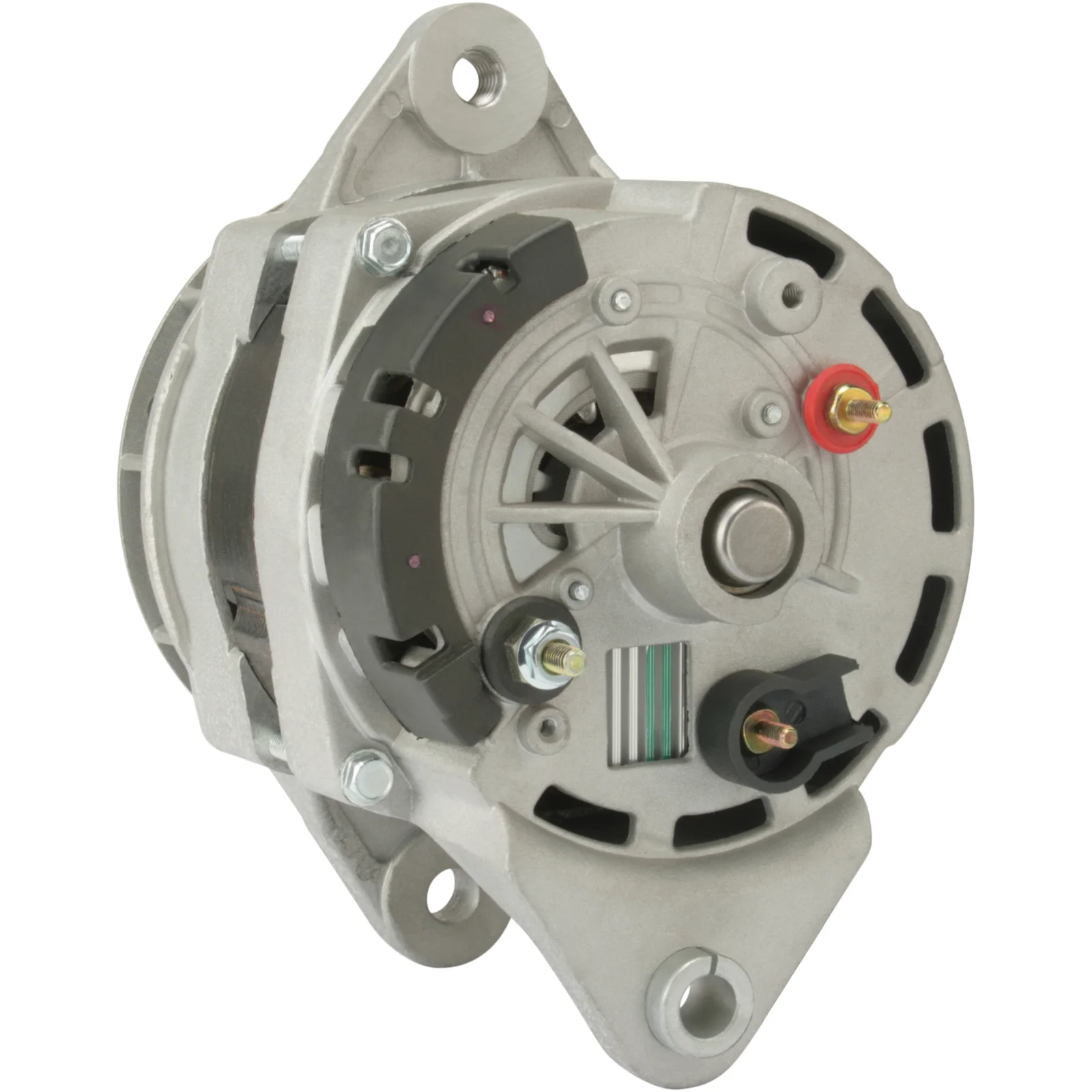

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 60, Rotation: CW, Mount. bracket dist.: 101.00

Description

Voltage: 28
Amp: 60
Terminal: W
Pulley distance: 66.00
Width/holder arm: 14.00
Mounting bracket distance: 101.00
Bracket hole: 12.50
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 1/2" UNF
Pulley diameter: 75.70
Grooves/pulley: 2
Radius: 99.00
Radius 2: 99.00
B+: M6
Position/B+ in minutes: 40
D+ Size: M5
Rotation: CW
W plug type: M5
Total length mm: 230.00
Pulley: DP
Voltage regulator type: IR
Product info: BN

Files

  • Description
    Voltage: 28
    Amp: 60
    Terminal: W
    Pulley distance: 66.00
    Width/holder arm: 14.00
    Mounting bracket distance: 101.00
    Bracket hole: 12.50
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 1/2" UNF
    Pulley diameter: 75.70
    Grooves/pulley: 2
    Radius: 99.00
    Radius 2: 99.00
    B+: M6
    Position/B+ in minutes: 40
    D+ Size: M5
    Rotation: CW
    W plug type: M5
    Total length mm: 230.00
    Pulley: DP
    Voltage regulator type: IR
    Product info: BN
