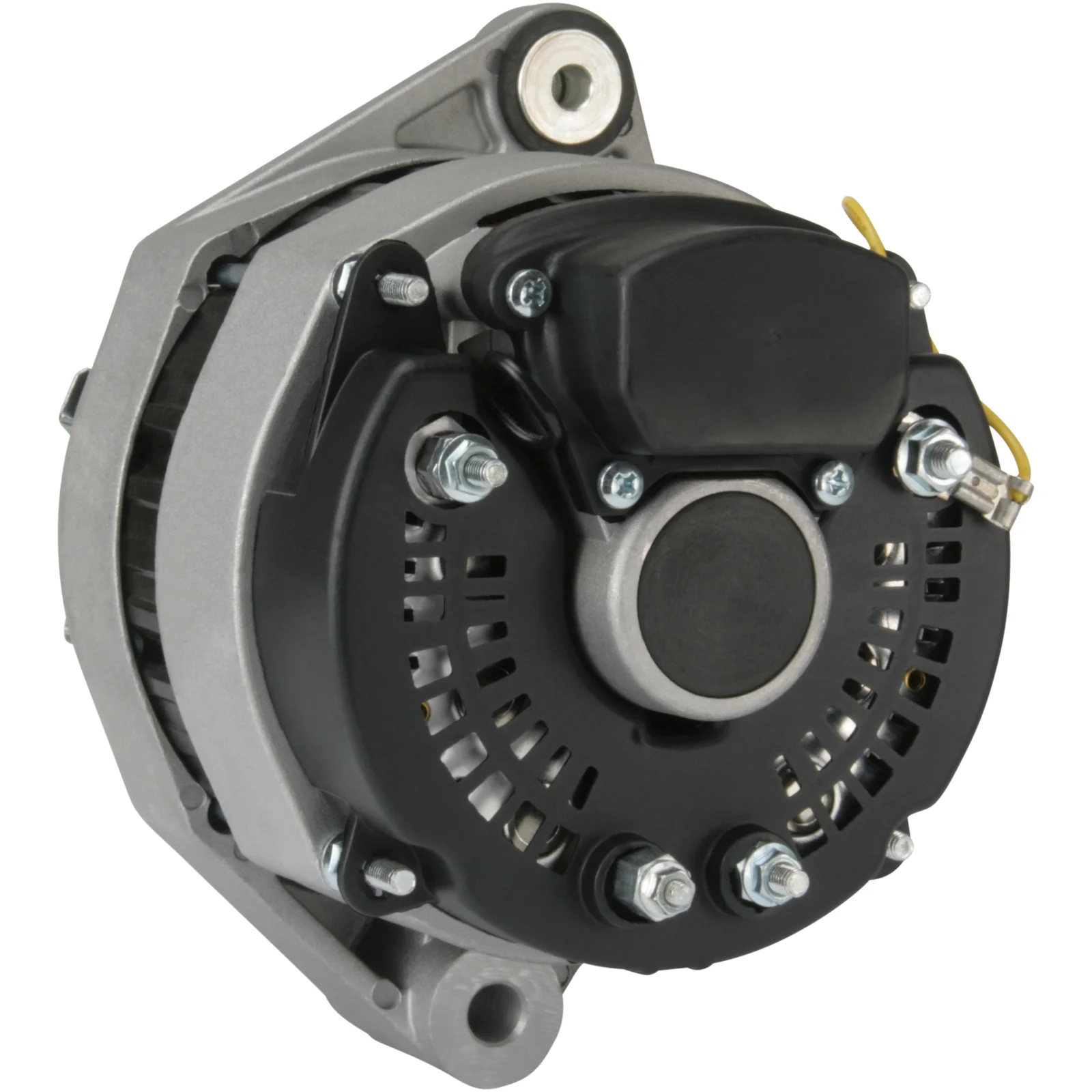

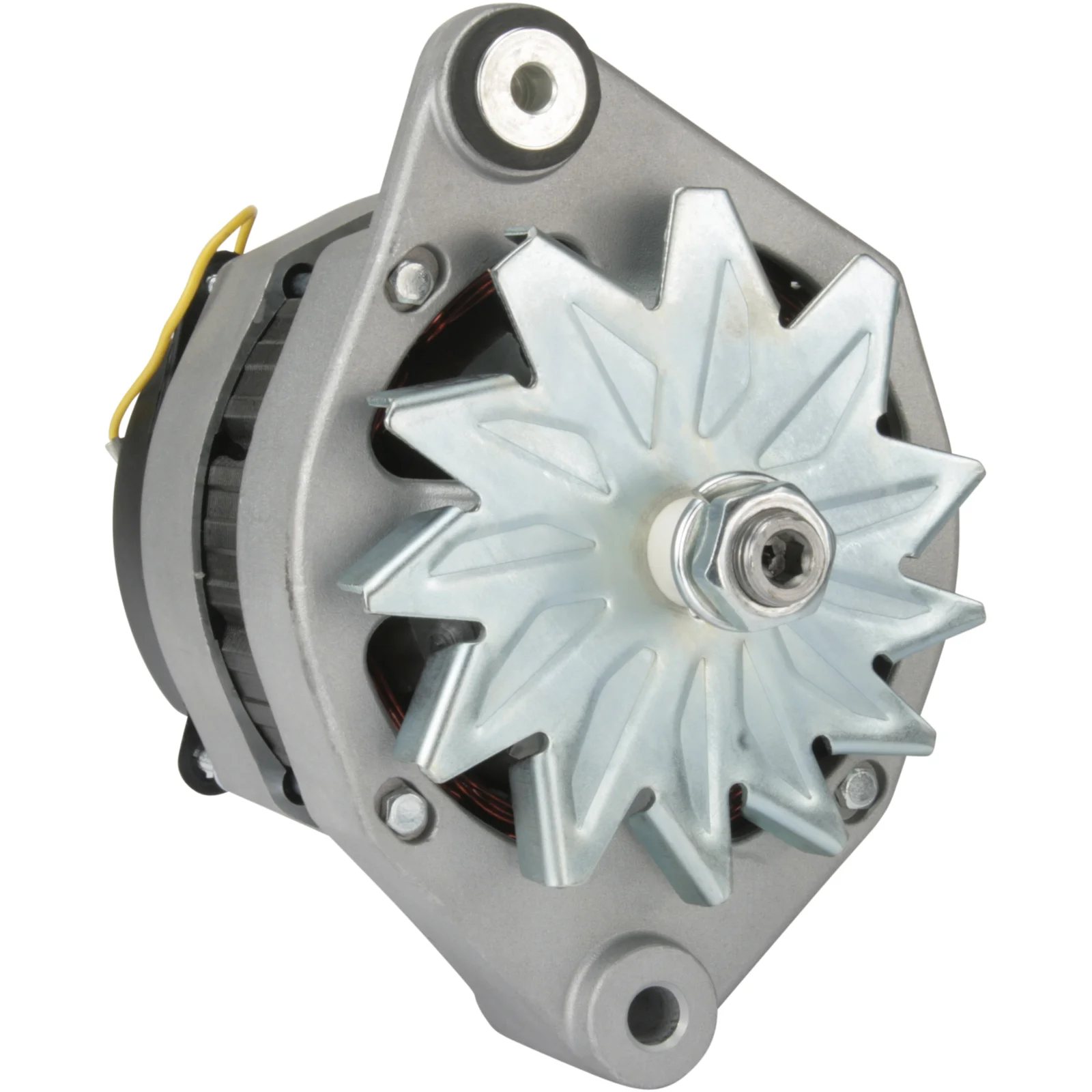

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113477

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 55, Rotation: CW, Radius: 86.00

Description

Voltage: 28
Amp: 55
Insulated return: Yes
Terminal: W
Width/holder arm: 50.80
Bracket hole: 11.60
Belt. adj. bracket hole position: 57
Belt. adj. bracket hole 1: 8.00
Radius: 86.00
Radius 2: 86.00
B+: M6
Position/B+: in min.: 5
D+ Size: M5-6.30
Rotation: CW
W plug type: M4
Total length mm: 184.00
Pulley: without
Voltage regulator type: IR
Prod. info: BN
Servicing: Volvo BM

Files

  • OEM
    a14n100, a14n100m, a14n112m, a14n119m, a14n137m, a14n47m, a14n81m, AAK1383, aak3334, F032113477, 11.201.746, 11.201.939, 857ir, 181991, 1516638R, 2181991, 2181991C, 2541168, 2940060, 0986033841

  • Normalised article numbler
    a14n100, a14n100m, a14n112m, a14n119m, a14n137m, a14n47m, a14n81m, a3060, aak1383, aak3334, al5002n, cal15605, dra3841, f032113477, ia0710, ia0746, lra00474, lra02503, mg130, na363, 8el731718001, 857ir, 5272, 12110, 12110n, 12110r, 30857ri, 75635, 75777, 75787, 75789, 75790, 180620, 181991, 202075, 210008, 210008a, 436437, 436438, 480848, 481501, 481758, 483764, 592601, 1516638r, 2181991, 2181991c, 2541168, 2940060, 9931190, 9933840, 11201746, 11201939, 12033840, 238110454, 238110554, 500109554, 538114604, 538115554, 943356188, 943357557, 0986031190, 0986033840, 0986033841
  • Description
    Voltage: 28
    Amp: 55
    Insulated return: Yes
    Terminal: W
    Width/holder arm: 50.80
    Bracket hole: 11.60
    Belt. adj. bracket hole position: 57
    Belt. adj. bracket hole 1: 8.00
    Radius: 86.00
    Radius 2: 86.00
    B+: M6
    Position/B+: in min.: 5
    D+ Size: M5-6.30
    Rotation: CW
    W plug type: M4
    Total length mm: 184.00
    Pulley: without
    Voltage regulator type: IR
    Prod. info: BN
    Servicing: Volvo BM

    Files

  • Suitable for these vehicles

    • OEM
      a14n100, a14n100m, a14n112m, a14n119m, a14n137m, a14n47m, a14n81m, AAK1383, aak3334, F032113477, 11.201.746, 11.201.939, 857ir, 181991, 1516638R, 2181991, 2181991C, 2541168, 2940060, 0986033841

    • Normalised article numbler
      a14n100, a14n100m, a14n112m, a14n119m, a14n137m, a14n47m, a14n81m, a3060, aak1383, aak3334, al5002n, cal15605, dra3841, f032113477, ia0710, ia0746, lra00474, lra02503, mg130, na363, 8el731718001, 857ir, 5272, 12110, 12110n, 12110r, 30857ri, 75635, 75777, 75787, 75789, 75790, 180620, 181991, 202075, 210008, 210008a, 436437, 436438, 480848, 481501, 481758, 483764, 592601, 1516638r, 2181991, 2181991c, 2541168, 2940060, 9931190, 9933840, 11201746, 11201939, 12033840, 238110454, 238110554, 500109554, 538114604, 538115554, 943356188, 943357557, 0986031190, 0986033840, 0986033841
