HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113549

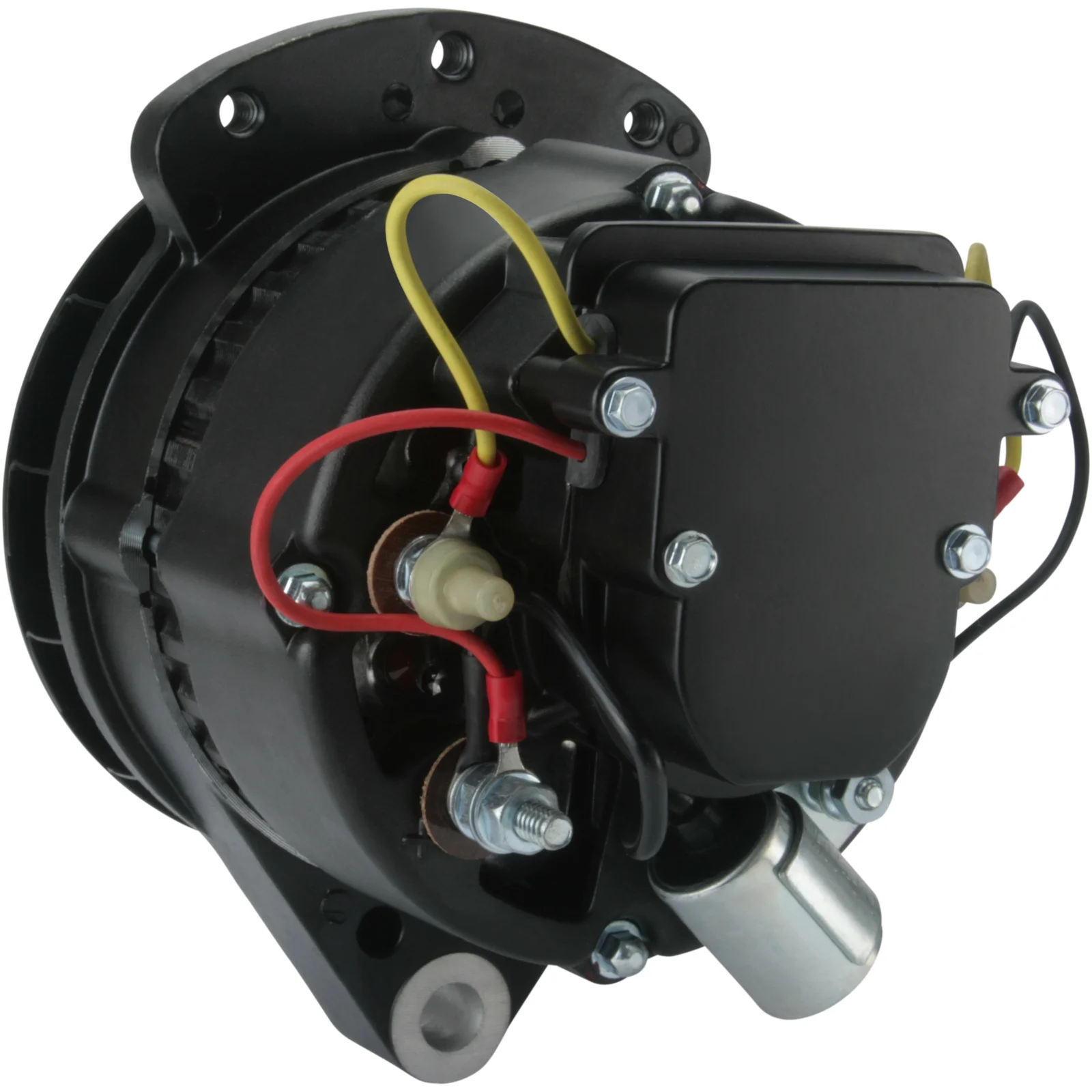

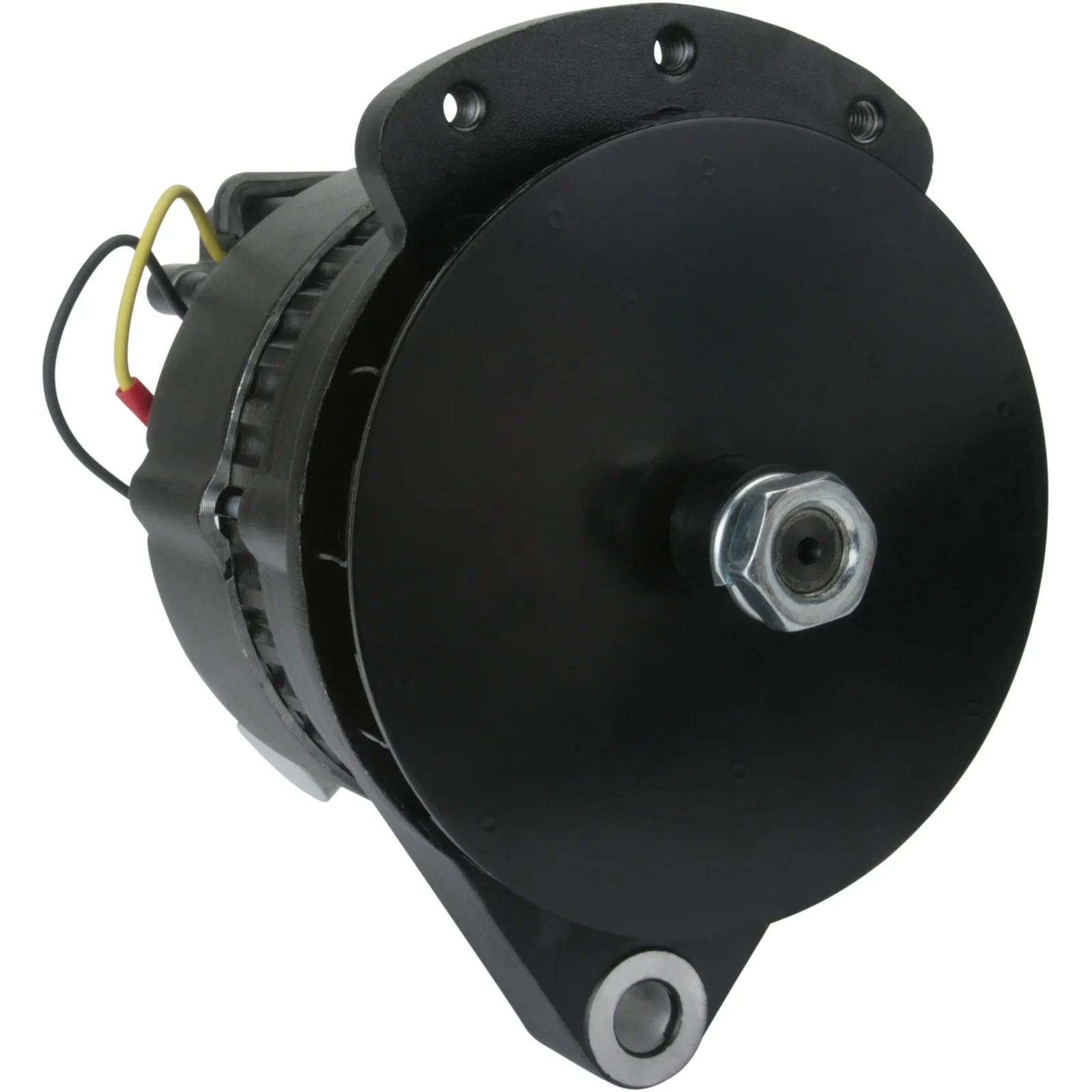

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 35, Rotation: CW, Radius: 90.00

Description

Voltage: 28
Amp: 35
Insulated return: Yes
Width/holder arm: 27.20
Bracket hole: 13.00
Belt. adj. brackethole pos.: 55
Belt. adj. brackethole pos. 3: 5
Belt. adj. brackethole pos. 2: 60
Belt. adj. bracket hole 1: 5/16" UNC
Belt. adj. bracket hole 2: 5/16" UNC
Belt. adj. bracket hole 3: 5/16" UNC
Radius: 90.00
Radius 2: 83.00
Radius 3: 82.00
Radius 4: 83.00
B+: 1/4" UNC
Position/B+ in min.: 40
Rotation: CW
W plug type: 3/16" UNF
Total length mm: 186.00
One Wire hookup (Self exciting): Yes
Pulley: w/o
Voltage regulator: IR
Product info: BN
Servicing: Caterpillar
Remarks: D+ = 3/16 W.

Files

  • OEM
    0R3653, F032113549, 6T1395, 7T2095, 8hc3022f, 8HC3022FS, 8hc3025f, 110-285, 110-313

  • Normalised article numbler
    0r3653, alt32015, cal11609, cal11624, dra0274, f032113549, lra02514, 6t1395, 7t2095, 8hc3022f, 8hc3022fs, 8hc3025f, 8050, 8050n, 110285, 110313, 483987
  • Description
    Voltage: 28
    Amp: 35
    Insulated return: Yes
    Width/holder arm: 27.20
    Bracket hole: 13.00
    Belt. adj. brackethole pos.: 55
    Belt. adj. brackethole pos. 3: 5
    Belt. adj. brackethole pos. 2: 60
    Belt. adj. bracket hole 1: 5/16" UNC
    Belt. adj. bracket hole 2: 5/16" UNC
    Belt. adj. bracket hole 3: 5/16" UNC
    Radius: 90.00
    Radius 2: 83.00
    Radius 3: 82.00
    Radius 4: 83.00
    B+: 1/4" UNC
    Position/B+ in min.: 40
    Rotation: CW
    W plug type: 3/16" UNF
    Total length mm: 186.00
    One Wire hookup (Self exciting): Yes
    Pulley: w/o
    Voltage regulator: IR
    Product info: BN
    Servicing: Caterpillar
    Remarks: D+ = 3/16 W.

    Files

  • Suitable for these vehicles

    • OEM
      0R3653, F032113549, 6T1395, 7T2095, 8hc3022f, 8HC3022FS, 8hc3025f, 110-285, 110-313

    • Normalised article numbler
      0r3653, alt32015, cal11609, cal11624, dra0274, f032113549, lra02514, 6t1395, 7t2095, 8hc3022f, 8hc3022fs, 8hc3025f, 8050, 8050n, 110285, 110313, 483987
