Article no.: F032113714

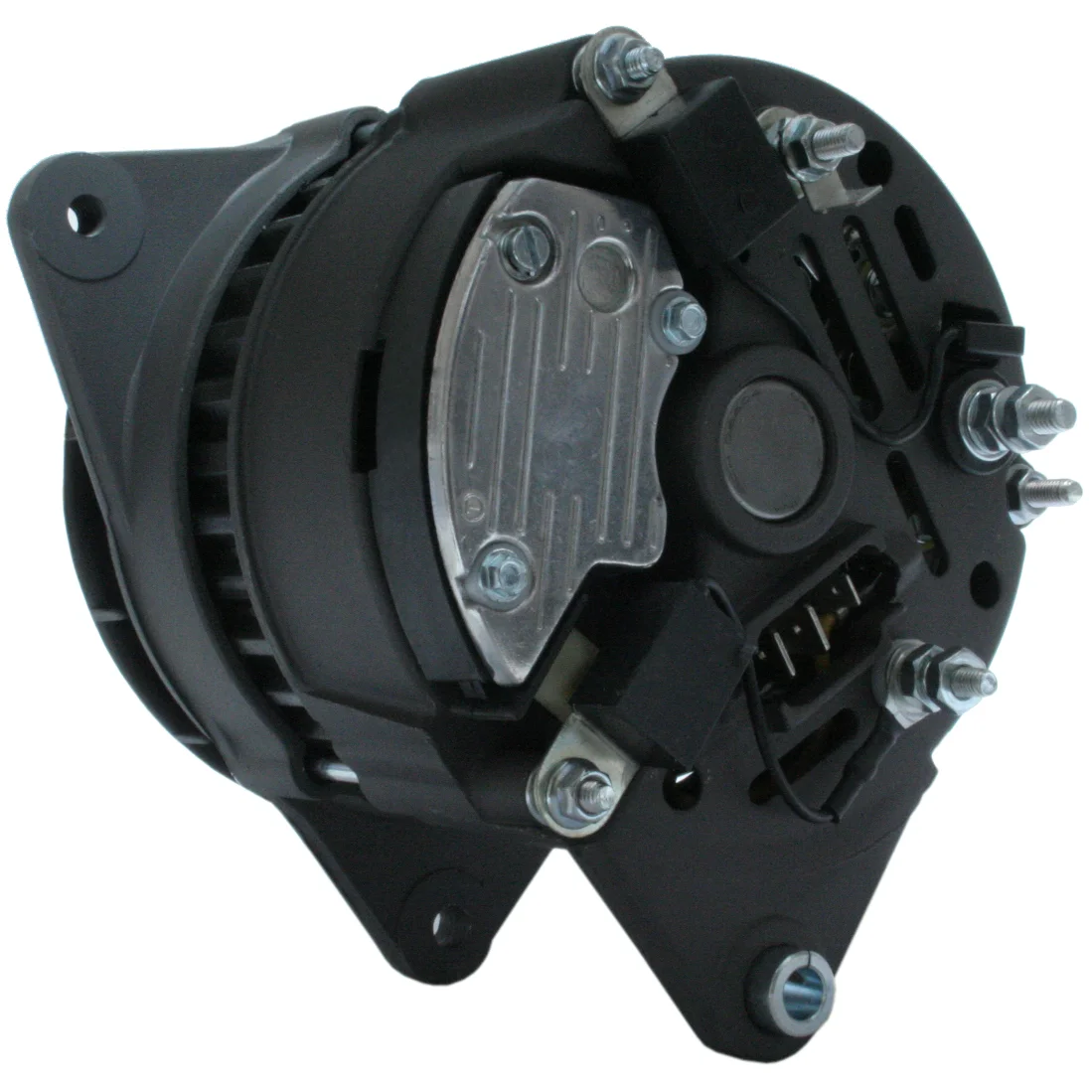

HC-Cargo Alternator

Technical info:

Voltage: 28, Amperage: 55, Rotation: CW, Mounting bracket distance: 83.00

Description

Voltage: 28
Amp: 55
Insulated return: Yes
Terminal: W
Pulley dist.: 45.50
Width/holder arm: 11.20
Mount. bracket dist.: 83.00
Bracket hole: 8.20
Belt. adj. bracket hole 1: M8
Pulley dia.: 81.20
Grooves/pulley: 1
Radius: 86.00
Radius 2: 86.00
B+: M6
Position/B+ in min.: 14
D+ Size: Plug
Rotation: CW
Plug no.: PL22
W plug type: M5-6.30
Total length mm: 169.00
Pulley: P
Voltage regulator type: IR
Product info: BN
Servicing: Marine

Files

  • Description
    Voltage: 28
    Amp: 55
    Insulated return: Yes
    Terminal: W
    Pulley dist.: 45.50
    Width/holder arm: 11.20
    Mount. bracket dist.: 83.00
    Bracket hole: 8.20
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 81.20
    Grooves/pulley: 1
    Radius: 86.00
    Radius 2: 86.00
    B+: M6
    Position/B+ in min.: 14
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL22
    W plug type: M5-6.30
    Total length mm: 169.00
    Pulley: P
    Voltage regulator type: IR
    Product info: BN
    Servicing: Marine

    Files

  • Suitable for these vehicles
