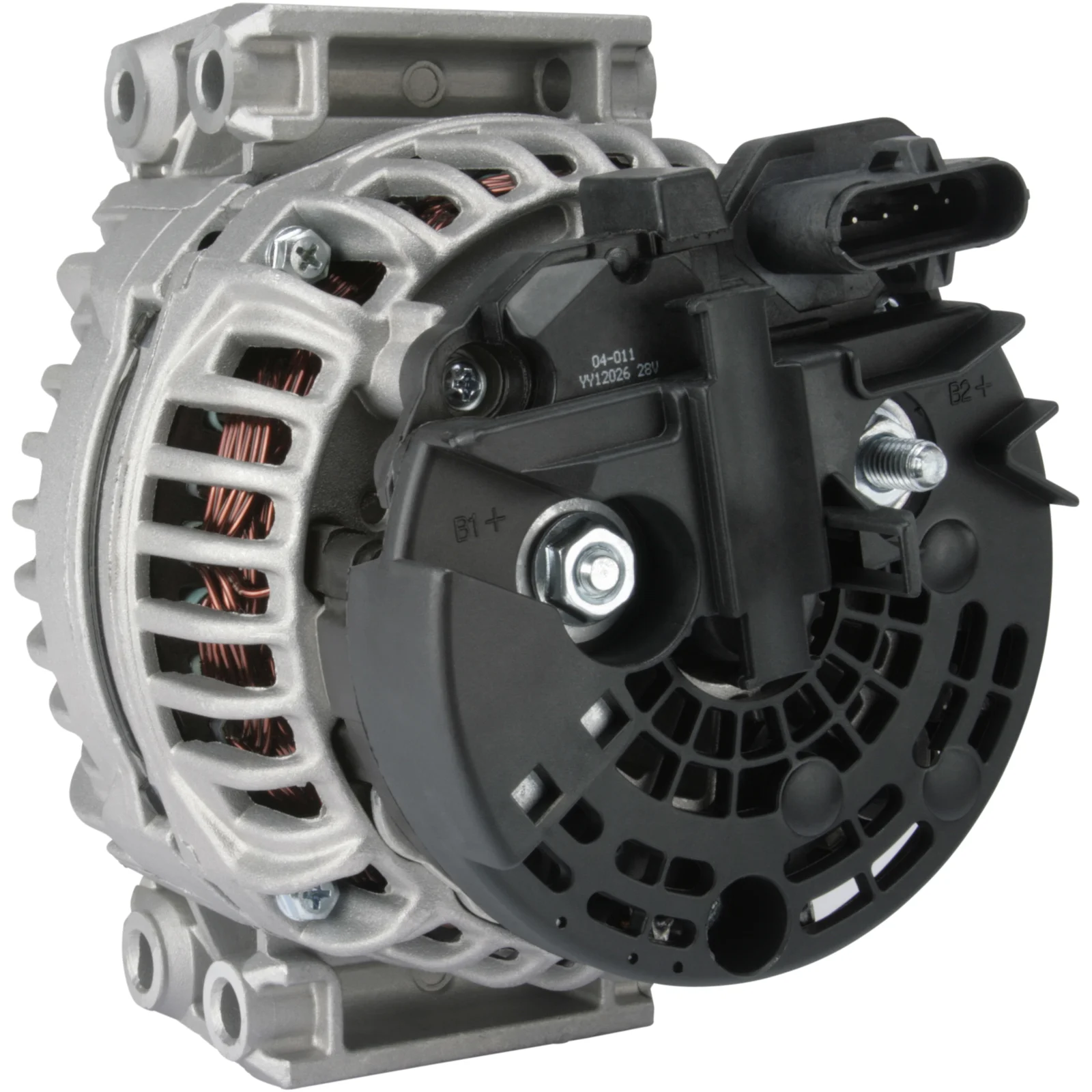

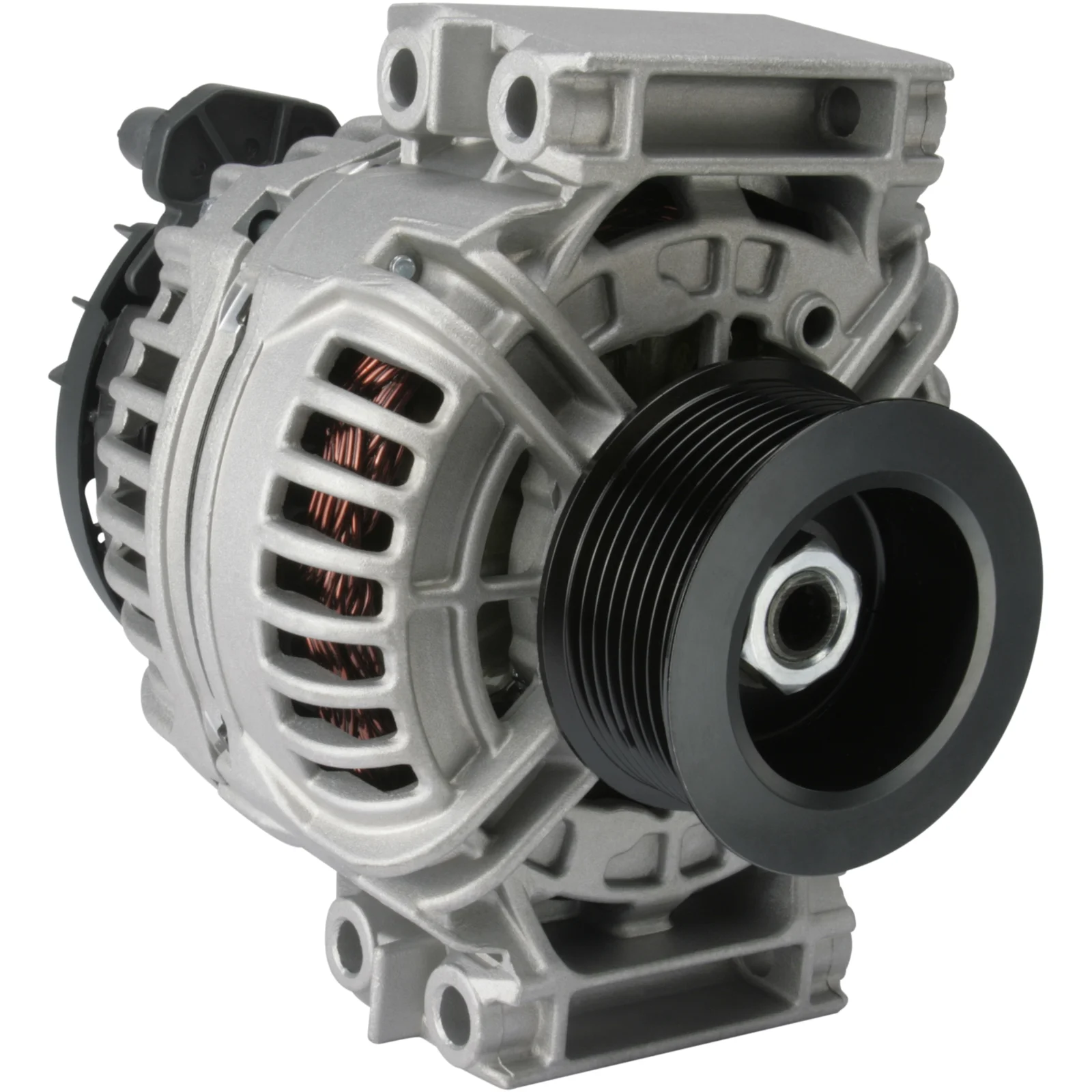

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114028

HC-Cargo Alternator

Technical info:

Voltage: 28, Amps: 80, Rotation: CW, Mounting bracket distance: 35.50

Description

Voltage: 28
Amp: 80
Terminal: W
Pulley dist.: 21.00
Width/holder arm: 85.00
Mount. bracket dist.: 35.50
Bracket hole: 8.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 9.50
Pulley dia.: 72.00
Grooves/pulley: 8
B+: M8
Position/B+ in min.: 10
D+ Size: Plug
Rotation: CW
Plug no.: PL82
W plug type: Plug
Pulley: SP
Regulator type: IR

Files

  • OEM
    AAN5401, F032114028, 11.209.612, 1851ir, 1986A00534, 1986A00916, 0518064, 571613, 1442788, 1475570, 1524011R, 72446574, 0124555008

  • Normalised article numbler
    a0124, a0137, aan5401, cal10638, drb6580, f032114028, ia9460, mg796, 8el012584061, 1851ir, 1986a00534, 1986a00916, 23833n, 111789, 210592, 210592a, 301851ri, 443210, 443520, 444447, 484951, 0518064, 571613, 1442788, 1475570, 1524011r, 9946580, 11209612, 12046580, 32046580, 72446574, 0124555008, 532107804, 0986046580
  • Description
    Voltage: 28
    Amp: 80
    Terminal: W
    Pulley dist.: 21.00
    Width/holder arm: 85.00
    Mount. bracket dist.: 35.50
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 9.50
    Pulley dia.: 72.00
    Grooves/pulley: 8
    B+: M8
    Position/B+ in min.: 10
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL82
    W plug type: Plug
    Pulley: SP
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      AAN5401, F032114028, 11.209.612, 1851ir, 1986A00534, 1986A00916, 0518064, 571613, 1442788, 1475570, 1524011R, 72446574, 0124555008

    • Normalised article numbler
      a0124, a0137, aan5401, cal10638, drb6580, f032114028, ia9460, mg796, 8el012584061, 1851ir, 1986a00534, 1986a00916, 23833n, 111789, 210592, 210592a, 301851ri, 443210, 443520, 444447, 484951, 0518064, 571613, 1442788, 1475570, 1524011r, 9946580, 11209612, 12046580, 32046580, 72446574, 0124555008, 532107804, 0986046580
