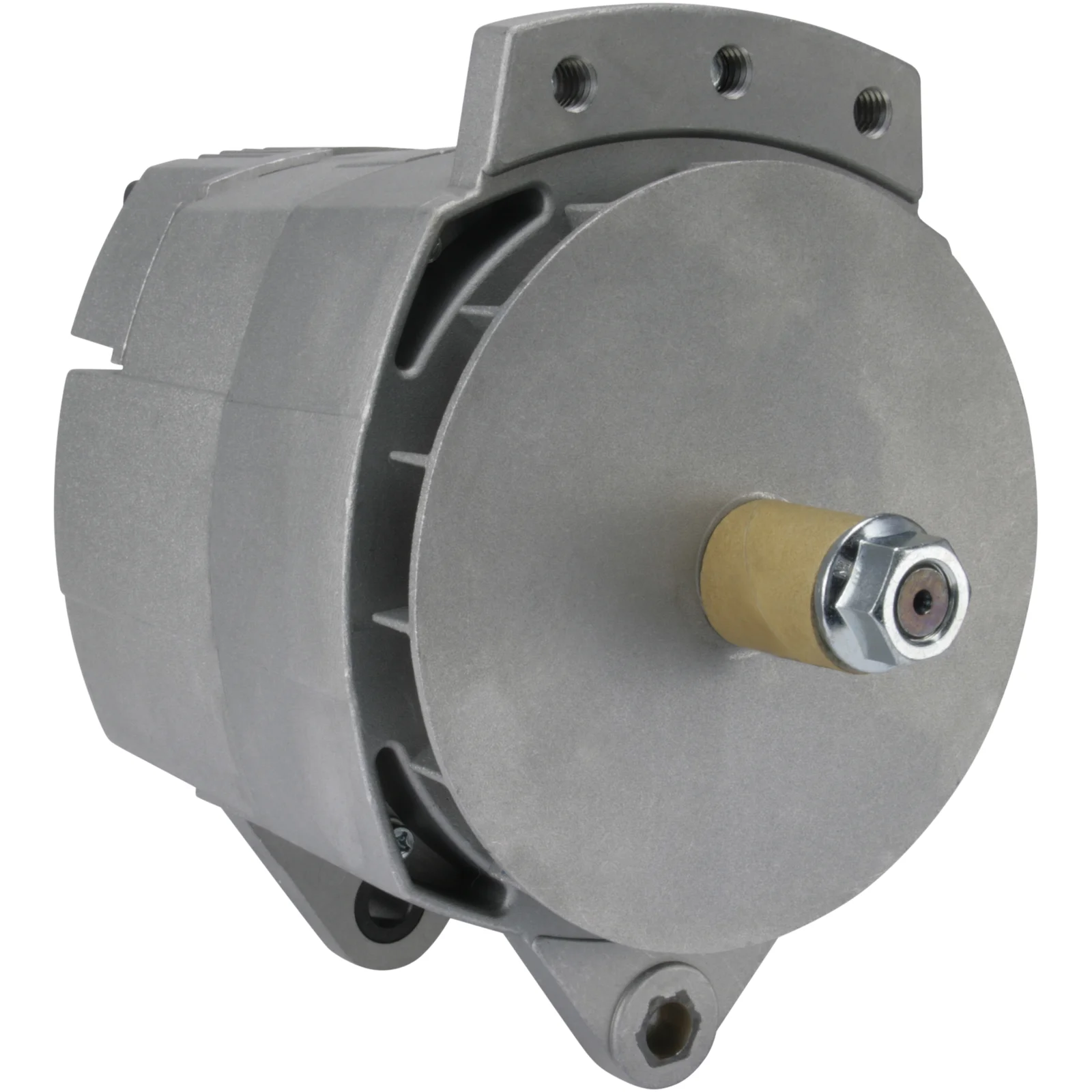

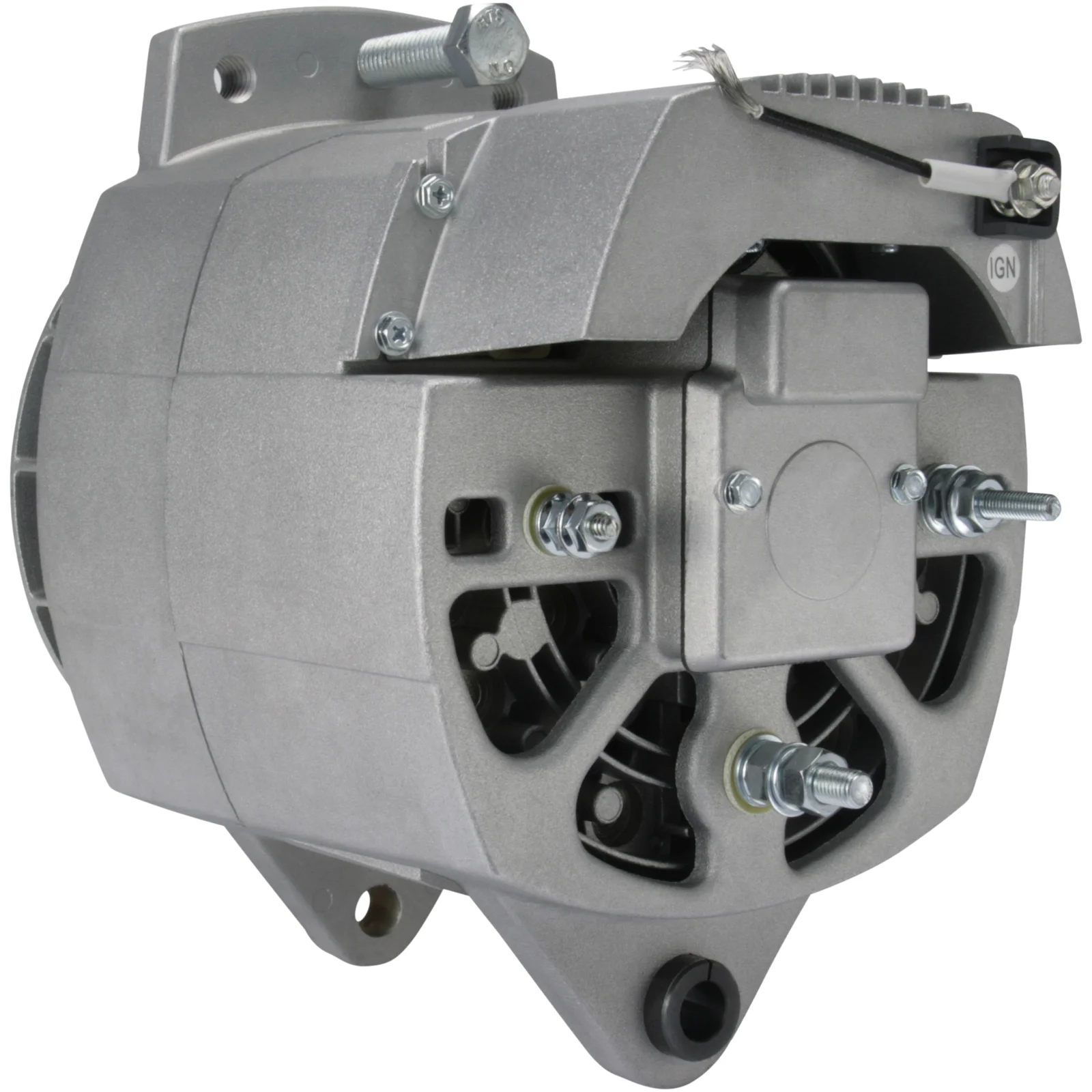

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114347

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 150, Rotation: CW, Mounting bracket distance: 102.00

Description

Voltage: 28
Amp: 150
Insulated return: Yes
Width/holder arm: 14.50
Mount. bracket dist.: 102.00
Bracket hole: 13.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 1/2" UNC
Radius: 108.00
Radius 2: 104.00
B+: 5/16" UNC
Position/B+ in min.: 30
Rotation: CW
Total length mm: 249.00
Pulley: without
Fan: EF

Files

  • OEM
    F032114347, 8sc3068v, 8SC3068VC, 8SC3160V, 10R7946, 110-431, 306-2174, 1501935, 3640732

  • Normalised article numbler
    alt0190, cal11635, dra0266, f032114347, f042308015, f042a08015, mg304, 8sc3068v, 8sc3068vc, 8sc3160v, 10r7946, 110431, 1501935, 3062174, 3640732, 646036150
  • Description
    Voltage: 28
    Amp: 150
    Insulated return: Yes
    Width/holder arm: 14.50
    Mount. bracket dist.: 102.00
    Bracket hole: 13.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 1/2" UNC
    Radius: 108.00
    Radius 2: 104.00
    B+: 5/16" UNC
    Position/B+ in min.: 30
    Rotation: CW
    Total length mm: 249.00
    Pulley: without
    Fan: EF

    Files

  • Suitable for these vehicles

    • OEM
      F032114347, 8sc3068v, 8SC3068VC, 8SC3160V, 10R7946, 110-431, 306-2174, 1501935, 3640732

    • Normalised article numbler
      alt0190, cal11635, dra0266, f032114347, f042308015, f042a08015, mg304, 8sc3068v, 8sc3068vc, 8sc3160v, 10r7946, 110431, 1501935, 3062174, 3640732, 646036150
