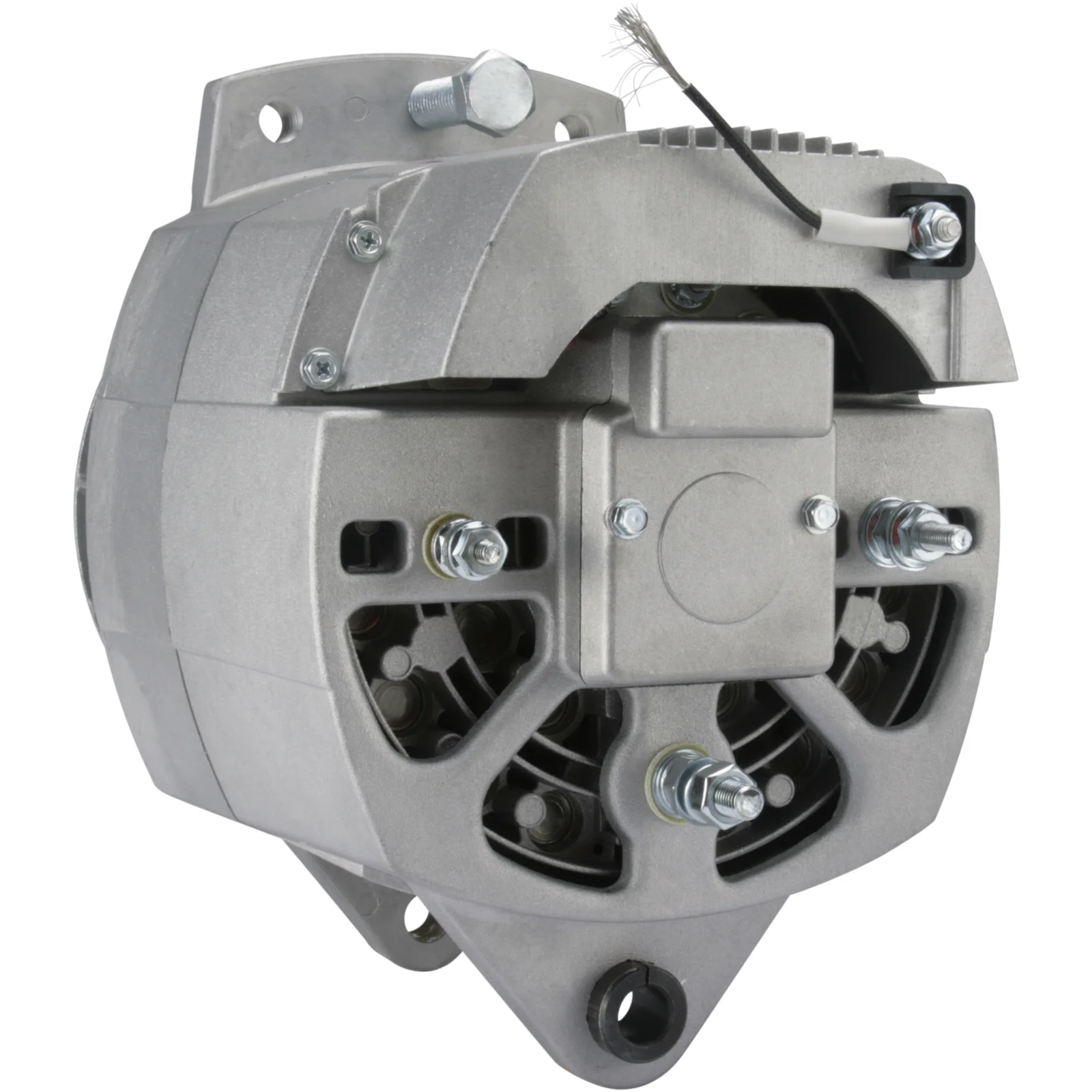

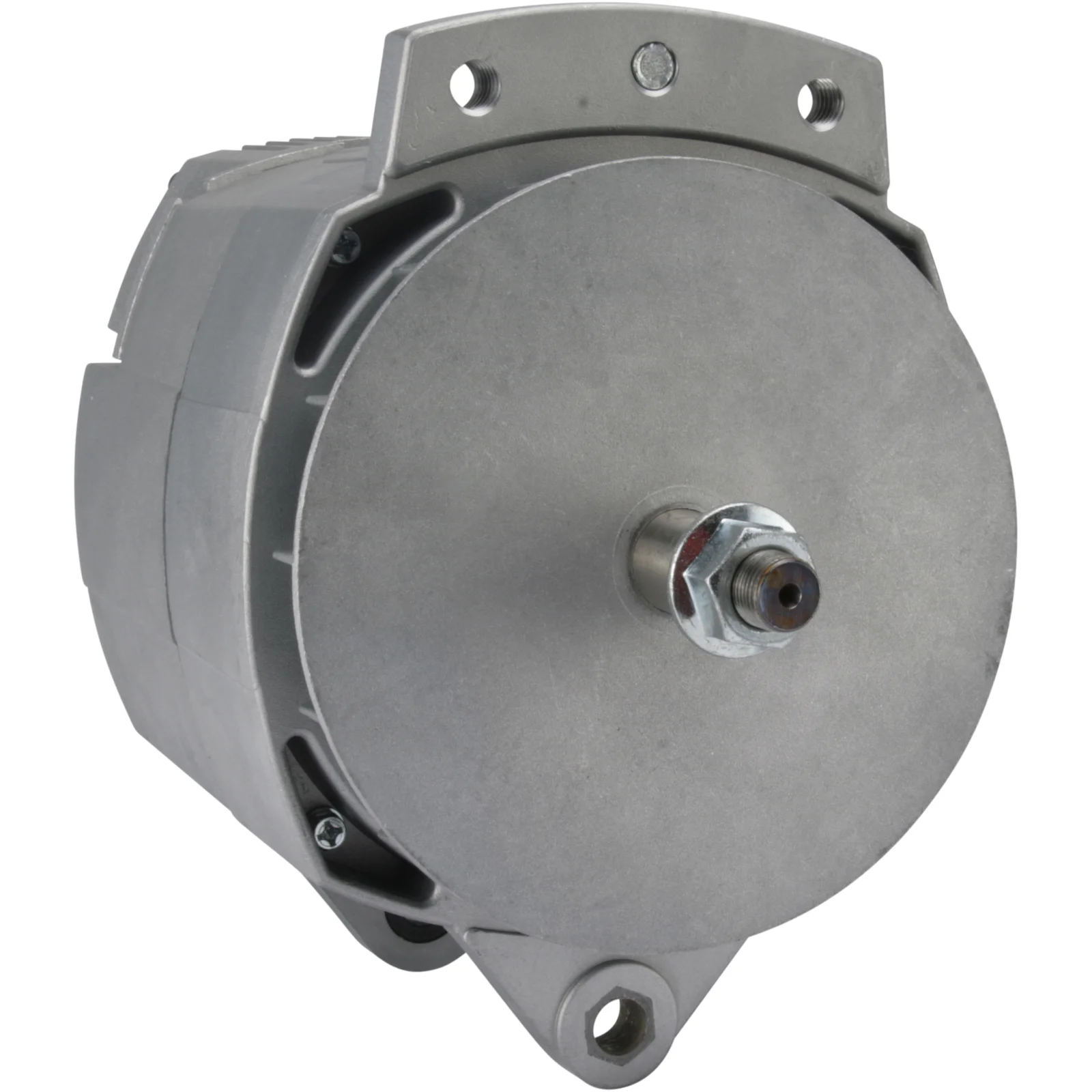

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114348

HC-Cargo Alternator

Technical info:

Voltage: 28, Amperage: 150, Rotation: CW, Mounting bracket distance: 102.20

Description

Voltage: 28 Amp: 150 Width/holder arm: 13.00 Mounting bracket distance: 102.20 Bracket hole: 13.00 Belt adjustment bracket hole 1: 1/2" UNC Radius: 108.00 Radius 2: 103.00 B+: 5/16" UNC Position/B+ in minutes: 30 Rotation: CW W plug type: 10-24 UNC Total length mm: 266.50 Pulley: w/o Regulator type: IR Prod. info: BN Remarks: For batteryless system

Files

  • OEM
    ATS92905, F032114348, L8SC3110VC, 8SC3110V, 8SC3110VC, 8SC3110VC09, 8SC3110VC111, 8SC3110VC117, 8SC3110VC118, 8SC3110VC120, 8SC3110VC120E, 8SC3110VC17, 8SC3110VC18, 8SC3110VC23, 8SC3110VC37, 8SC3110VC39, 8SC3110VC40, 8SC3110VC42, 8SC3110VC43, 8SC3110VC64, 8SC3110VC65, 8SC3110VC79, 8SC3110VC80, 8SC3110VC81S, 8SC3110VC83, 8SC3110VC91, 8SC3110VC94, 8SC3110VC98, 8SC3110VCH114, 8SC3150VC, 8SC3150VC30, 8SC3150VC30A, 8SC3150VC95, 8SC3151VCA49, 8SC3151VCA59, 8SC3151VCA7, 8SC3151VCA77, 8SC3151VCB7, 8SC3200V, 110-568, 37018000002

  • Normalised article numbler
    a9302s, alt0191, ats92905, cal11611, cal11636, dra0268, f032114348, f042308016, f042308017, f042a08016, l8sc3110vc, 8sc3110v, 8sc3110vc, 8sc3110vc09, 8sc3110vc111, 8sc3110vc117, 8sc3110vc118, 8sc3110vc120, 8sc3110vc120e, 8sc3110vc17, 8sc3110vc18, 8sc3110vc23, 8sc3110vc37, 8sc3110vc39, 8sc3110vc40, 8sc3110vc42, 8sc3110vc43, 8sc3110vc64, 8sc3110vc65, 8sc3110vc79, 8sc3110vc80, 8sc3110vc81s, 8sc3110vc83, 8sc3110vc91, 8sc3110vc94, 8sc3110vc98, 8sc3110vch114, 8sc3150vc, 8sc3150vc30, 8sc3150vc30a, 8sc3150vc95, 8sc3151vca49, 8sc3151vca59, 8sc3151vca7, 8sc3151vca77, 8sc3151vcb7, 8sc3200v, 110568, 553809ri, 37018000002
  • Description
    Voltage: 28 Amp: 150 Width/holder arm: 13.00 Mounting bracket distance: 102.20 Bracket hole: 13.00 Belt adjustment bracket hole 1: 1/2" UNC Radius: 108.00 Radius 2: 103.00 B+: 5/16" UNC Position/B+ in minutes: 30 Rotation: CW W plug type: 10-24 UNC Total length mm: 266.50 Pulley: w/o Regulator type: IR Prod. info: BN Remarks: For batteryless system

    Files

  • Suitable for these vehicles

    • OEM
      ATS92905, F032114348, L8SC3110VC, 8SC3110V, 8SC3110VC, 8SC3110VC09, 8SC3110VC111, 8SC3110VC117, 8SC3110VC118, 8SC3110VC120, 8SC3110VC120E, 8SC3110VC17, 8SC3110VC18, 8SC3110VC23, 8SC3110VC37, 8SC3110VC39, 8SC3110VC40, 8SC3110VC42, 8SC3110VC43, 8SC3110VC64, 8SC3110VC65, 8SC3110VC79, 8SC3110VC80, 8SC3110VC81S, 8SC3110VC83, 8SC3110VC91, 8SC3110VC94, 8SC3110VC98, 8SC3110VCH114, 8SC3150VC, 8SC3150VC30, 8SC3150VC30A, 8SC3150VC95, 8SC3151VCA49, 8SC3151VCA59, 8SC3151VCA7, 8SC3151VCA77, 8SC3151VCB7, 8SC3200V, 110-568, 37018000002

    • Normalised article numbler
      a9302s, alt0191, ats92905, cal11611, cal11636, dra0268, f032114348, f042308016, f042308017, f042a08016, l8sc3110vc, 8sc3110v, 8sc3110vc, 8sc3110vc09, 8sc3110vc111, 8sc3110vc117, 8sc3110vc118, 8sc3110vc120, 8sc3110vc120e, 8sc3110vc17, 8sc3110vc18, 8sc3110vc23, 8sc3110vc37, 8sc3110vc39, 8sc3110vc40, 8sc3110vc42, 8sc3110vc43, 8sc3110vc64, 8sc3110vc65, 8sc3110vc79, 8sc3110vc80, 8sc3110vc81s, 8sc3110vc83, 8sc3110vc91, 8sc3110vc94, 8sc3110vc98, 8sc3110vch114, 8sc3150vc, 8sc3150vc30, 8sc3150vc30a, 8sc3150vc95, 8sc3151vca49, 8sc3151vca59, 8sc3151vca7, 8sc3151vca77, 8sc3151vcb7, 8sc3200v, 110568, 553809ri, 37018000002
