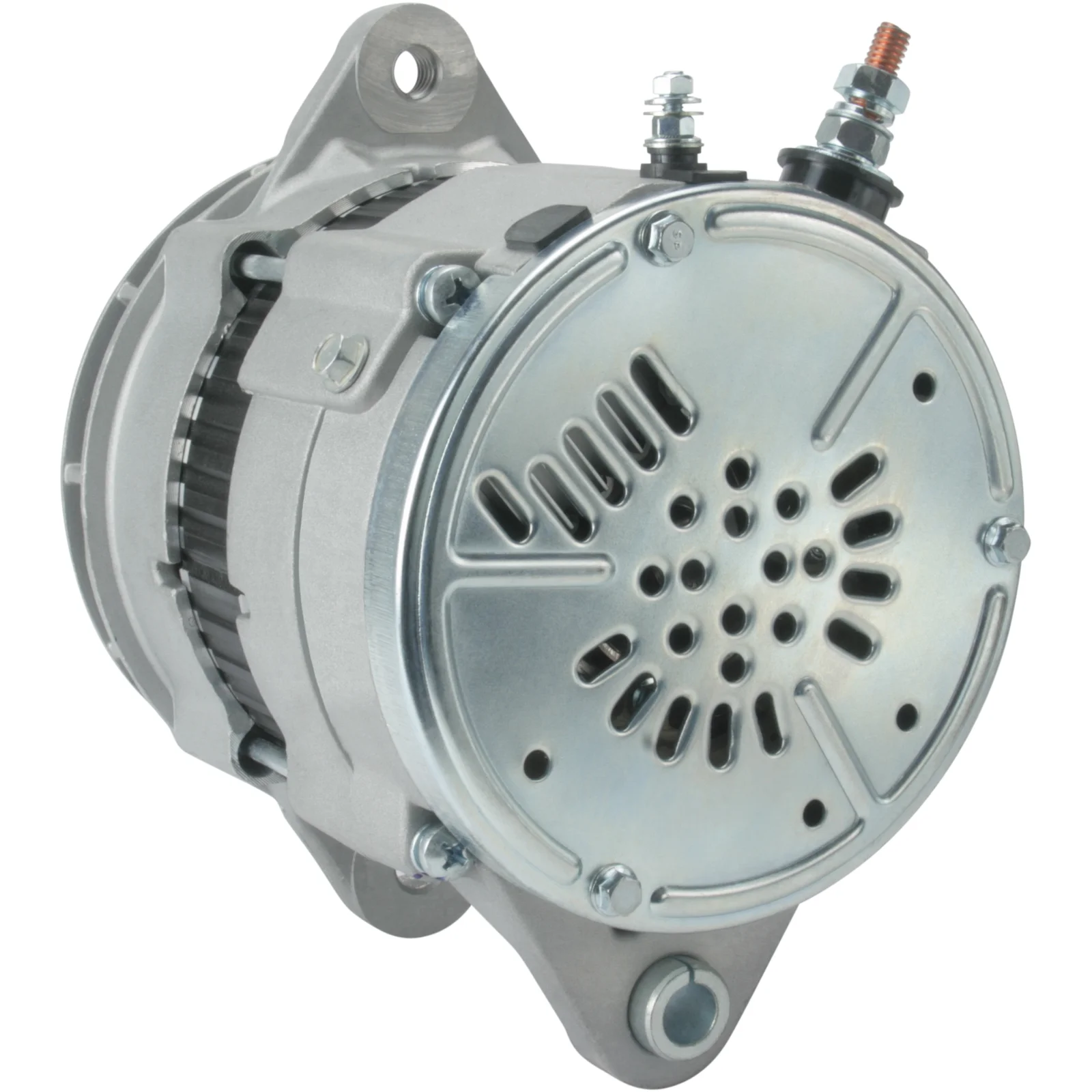

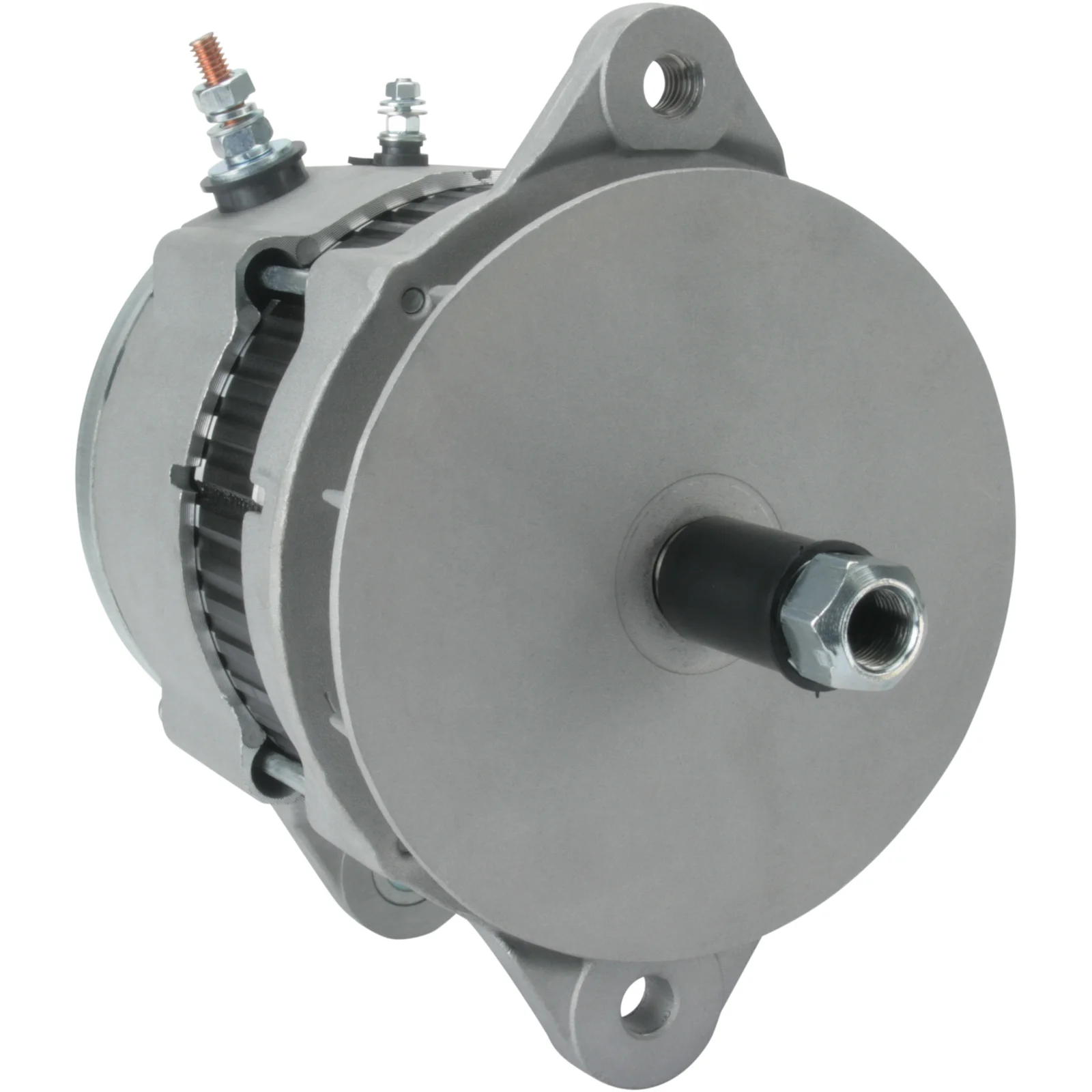

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115533

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 75, Rotation: CW/CCW, Mount. bracket dist.: 102.00

Description

Voltage: 28
Amp: 75
Terminal: W
Width/holder arm: 14.30
Mount. bracket dist.: 102.00
Bracket hole: 13.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 1/2" UNC
Radius: 98.00
Radius 2: 98.50
B+: 5/16" UNC
Position/B+ in min.: 3
Rotation: CW/CCW
W plug type: 10-24 UNC
Total length mm: 222.00
One Wire hookup (Self exciting): Yes
Pulley: w/o
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F032115533, 0214-202-0310, 0214-202-0320, 0214-202-0330, 0214-202-0340, 0214-202-0410, 600-821-9510, 600-821-9530, 600-821-9540, 600-821-9542, 600-821-9550, 600-821-9560, 600-821-9971, 600-825-7110

  • Normalised article numbler
    f032115533, 02142020310, 02142020320, 02142020330, 02142020340, 02142020410, 6008219510, 6008219530, 6008219540, 6008219542, 6008219550, 6008219560, 6008219971, 6008257110
  • Description
    Voltage: 28
    Amp: 75
    Terminal: W
    Width/holder arm: 14.30
    Mount. bracket dist.: 102.00
    Bracket hole: 13.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 1/2" UNC
    Radius: 98.00
    Radius 2: 98.50
    B+: 5/16" UNC
    Position/B+ in min.: 3
    Rotation: CW/CCW
    W plug type: 10-24 UNC
    Total length mm: 222.00
    One Wire hookup (Self exciting): Yes
    Pulley: w/o
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115533, 0214-202-0310, 0214-202-0320, 0214-202-0330, 0214-202-0340, 0214-202-0410, 600-821-9510, 600-821-9530, 600-821-9540, 600-821-9542, 600-821-9550, 600-821-9560, 600-821-9971, 600-825-7110

    • Normalised article numbler
      f032115533, 02142020310, 02142020320, 02142020330, 02142020340, 02142020410, 6008219510, 6008219530, 6008219540, 6008219542, 6008219550, 6008219560, 6008219971, 6008257110
