HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115630

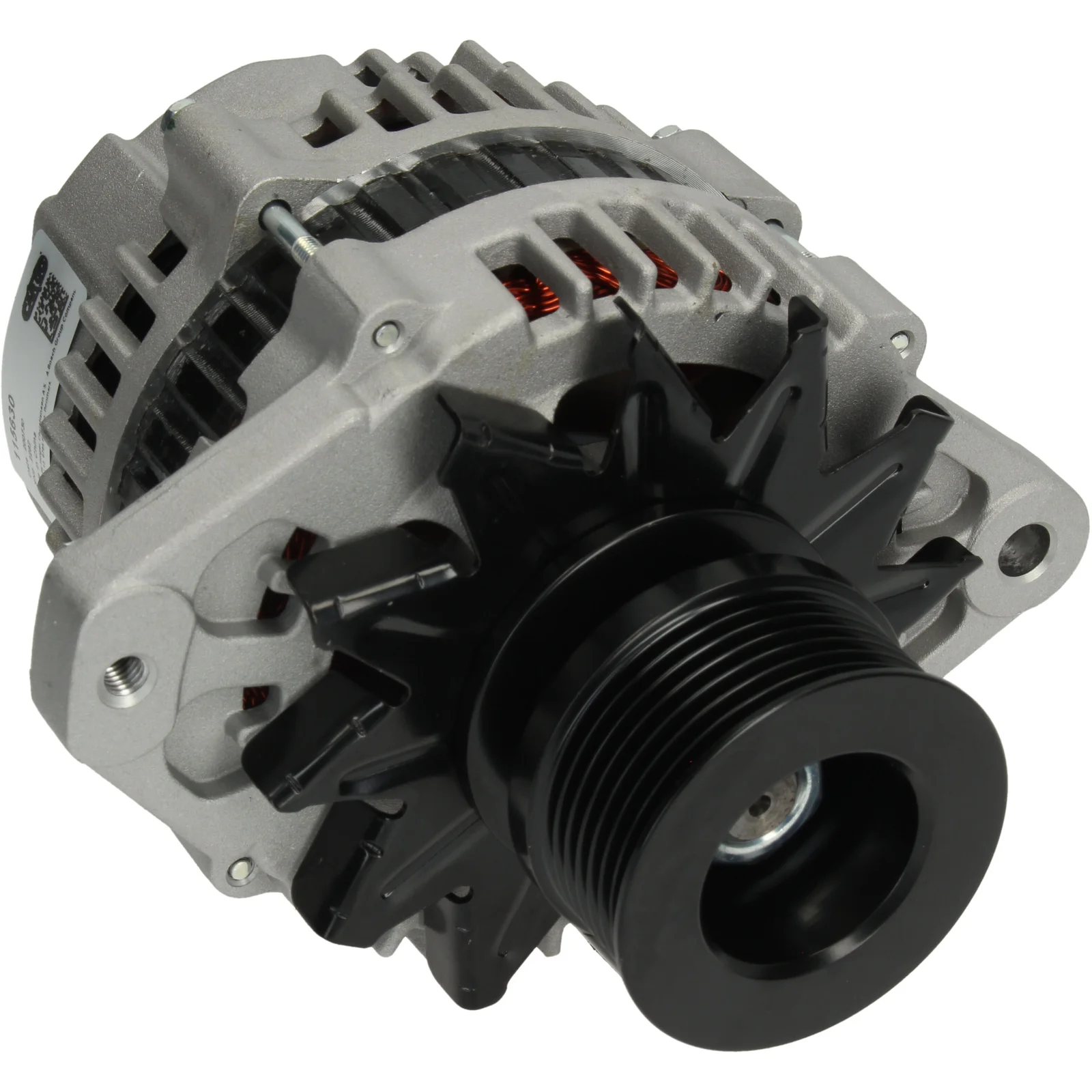

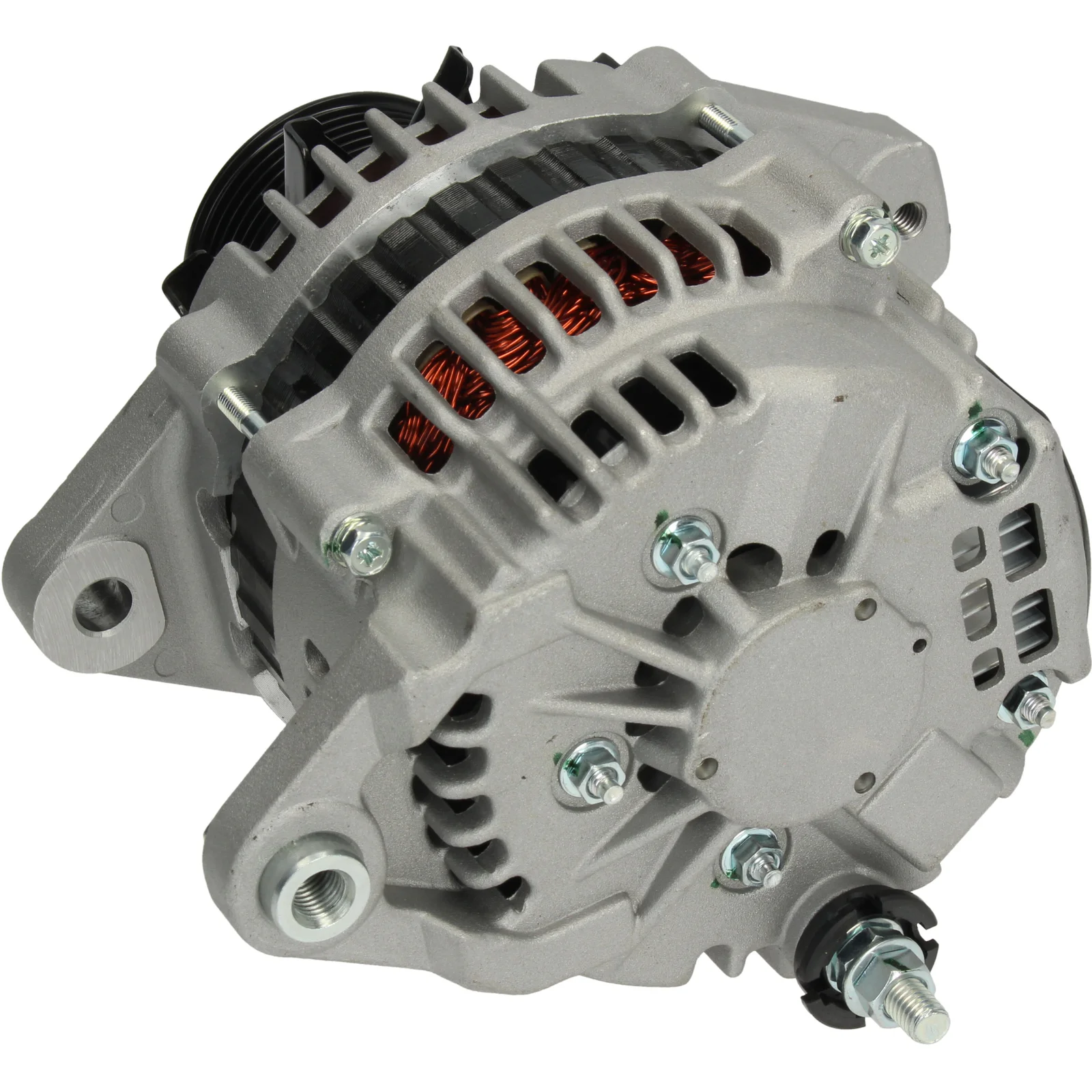

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 50, Rotation: CW, Mounting bracket distributor: 76.20

Description

Voltage: 28
Amp: 50
Pulley dist.: 58.00
Width/holder arm: 17.50
Mount. bracket dist.: 76.20
Bracket hole: 10.50
Belt. adj. brackethole pos.: 2
Belt. adj. bracket hole 1: M8
Pulley dia.: 64.80
Grooves/pulley: 7
Radius: 85.00
Radius 2: 85.00
B+: M8
Position/B+ in min.: 13
Rotation: CW
Plug no.: PL100
Total length mm: 205.00
Terminal type: L
Alternator: SP
Voltage regulator type: IR
Prod. info: BN

Files

  • OEM
    F032115630, LR250-707, LR250-707C, LR250-708, LR250-708B, LR250-708E, 8980298872, 8980750260

  • Normalised article numbler
    a2040, a2040s, alt3150, cal20610, cal20616, f032115630, f042305019, f042a05019, lr250707, lr250707c, lr250708, lr250708b, lr250708e, 209319, 209319a, 553467ri, 136502050, 8980298872, 8980750260
  • Description
    Voltage: 28
    Amp: 50
    Pulley dist.: 58.00
    Width/holder arm: 17.50
    Mount. bracket dist.: 76.20
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 2
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 64.80
    Grooves/pulley: 7
    Radius: 85.00
    Radius 2: 85.00
    B+: M8
    Position/B+ in min.: 13
    Rotation: CW
    Plug no.: PL100
    Total length mm: 205.00
    Terminal type: L
    Alternator: SP
    Voltage regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115630, LR250-707, LR250-707C, LR250-708, LR250-708B, LR250-708E, 8980298872, 8980750260

    • Normalised article numbler
      a2040, a2040s, alt3150, cal20610, cal20616, f032115630, f042305019, f042a05019, lr250707, lr250707c, lr250708, lr250708b, lr250708e, 209319, 209319a, 553467ri, 136502050, 8980298872, 8980750260
