HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115780

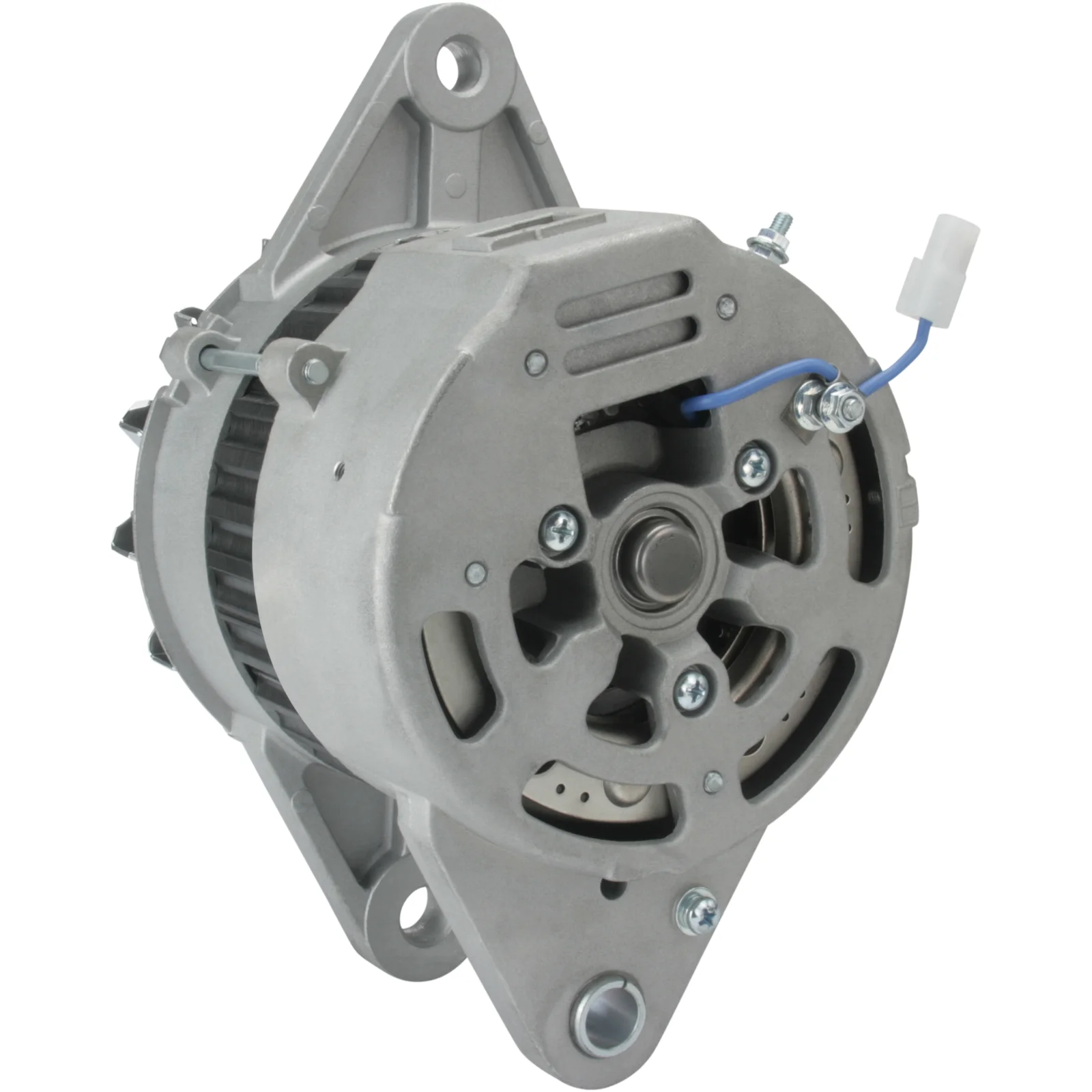

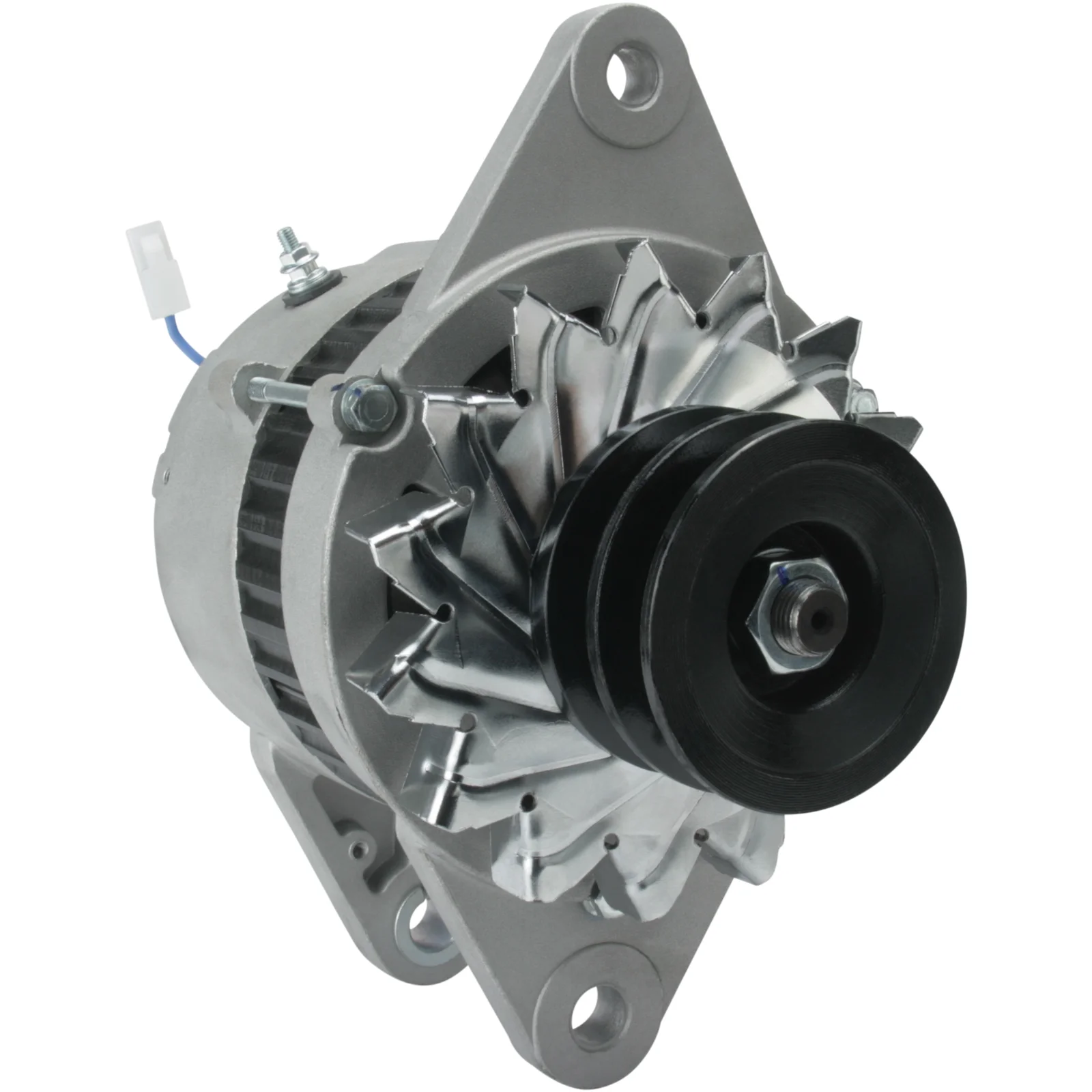

HC-Cargo Alternator

Technical info:

Voltage: 28, Amps: 40, Rotation: CW, Mounting bracket distance: 69.40

Description

Voltage: 28
Amp: 40
Terminal: W
Pulley dist.: 59.50
Width/holder arm: 15.70
Mount. bracket dist.: 69.40
Bracket hole: 14.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 13.00
Pulley dia.: 85.50
Grooves/pulley: 2
Radius: 108.50
Radius 2: 114.00
B+: M5
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL185
W plug type: Plug
Total length mm: 208.00
Terminal type: IG-L
Pulley: DP
Prod. info: BN

Files

  • Description
    Voltage: 28
    Amp: 40
    Terminal: W
    Pulley dist.: 59.50
    Width/holder arm: 15.70
    Mount. bracket dist.: 69.40
    Bracket hole: 14.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 13.00
    Pulley dia.: 85.50
    Grooves/pulley: 2
    Radius: 108.50
    Radius 2: 114.00
    B+: M5
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL185
    W plug type: Plug
    Total length mm: 208.00
    Terminal type: IG-L
    Pulley: DP
    Prod. info: BN

    Files

  • Suitable for these vehicles
