HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115899

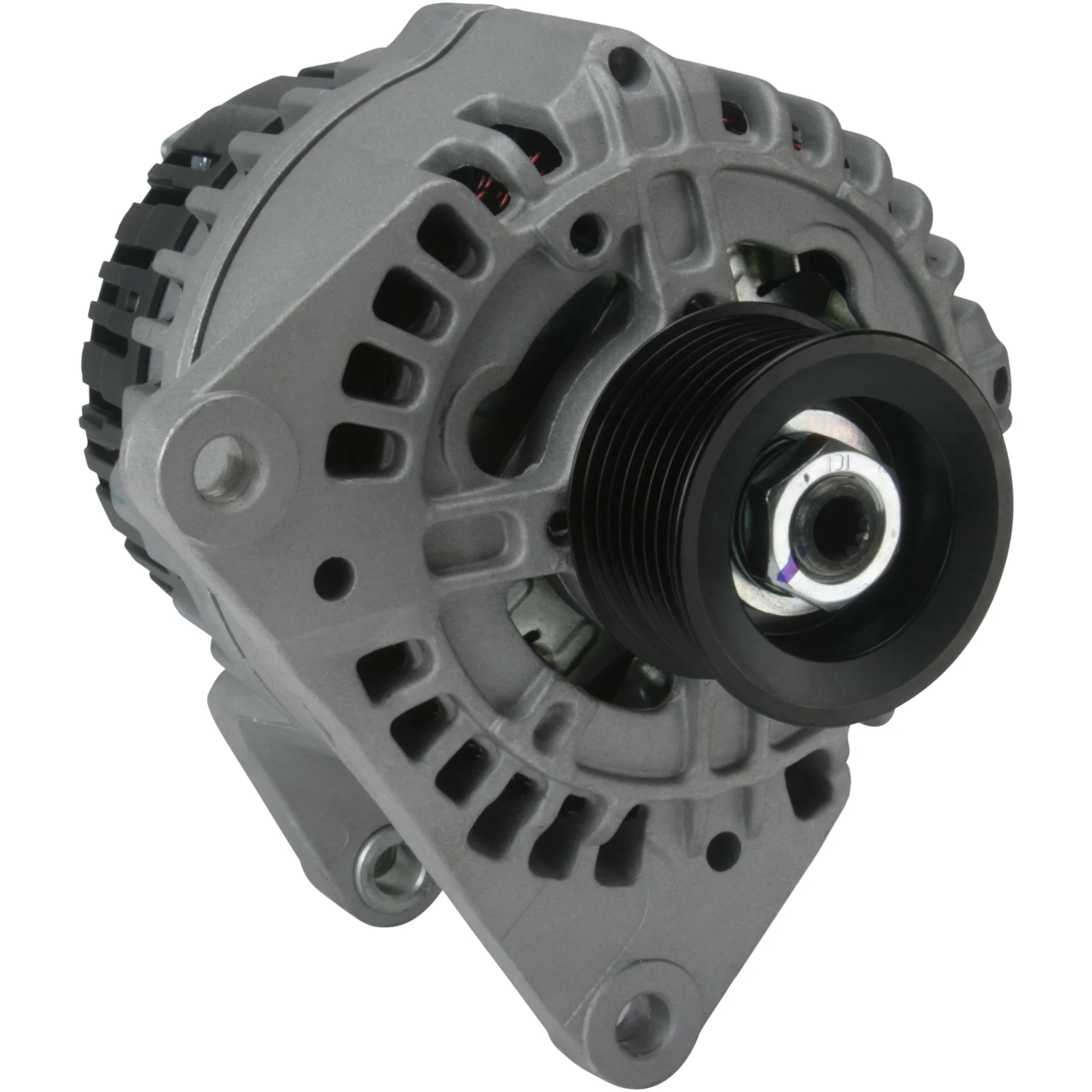

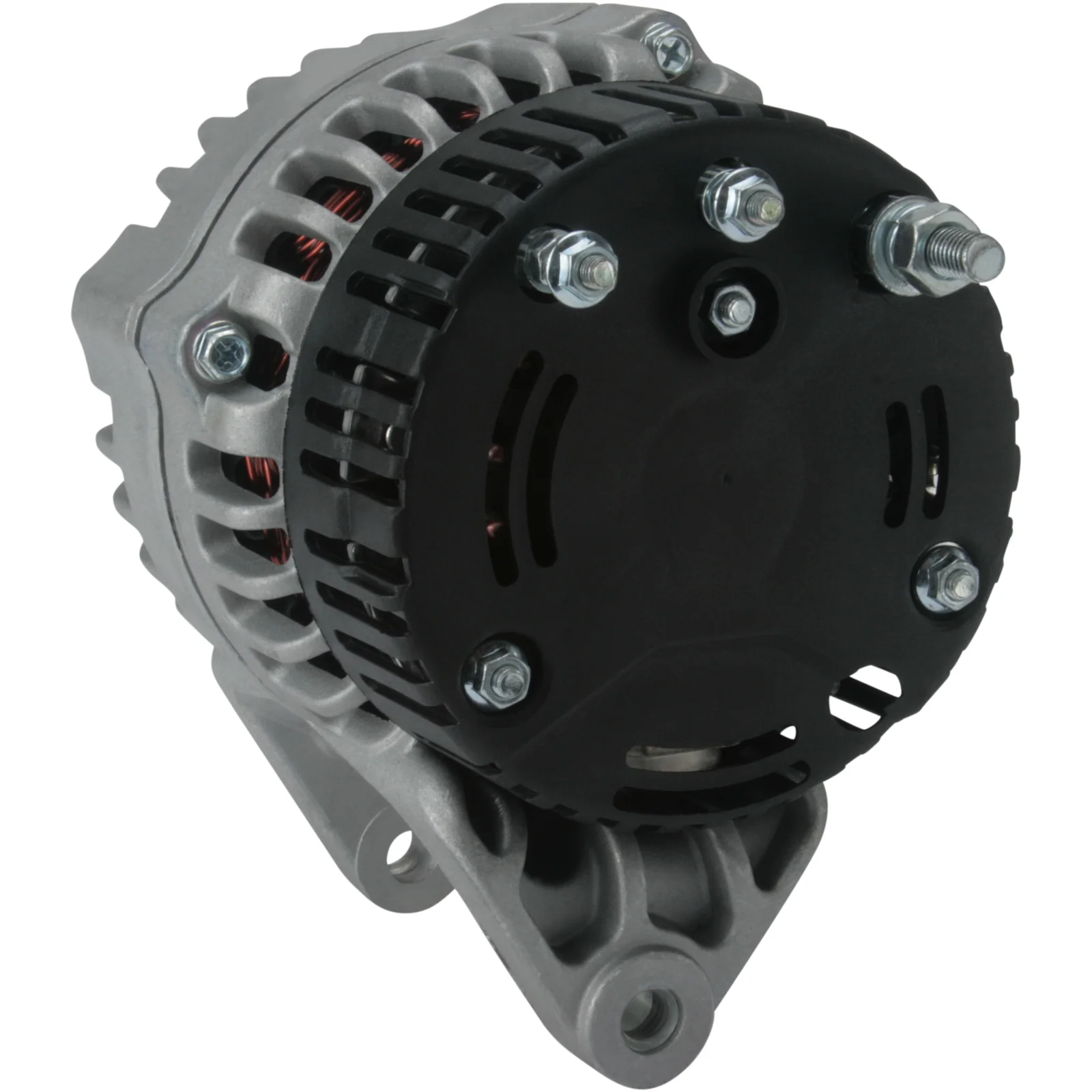

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 55, Rotation: CW, Mounting bracket distance: 78.00

Description

Voltage: 28
Amps: 55
Terminal: W
Pulley diameter: 32.00
Width/holder arm: 14.20
Mounting bracket distance: 78.00
Bracket hole: 10.30
Belt adjustment bracket hole position: 47
Belt adjustment bracket hole 1: 10.30
Pulley diameter: 56.00
Grooves/pulley: 8
Radius: 94.00
Radius 2: 84.00
B+: M8
Position/B+ in minutes: 5
D+ size: M5
Rotation: CW
W plug type: M5
Total length mm: 201.00
Pulley: SP
Regulator type: IR
Product info: BN
Remarks: Dustproof

Files

  • OEM
    AAK5584, AAK5808, F032115899, 11.203.441, 11.204.116, 320-08611, 320-08650

  • Normalised article numbler
    a9196, aak5584, aak5808, cal21617, f032115899, ia1211, mg69, 20722n, 11203441, 11204116, 32008611, 32008650, 516506055
  • Description
    Voltage: 28
    Amps: 55
    Terminal: W
    Pulley diameter: 32.00
    Width/holder arm: 14.20
    Mounting bracket distance: 78.00
    Bracket hole: 10.30
    Belt adjustment bracket hole position: 47
    Belt adjustment bracket hole 1: 10.30
    Pulley diameter: 56.00
    Grooves/pulley: 8
    Radius: 94.00
    Radius 2: 84.00
    B+: M8
    Position/B+ in minutes: 5
    D+ size: M5
    Rotation: CW
    W plug type: M5
    Total length mm: 201.00
    Pulley: SP
    Regulator type: IR
    Product info: BN
    Remarks: Dustproof

    Files

  • Suitable for these vehicles

    • OEM
      AAK5584, AAK5808, F032115899, 11.203.441, 11.204.116, 320-08611, 320-08650

    • Normalised article numbler
      a9196, aak5584, aak5808, cal21617, f032115899, ia1211, mg69, 20722n, 11203441, 11204116, 32008611, 32008650, 516506055
