HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115994

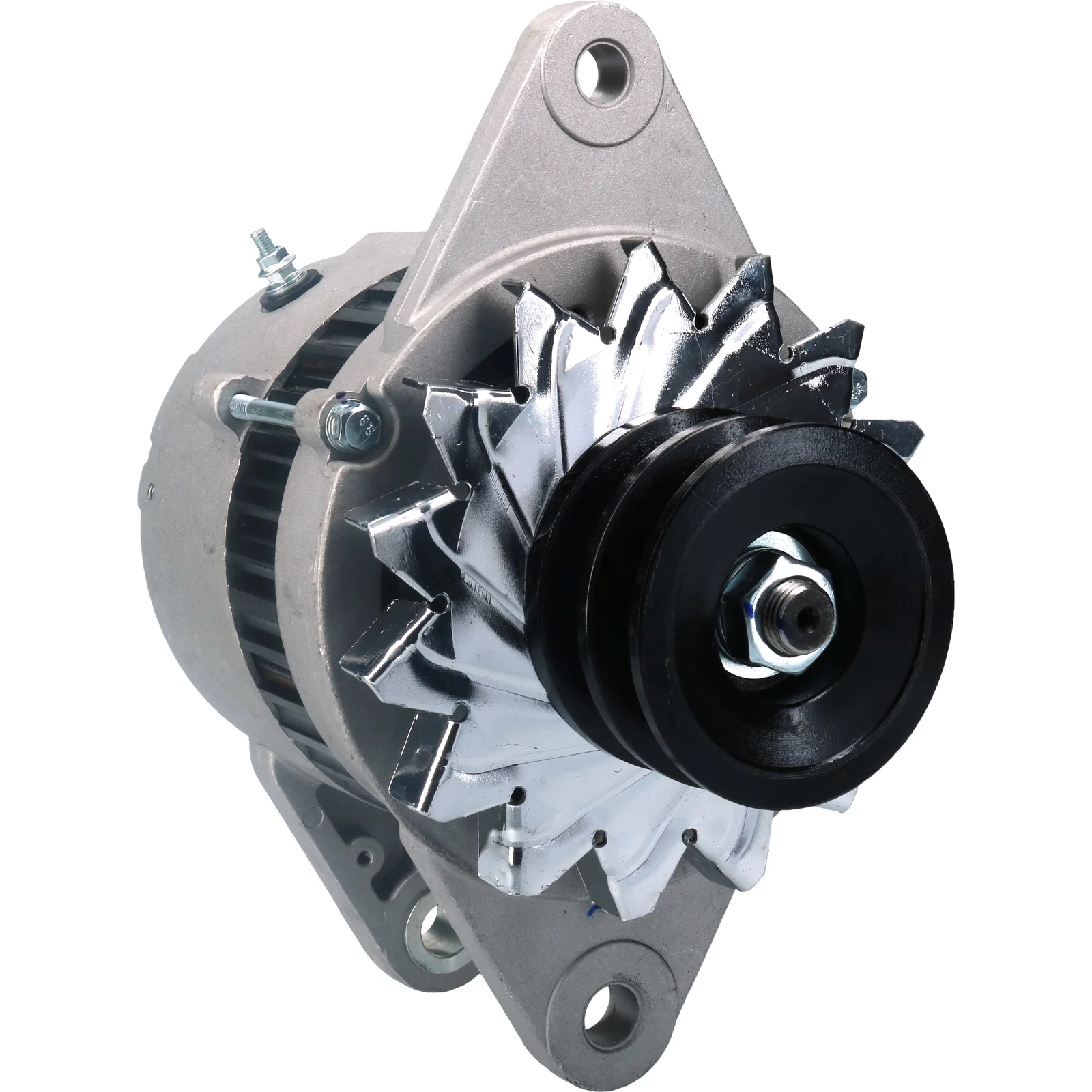

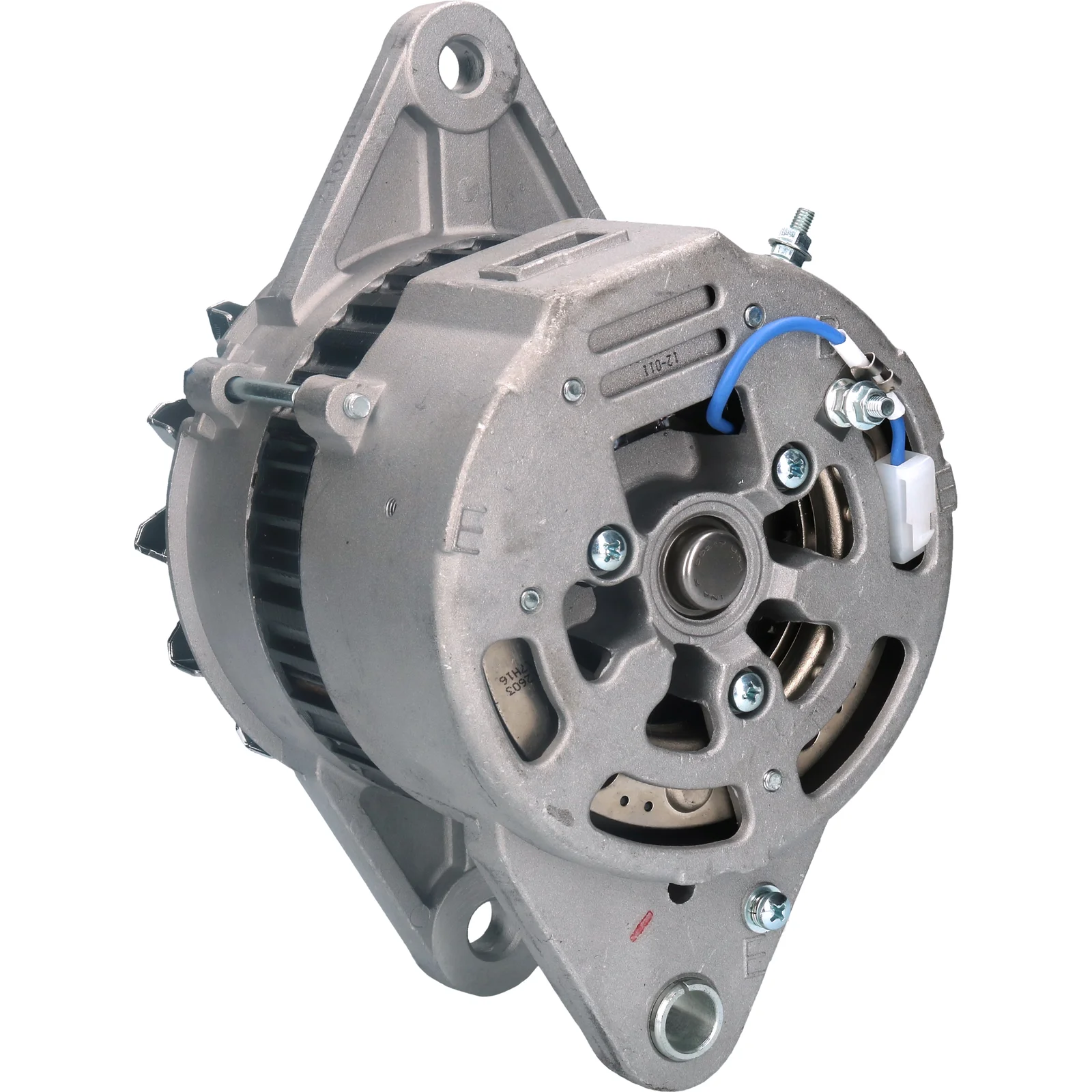

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 40, Rotation: CW, Mount. bracket dist.: 68.00

Description

Voltage: 28
Amps: 40
Terminal: W
Pulley dist.: 60.00
Width/holder arm: 16.00
Mounting bracket dist.: 68.00
Bracket hole: 15.00
Belt adjustment bracket hole position.: 60
Belt adjustment bracket hole 1: 13.20
Pulley diameter: 82.00
Grooves/pulley: 2
Radius: 110.00
Radius 2: 115.00
B+: M5
Position/B+ in minutes.: 5
D+ size: Plug
Rotation: CW
Plug number: PL185
W plug type: Plug
Total length mm: 220.00
Lamp type: Active
Pulley: DP
Regulator type: IR
Product info: BN

Files

  • OEM
    0-35000-0013, 0-35000-3010, 0-35000-3011, 0-35000-3012, 0-35000-3013, 0-35000-3113, 0-35000-3410, F032115994, 714-40321, 1812002491, 1812002493

  • Normalised article numbler
    a9266s, cal50627, dra1255, f032115994, lra03203, 111364, 485815, 553031ri, 71440321, 266003050, 0350000013, 0350003010, 0350003011, 0350003012, 0350003013, 0350003113, 0350003410, 543129404, 1812002491, 1812002493
  • Description
    Voltage: 28
    Amps: 40
    Terminal: W
    Pulley dist.: 60.00
    Width/holder arm: 16.00
    Mounting bracket dist.: 68.00
    Bracket hole: 15.00
    Belt adjustment bracket hole position.: 60
    Belt adjustment bracket hole 1: 13.20
    Pulley diameter: 82.00
    Grooves/pulley: 2
    Radius: 110.00
    Radius 2: 115.00
    B+: M5
    Position/B+ in minutes.: 5
    D+ size: Plug
    Rotation: CW
    Plug number: PL185
    W plug type: Plug
    Total length mm: 220.00
    Lamp type: Active
    Pulley: DP
    Regulator type: IR
    Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      0-35000-0013, 0-35000-3010, 0-35000-3011, 0-35000-3012, 0-35000-3013, 0-35000-3113, 0-35000-3410, F032115994, 714-40321, 1812002491, 1812002493

    • Normalised article numbler
      a9266s, cal50627, dra1255, f032115994, lra03203, 111364, 485815, 553031ri, 71440321, 266003050, 0350000013, 0350003010, 0350003011, 0350003012, 0350003013, 0350003113, 0350003410, 543129404, 1812002491, 1812002493
