HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116014

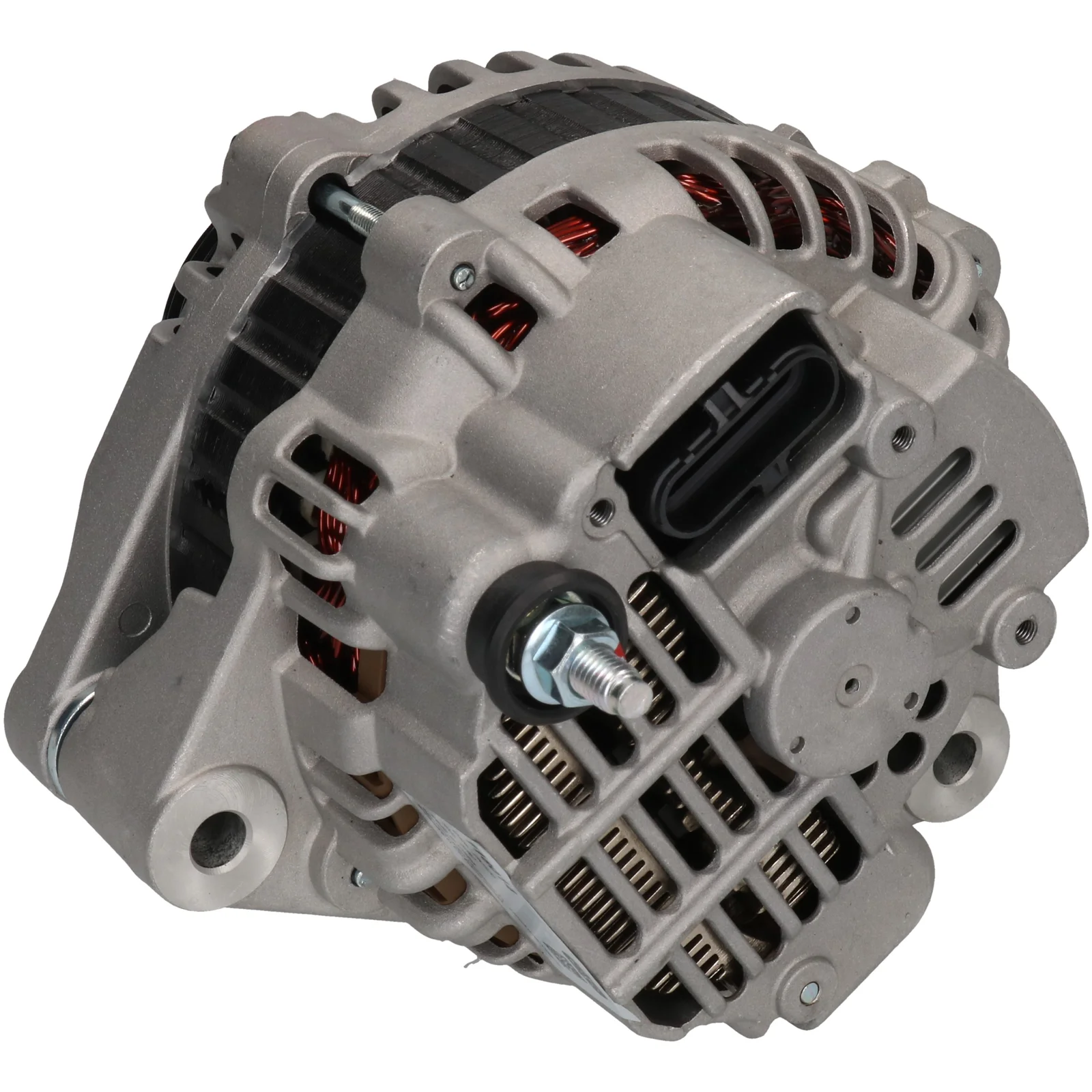

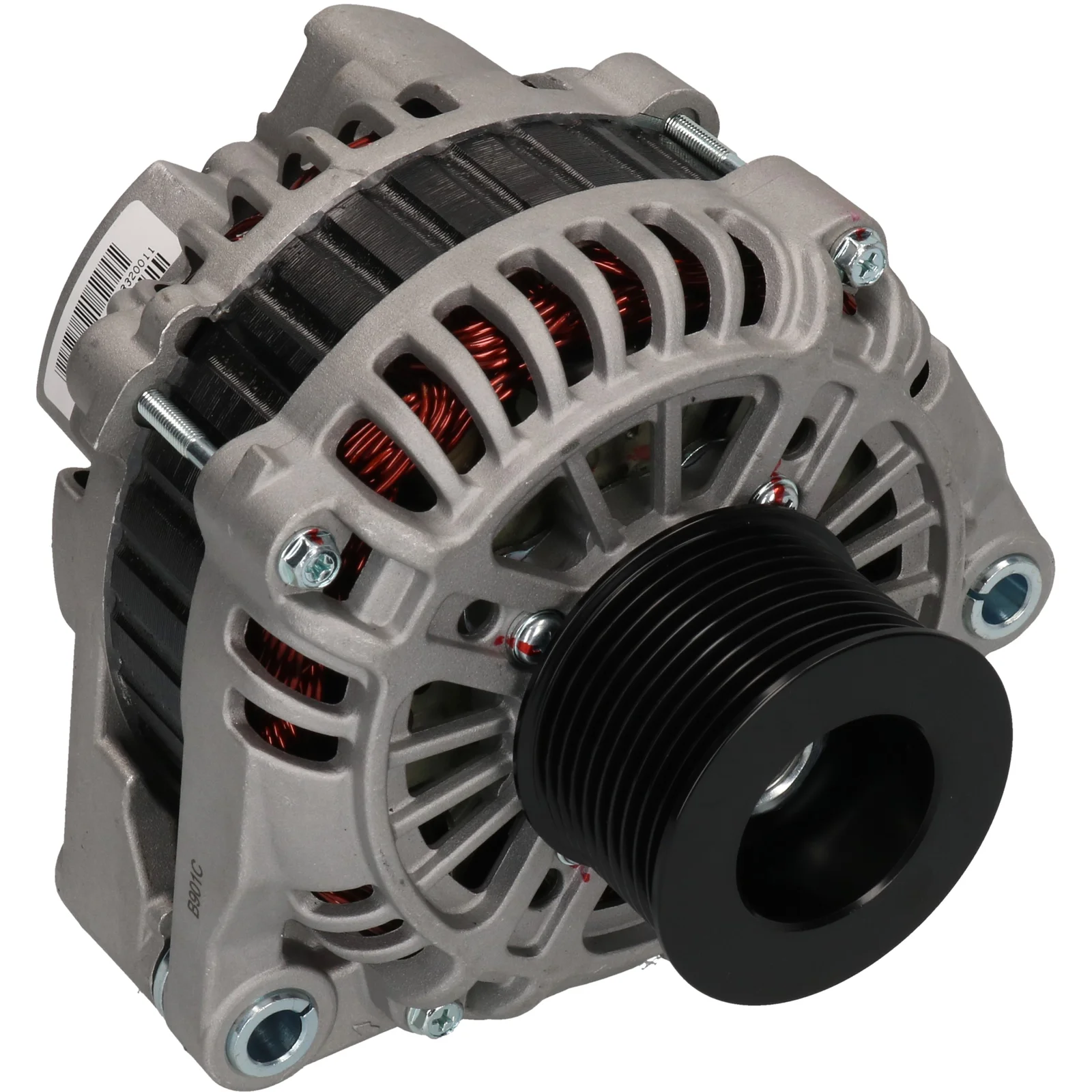

HC-Cargo Alternator

Technical info:

Voltage: 28, Amperage: 100, Rotation: CW, Pulley diameter: 64.00

Description

Voltage: 28
Amp: 100
Pulley dist.: 82.70
Width/holder arm: 57.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 64.00
Grooves/pulley: 10
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 37
D+ Size: Plug
Rotation: CW
Plug no.: PL82
W plug type: Plug
Total length mm: 195.00
Pulley: SP
Regulator type: IR

Files

  • OEM
    A004TA8191, a4ta8191, F032116014, 01182764, 1182764, 20707050, 7485003257

  • Normalised article numbler
    a004ta8191, a4ta8191, a5037, a5037sr, a5293, dra0363, dra0363x, f032116014, f042205083, lea0762, lra03544, 210910, 210910a, 486654, 01182764, 1182764, 20707050, 5001771004, 7485003257
  • Description
    Voltage: 28
    Amp: 100
    Pulley dist.: 82.70
    Width/holder arm: 57.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: 10.50
    Pulley dia.: 64.00
    Grooves/pulley: 10
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 37
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL82
    W plug type: Plug
    Total length mm: 195.00
    Pulley: SP
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A004TA8191, a4ta8191, F032116014, 01182764, 1182764, 20707050, 7485003257

    • Normalised article numbler
      a004ta8191, a4ta8191, a5037, a5037sr, a5293, dra0363, dra0363x, f032116014, f042205083, lea0762, lra03544, 210910, 210910a, 486654, 01182764, 1182764, 20707050, 5001771004, 7485003257
