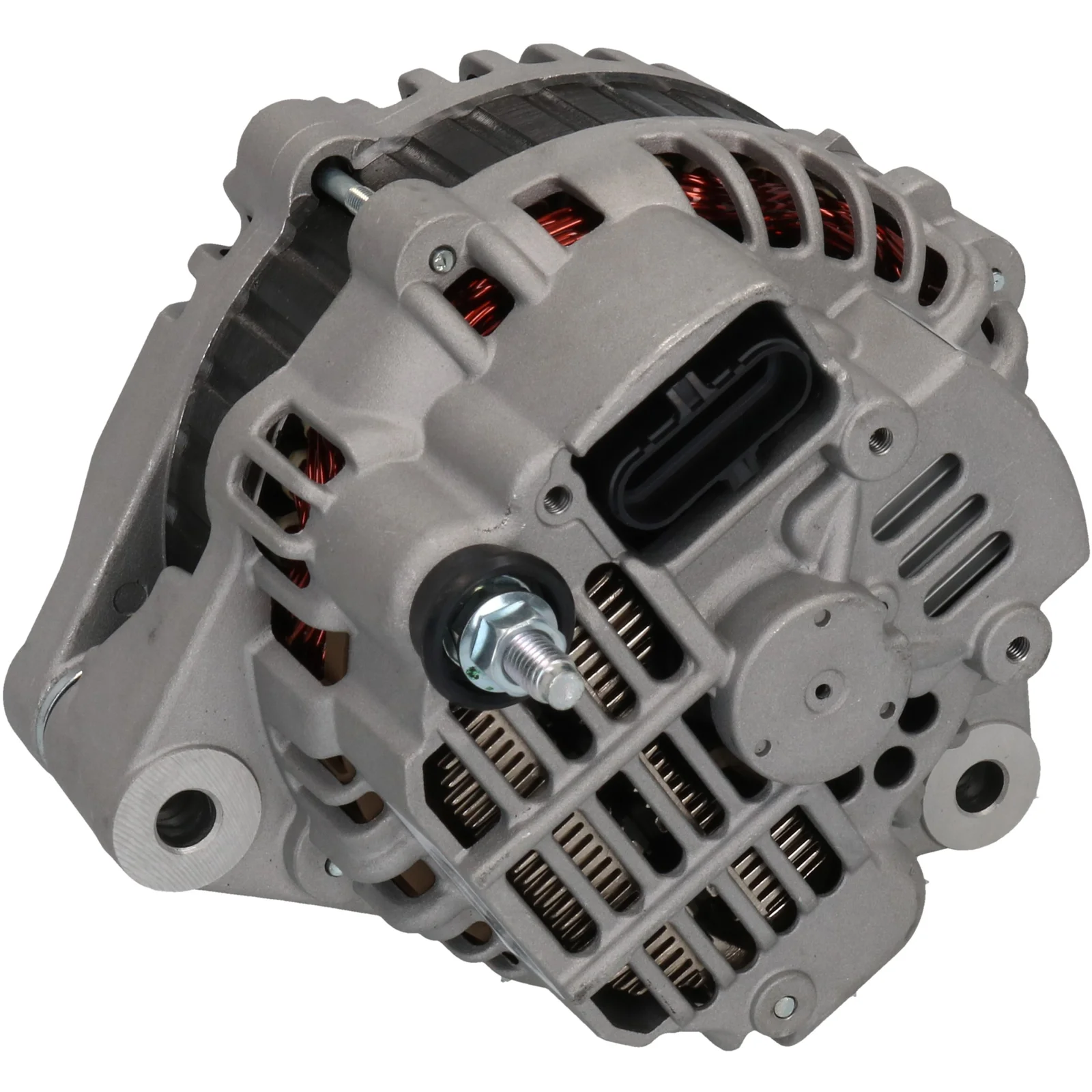

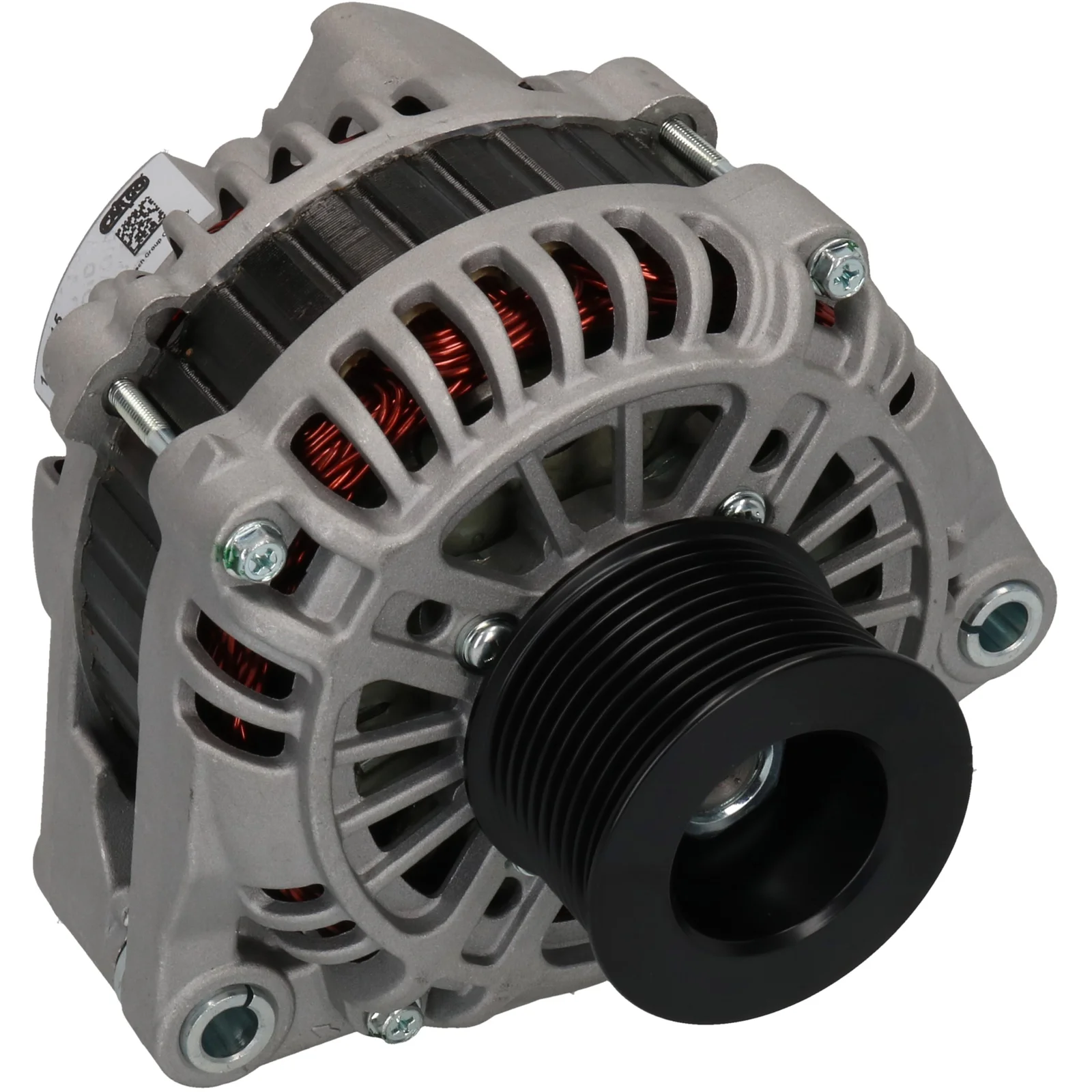

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116015

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 80, Rotation: CW, Pulley dia.: 64.00

Description

Voltage: 28
Amp: 80
Pulley dist.: 82.60
Width/holder arm: 55.70
Bracket hole: 10.40
Belt. adj. bracket hole position.: 10
Belt. adj. bracket hole 1: 10.40
Pulley dia.: 64.00
Grooves/pulley: 10
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 55
Rotation: CW
Plug no.: PL82
Total length mm: 197.00
Terminal type: W-L-15-S-DFM
Pulley: SP
Alternator type: IR

Files

  • OEM
    A003TA8791, A3TA8791, F032116015, 01182763, 1182763, 5001868231, 5010589136

  • Normalised article numbler
    a003ta8791, a3ta8791, a5293, cal35635, dra1379, f032116015, lra03675, 486815, 01182763, 1182763, 500177804, 566501080, 5001868231, 5010589136
  • Description
    Voltage: 28
    Amp: 80
    Pulley dist.: 82.60
    Width/holder arm: 55.70
    Bracket hole: 10.40
    Belt. adj. bracket hole position.: 10
    Belt. adj. bracket hole 1: 10.40
    Pulley dia.: 64.00
    Grooves/pulley: 10
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 55
    Rotation: CW
    Plug no.: PL82
    Total length mm: 197.00
    Terminal type: W-L-15-S-DFM
    Pulley: SP
    Alternator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A003TA8791, A3TA8791, F032116015, 01182763, 1182763, 5001868231, 5010589136

    • Normalised article numbler
      a003ta8791, a3ta8791, a5293, cal35635, dra1379, f032116015, lra03675, 486815, 01182763, 1182763, 500177804, 566501080, 5001868231, 5010589136
