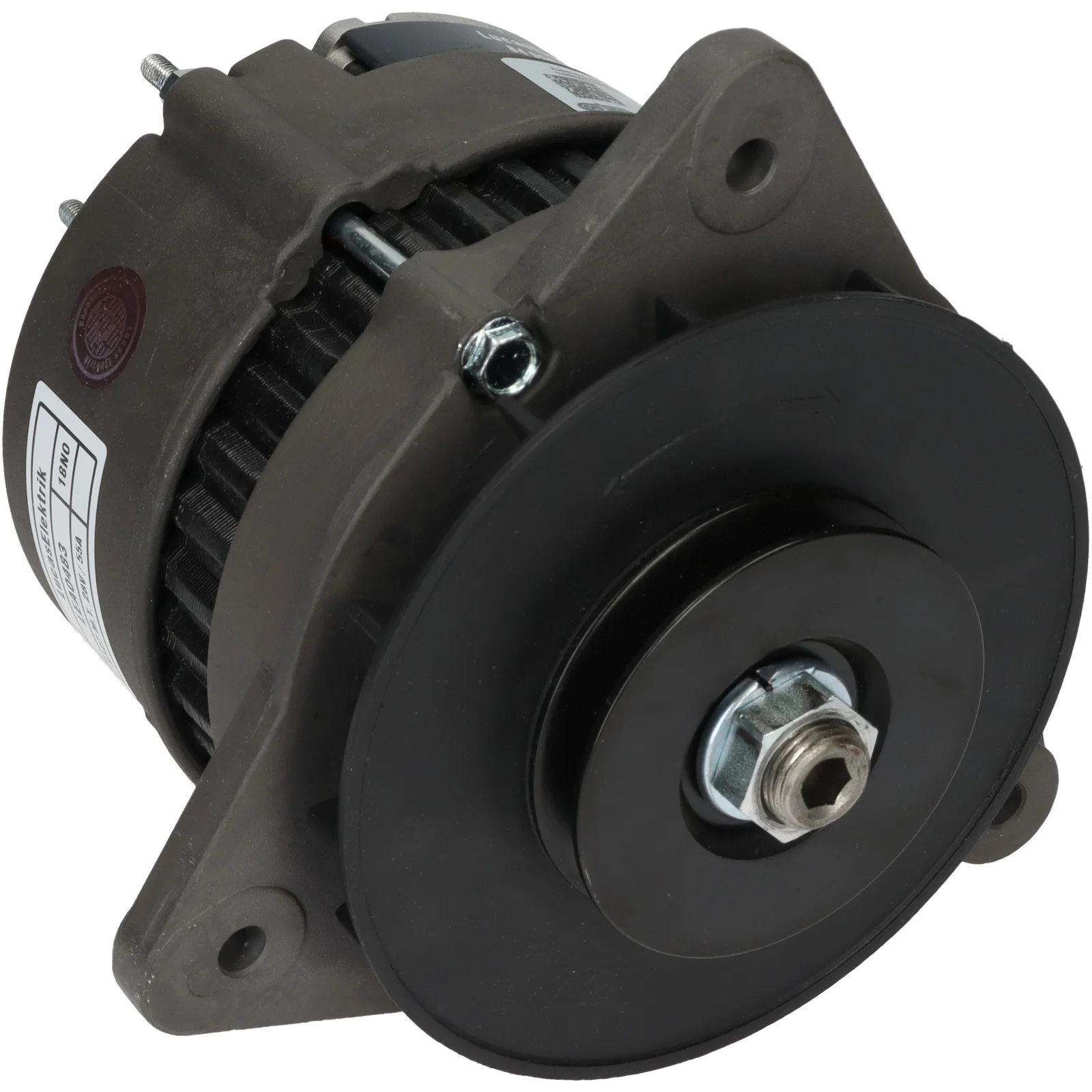

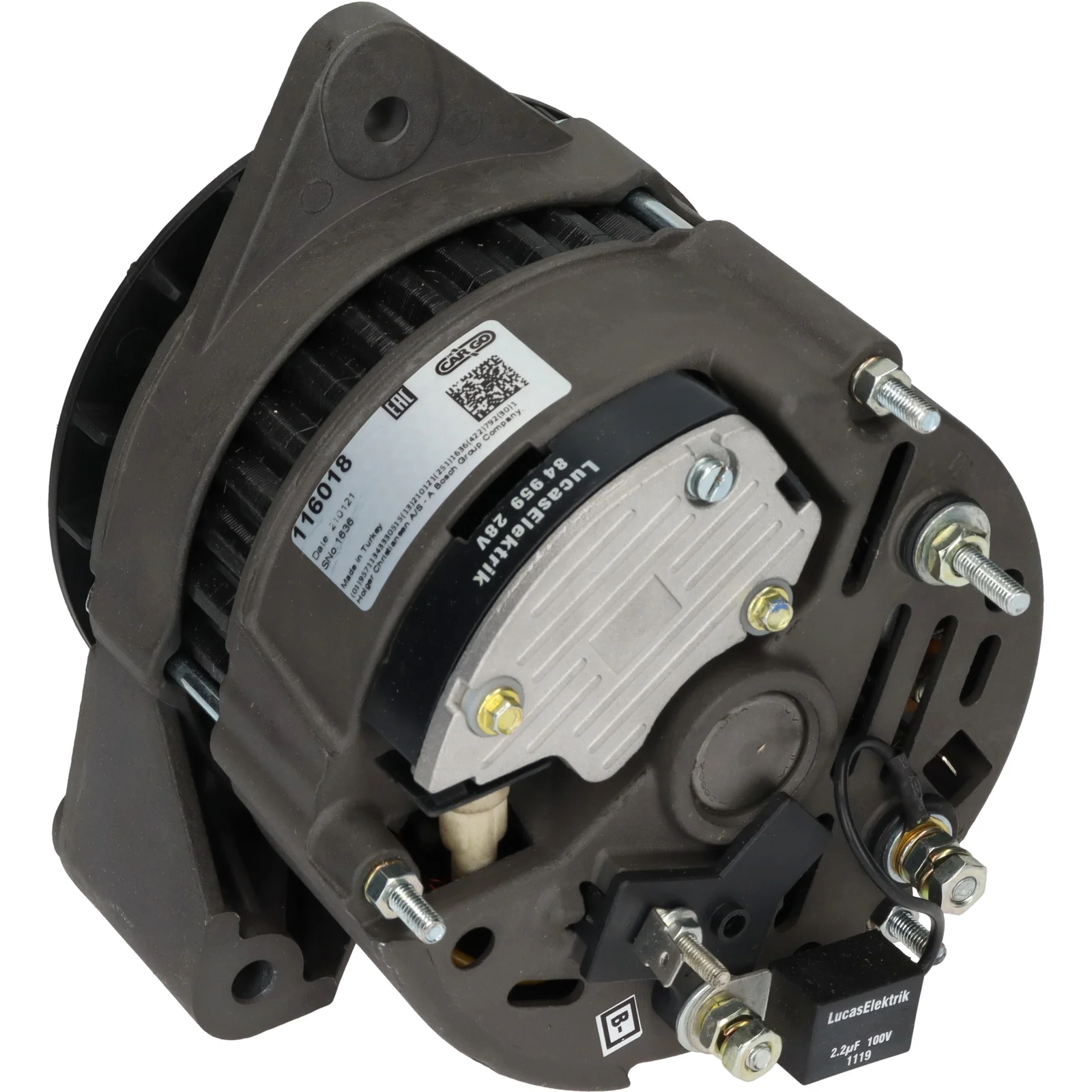

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116018

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 55, Rotation: CW, Pulley diameter: 68.00

Description

Voltage: 28
Amp: 55
Insulated return: Yes
Terminal: W
Pulley dist.: 77.50
Width/holder arm: 55.00
Bracket hole: 8.30
Belt. adj. brackethole pos.: 10
Belt. adj. brackethole pos. 2: 50
Belt. adj. bracket hole 1: 8.30
Belt. adj. bracket hole 2: 8.30
Pulley dia.: 68.00
Grooves/pulley: 1
Radius: 85.00
Radius 2: 80.00
Radius 3: 80.00
B+: M6
Position/B+ in min.: 35
D+ Size: M5
Rotation: CW
W plug type: M5
Total length mm: 178.00
Pulley: P
Regulator type: IR
Remarks: Dustproof

Files

  • Description
    Voltage: 28
    Amp: 55
    Insulated return: Yes
    Terminal: W
    Pulley dist.: 77.50
    Width/holder arm: 55.00
    Bracket hole: 8.30
    Belt. adj. brackethole pos.: 10
    Belt. adj. brackethole pos. 2: 50
    Belt. adj. bracket hole 1: 8.30
    Belt. adj. bracket hole 2: 8.30
    Pulley dia.: 68.00
    Grooves/pulley: 1
    Radius: 85.00
    Radius 2: 80.00
    Radius 3: 80.00
    B+: M6
    Position/B+ in min.: 35
    D+ Size: M5
    Rotation: CW
    W plug type: M5
    Total length mm: 178.00
    Pulley: P
    Regulator type: IR
    Remarks: Dustproof

    Files

  • Suitable for these vehicles
