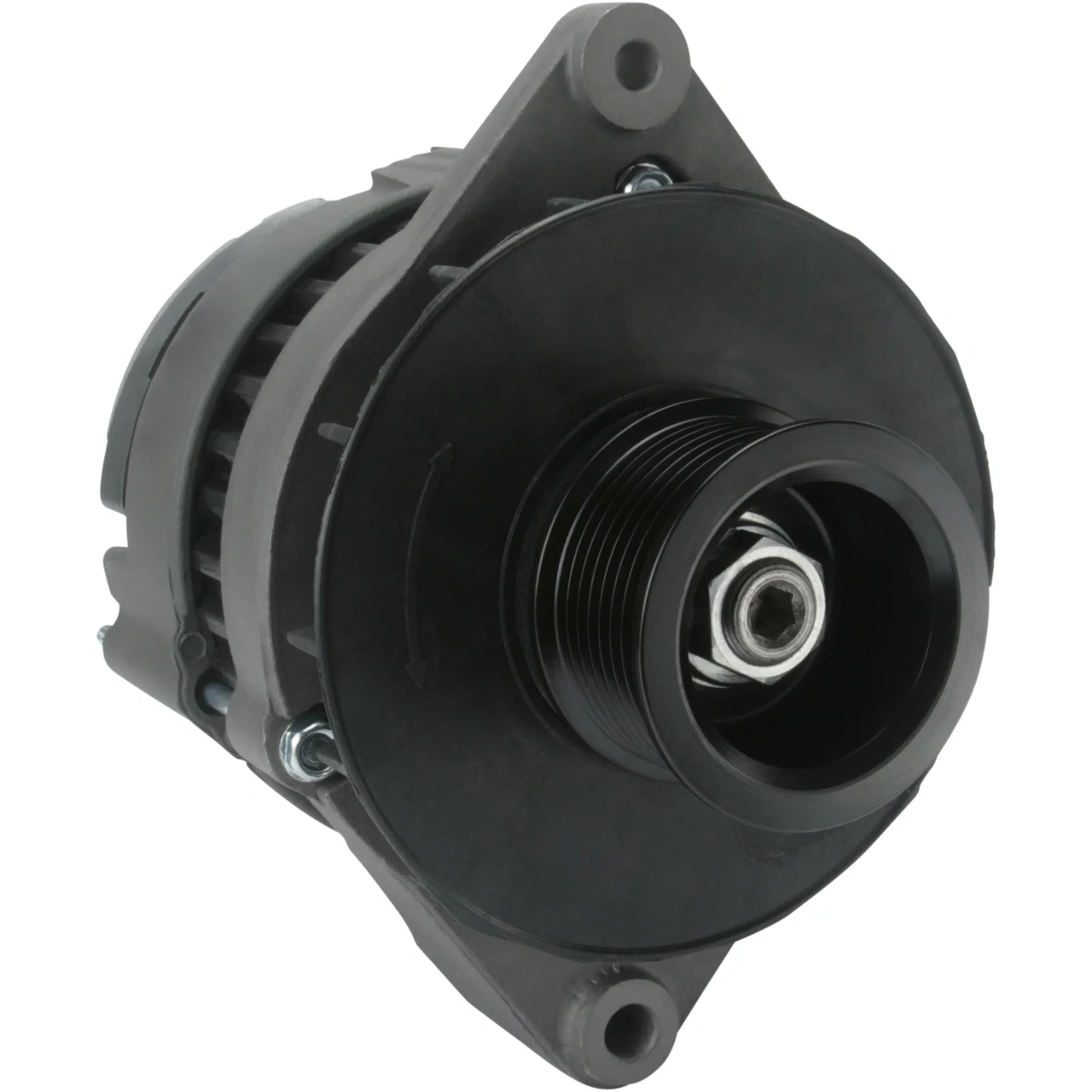

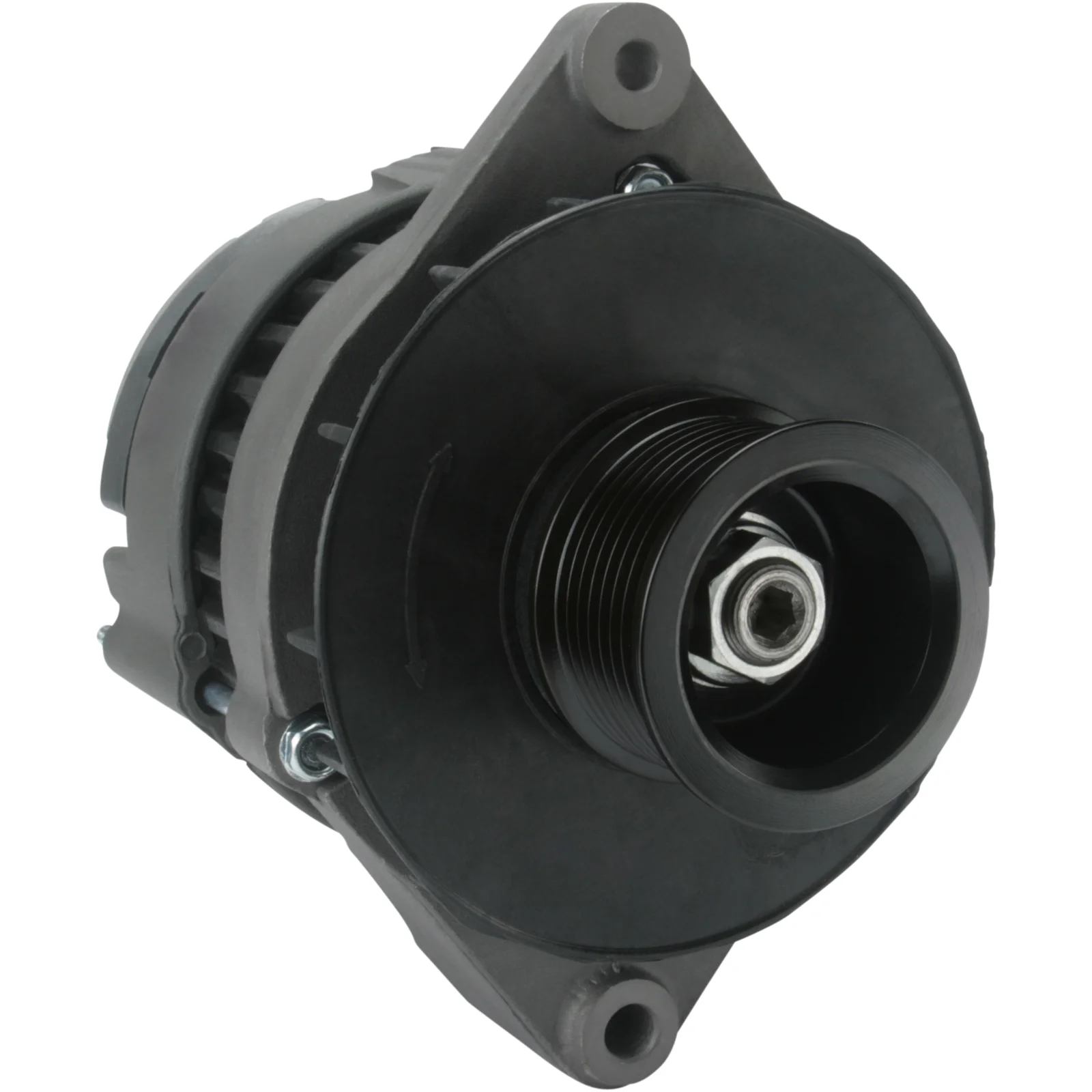

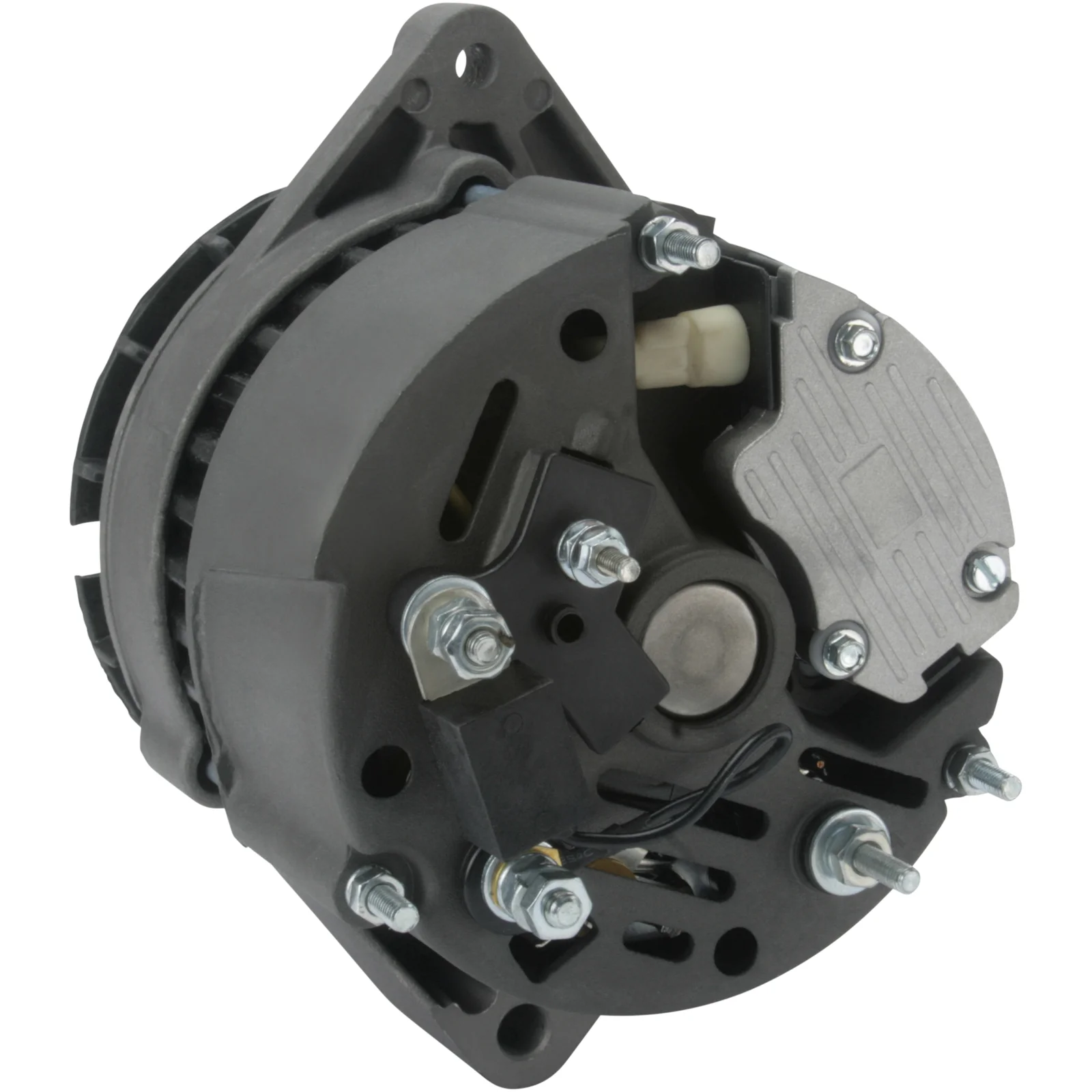

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116023

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 50, Rotation: CW, Pulley diameter: 59.80

Description

Voltage: 28
Amp: 50
Insulated return: Yes
Terminal: W
Pulley diameter: 79.00
Width/holder arm: 51.00
Bracket hole: 10.00
Belt tensioner bracket hole position: 60
Belt tensioner bracket hole 1: 8.20
Pulley diameter: 59.80
Grooves/pulley: 8
Radius: 85.00
Radius 2: 87.50
B+: M6
Position/B+ in min.: 38
D+ Size: M4
Rotation: CW
W plug type: M5
Total length mm: 188.00
Pulley: SP
Regulator type: IR
Remarks: Dustproof

Files

  • OEM
    AAK4335, AAK4362, F032116023, RE525690, RE540413, 11.203.369, 11.203.461, 01912362

  • Normalised article numbler
    aak4335, aak4362, cal21609, f032116023, lea0482, lea0772, lra03540, mg322, re525690, re540413, 12823, 486650, 01912362, 11203369, 11203461, 586117504, 706009050
  • Description
    Voltage: 28
    Amp: 50
    Insulated return: Yes
    Terminal: W
    Pulley diameter: 79.00
    Width/holder arm: 51.00
    Bracket hole: 10.00
    Belt tensioner bracket hole position: 60
    Belt tensioner bracket hole 1: 8.20
    Pulley diameter: 59.80
    Grooves/pulley: 8
    Radius: 85.00
    Radius 2: 87.50
    B+: M6
    Position/B+ in min.: 38
    D+ Size: M4
    Rotation: CW
    W plug type: M5
    Total length mm: 188.00
    Pulley: SP
    Regulator type: IR
    Remarks: Dustproof

    Files

  • Suitable for these vehicles

    • OEM
      AAK4335, AAK4362, F032116023, RE525690, RE540413, 11.203.369, 11.203.461, 01912362

    • Normalised article numbler
      aak4335, aak4362, cal21609, f032116023, lea0482, lea0772, lra03540, mg322, re525690, re540413, 12823, 486650, 01912362, 11203369, 11203461, 586117504, 706009050
