HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116104

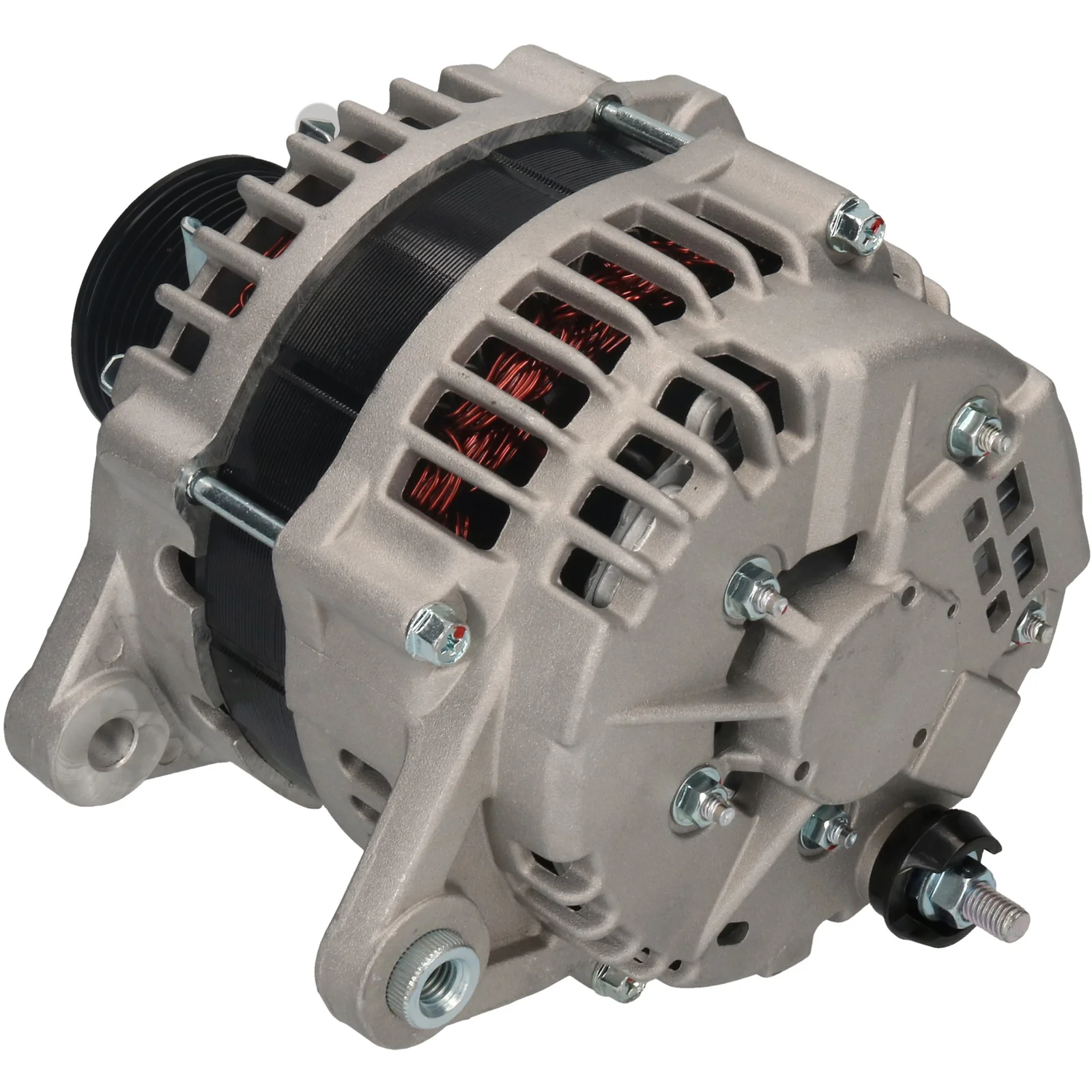

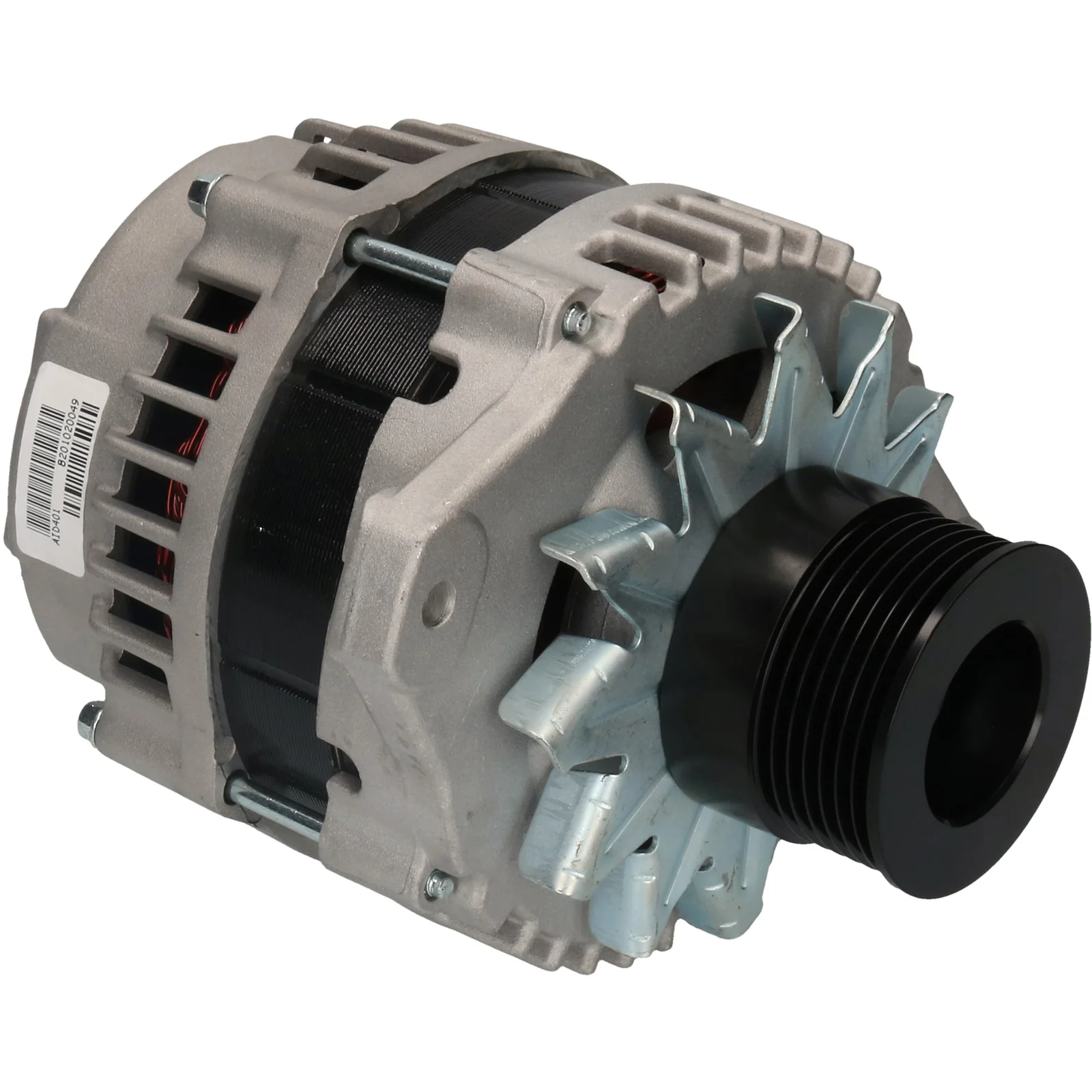

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 80, Rotation: CW, Mounting bracket distance: 76.00

Description

Voltage: 28
Amp: 80
Pulley dist.: 55.00
Width/holder arm: 17.50
Mount. bracket dist.: 76.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 1
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 65.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 85.00
B+: M8
Position/B+ in min.: 15
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 220.00
Pulley: SP
Voltage regulator type: IR

Files

  • OEM
    F032116104, LR280-707, LR280-707B, LR280-707C, LR280-708, LR280-708B, LR280-708C, 8980298891, 8980298892, 8980298920, 8980298921, 8980298922

  • Normalised article numbler
    a2061, a2079s, cal20611, f032116104, f042305020, lr280707, lr280707b, lr280707c, lr280708, lr280708b, lr280708c, 553745ri, 136009080, 8980298891, 8980298892, 8980298920, 8980298921, 8980298922
  • Description
    Voltage: 28
    Amp: 80
    Pulley dist.: 55.00
    Width/holder arm: 17.50
    Mount. bracket dist.: 76.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 1
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 65.00
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 85.00
    B+: M8
    Position/B+ in min.: 15
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 220.00
    Pulley: SP
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116104, LR280-707, LR280-707B, LR280-707C, LR280-708, LR280-708B, LR280-708C, 8980298891, 8980298892, 8980298920, 8980298921, 8980298922

    • Normalised article numbler
      a2061, a2079s, cal20611, f032116104, f042305020, lr280707, lr280707b, lr280707c, lr280708, lr280708b, lr280708c, 553745ri, 136009080, 8980298891, 8980298892, 8980298920, 8980298921, 8980298922
