HC-Cargo Alternator
HC-Cargo Alternator

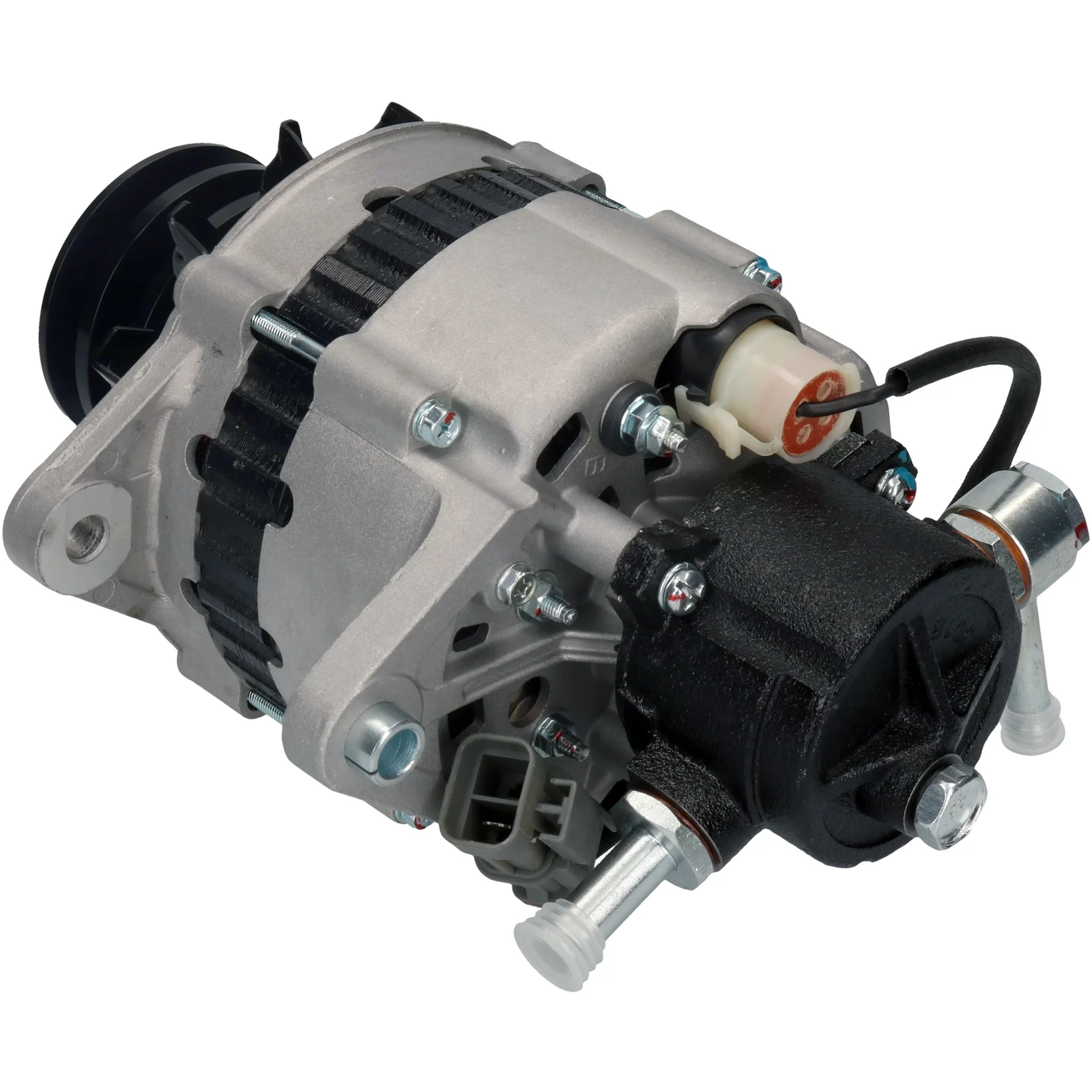

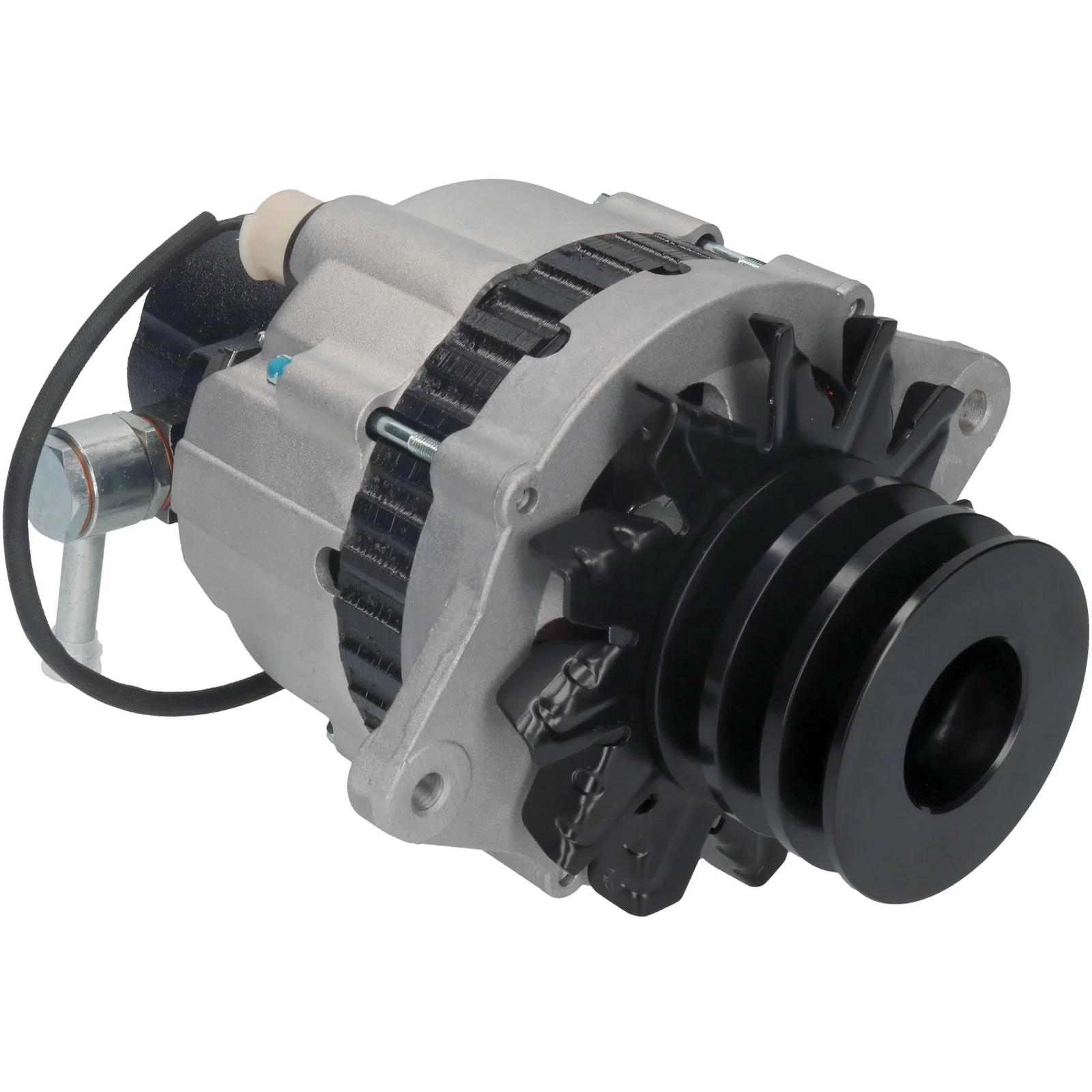

Article no.: F032116108

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 50, Rotation: CW, Mount. bracket dist.: 81.30

Description

Voltage: 28
Amp: 50
Pulley dist.: 42.00
Width/holder arm: 13.00
Mount. bracket dist.: 81.30
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 82.00
Grooves/pulley: 3
Radius: 90.00
Radius 2: 85.00
B+: M6
Position/B+ in min.: 8
D+ Size: Plug
Rotation: CW
Plug no.: PL100
Total length mm: 164.00
Pulley: Triple Pulley
Regulator type: IR
Vacuum pump: Yes

Files

  • Description
    Voltage: 28
    Amp: 50
    Pulley dist.: 42.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 81.30
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 82.00
    Grooves/pulley: 3
    Radius: 90.00
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 8
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL100
    Total length mm: 164.00
    Pulley: Triple Pulley
    Regulator type: IR
    Vacuum pump: Yes

    Files

  • Suitable for these vehicles
