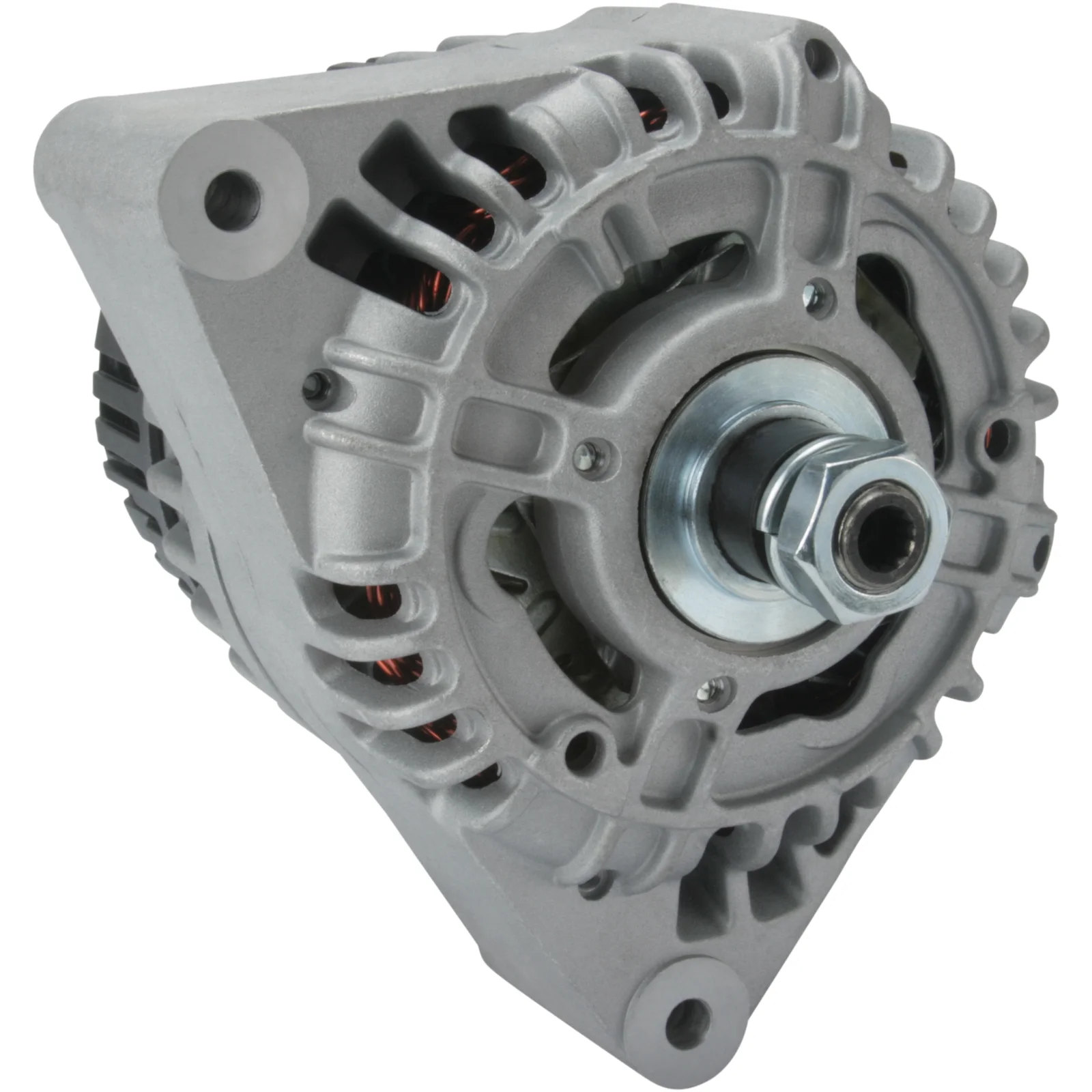

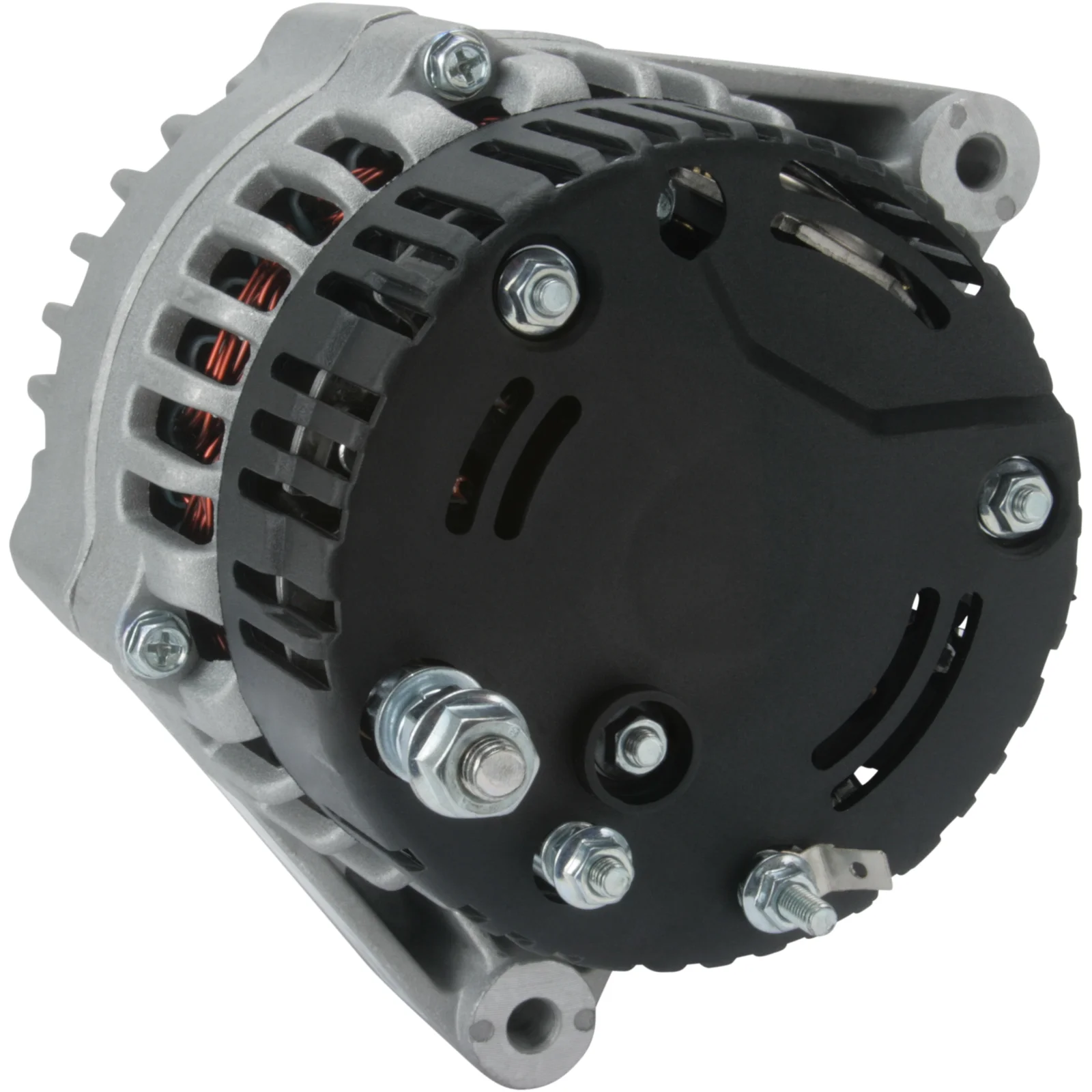

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116155

HC-Cargo Alternator

Technical info:

Voltage: 28, Amps: 55, Rotation: CW, Radius: 90.00

Description

Voltage: 28
Amp: 55
Terminal: W
Width/holder arm: 56.00
Bracket hole: 8.20
Belt. adj. bracket hole position: 10
Belt. adj. bracket hole 1: 8.20
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 1
D+ Size: M4
Rotation: CW
W plug type: M5-6.30
Total length mm: 194.00
Pulley: without
Alternator type: IR
Prod. info: BN
Servicing: Deutz
Remarks: Dustproof

Files

  • OEM
    aak5376, aak5565, F032116155, 11.203.155, 11.203.396, 11.204.040, 1182167, 01183195, 1183195, 01183443, 1183443, 01183626

  • Normalised article numbler
    a9159, a9159letrika, aak5376, aak5565, cal21603, dra0747, f032116155, ia1076, lra04317, 112384, 487926, 553664ri, 1182167, 01183195, 1183195, 01183443, 1183443, 01183626, 11203155, 11203396, 11204040
  • Description
    Voltage: 28
    Amp: 55
    Terminal: W
    Width/holder arm: 56.00
    Bracket hole: 8.20
    Belt. adj. bracket hole position: 10
    Belt. adj. bracket hole 1: 8.20
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 1
    D+ Size: M4
    Rotation: CW
    W plug type: M5-6.30
    Total length mm: 194.00
    Pulley: without
    Alternator type: IR
    Prod. info: BN
    Servicing: Deutz
    Remarks: Dustproof

    Files

  • Suitable for these vehicles

    • OEM
      aak5376, aak5565, F032116155, 11.203.155, 11.203.396, 11.204.040, 1182167, 01183195, 1183195, 01183443, 1183443, 01183626

    • Normalised article numbler
      a9159, a9159letrika, aak5376, aak5565, cal21603, dra0747, f032116155, ia1076, lra04317, 112384, 487926, 553664ri, 1182167, 01183195, 1183195, 01183443, 1183443, 01183626, 11203155, 11203396, 11204040
