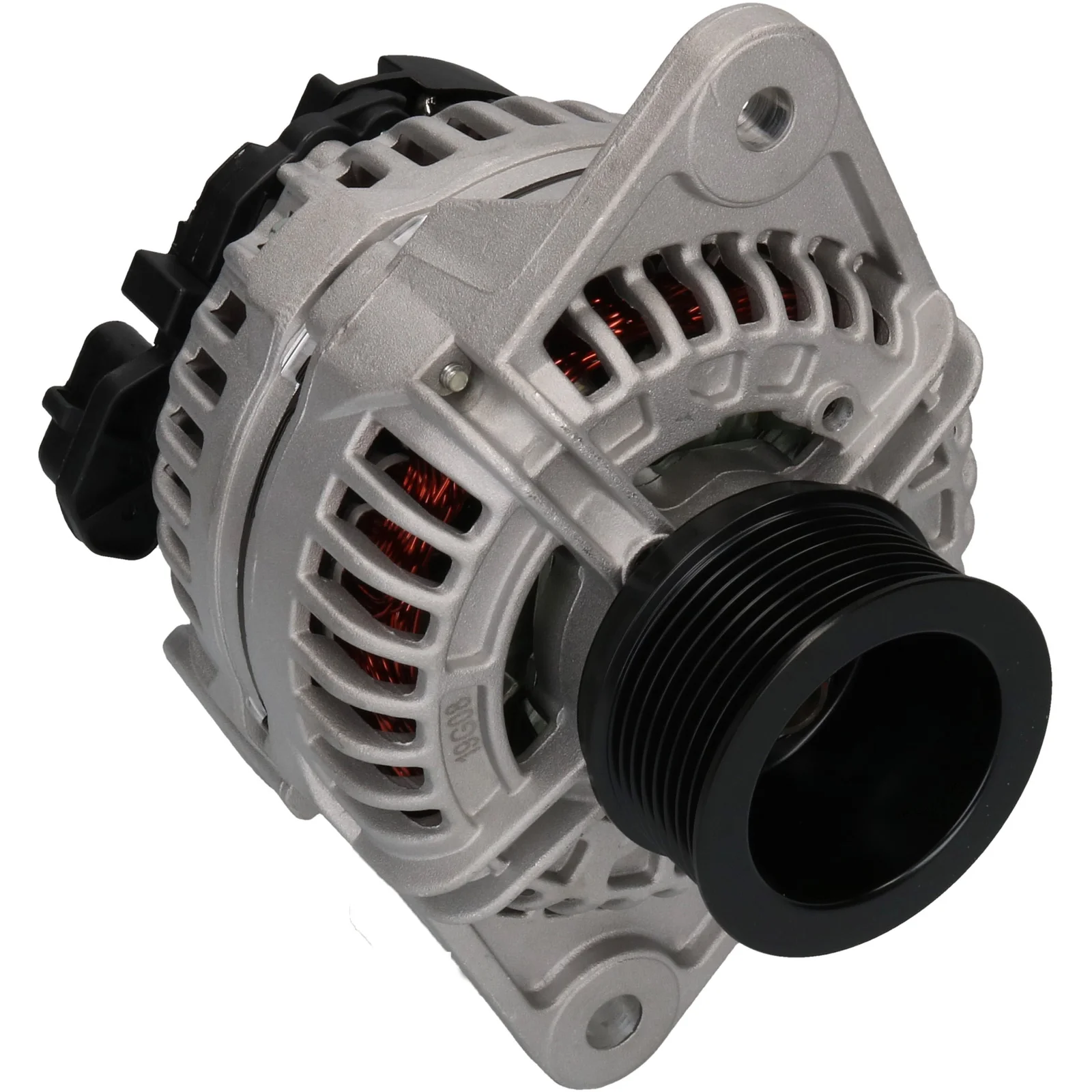

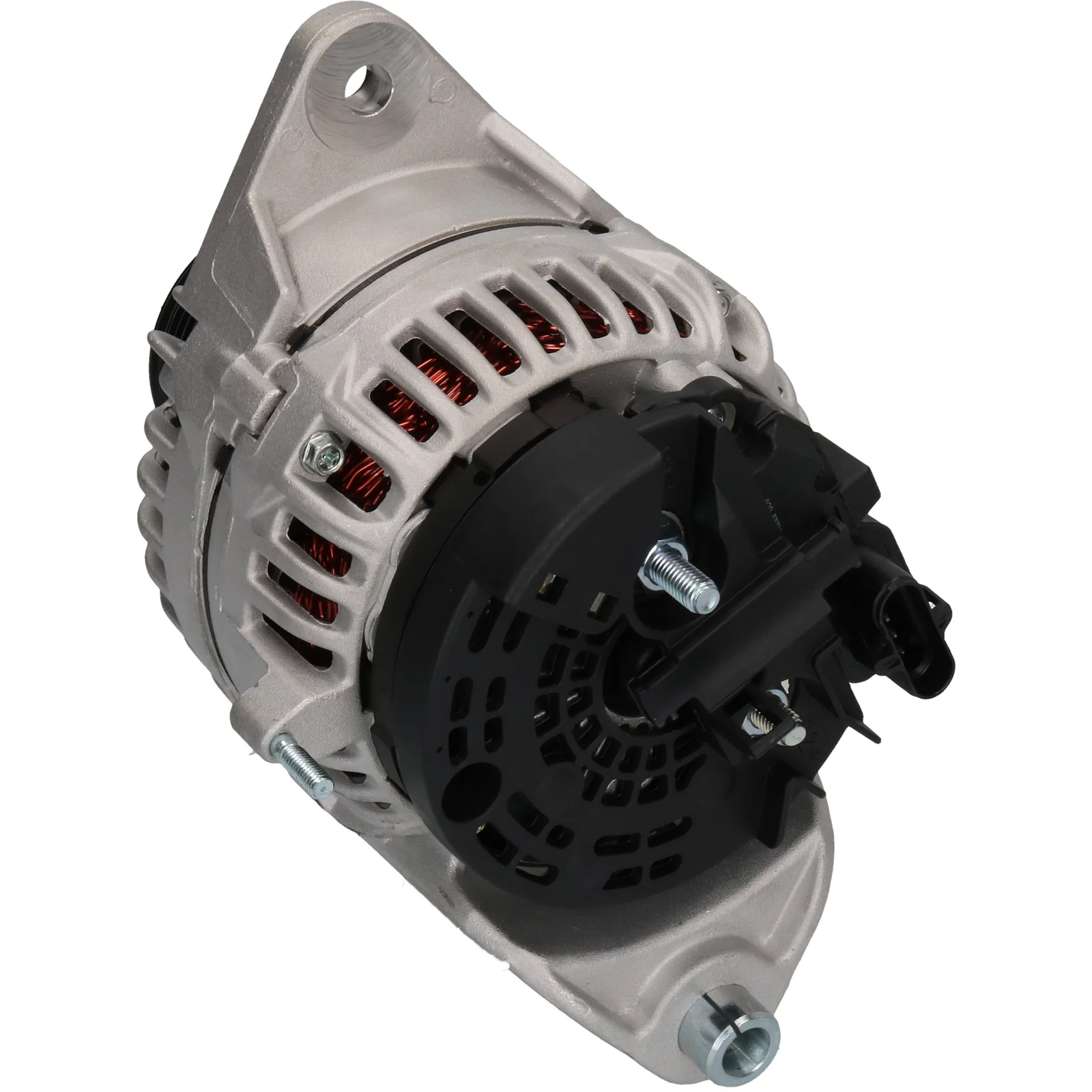

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116310

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 80, Rotation: CW, Mounting bracket distance: 105.00

Description

Voltage: 28
Amp: 80
Pulley dist.: 44.50
Width/holder arm: 13.00
Mount. bracket dist.: 105.00
Bracket hole: 13.00
Belt. adj. bracket hole pos.: 60
Belt. adj. bracket hole 1: 11.00
Pulley dia.: 73.00
Grooves/pulley: 8
Radius: 99.00
Radius 2: 99.00
B+: M8
Position/B+ in min.: 60
D+ Size: Plug
Rotation: CW
Plug no.: PL82
W plug type: Plug
Total length mm: 216.00
Pulley: SP
Fan: IF
Regulator type: IR

Files

  • OEM
    AAN5412, F032116310, 11.209.623, 1986A00538, 1986A00923, 861274GB, 20850236, 21429782, 72445848, 85000661, 0124555036, 0124555119

  • Normalised article numbler
    a0603s, aan5412, alt2323, dra0285, dra0285x, f032116310, ia9471, mg816, 1986a00538, 1986a00923, 20689n, 202052, 443512, 444452, 486525, 861274gb, 11209623, 12090767, 20850236, 21429782, 72445848, 85000661, 0124555036, 0124555119, 816502080
  • Description
    Voltage: 28
    Amp: 80
    Pulley dist.: 44.50
    Width/holder arm: 13.00
    Mount. bracket dist.: 105.00
    Bracket hole: 13.00
    Belt. adj. bracket hole pos.: 60
    Belt. adj. bracket hole 1: 11.00
    Pulley dia.: 73.00
    Grooves/pulley: 8
    Radius: 99.00
    Radius 2: 99.00
    B+: M8
    Position/B+ in min.: 60
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL82
    W plug type: Plug
    Total length mm: 216.00
    Pulley: SP
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      AAN5412, F032116310, 11.209.623, 1986A00538, 1986A00923, 861274GB, 20850236, 21429782, 72445848, 85000661, 0124555036, 0124555119

    • Normalised article numbler
      a0603s, aan5412, alt2323, dra0285, dra0285x, f032116310, ia9471, mg816, 1986a00538, 1986a00923, 20689n, 202052, 443512, 444452, 486525, 861274gb, 11209623, 12090767, 20850236, 21429782, 72445848, 85000661, 0124555036, 0124555119, 816502080
