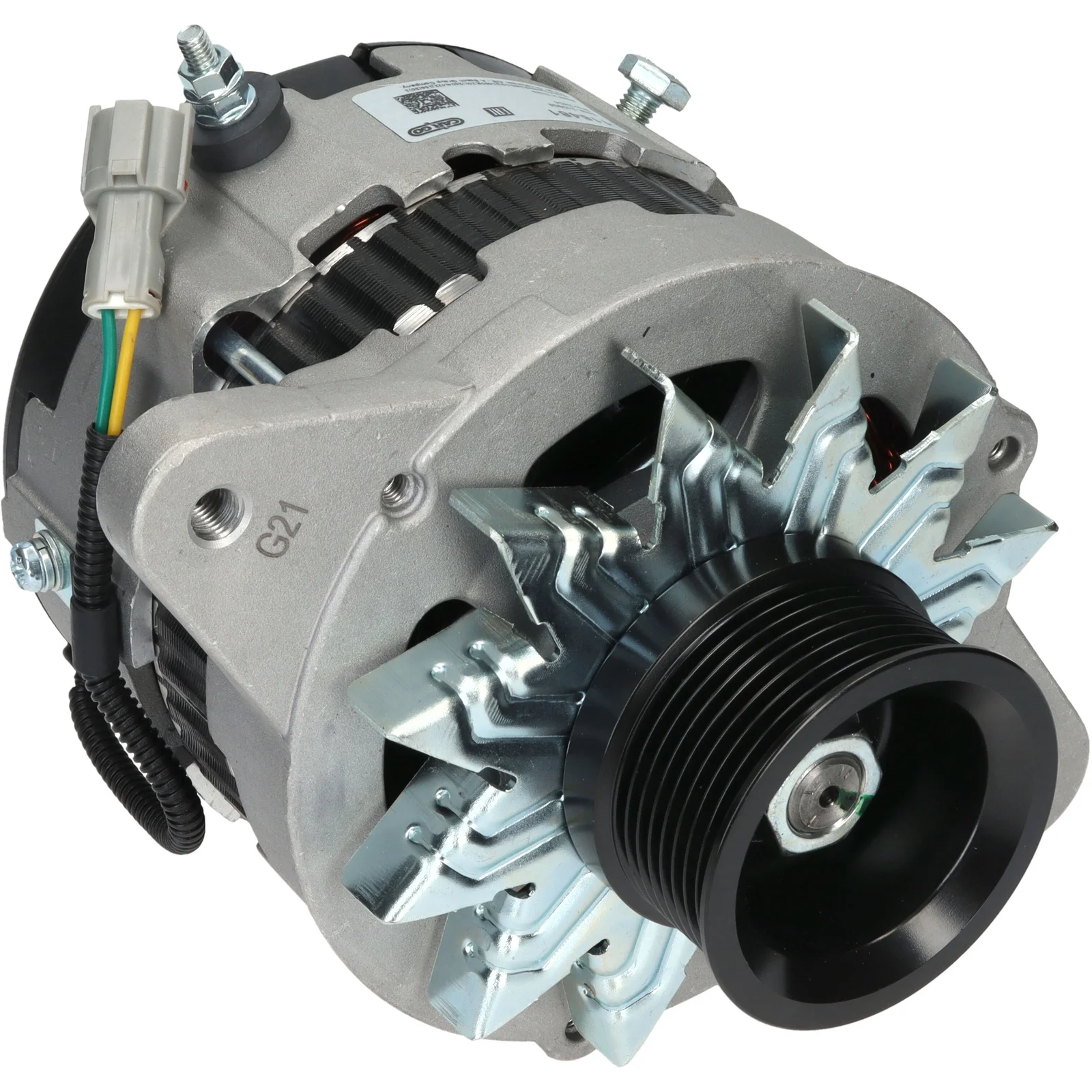

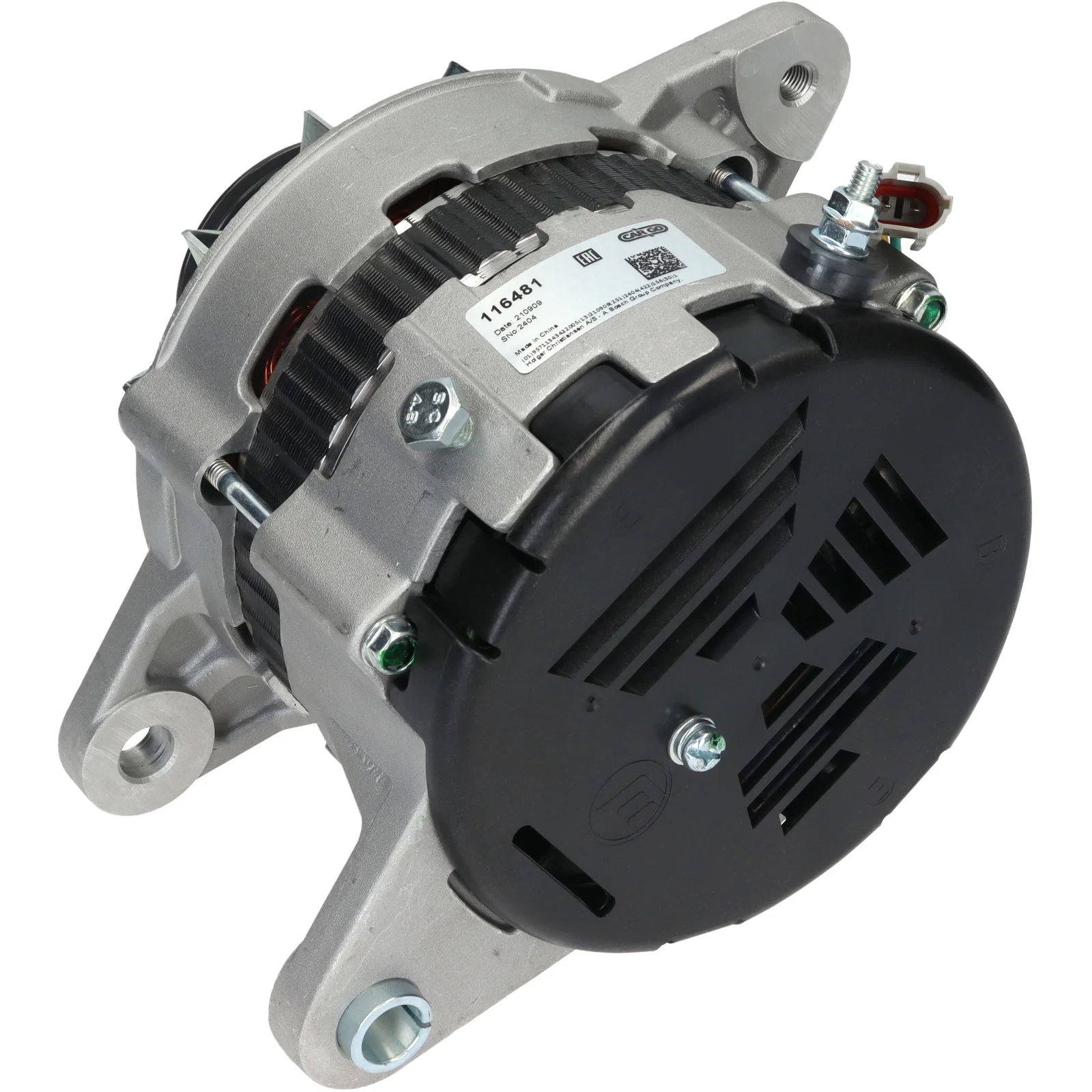

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116481

HC-Cargo Alternator

Technical info:

Voltage: 28, Amperes: 50, Rotation: CW, Mounting bracket distance: 90.00

Description

Voltage: 28
Amp: 50
Pulley dist.: 49.80
Width/holder arm: 14.00
Mount. bracket dist.: 90.00
Bracket hole: 14.20
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M10-1.25
Pulley dia.: 70.00
Grooves/pulley: 8
Radius: 110.00
Radius 2: 110.00
B+: M8
Position/B+ in min.: 54
D+ Size: Plug
Rotation: CW
Plug no.: PL201
Terminal type: R-L
Pulley: SP
Fan: EF
Regulator type: IR

Files

  • OEM
    0-35000-4558, 0-35000-4598, 0-35000-5230, F032116481, 0201-172-0510, 714-40523, 27040-2481A, 8973750471

  • Normalised article numbler
    f032116481, 11840, 112810, 553865ri, 71440523, 270402481a, 0350004558, 0350004598, 0350005230, 02011720510, 8973750471
  • Description
    Voltage: 28
    Amp: 50
    Pulley dist.: 49.80
    Width/holder arm: 14.00
    Mount. bracket dist.: 90.00
    Bracket hole: 14.20
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M10-1.25
    Pulley dia.: 70.00
    Grooves/pulley: 8
    Radius: 110.00
    Radius 2: 110.00
    B+: M8
    Position/B+ in min.: 54
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL201
    Terminal type: R-L
    Pulley: SP
    Fan: EF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      0-35000-4558, 0-35000-4598, 0-35000-5230, F032116481, 0201-172-0510, 714-40523, 27040-2481A, 8973750471

    • Normalised article numbler
      f032116481, 11840, 112810, 553865ri, 71440523, 270402481a, 0350004558, 0350004598, 0350005230, 02011720510, 8973750471
