HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116508

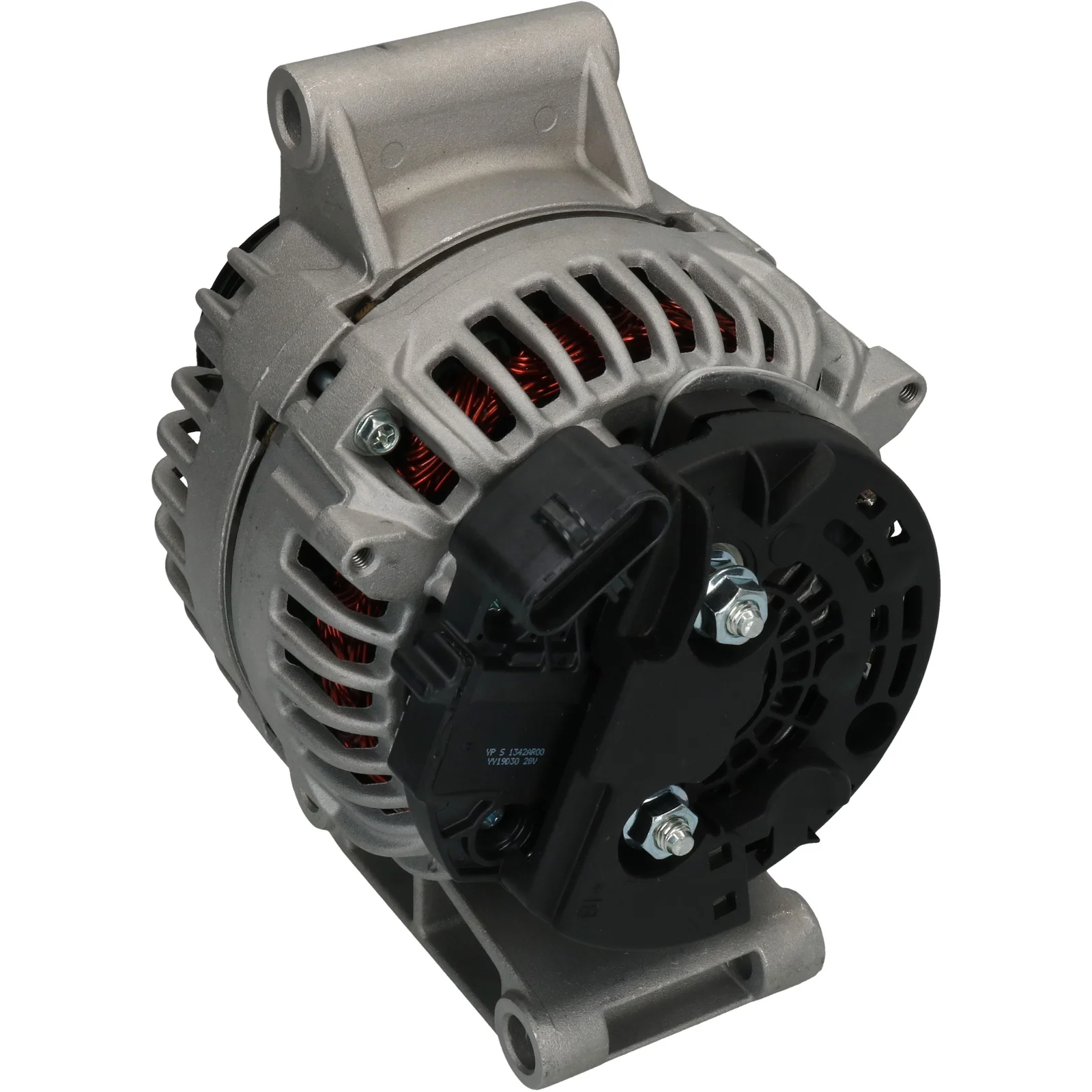

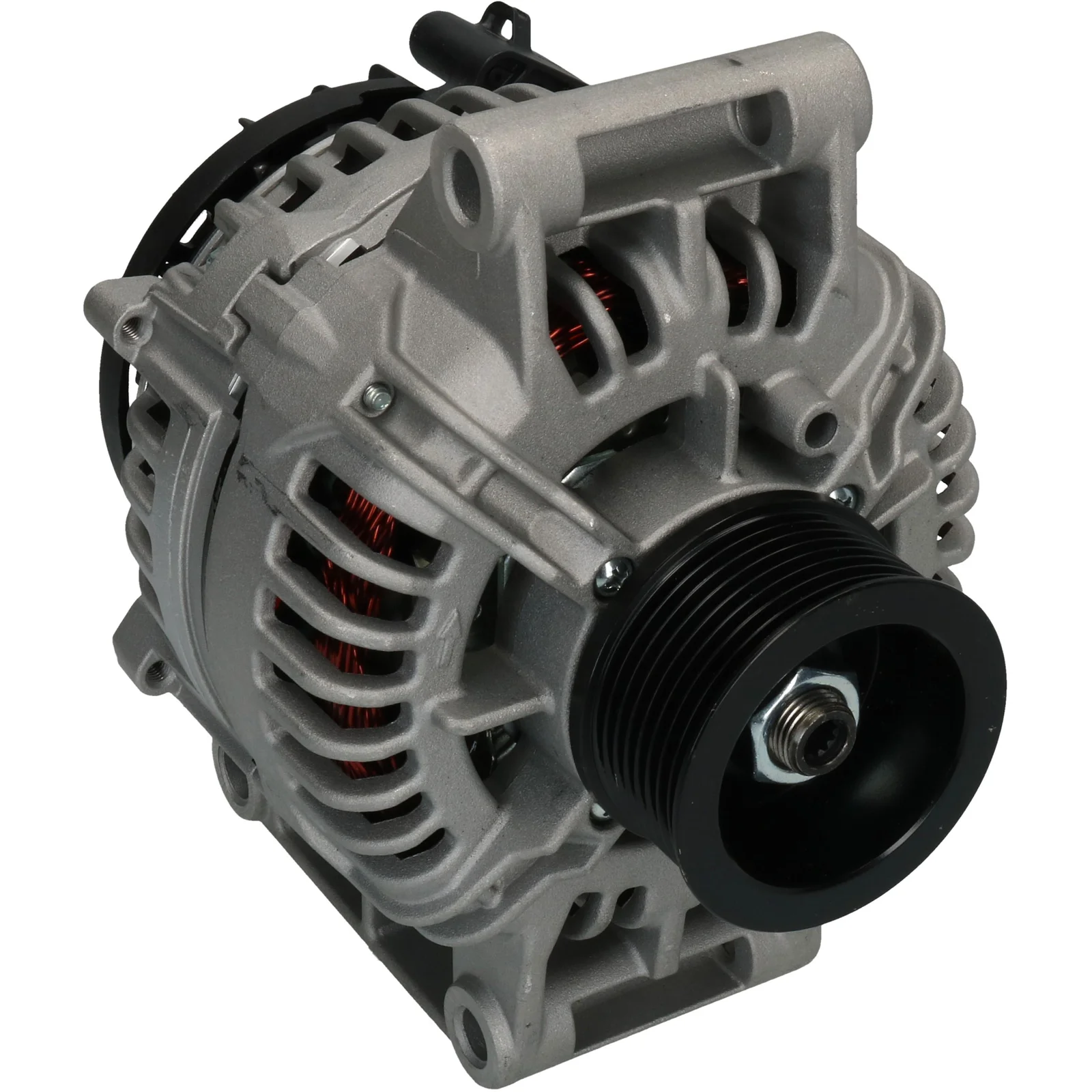

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 150, Rotation: CW, Mount. bracket dist.: 108.00

Description

Voltage: 28
Amp: 150
Pulley dist.: 38.00
Width/holder arm: 80.00
Mount. bracket dist.: 108.00
Bracket hole: 10.20
Belt. adj. bracket hole 1: 10.20/12.00
Pulley dia.: 69.00
Grooves/pulley: 8
Radius: 95.00
Radius 2: 95.00
B+: M8
Position/B+ in min.: 58
Rotation: CW
Plug no.: PL190
Total length mm: 205.00
Terminal type: COM
Communication: LIN
Pulley: SP
Fan: IF
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A0001506950, F032116508, 1986A00996, 0001506950, 0124655235, 0124655236

  • Normalised article numbler
    a0001506950, a0728s, cal10679, dra1465, f032116508, 1986a00996, 487849, 554386ri, 0001506950, 0124655235, 0124655236, 556518150
  • Description
    Voltage: 28
    Amp: 150
    Pulley dist.: 38.00
    Width/holder arm: 80.00
    Mount. bracket dist.: 108.00
    Bracket hole: 10.20
    Belt. adj. bracket hole 1: 10.20/12.00
    Pulley dia.: 69.00
    Grooves/pulley: 8
    Radius: 95.00
    Radius 2: 95.00
    B+: M8
    Position/B+ in min.: 58
    Rotation: CW
    Plug no.: PL190
    Total length mm: 205.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Fan: IF
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A0001506950, F032116508, 1986A00996, 0001506950, 0124655235, 0124655236

    • Normalised article numbler
      a0001506950, a0728s, cal10679, dra1465, f032116508, 1986a00996, 487849, 554386ri, 0001506950, 0124655235, 0124655236, 556518150
