HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116524

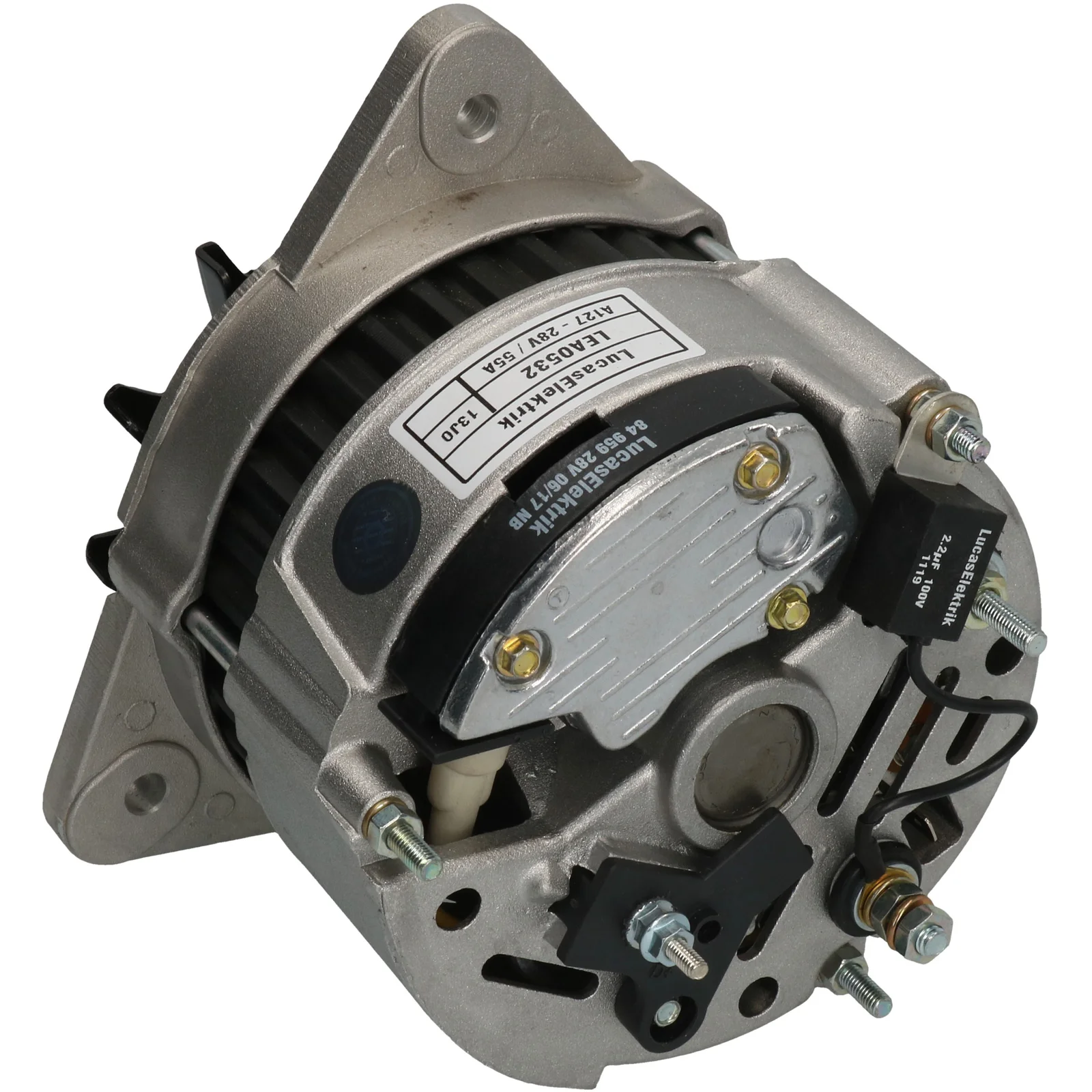

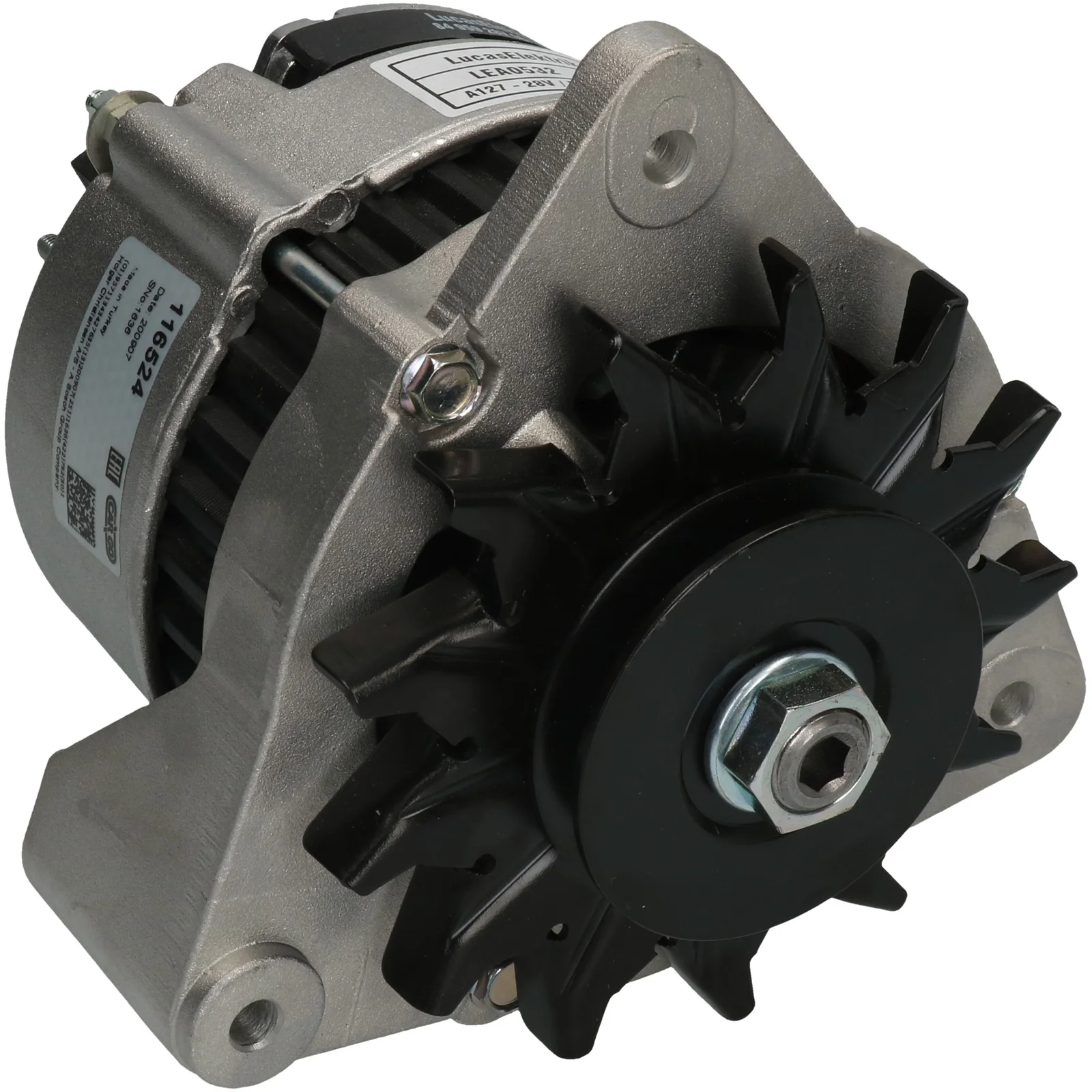

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 55, Rotation: CW, Pulley dia.: 72.00

Description

Voltage: 28
Amp: 55
Pulley: P → Pulley
dist.: 77.00
Width/holder arm: 56.00
Bracket hole: 8.20
Belt. adj. brackethole pos.: 10
Belt. adj. brackethole pos. 2: 50
Belt. adj. bracket hole 1: 8.20
Belt. adj. bracket hole 2: 8.20
Pulley dia.: 72.00
Grooves/pulley: 1
Radius: 86.00
Radius 2: 80.00
Radius 3: 80.00
B+: M6
Position/B+ in min.: 34
D+ Size: M4
Rotation: CW
Total length mm: 168.00
Pulley: P → Pulley
Fan: EF → Fan

Files

  • Description
    Voltage: 28
    Amp: 55
    Pulley: P → Pulley
    dist.: 77.00
    Width/holder arm: 56.00
    Bracket hole: 8.20
    Belt. adj. brackethole pos.: 10
    Belt. adj. brackethole pos. 2: 50
    Belt. adj. bracket hole 1: 8.20
    Belt. adj. bracket hole 2: 8.20
    Pulley dia.: 72.00
    Grooves/pulley: 1
    Radius: 86.00
    Radius 2: 80.00
    Radius 3: 80.00
    B+: M6
    Position/B+ in min.: 34
    D+ Size: M4
    Rotation: CW
    Total length mm: 168.00
    Pulley: P → Pulley
    Fan: EF → Fan

    Files

  • Suitable for these vehicles
