HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116531

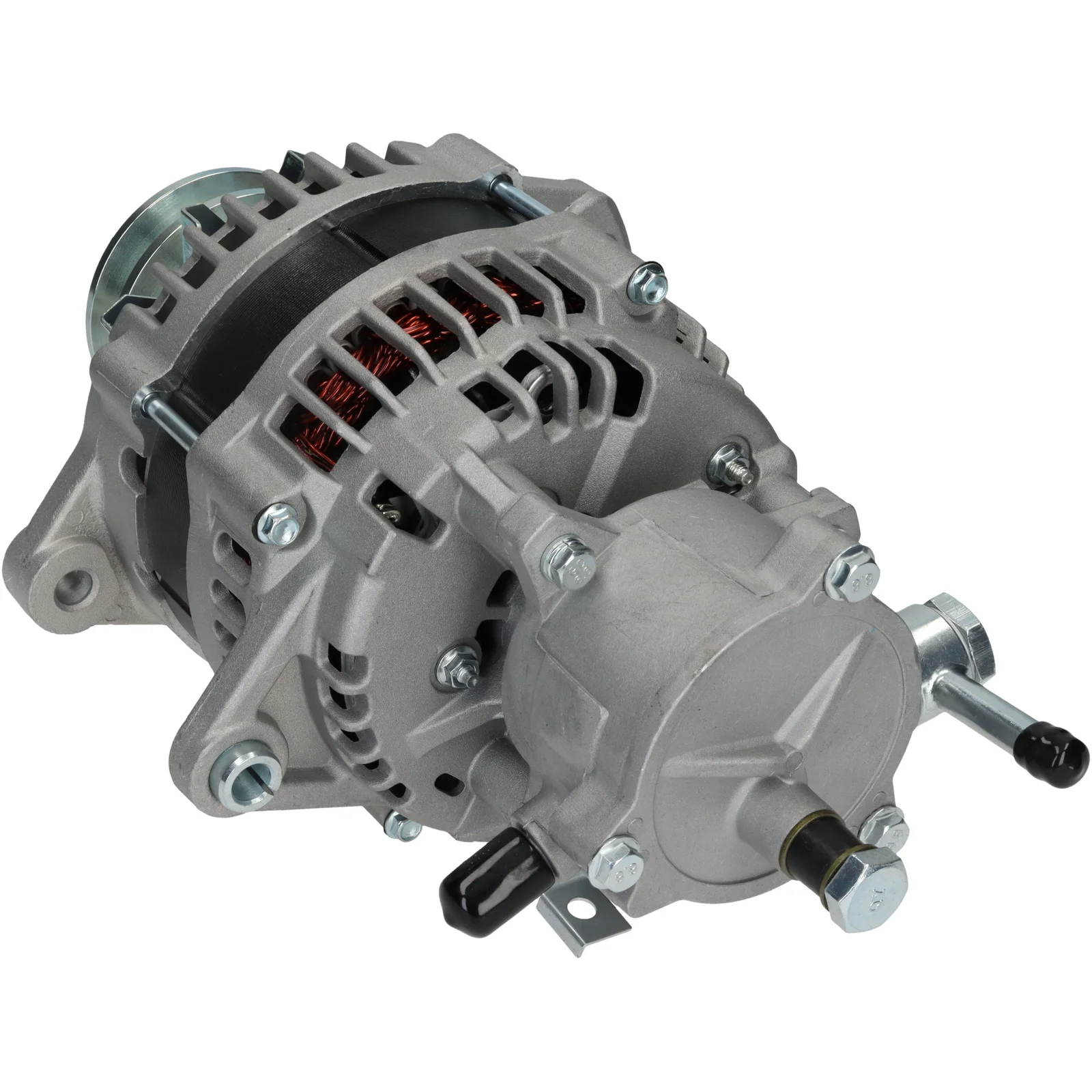

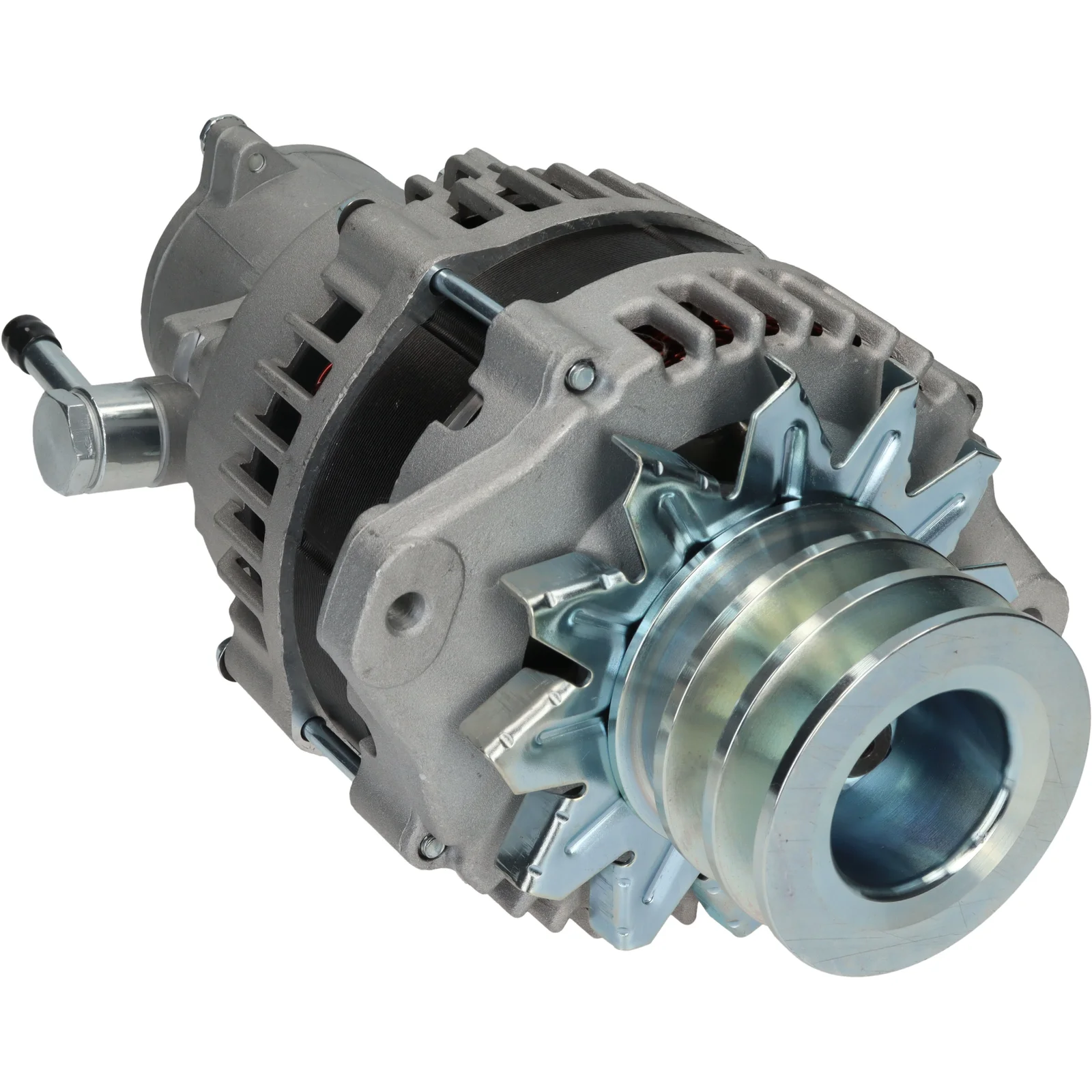

HC-Cargo Alternator

Technical info:

Voltage: 28, Amps: 80, Rotation: CW, Mounting bracket distance: 75.00

Description

Voltage: 28
Amp: 80
Pulley dist.: 42.30
Width/holder arm: 18.00
Mount. bracket dist.: 75.00
Bracket hole: 10.20
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 8.20
Pulley dia.: 82.00
Grooves/pulley: 3
Radius: 90.00
Radius 2: 84.00
B+: M6
Position/B+ in min.: 16
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 302.00
Terminal type: L-S
Pulley: Triple Pulley
Fan: EF
Vacuum pump: Yes

Files

  • OEM
    F032116531, LR280-501, LR280-506, LR280-508, LR280509, 8972489141, 8973515740

  • Normalised article numbler
    a2046, a2055, cal20608, cal2068, f032116531, lr280501, lr280506, lr280508, lr280509, 12718, 113204, 136804080, 8972489141, 8973515740
  • Description
    Voltage: 28
    Amp: 80
    Pulley dist.: 42.30
    Width/holder arm: 18.00
    Mount. bracket dist.: 75.00
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 8.20
    Pulley dia.: 82.00
    Grooves/pulley: 3
    Radius: 90.00
    Radius 2: 84.00
    B+: M6
    Position/B+ in min.: 16
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 302.00
    Terminal type: L-S
    Pulley: Triple Pulley
    Fan: EF
    Vacuum pump: Yes

    Files

  • Suitable for these vehicles

    • OEM
      F032116531, LR280-501, LR280-506, LR280-508, LR280509, 8972489141, 8973515740

    • Normalised article numbler
      a2046, a2055, cal20608, cal2068, f032116531, lr280501, lr280506, lr280508, lr280509, 12718, 113204, 136804080, 8972489141, 8973515740
