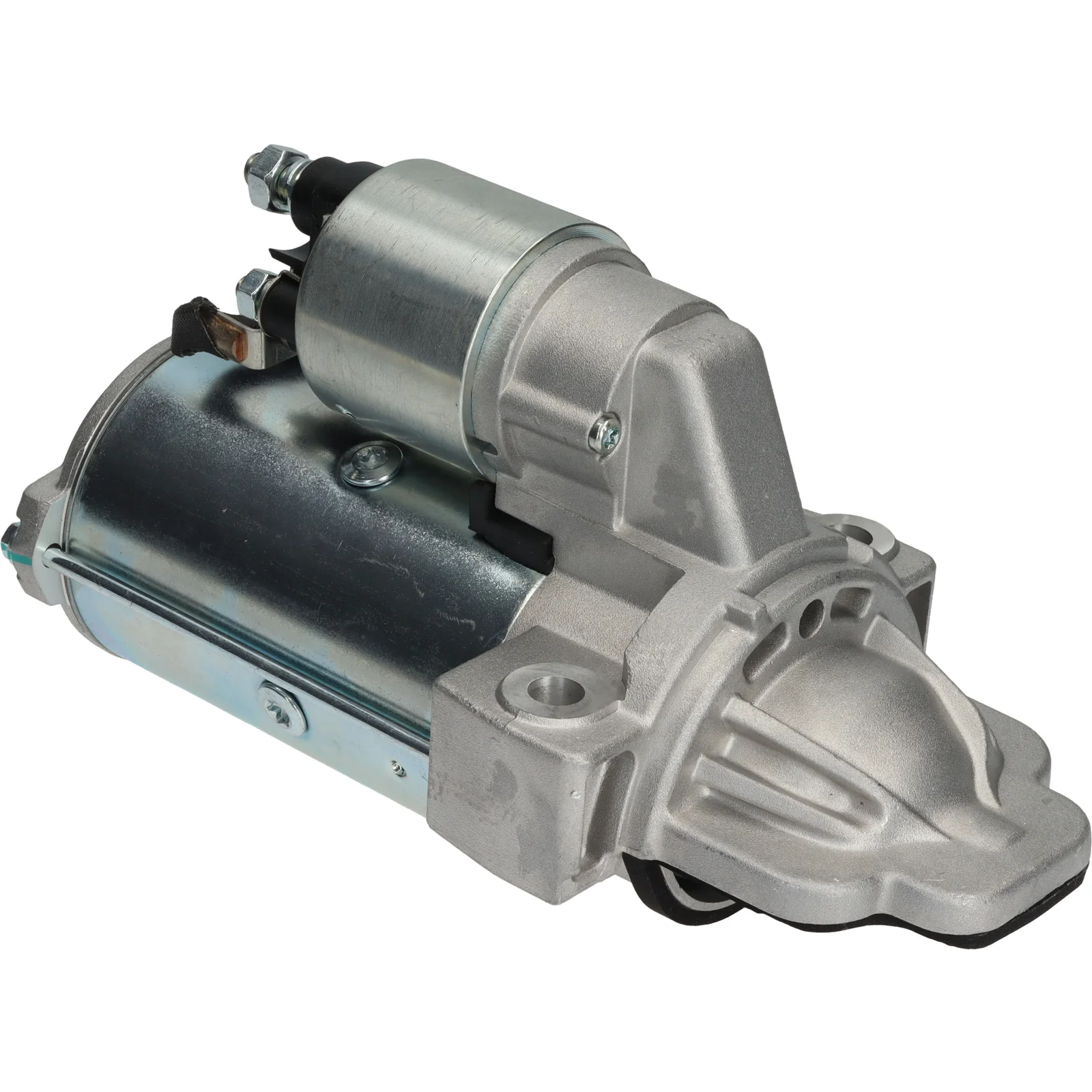

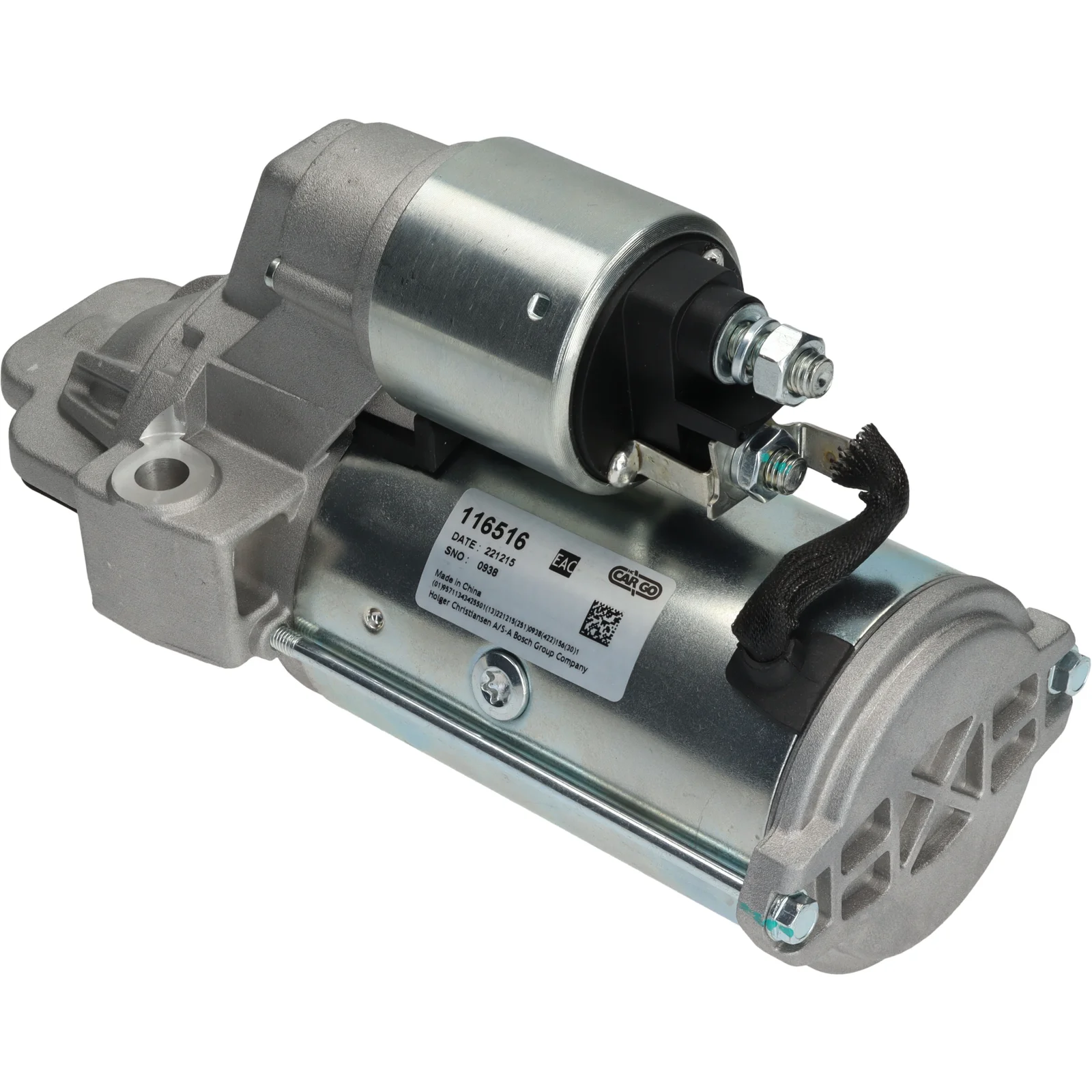

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116516

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.2, No./teeth: 12, Rotation: CW

Description

HC-Cargo Starter motor 12V - 2.2kW, 12k

Voltage: 12
kW: 2.2
Drive distance: 35.00
Mounting hole 2 mm: 10.00/13.00
Mounting hole 1 mm: 10.00/13.00
Distance / back: 152.00
Distance / front: 84.00
Number / teeth: 12
B+: M8
Position / B+: 60
Position / 50: 18
Terminal 50: M6
Gear type: GR
Distance mm: 89.00
Rotation: CW
Total length mm: 236.00
Number / mounting holes: 2 (0)

Files

  • OEM
    BK3T-11000FA, BK3T11000FA, F032116516, TS22-29, TS2229, 116516, 1880119, 2242412

  • Normalised article numbler
    bk3t11000fa, cst15306, drs1173, f032116516, lrs04049, s3218s, ts2229, 8ea011612851, 116516, 255212, 255696v, 438321, 458749, 1880119, 2242412, 11090397, 42003010, 319202122, 590599122, 0986026590
  • Description
    HC-Cargo Starter motor 12V - 2.2kW, 12k

    Voltage: 12
    kW: 2.2
    Drive distance: 35.00
    Mounting hole 2 mm: 10.00/13.00
    Mounting hole 1 mm: 10.00/13.00
    Distance / back: 152.00
    Distance / front: 84.00
    Number / teeth: 12
    B+: M8
    Position / B+: 60
    Position / 50: 18
    Terminal 50: M6
    Gear type: GR
    Distance mm: 89.00
    Rotation: CW
    Total length mm: 236.00
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      BK3T-11000FA, BK3T11000FA, F032116516, TS22-29, TS2229, 116516, 1880119, 2242412

    • Normalised article numbler
      bk3t11000fa, cst15306, drs1173, f032116516, lrs04049, s3218s, ts2229, 8ea011612851, 116516, 255212, 255696v, 438321, 458749, 1880119, 2242412, 11090397, 42003010, 319202122, 590599122, 0986026590
