HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116517

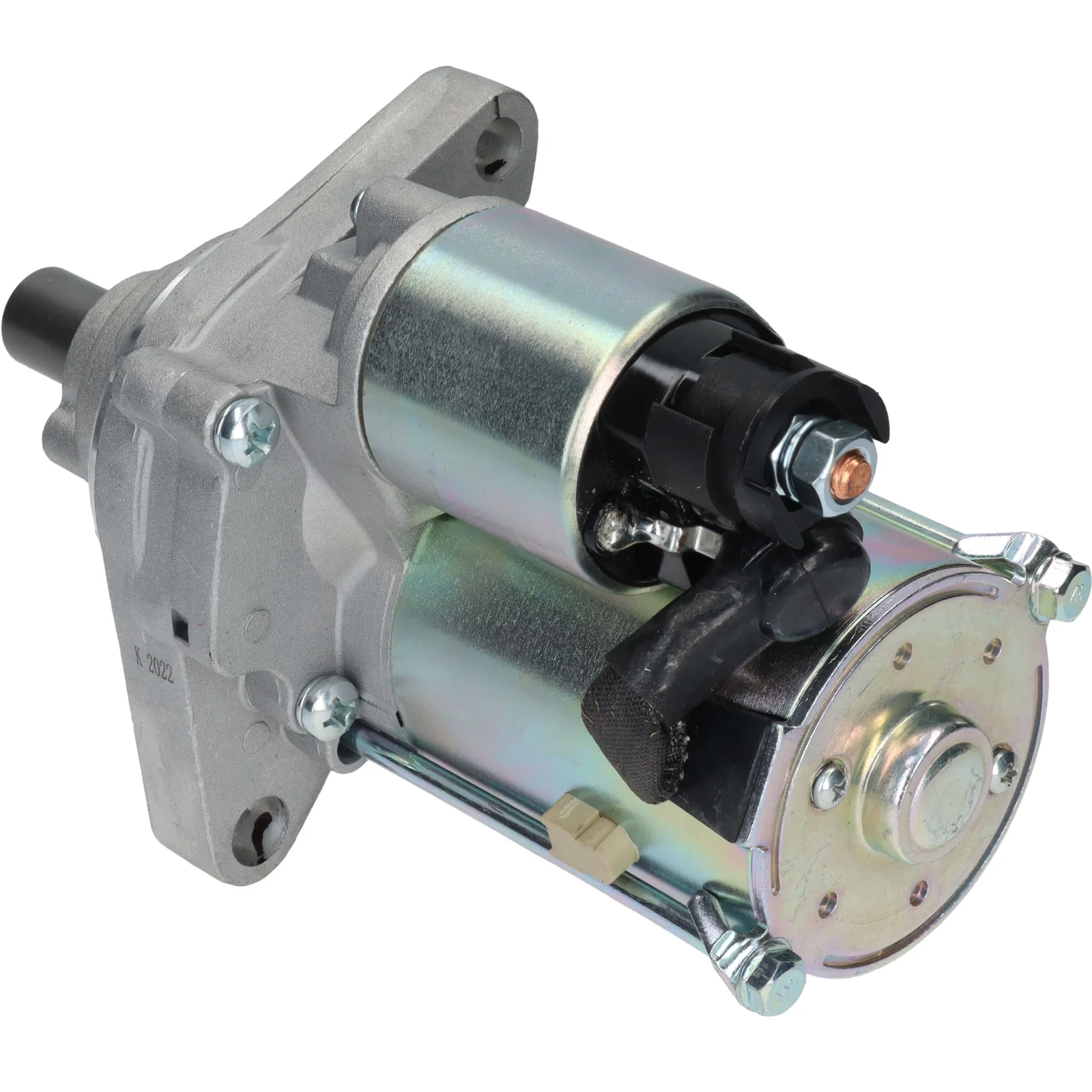

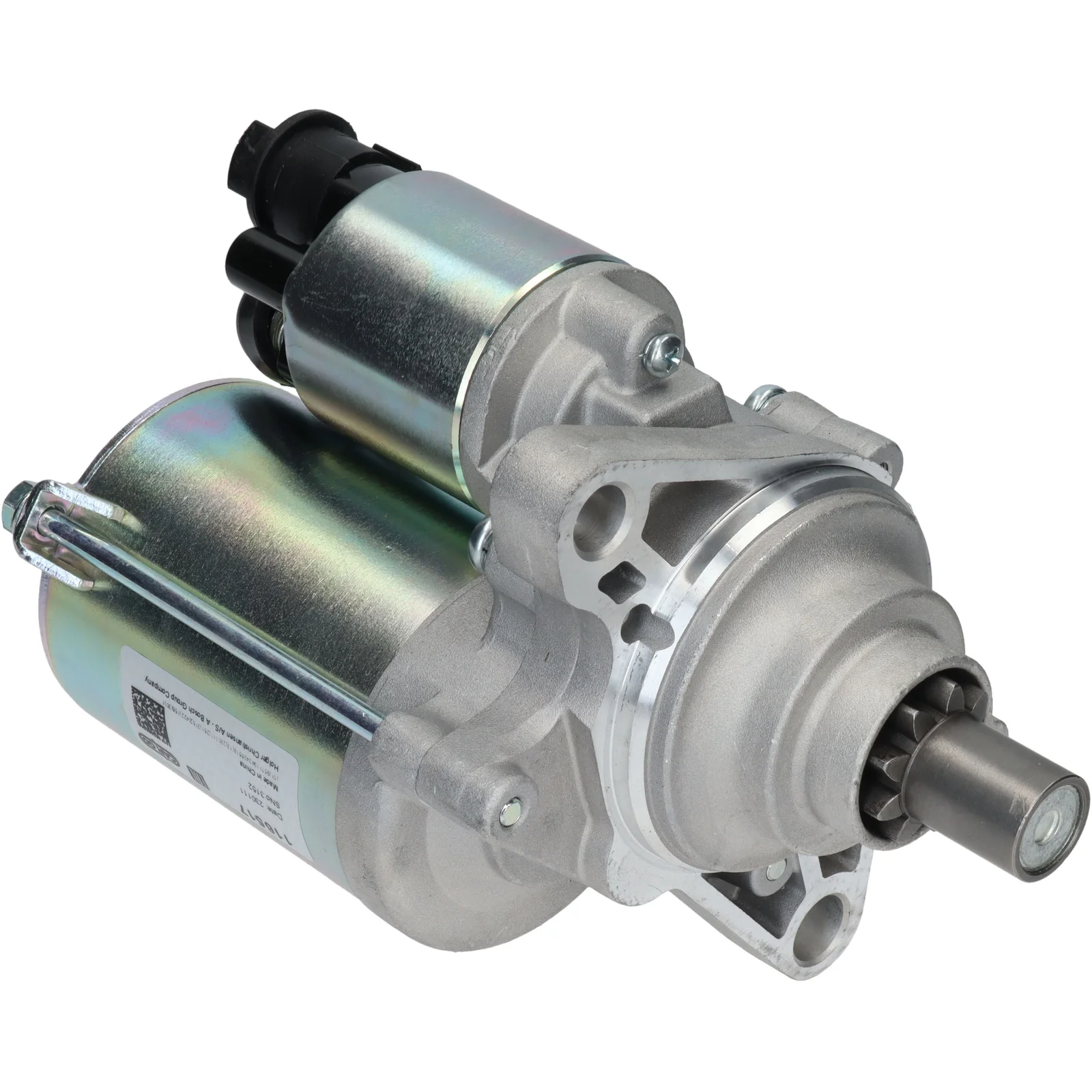

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.0
Mounting flange: 75.00
Drive distance: 40.00
Mounting hole 2 mm: 11.50
Mounting hole 1 mm: 13.50
Distance / back: 139.00
Distance / front: 64.00
Number / teeth: 9
B+: M8
Position / B+: 10
Position / 50: 50
Terminal 50: 6.30
Gear type: GR
Distance in millimeters: 129.00
Rotation: CW
Total length in millimeters: 203.00
Number / mounting holes: 2 (0)

Files

  • OEM
    F032116517, SM442-25, sm44225, sm442252B, 31200-pel-004, 31200-PEL-014

  • Normalised article numbler
    drs0281, f032116517, sm44225, sm442252b, 0986jr0847, 31200pel004, 31200pel014, 33256r, 106591, 253427, 11040887, 0986020481
  • Description
    Voltage: 12
    kW: 1.0
    Mounting flange: 75.00
    Drive distance: 40.00
    Mounting hole 2 mm: 11.50
    Mounting hole 1 mm: 13.50
    Distance / back: 139.00
    Distance / front: 64.00
    Number / teeth: 9
    B+: M8
    Position / B+: 10
    Position / 50: 50
    Terminal 50: 6.30
    Gear type: GR
    Distance in millimeters: 129.00
    Rotation: CW
    Total length in millimeters: 203.00
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032116517, SM442-25, sm44225, sm442252B, 31200-pel-004, 31200-PEL-014

    • Normalised article numbler
      drs0281, f032116517, sm44225, sm442252b, 0986jr0847, 31200pel004, 31200pel014, 33256r, 106591, 253427, 11040887, 0986020481
