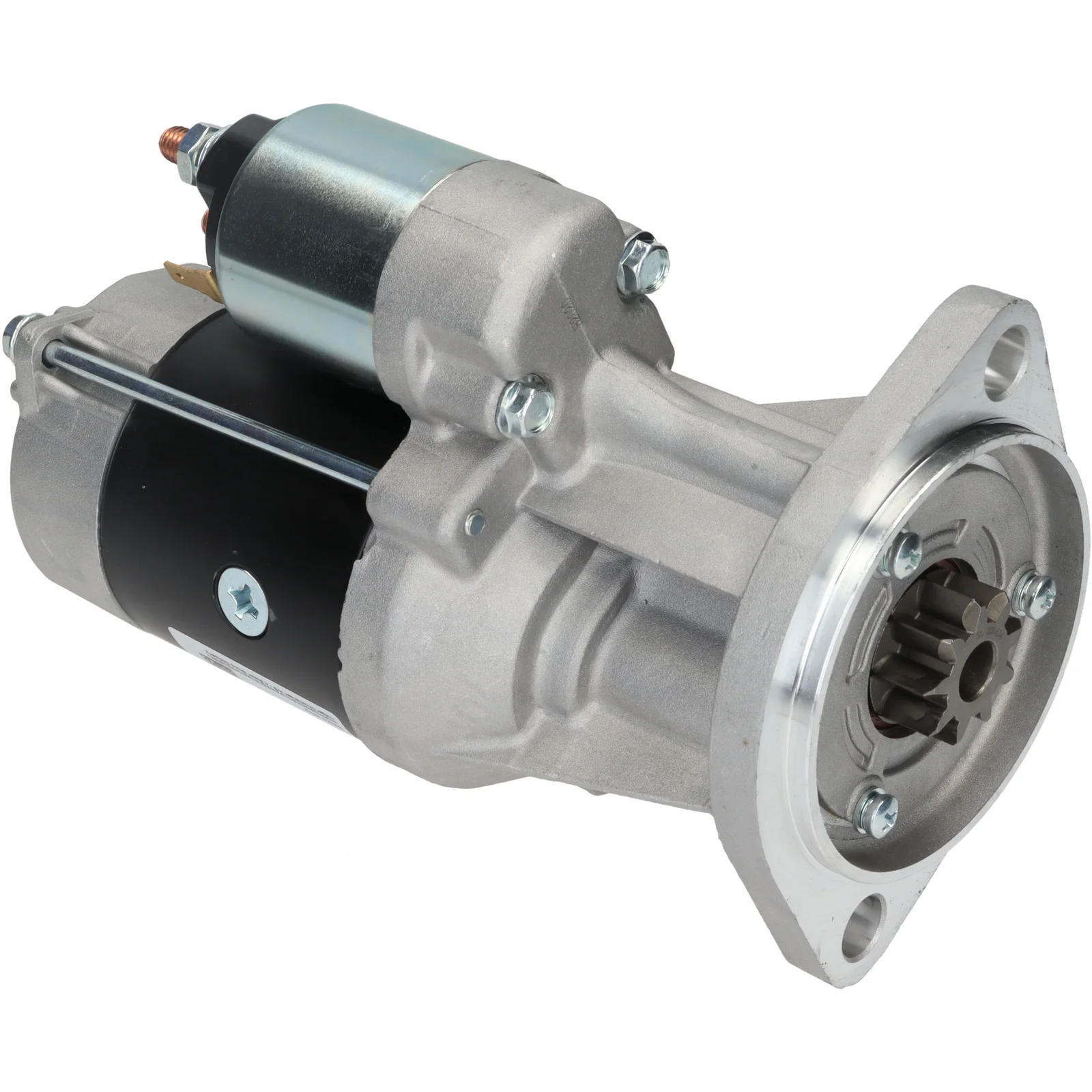

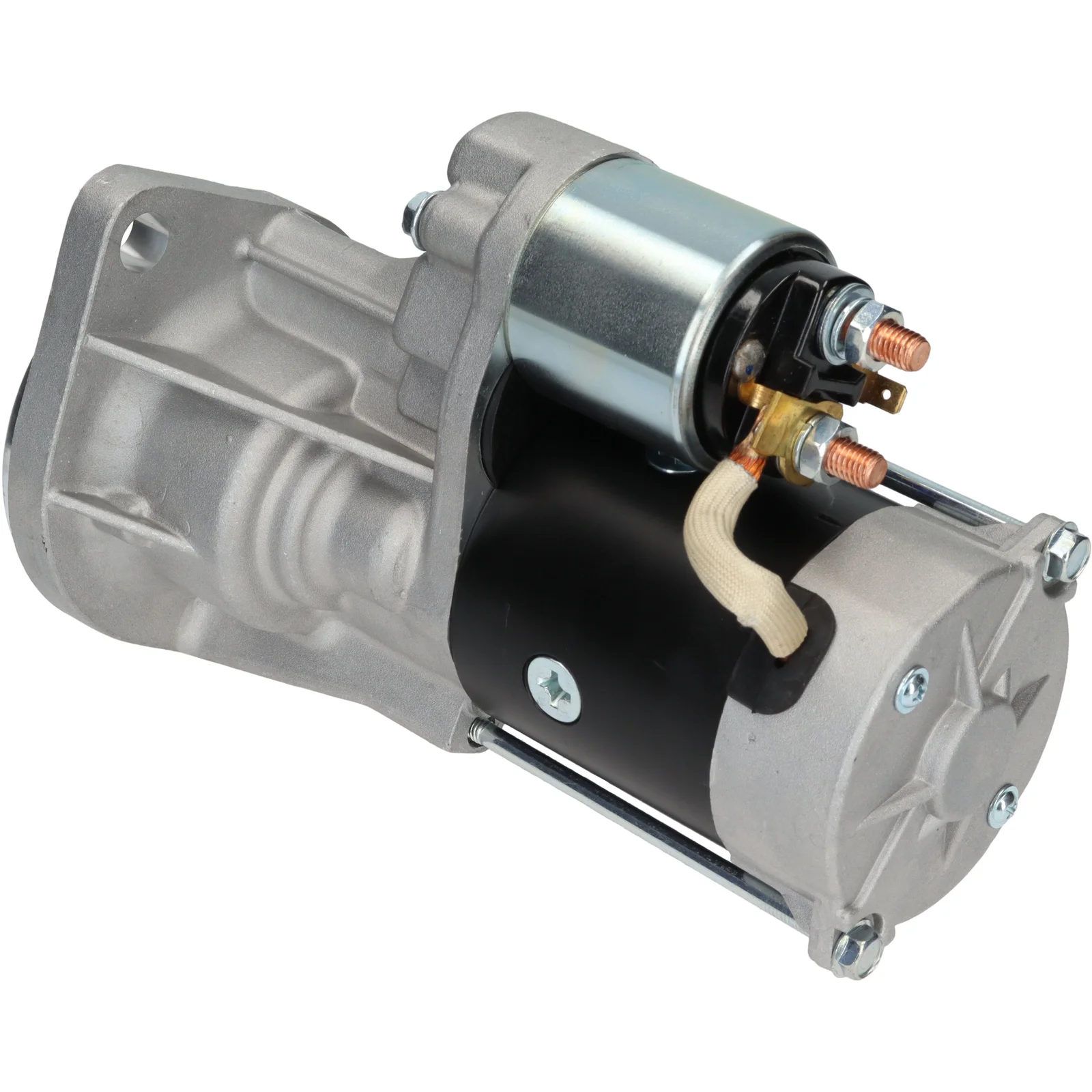

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116525

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.3, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.3
Mounting flange: 95.00
Drive distance: 11.00
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance/backup: 202.00
Distance/front: 11.00
Number of teeth: 9
B+: M8
Position/B+: 60
Position/50: 15
Terminal 50: 6.30
Gear type: GR
Distance in millimeters: 120.00
Rotation: CW
Total length in millimeters: 213.00
Number of mounting holes: 2 (0)

Files

  • OEM
    F032116525, s13-557, S13-557A, S13-557B, 8980281980, 8980281990

  • Normalised article numbler
    cst20186, drs0647, f032116525, s13557, s13557a, s13557b, s2043, 30252n, 254040, 254679, 130560092, 8980281980, 8980281990
  • Description
    Voltage: 12
    kW: 2.3
    Mounting flange: 95.00
    Drive distance: 11.00
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance/backup: 202.00
    Distance/front: 11.00
    Number of teeth: 9
    B+: M8
    Position/B+: 60
    Position/50: 15
    Terminal 50: 6.30
    Gear type: GR
    Distance in millimeters: 120.00
    Rotation: CW
    Total length in millimeters: 213.00
    Number of mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032116525, s13-557, S13-557A, S13-557B, 8980281980, 8980281990

    • Normalised article numbler
      cst20186, drs0647, f032116525, s13557, s13557a, s13557b, s2043, 30252n, 254040, 254679, 130560092, 8980281980, 8980281990
