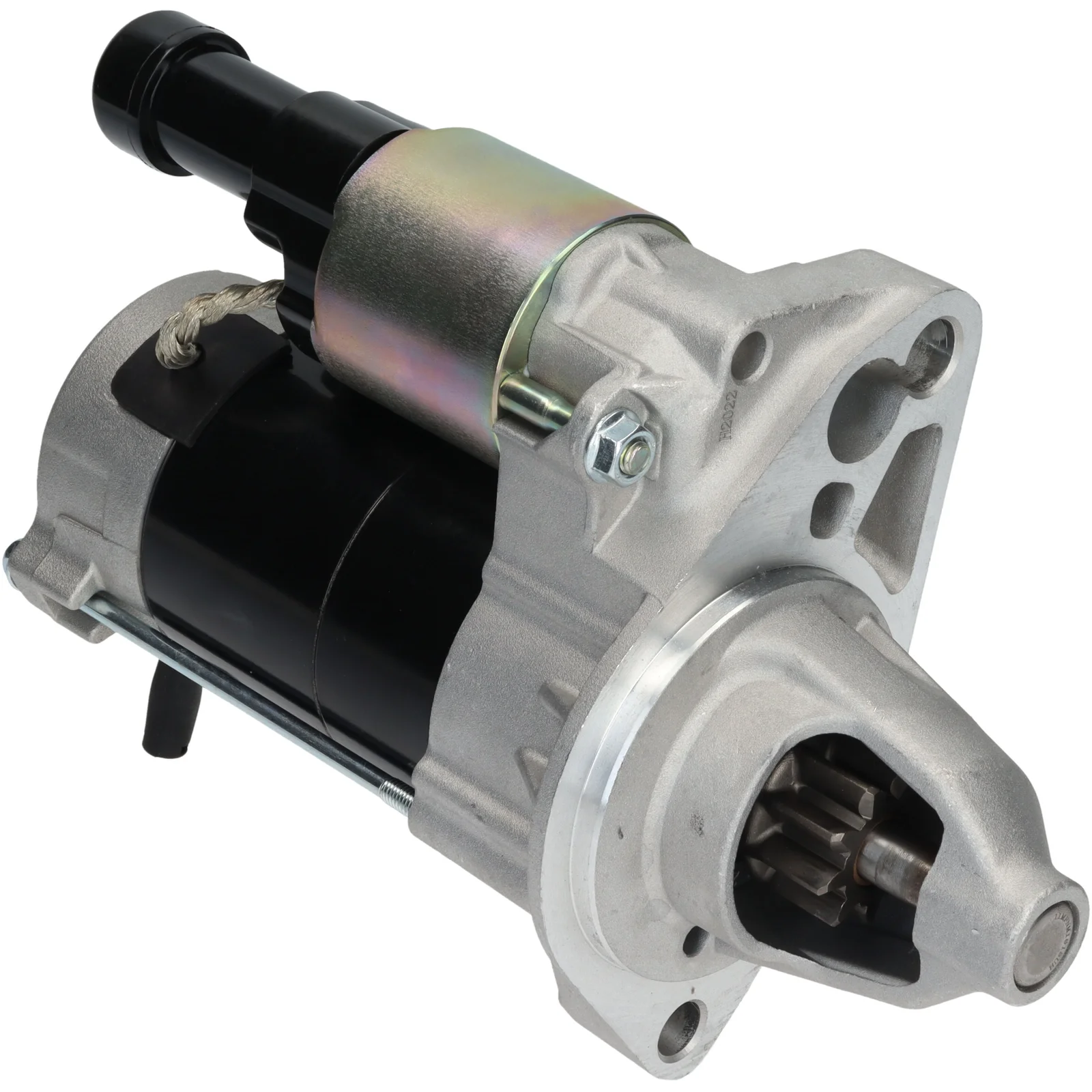

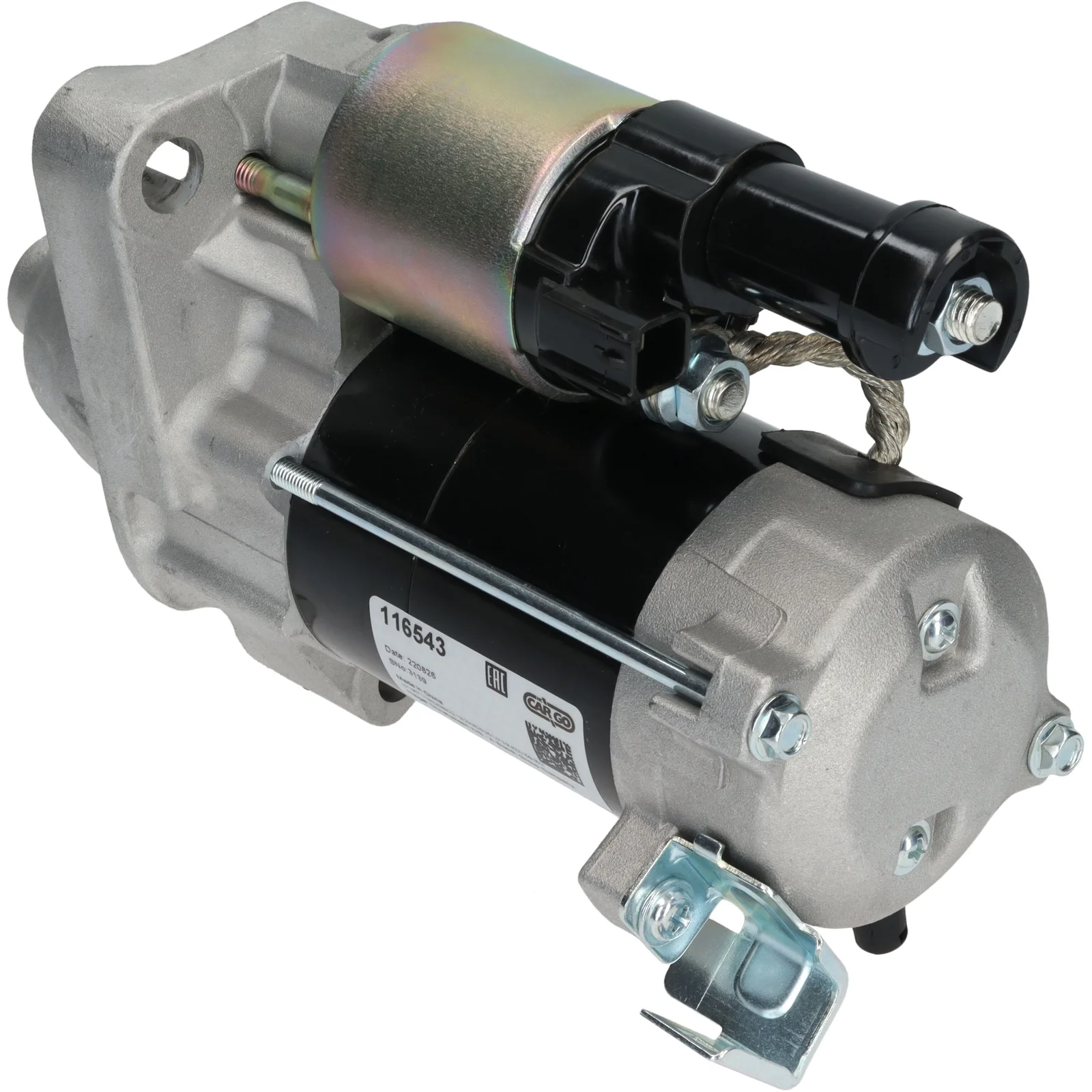

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116543

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.2, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.2
Mounting flange: 75.00
Drive distance: 32.50
Mounting hole 2 mm: 10.50
Mounting hole 1 mm: 13.00
Distance/Back: 157.00
Distance/Front: 66.50
Number/teeth: 9
B+: M8
Position/B+: 60
Position/50: 43
Terminal 50: 4.80
Gear type: Gear
Rotation: CW
Total length mm: 224.00
Number/mounting holes: 2 (0)

Files

  • OEM
    DS4R7, F032116543, 31200-RZP-G01, 428000-4540, 428000-4541

  • Normalised article numbler
    drs0639, ds4r7, dsn1390, f032116543, lrs04347, s6175, s6300s, 31200rzpg01, 255509, 438423, 458842, 11041020, 4280004540, 4280004541
  • Description
    Voltage: 12
    kW: 1.2
    Mounting flange: 75.00
    Drive distance: 32.50
    Mounting hole 2 mm: 10.50
    Mounting hole 1 mm: 13.00
    Distance/Back: 157.00
    Distance/Front: 66.50
    Number/teeth: 9
    B+: M8
    Position/B+: 60
    Position/50: 43
    Terminal 50: 4.80
    Gear type: Gear
    Rotation: CW
    Total length mm: 224.00
    Number/mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      DS4R7, F032116543, 31200-RZP-G01, 428000-4540, 428000-4541

    • Normalised article numbler
      drs0639, ds4r7, dsn1390, f032116543, lrs04347, s6175, s6300s, 31200rzpg01, 255509, 438423, 458842, 11041020, 4280004540, 4280004541
