Article no.: F032113629

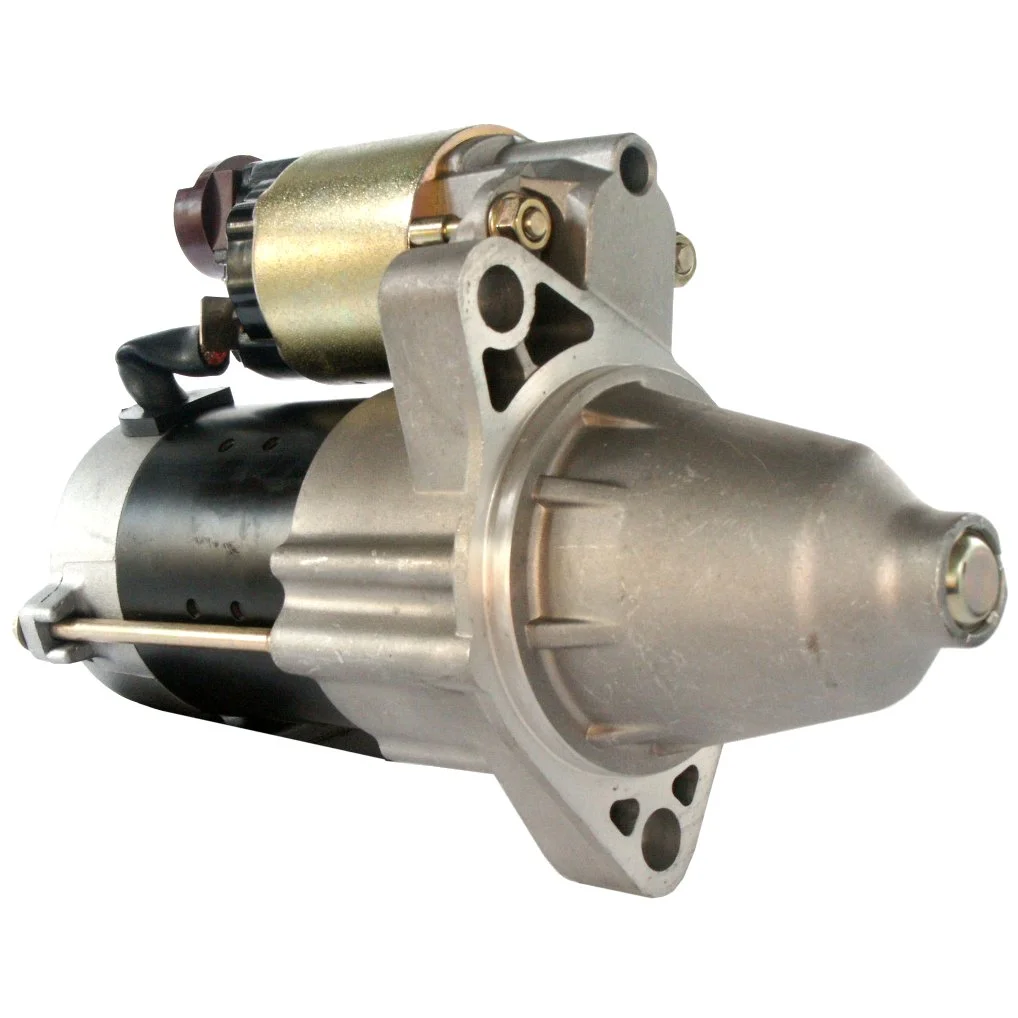

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.2, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.2
Mounting flange: 75.00
Drive distance: 40.00
Mounting hole 2 mm: 11.30
Mounting hole 1 mm: 11.30
Distance/behind: 140.00
Distance/in front: 74.00
Number/teeth: 9
B+: M8
Position/50: 43
Terminal 50: 6.30
Gear type: GR
Distance mm: 107.50
Rotation: CW
Total length mm: 214.00
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 2 (0)

Files

  • OEM
    cs1455, F032113629, RGO 113629, 6141, 31200-P3F-J01, 228000-6450

  • Normalised article numbler
    cs1455, cst40205, drs3906, f032113629, f042000208, f042s00208, j5214039, lrs01459, rgo113629, s6261s, sh0098r, sr1306x, str8270, 6141, 17746, 17746n, 17746r, 21971nd, 31200p3fj01, 101455, 107061, 252393, 11040879, 120547092, 322025092, 0986026090, 2280006450
  • Description
    Voltage: 12
    kW: 1.2
    Mounting flange: 75.00
    Drive distance: 40.00
    Mounting hole 2 mm: 11.30
    Mounting hole 1 mm: 11.30
    Distance/behind: 140.00
    Distance/in front: 74.00
    Number/teeth: 9
    B+: M8
    Position/50: 43
    Terminal 50: 6.30
    Gear type: GR
    Distance mm: 107.50
    Rotation: CW
    Total length mm: 214.00
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1455, F032113629, RGO 113629, 6141, 31200-P3F-J01, 228000-6450

    • Normalised article numbler
      cs1455, cst40205, drs3906, f032113629, f042000208, f042s00208, j5214039, lrs01459, rgo113629, s6261s, sh0098r, sr1306x, str8270, 6141, 17746, 17746n, 17746r, 21971nd, 31200p3fj01, 101455, 107061, 252393, 11040879, 120547092, 322025092, 0986026090, 2280006450
