Article no.: F032111909

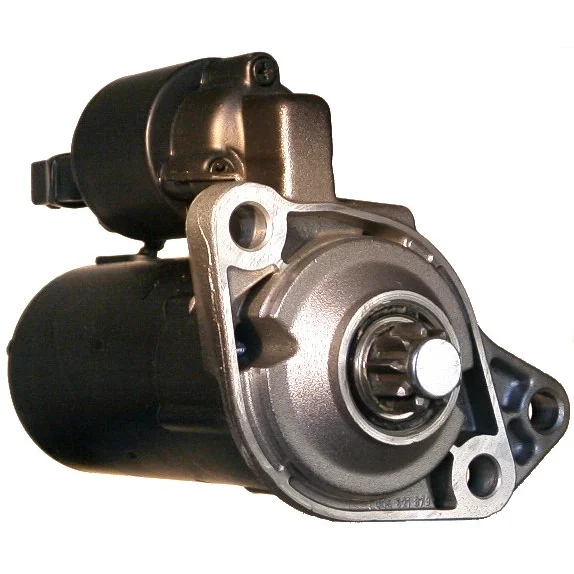

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.1, No./teeth: 9, Rotation: CCW

Description

VAG Starter motor 12V-1.1kW, 9k, CCW 12V - 1.1kW, 9/10k, CCW Automatic transmission, except for certain models of Seat, Skoda & VW. Replaces the older model 91-620-1629. For Yourex product order 91-620-1783

Voltage: 12
kW: 1.1
Mounting flange: 76.20
Drive distance: 32.00
Mounting hole 3 mm: 12.50
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 12.00
Distance/back: 160.50
Distance/front: 35.50
Number/teeth: 9
B+: M8
Position/50: 15
Terminal 50: 4.80
Gear type: GR
Distance 2: 111.00
Distance 3: 123.00
Distance mm: 33.00
Rotation: CCW
Total length mm: 212.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 3 (0)

Files

  • OEM
    aze2623, cs1062, D6GS 35, D7E S5, d7es1, d7es5, F032111909, RGO 111909, 0001 121 006, 0001 121 007, 11.131.054, 020 911 023, 020 911 023A, 020 911 023F, 020 911 023L, 020 911 023M, 020 911 023N, 95VW11000BA, 95VW11000BB, 95vw11000bc, 0986 017 830, 1986S00786, 1986S01212, 6894, 111909, 190396, 458160, 915111a, 1072156, 0001120402, 0001120403, 0001121006, 0001121007, 0001121028, 0001121029, 020911023f, 020911023FX, 020911023h, 020911023s, 020911023T, 020911023TX, 443115141313, 443115141394

  • Normalised article numbler
    aze2623, bso7219, cs1062, cst10103, cst15229, d6gs35, d7es1, d7es5, drs7830, drs7830x, drs9890, f032111909, f042002053, f042s02053, frs417, is1040, les0264, lrt00177, ms381, qs2631, rgo111909, s0027, s0027pr, s0027sr, s0691pr, s3128, s6196, sbo0121, sr0424x, str2112, str50025, 8ea011610041, 8ea012526351, 8ea737406001, 95vw11000ba, 95vw11000bb, 95vw11000bc, 0986mn0501, 1986s00786, 1986s01212, 3871, 4518, 6894, 17636, 17781, 17781n, 17781r, 22116bo, 101062, 101343, 103654, 105264, 111909, 190396, 201027, 220056, 220056a, 220427, 220427a, 251339, 251355, 252225, 253216, 438138, 438484, 442240, 446772, 458160, 458385, 726124, 726924, 726967, 915111a, 1072156, 0001120402, 0001120403, 0001121006, 0001121007, 0001121028, 0001121029, 8017830, 8019890, 8213152, 11017830, 11019890, 11131054, 20510177, 020911023, 020911023a, 020911023f, 020911023fx, 020911023h, 020911023l, 020911023m, 020911023n, 020911023s, 020911023t, 020911023tx, 42017830, 311062092, 311069092, 311088092, 0986016290, 0986016292, 0986016293, 0986017830, 0986017837, 0986019890, 063521210280, 443115141313, 443115141394, 943253112010, 944280178300
  • Description
    VAG Starter motor 12V-1.1kW, 9k, CCW 12V - 1.1kW, 9/10k, CCW Automatic transmission, except for certain models of Seat, Skoda & VW. Replaces the older model 91-620-1629. For Yourex product order 91-620-1783

    Voltage: 12
    kW: 1.1
    Mounting flange: 76.20
    Drive distance: 32.00
    Mounting hole 3 mm: 12.50
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 12.00
    Distance/back: 160.50
    Distance/front: 35.50
    Number/teeth: 9
    B+: M8
    Position/50: 15
    Terminal 50: 4.80
    Gear type: GR
    Distance 2: 111.00
    Distance 3: 123.00
    Distance mm: 33.00
    Rotation: CCW
    Total length mm: 212.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      aze2623, cs1062, D6GS 35, D7E S5, d7es1, d7es5, F032111909, RGO 111909, 0001 121 006, 0001 121 007, 11.131.054, 020 911 023, 020 911 023A, 020 911 023F, 020 911 023L, 020 911 023M, 020 911 023N, 95VW11000BA, 95VW11000BB, 95vw11000bc, 0986 017 830, 1986S00786, 1986S01212, 6894, 111909, 190396, 458160, 915111a, 1072156, 0001120402, 0001120403, 0001121006, 0001121007, 0001121028, 0001121029, 020911023f, 020911023FX, 020911023h, 020911023s, 020911023T, 020911023TX, 443115141313, 443115141394

    • Normalised article numbler
      aze2623, bso7219, cs1062, cst10103, cst15229, d6gs35, d7es1, d7es5, drs7830, drs7830x, drs9890, f032111909, f042002053, f042s02053, frs417, is1040, les0264, lrt00177, ms381, qs2631, rgo111909, s0027, s0027pr, s0027sr, s0691pr, s3128, s6196, sbo0121, sr0424x, str2112, str50025, 8ea011610041, 8ea012526351, 8ea737406001, 95vw11000ba, 95vw11000bb, 95vw11000bc, 0986mn0501, 1986s00786, 1986s01212, 3871, 4518, 6894, 17636, 17781, 17781n, 17781r, 22116bo, 101062, 101343, 103654, 105264, 111909, 190396, 201027, 220056, 220056a, 220427, 220427a, 251339, 251355, 252225, 253216, 438138, 438484, 442240, 446772, 458160, 458385, 726124, 726924, 726967, 915111a, 1072156, 0001120402, 0001120403, 0001121006, 0001121007, 0001121028, 0001121029, 8017830, 8019890, 8213152, 11017830, 11019890, 11131054, 20510177, 020911023, 020911023a, 020911023f, 020911023fx, 020911023h, 020911023l, 020911023m, 020911023n, 020911023s, 020911023t, 020911023tx, 42017830, 311062092, 311069092, 311088092, 0986016290, 0986016292, 0986016293, 0986017830, 0986017837, 0986019890, 063521210280, 443115141313, 443115141394, 943253112010, 944280178300
