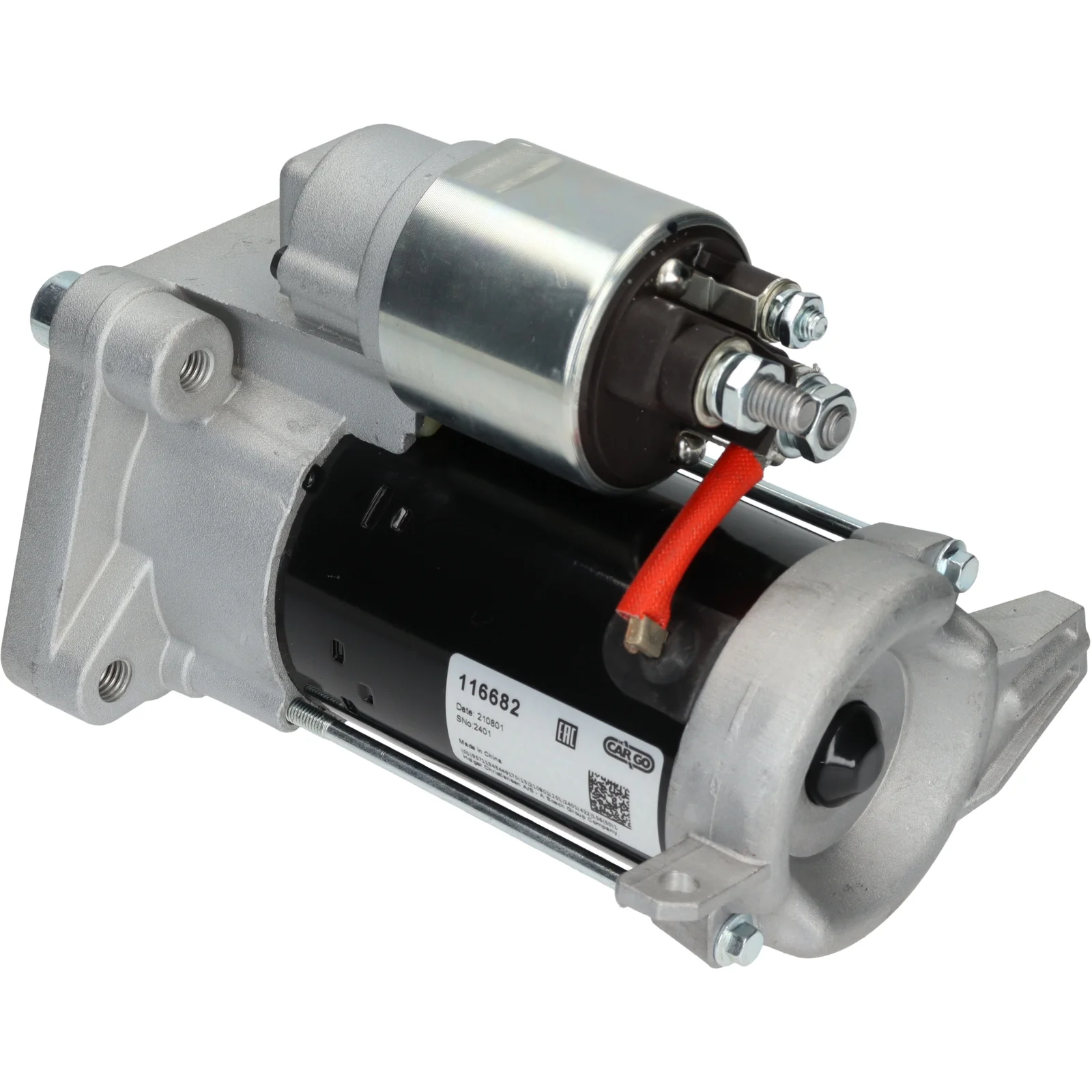

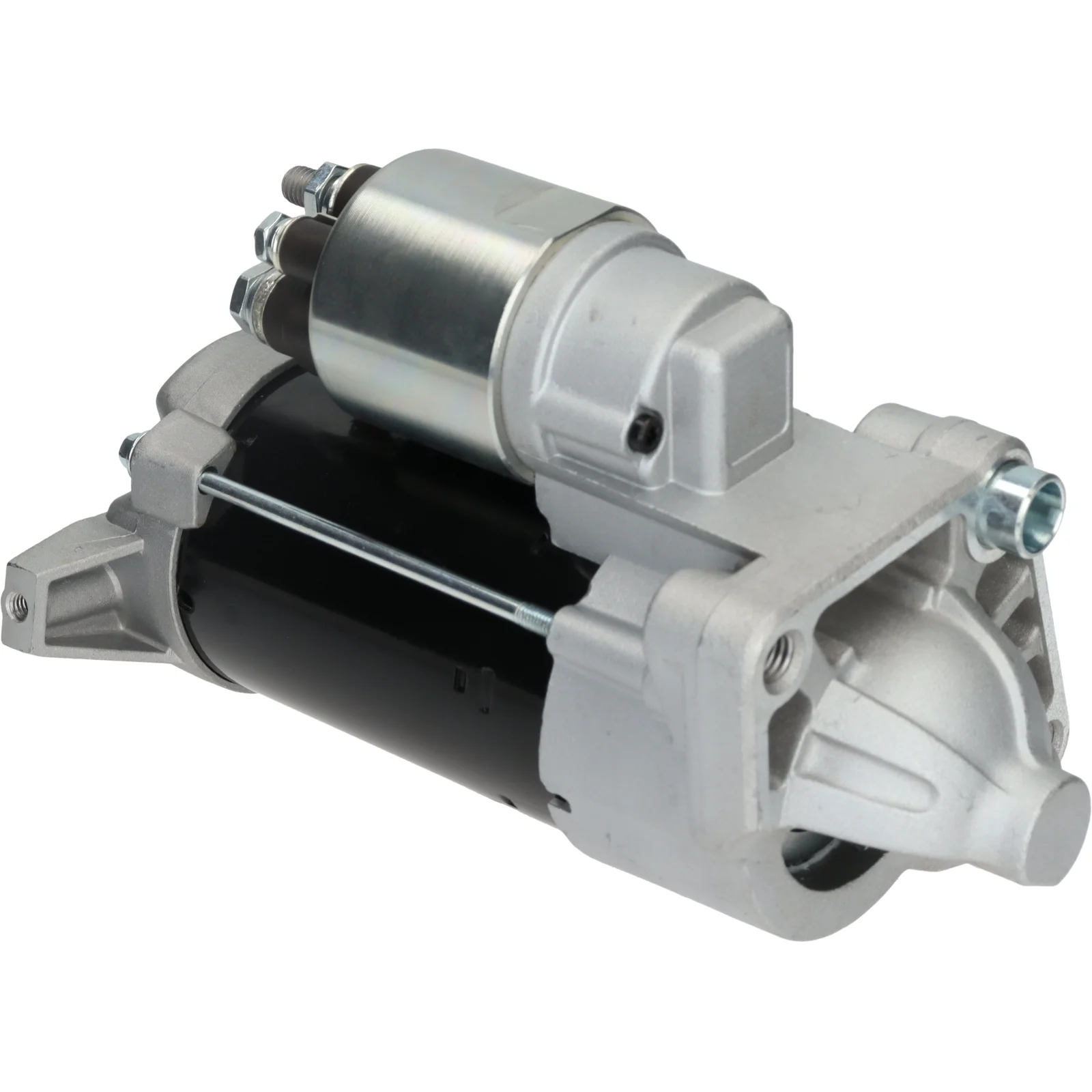

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116682

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 11, Rotation: CW

Description

Starter motor 12V-1.4kW (S/S) 12V - 1.4kW, 11 teeth, STOP-START vehicles with STOP-START For Yourrex product order 91-600-7197

Voltage: 12
kW: 1.4
Drive distance: -2.00
Mounting hole 3 mm: M10
Distance/back: 177.00
Distance/front: 34.00
Number of teeth: 11
B+: M8
Position/B+: 51
Position/50: 7
Terminal 50: M6
Gear type: GR
Distance 2: 105.50
Distance 3: 66.00
Distance mm: 66.00
Rotation: CW
Total length mm: 211.00
Starter type: Start/Stop
Number of mounting holes: 3 (3)

Files

  • OEM
    EJ3MA, F032116682, RGO 116682, RSM14-10, RSM1410, VEJ3MA, 1986S01195, 116682, 438318, 458744, 31407197, 31419543, 36003124, 36010074

  • Normalised article numbler
    cst15298, drs1036, ej3ma, f032116682, lrs03832, rgo116682, rsm1410, s3184s, val438318, vej3ma, 0986ur1886, 1986s01195, 3731, 16051os, 116682, 255005, 255658v, 438318, 442373, 458744, 11090370, 31407197, 31419543, 36003124, 36010074, 88214793, 810544113, 0986026710
  • Description
    Starter motor 12V-1.4kW (S/S) 12V - 1.4kW, 11 teeth, STOP-START vehicles with STOP-START For Yourrex product order 91-600-7197

    Voltage: 12
    kW: 1.4
    Drive distance: -2.00
    Mounting hole 3 mm: M10
    Distance/back: 177.00
    Distance/front: 34.00
    Number of teeth: 11
    B+: M8
    Position/B+: 51
    Position/50: 7
    Terminal 50: M6
    Gear type: GR
    Distance 2: 105.50
    Distance 3: 66.00
    Distance mm: 66.00
    Rotation: CW
    Total length mm: 211.00
    Starter type: Start/Stop
    Number of mounting holes: 3 (3)

    Files

  • Suitable for these vehicles

    • OEM
      EJ3MA, F032116682, RGO 116682, RSM14-10, RSM1410, VEJ3MA, 1986S01195, 116682, 438318, 458744, 31407197, 31419543, 36003124, 36010074

    • Normalised article numbler
      cst15298, drs1036, ej3ma, f032116682, lrs03832, rgo116682, rsm1410, s3184s, val438318, vej3ma, 0986ur1886, 1986s01195, 3731, 16051os, 116682, 255005, 255658v, 438318, 442373, 458744, 11090370, 31407197, 31419543, 36003124, 36010074, 88214793, 810544113, 0986026710
