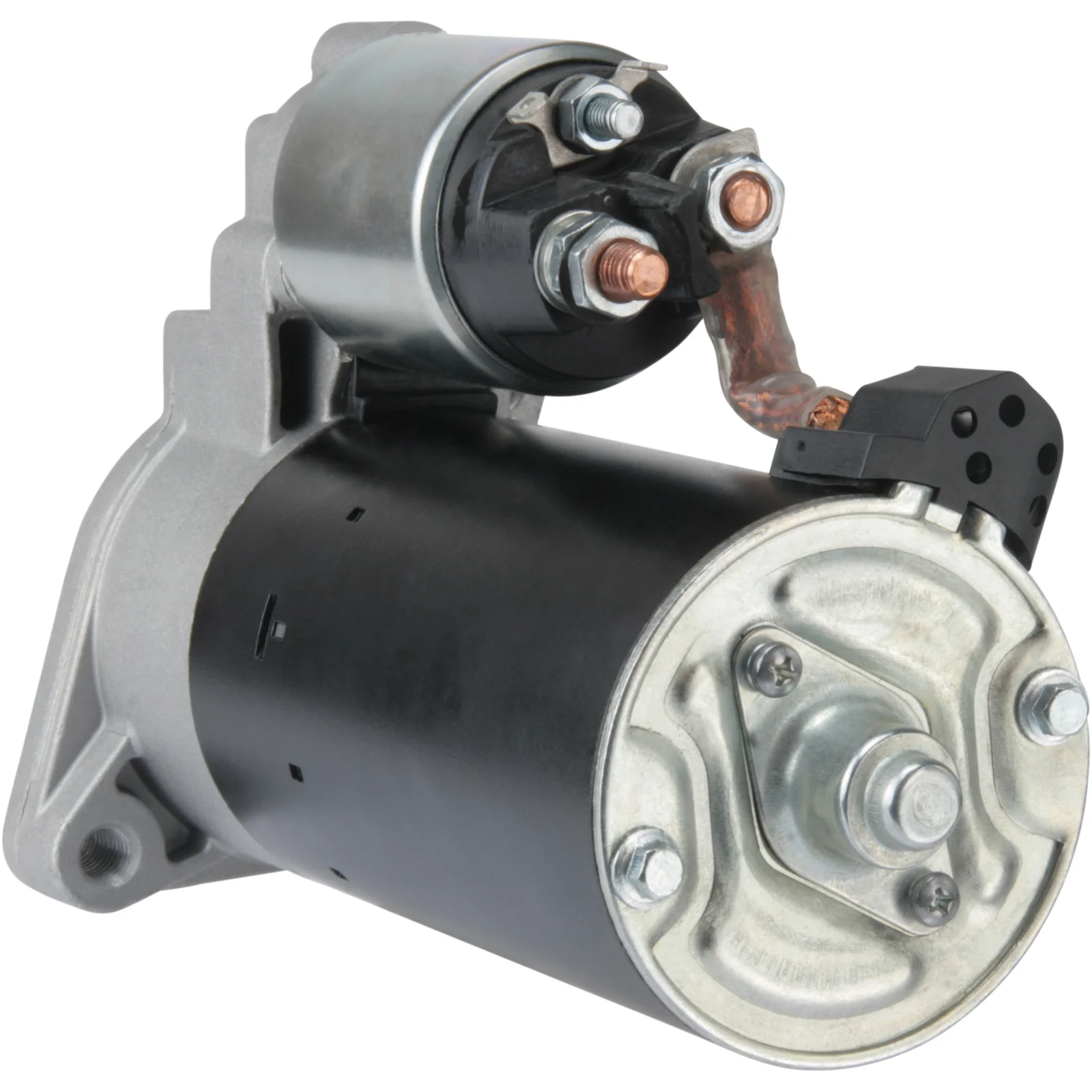

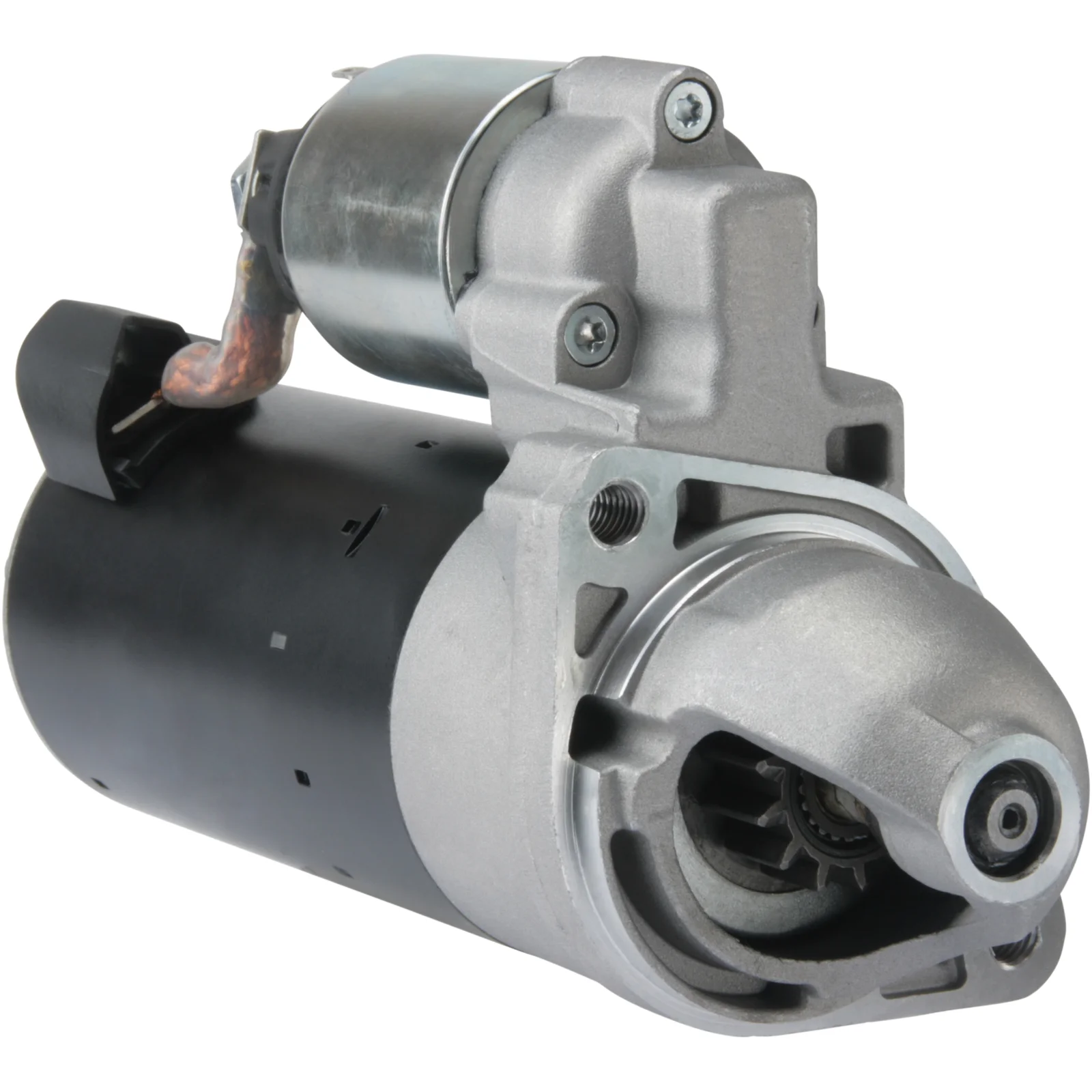

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114742

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.8, No./teeth: 11, Rotation: CW

Description

MB Starter motor 12V-2.5kW 12V - 2.5kW, 13k A - 70mm, B - 16mm For vehicles with start-stop function! For Yourrex product order 91-365-2459 Voltage: 12 kW: 1.8 Mounting flange: 70.00 Drive distance: 16.00 Mounting hole 2 mm: M10 Mounting hole 1 mm: M10 Distance / back: 177.00 Distance / front: 51.00 Number / teeth: 11 B+: M8 Position / 50: 55 Terminal 50: M6 Gear type: GR Distance mm: 100.00 Rotation: CW Total length mm: 242.00 Drive type: Steel Starter type: Start/Stop Number / mounting holes: 2 (2)

Files

  • OEM
    A2769061200, A2769062300, A276906230080, A651906120080, A651906230080, A6519062400, A651906240080, A6519062800, A651906280080, A6519064300, A651906430080, CST10503, CST10586, DRS0445, DRS0937, F032114742, LRS02522, LRS02529, S0308, S0540, S0540(BOSCH), S0592, 0001 139 065, 0001 139 066, 0001 149 400, 0001 149 401, 8EA011611-561, 25-4194, 25-4201, 325.059.132, 325.060.132, 550.541.112, 550.541.132, 651 906 1200, 651 906 2300, 651 906 2400, 651 906 2800, 0986 024 590, 1986S00845, 1986S00853, 3210, 31351N, 32793N, 32803, 32803N, 107337, 114742, 220868, 220868A, 254657, 254848, 438378, 438533, 438563, 458857, 0001139043, 0001139044, 0001139065, 0001139066, 0001139085, 0001139086, 0001147400, 0001149400, 0001149401, 8080387, 11090270, 11090380, 42002000, 42024590, 0986023107, 0986023333, 0986024590, 0986024593, 0986024597, 0986025103, 2769061200, 2769062300, 6519061100, 6519061200, 6519062300, 6519062400, 6519062800, 6519064300, 276906230080, 651906120080, 651906230080, 651906240080, 651906280080, 651906430080

  • Normalised article numbler
    a2769061200, a2769062300, a276906230080, a651906120080, a651906230080, a6519062400, a651906240080, a6519062800, a651906280080, a6519064300, a651906430080, cst10503, cst10586, drs0445, drs0937, f032114742, lrs02522, lrs02529, s0308, s0540, s0540bosch, s0592, 8ea011611561, 1986s00845, 1986s00853, 3210, 31351n, 32793n, 32803, 32803n, 107337, 114742, 220868, 220868a, 254194, 254201, 254657, 254848, 438378, 438533, 438563, 458857, 0001139043, 0001139044, 0001139065, 0001139066, 0001139085, 0001139086, 0001147400, 0001149400, 0001149401, 8080387, 11090270, 11090380, 42002000, 42024590, 325059132, 325060132, 550541112, 550541132, 0986023107, 0986023333, 0986024590, 0986024593, 0986024597, 0986025103, 2769061200, 2769062300, 6519061100, 6519061200, 6519062300, 6519062400, 6519062800, 6519064300, 276906230080, 651906120080, 651906230080, 651906240080, 651906280080, 651906430080
  • Description
    MB Starter motor 12V-2.5kW 12V - 2.5kW, 13k A - 70mm, B - 16mm For vehicles with start-stop function! For Yourrex product order 91-365-2459 Voltage: 12 kW: 1.8 Mounting flange: 70.00 Drive distance: 16.00 Mounting hole 2 mm: M10 Mounting hole 1 mm: M10 Distance / back: 177.00 Distance / front: 51.00 Number / teeth: 11 B+: M8 Position / 50: 55 Terminal 50: M6 Gear type: GR Distance mm: 100.00 Rotation: CW Total length mm: 242.00 Drive type: Steel Starter type: Start/Stop Number / mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      A2769061200, A2769062300, A276906230080, A651906120080, A651906230080, A6519062400, A651906240080, A6519062800, A651906280080, A6519064300, A651906430080, CST10503, CST10586, DRS0445, DRS0937, F032114742, LRS02522, LRS02529, S0308, S0540, S0540(BOSCH), S0592, 0001 139 065, 0001 139 066, 0001 149 400, 0001 149 401, 8EA011611-561, 25-4194, 25-4201, 325.059.132, 325.060.132, 550.541.112, 550.541.132, 651 906 1200, 651 906 2300, 651 906 2400, 651 906 2800, 0986 024 590, 1986S00845, 1986S00853, 3210, 31351N, 32793N, 32803, 32803N, 107337, 114742, 220868, 220868A, 254657, 254848, 438378, 438533, 438563, 458857, 0001139043, 0001139044, 0001139065, 0001139066, 0001139085, 0001139086, 0001147400, 0001149400, 0001149401, 8080387, 11090270, 11090380, 42002000, 42024590, 0986023107, 0986023333, 0986024590, 0986024593, 0986024597, 0986025103, 2769061200, 2769062300, 6519061100, 6519061200, 6519062300, 6519062400, 6519062800, 6519064300, 276906230080, 651906120080, 651906230080, 651906240080, 651906280080, 651906430080

    • Normalised article numbler
      a2769061200, a2769062300, a276906230080, a651906120080, a651906230080, a6519062400, a651906240080, a6519062800, a651906280080, a6519064300, a651906430080, cst10503, cst10586, drs0445, drs0937, f032114742, lrs02522, lrs02529, s0308, s0540, s0540bosch, s0592, 8ea011611561, 1986s00845, 1986s00853, 3210, 31351n, 32793n, 32803, 32803n, 107337, 114742, 220868, 220868a, 254194, 254201, 254657, 254848, 438378, 438533, 438563, 458857, 0001139043, 0001139044, 0001139065, 0001139066, 0001139085, 0001139086, 0001147400, 0001149400, 0001149401, 8080387, 11090270, 11090380, 42002000, 42024590, 325059132, 325060132, 550541112, 550541132, 0986023107, 0986023333, 0986024590, 0986024593, 0986024597, 0986025103, 2769061200, 2769062300, 6519061100, 6519061200, 6519062300, 6519062400, 6519062800, 6519064300, 276906230080, 651906120080, 651906230080, 651906240080, 651906280080, 651906430080
