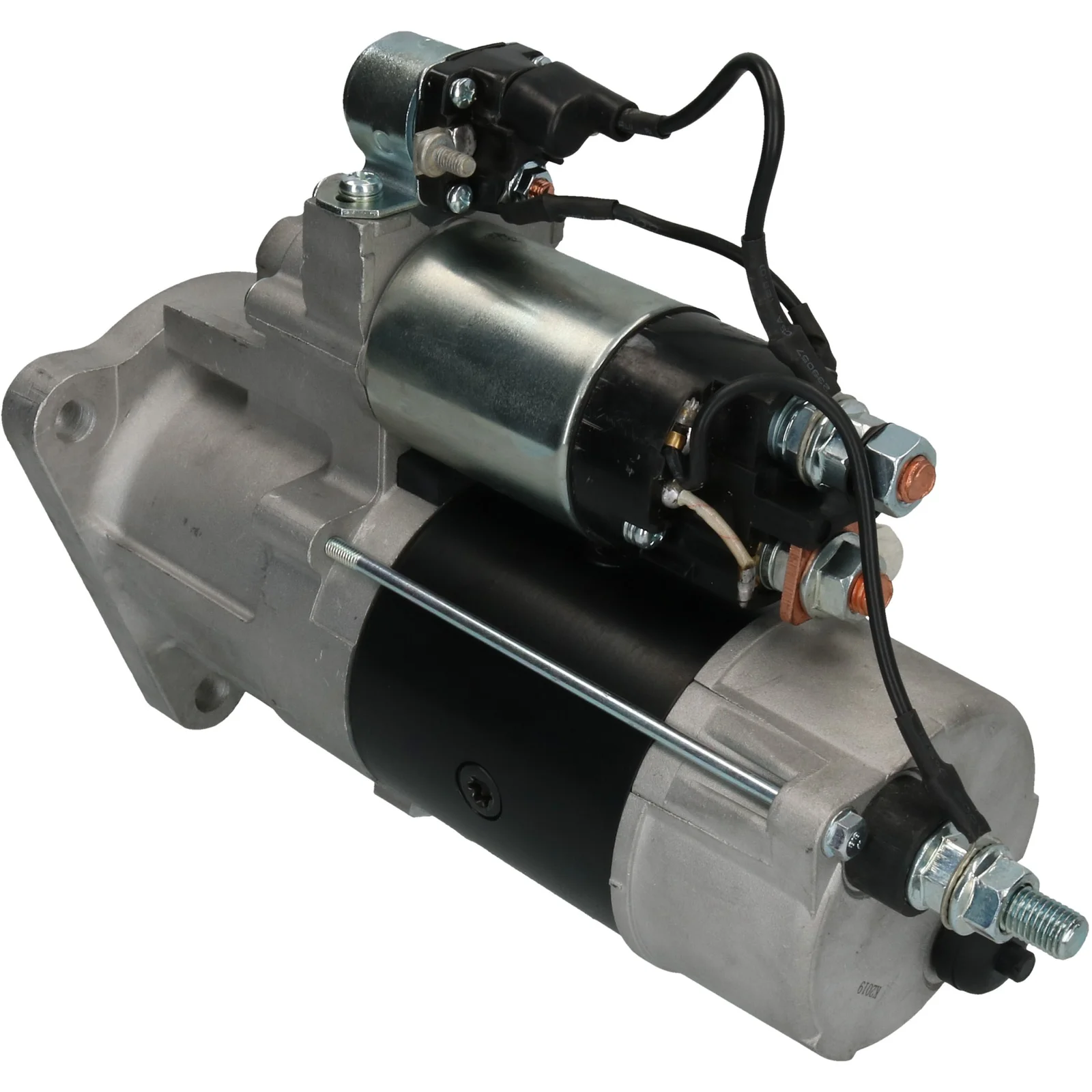

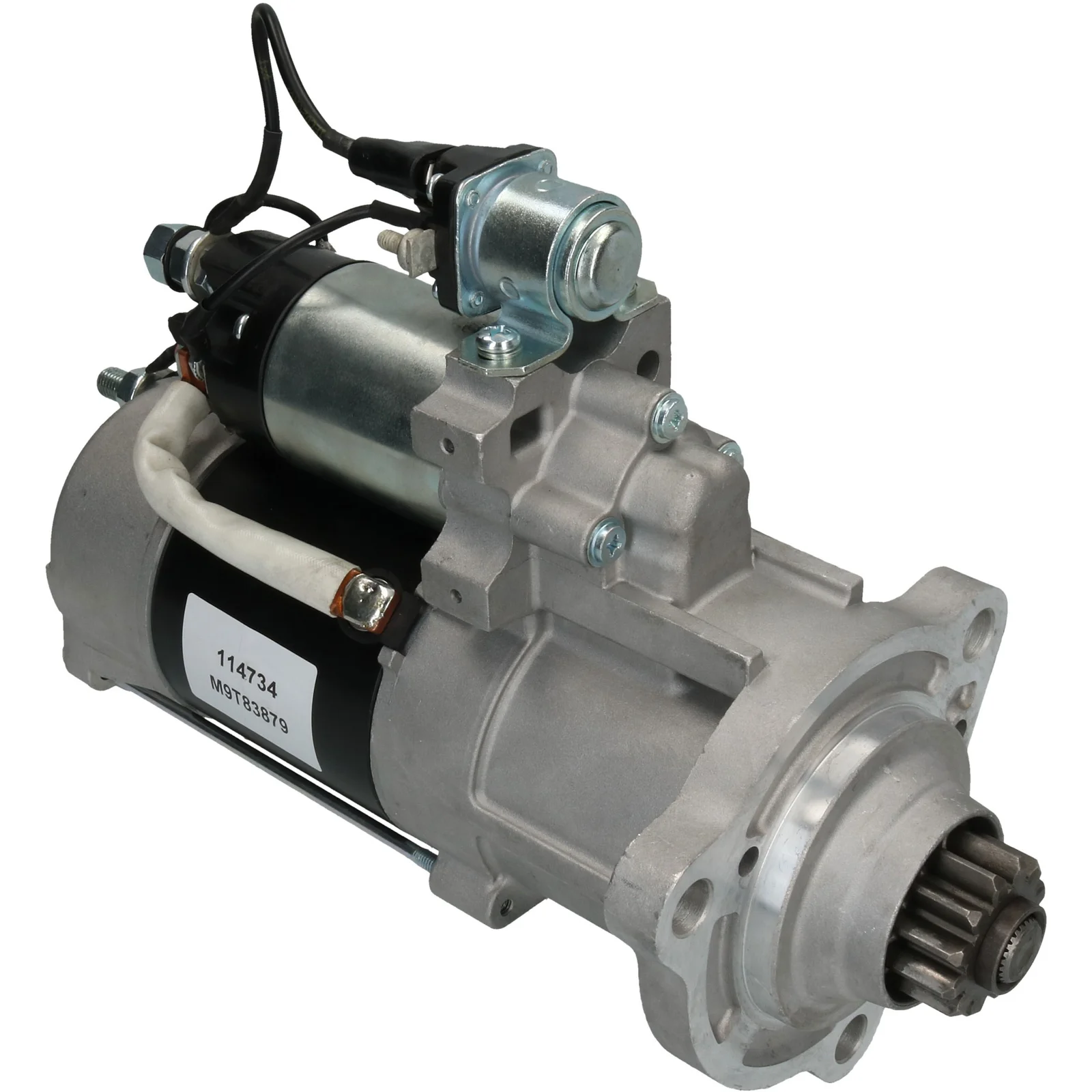

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114734

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 7.0, No./teeth: 12, Rotation: CW

Description

Voltage: 24
kW: 7.0
Insulated return: Yes
Mounting flange: 92.00
Drive distance: 47.50
Mounting hole 3 mm: 14.50
Mounting hole 2 mm: 14.50
Mounting hole 1 mm: 14.50
Distance / back: 348.00
Distance / front: 56.00
Number / teeth: 12
B+: M12
Position / B+: 60
Thread length mm: 43.50
Terminal 50: M6
Gear type: Gear
Dist. 2: 126.00
Dist. 3: 126.00
Distance mm: 126.00
Rotation: CW
Position / b-: 52
B-: M12
Total length mm: 404.00
Number / mounting holes: 3 (0)

Files

  • OEM
    F032114734, M9T83879, 3801289, 3803838, 21103722

  • Normalised article numbler
    cst35642, drs0547, f032114734, m9t83879, mitm9t83879, s5062, s5204, 107133, 220573, 220573a, 254471, 3801289, 3803838, 21103722
  • Description
    Voltage: 24
    kW: 7.0
    Insulated return: Yes
    Mounting flange: 92.00
    Drive distance: 47.50
    Mounting hole 3 mm: 14.50
    Mounting hole 2 mm: 14.50
    Mounting hole 1 mm: 14.50
    Distance / back: 348.00
    Distance / front: 56.00
    Number / teeth: 12
    B+: M12
    Position / B+: 60
    Thread length mm: 43.50
    Terminal 50: M6
    Gear type: Gear
    Dist. 2: 126.00
    Dist. 3: 126.00
    Distance mm: 126.00
    Rotation: CW
    Position / b-: 52
    B-: M12
    Total length mm: 404.00
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114734, M9T83879, 3801289, 3803838, 21103722

    • Normalised article numbler
      cst35642, drs0547, f032114734, m9t83879, mitm9t83879, s5062, s5204, 107133, 220573, 220573a, 254471, 3801289, 3803838, 21103722
