HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114744

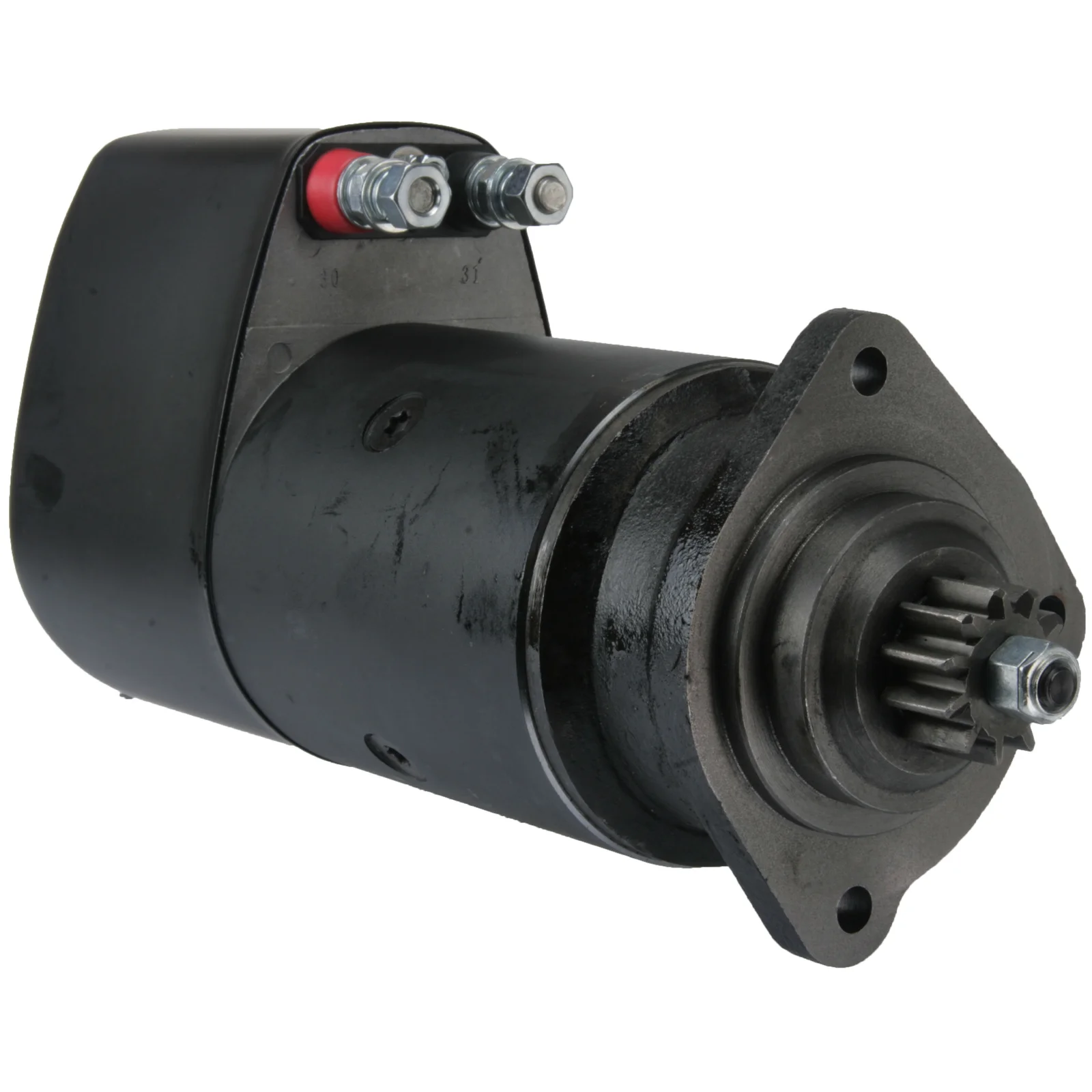

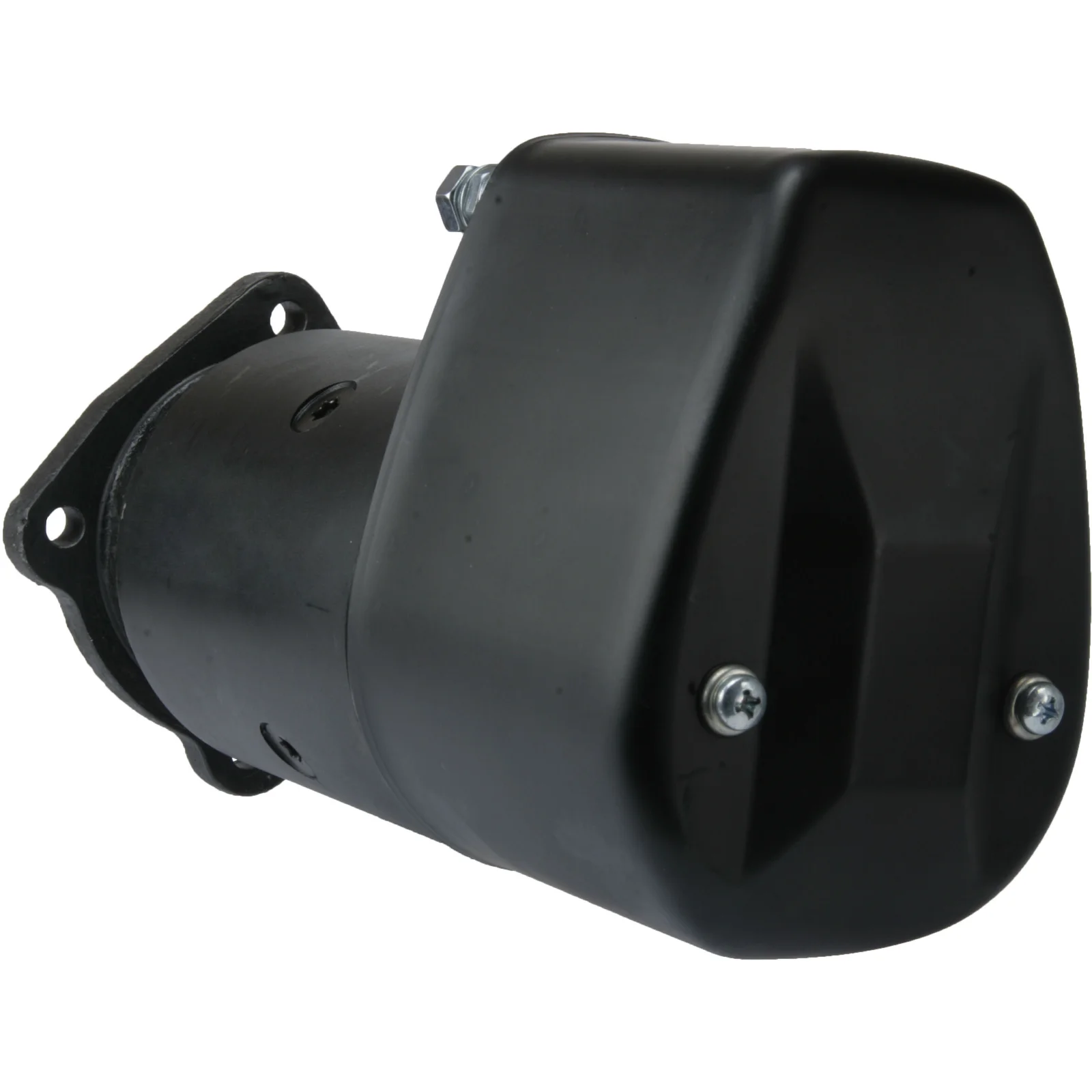

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 5.4, No./teeth: 11, Rotation: CW

Description

Voltage: 24
kW: 5.4
Insulated return: Yes
Mounting flange: 89.00
Drive distance: 47.50
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 324.00
Distance / front: 63.00
Number / teeth: 11
B+: M10
Position / 50: 60
Terminal 50: M6
Gear type: DD
Dist. 2: 90.00
Dist. 3: 127.00
Distance mm: 90.00
Rotation: CW
Position / b-: 5
B-: M10
Total length mm: 387.00
Number / mounting holes: 3 (0)

Files

  • OEM
    F032114744, 571, 01174641, 0001410087, 0001416071, 1701052, 5991324, 6000970, 081466032

  • Normalised article numbler
    cst10627, drs1480, f032114744, is0486, is9003, is9113, ms484, ms549, ms714, s0283, 571, 18118n, 33551, 254015, 451468, 01174641, 0001410087, 0001416071, 1701052, 5991324, 6000970, 8811480, 11011480, 081466032, 600025114, 0986011480
  • Description
    Voltage: 24
    kW: 5.4
    Insulated return: Yes
    Mounting flange: 89.00
    Drive distance: 47.50
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 324.00
    Distance / front: 63.00
    Number / teeth: 11
    B+: M10
    Position / 50: 60
    Terminal 50: M6
    Gear type: DD
    Dist. 2: 90.00
    Dist. 3: 127.00
    Distance mm: 90.00
    Rotation: CW
    Position / b-: 5
    B-: M10
    Total length mm: 387.00
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032114744, 571, 01174641, 0001410087, 0001416071, 1701052, 5991324, 6000970, 081466032

    • Normalised article numbler
      cst10627, drs1480, f032114744, is0486, is9003, is9113, ms484, ms549, ms714, s0283, 571, 18118n, 33551, 254015, 451468, 01174641, 0001410087, 0001416071, 1701052, 5991324, 6000970, 8811480, 11011480, 081466032, 600025114, 0986011480
