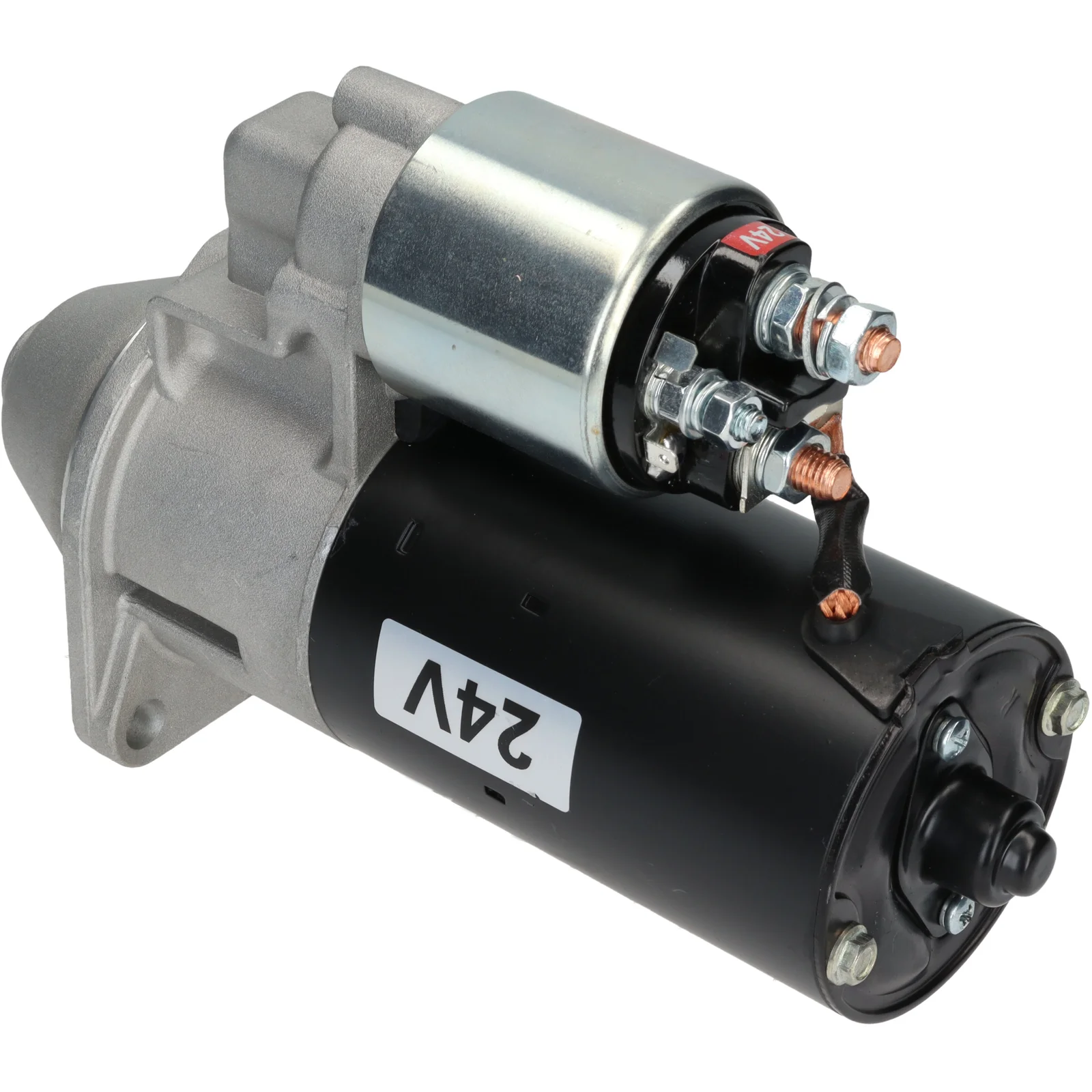

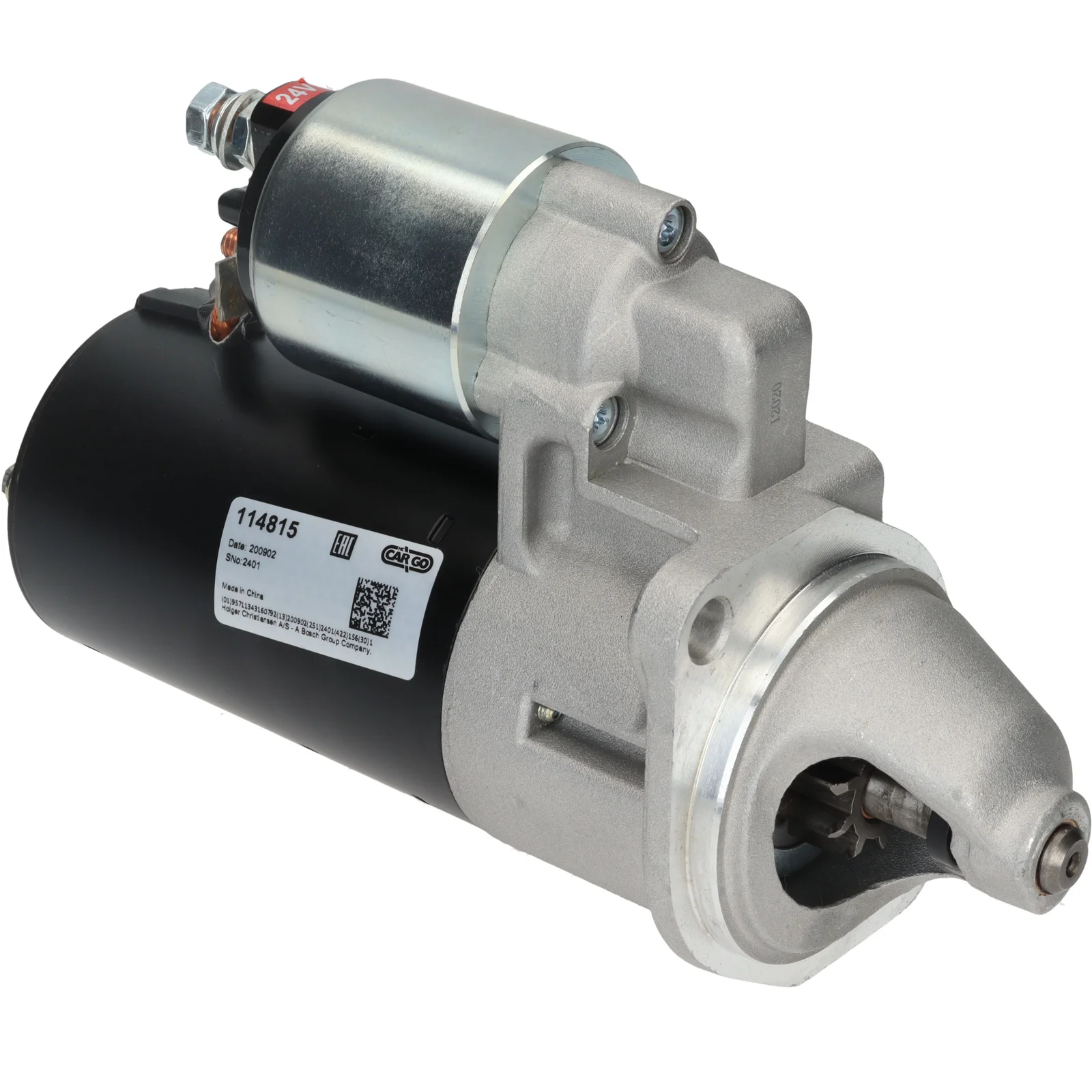

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114815

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 1.6, No./teeth: 9, Rotation: CW

Description

Voltage: 24
kW: 1.6
Mounting flange: 76.20
Drive distance: 15.00
Mounting hole 2 mm: 10.50
Mounting hole 1 mm: 10.50
Distance / back: 189.00
Distance / front: 54.50
Number / teeth: 9
B+: M8
Position / B+: 60
Position / 50: 45
Terminal 50: M6
Gear type: GR
Distance in millimeters: 105.00
Rotation: CW
Total length in millimeters: 244.00
Number / mounting holes: 2 (0)
