HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115447

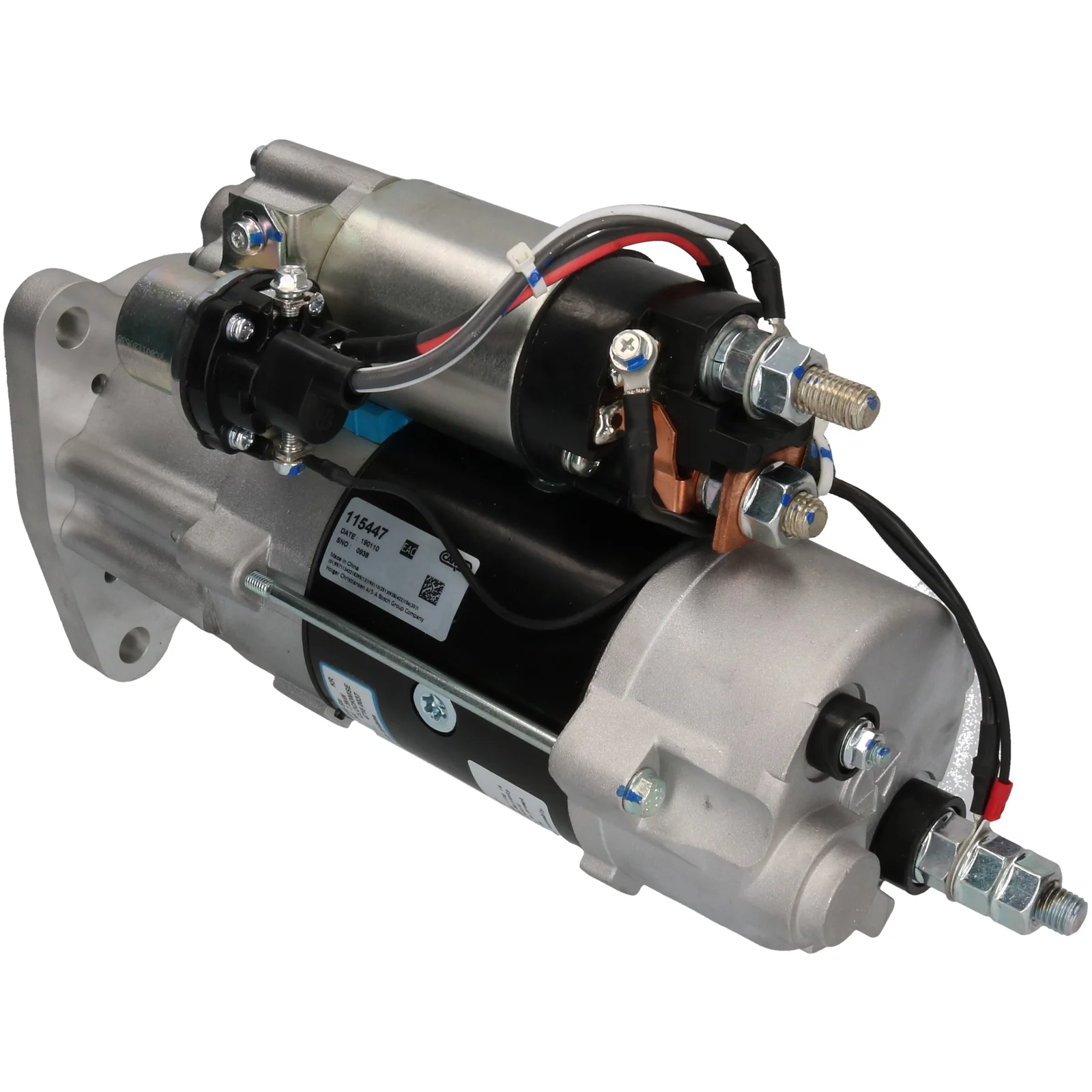

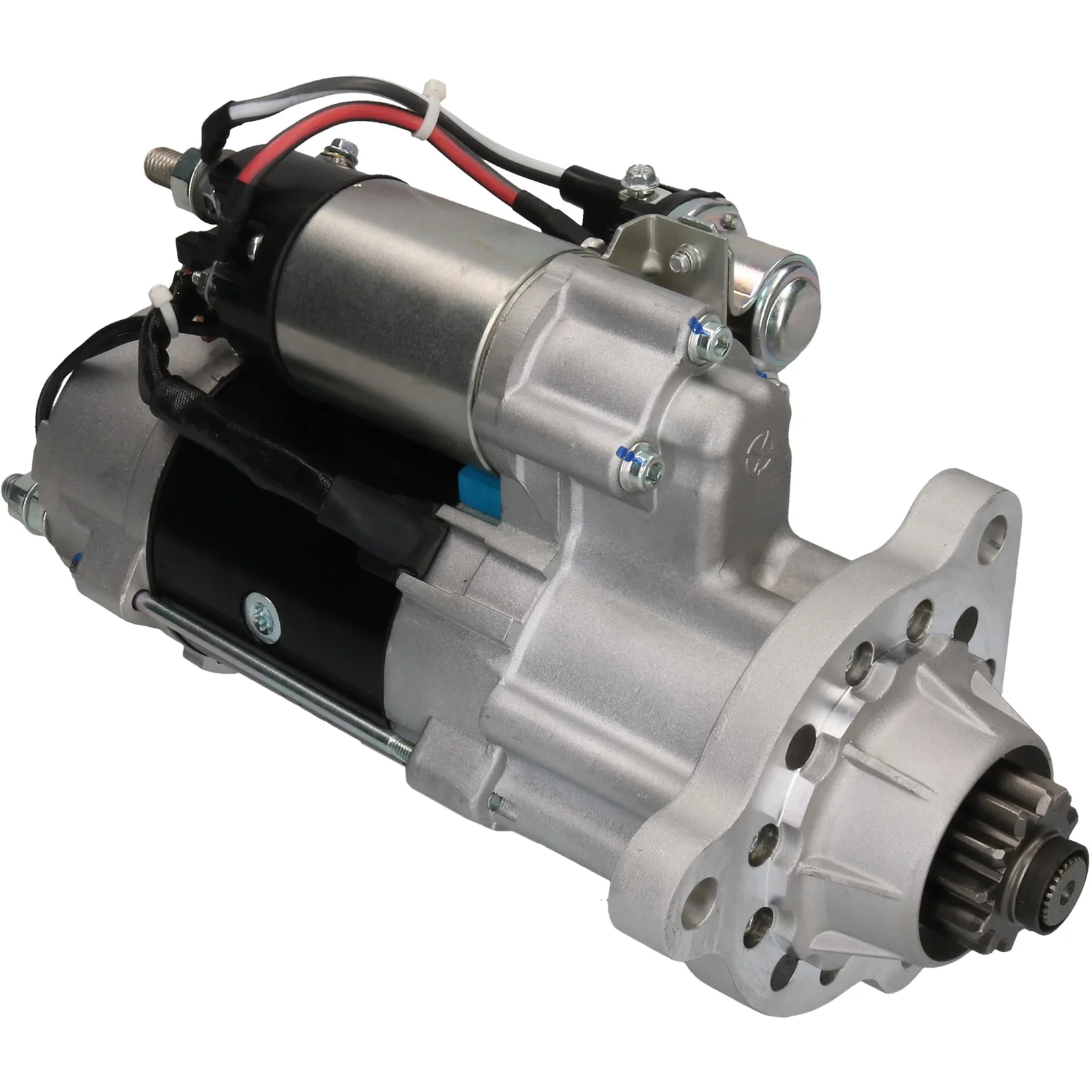

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 7.5, No./teeth: 12, Rotation: CW

Description

Voltage: 24
kilowatts: 7.5
Insulated return: Yes
Mounting flange: 92.00
Drive distance: 47.50
Mounting hole 3 mm: 16.70
Mounting hole 2 mm: 16.70
Mounting hole 1 mm: 16.70
Distance / back: 310.00
Distance / front: 55.00
Number / teeth: 12
B+: M12
Position / B+: 60
Thread length mm: 34.00
Terminal 50: M5
Gear type: GR
Distance 2: 126.50
Distance 3: 126.50
Distance mm: 126.50
Rotation: CW
B-: M12
Total length mm: 413.00
Oil sealed: Yes
Remarks: Replacing: 39MT.
Number / mounting holes: 3 (0)

Files

  • OEM
    F032115447, M105R3505SE, M105R3509, M105R3509SE, M9T81971, 8200435, 8200702, 8300011

  • Normalised article numbler
    f032115447, f042003126, f042s03126, m105r3505se, m105r3509, m105r3509se, m9t81971, s1028, str4398, 6823, 255569, 8200435, 8200702, 8300011, 641536123, 641542123, 811524123
  • Description
    Voltage: 24
    kilowatts: 7.5
    Insulated return: Yes
    Mounting flange: 92.00
    Drive distance: 47.50
    Mounting hole 3 mm: 16.70
    Mounting hole 2 mm: 16.70
    Mounting hole 1 mm: 16.70
    Distance / back: 310.00
    Distance / front: 55.00
    Number / teeth: 12
    B+: M12
    Position / B+: 60
    Thread length mm: 34.00
    Terminal 50: M5
    Gear type: GR
    Distance 2: 126.50
    Distance 3: 126.50
    Distance mm: 126.50
    Rotation: CW
    B-: M12
    Total length mm: 413.00
    Oil sealed: Yes
    Remarks: Replacing: 39MT.
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032115447, M105R3505SE, M105R3509, M105R3509SE, M9T81971, 8200435, 8200702, 8300011

    • Normalised article numbler
      f032115447, f042003126, f042s03126, m105r3505se, m105r3509, m105r3509se, m9t81971, s1028, str4398, 6823, 255569, 8200435, 8200702, 8300011, 641536123, 641542123, 811524123
