Article no.: F032113842

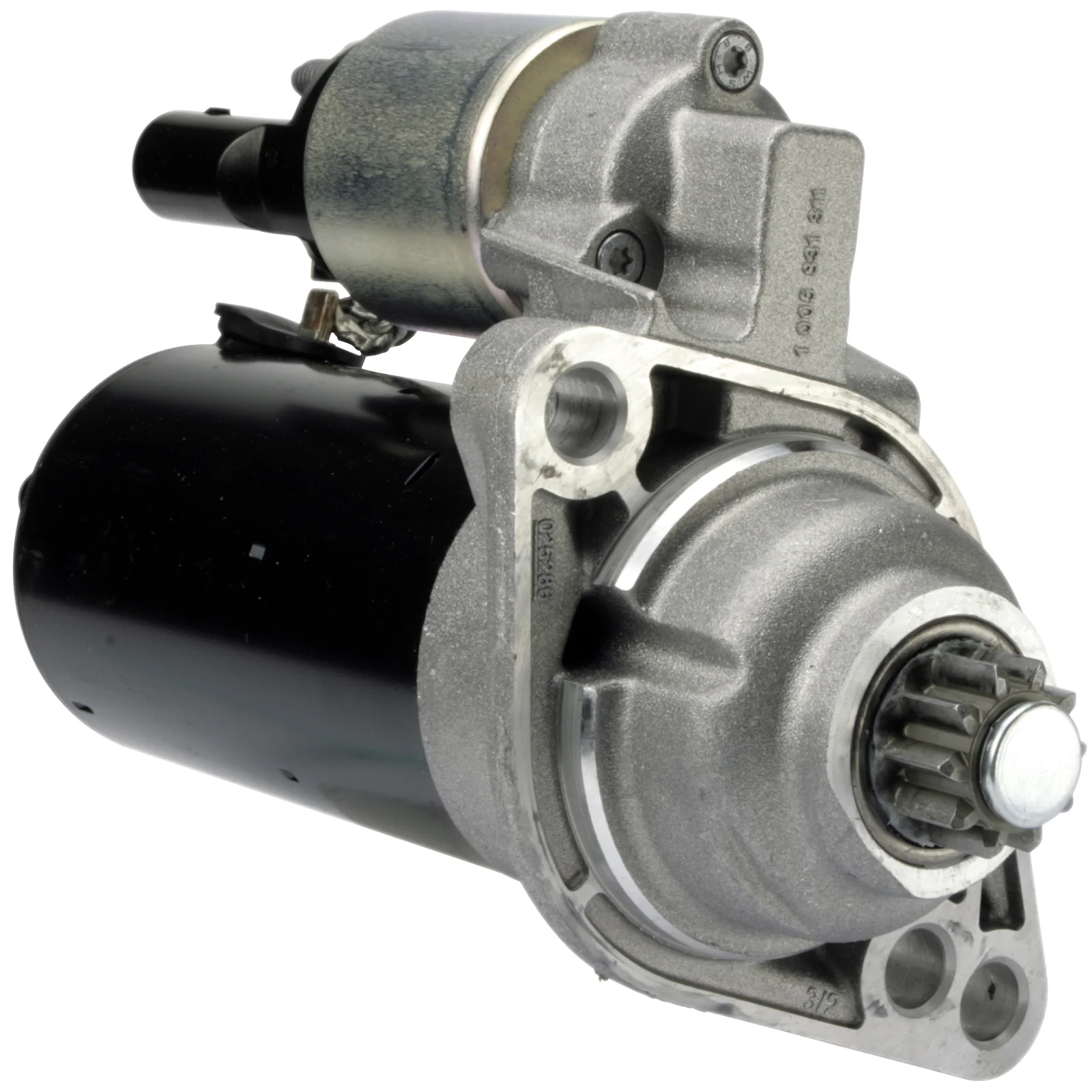

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.7, No./teeth: 10, Rotation: CCW

Description

VW Starter motor 12V-2.0kW 12V - 2.0kW, 10/11 teeth, CCW A - 76mm, B - 53mm For Yourex product order 91-620-2025 Voltage: 12 kW: 1.7 Mount. flange: 76.20 Drive dist.: 52.50 Mount. hole 3 mm: 12.50 Mount. hole 2 mm: 11.00 Mount. hole 1 mm: 11.00 Dist./back: 163.00 Dist./front: 58.00 No./teeth: 10 B+: M8 Position/50: 20 Terminal 50: 4.80 Gear type: GR Dist. 2: 127.50 Dist. 3: 18.00 Dist. mm: 111.00 Rotation: CCW Total length mm: 234.00 Drive type: Steel Prod. info: BN Waterproof: No Oil sealed: No No./mount. holes: 3 (0)

Files

  • OEM
    cs1293, D7GS 8, D7GS8, F032113842, RGO 113842, TS18E 1, TS18E1, 0001 123 012, 0001 123 013, 02Z 911 023B, 02Z 911 023F, 02Z 911 023H, 02Z911023F, 02Z911023FX, 02Z911023H, 02Z911023HX, 02Z911024J, 0986 020 250, 1986S00797, 113842, 191335, 0001123012, 0001123013

  • Normalised article numbler
    cs1293, cst10278, cst15185, d7gs8, drs1061, drt0250, drt0250x, dsn3007, f032113842, f042202509, f042s02166, lrs01673, mqs1293, msn2104, rgo113842, s0090, s0090pr, s0090sr, s3075, s3075pr, s3075valeo, str2242, ts18e1, 02z911023b, 02z911023f, 02z911023fx, 02z911023h, 02z911023hx, 02z911024j, 8ea011350211, 8ea011610221, 8ea738156001, 1986s00797, 3039, 32673n, 32673r, 32674n, 32674noe, 101293, 105278, 113842, 191335, 201001, 220449, 220449a, 253219, 254442, 438175, 458217, 726087, 726887, 0001123012, 0001123013, 8020250, 8212636, 11020250, 42020250, 311094102, 0986020250, 0986020257, 063521230120, 944280202500
  • Description
    VW Starter motor 12V-2.0kW 12V - 2.0kW, 10/11 teeth, CCW A - 76mm, B - 53mm For Yourex product order 91-620-2025 Voltage: 12 kW: 1.7 Mount. flange: 76.20 Drive dist.: 52.50 Mount. hole 3 mm: 12.50 Mount. hole 2 mm: 11.00 Mount. hole 1 mm: 11.00 Dist./back: 163.00 Dist./front: 58.00 No./teeth: 10 B+: M8 Position/50: 20 Terminal 50: 4.80 Gear type: GR Dist. 2: 127.50 Dist. 3: 18.00 Dist. mm: 111.00 Rotation: CCW Total length mm: 234.00 Drive type: Steel Prod. info: BN Waterproof: No Oil sealed: No No./mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1293, D7GS 8, D7GS8, F032113842, RGO 113842, TS18E 1, TS18E1, 0001 123 012, 0001 123 013, 02Z 911 023B, 02Z 911 023F, 02Z 911 023H, 02Z911023F, 02Z911023FX, 02Z911023H, 02Z911023HX, 02Z911024J, 0986 020 250, 1986S00797, 113842, 191335, 0001123012, 0001123013

    • Normalised article numbler
      cs1293, cst10278, cst15185, d7gs8, drs1061, drt0250, drt0250x, dsn3007, f032113842, f042202509, f042s02166, lrs01673, mqs1293, msn2104, rgo113842, s0090, s0090pr, s0090sr, s3075, s3075pr, s3075valeo, str2242, ts18e1, 02z911023b, 02z911023f, 02z911023fx, 02z911023h, 02z911023hx, 02z911024j, 8ea011350211, 8ea011610221, 8ea738156001, 1986s00797, 3039, 32673n, 32673r, 32674n, 32674noe, 101293, 105278, 113842, 191335, 201001, 220449, 220449a, 253219, 254442, 438175, 458217, 726087, 726887, 0001123012, 0001123013, 8020250, 8212636, 11020250, 42020250, 311094102, 0986020250, 0986020257, 063521230120, 944280202500
