HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114298

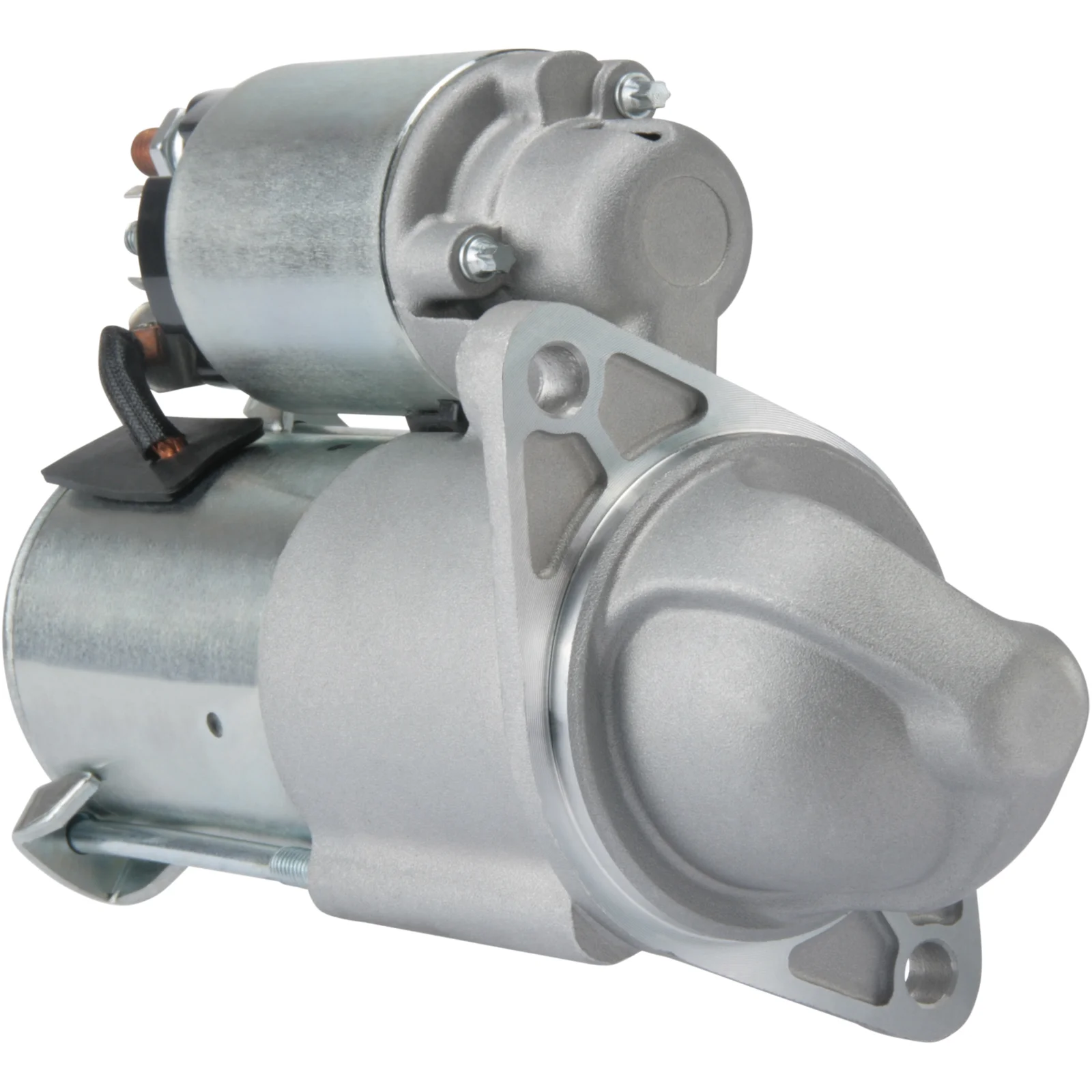

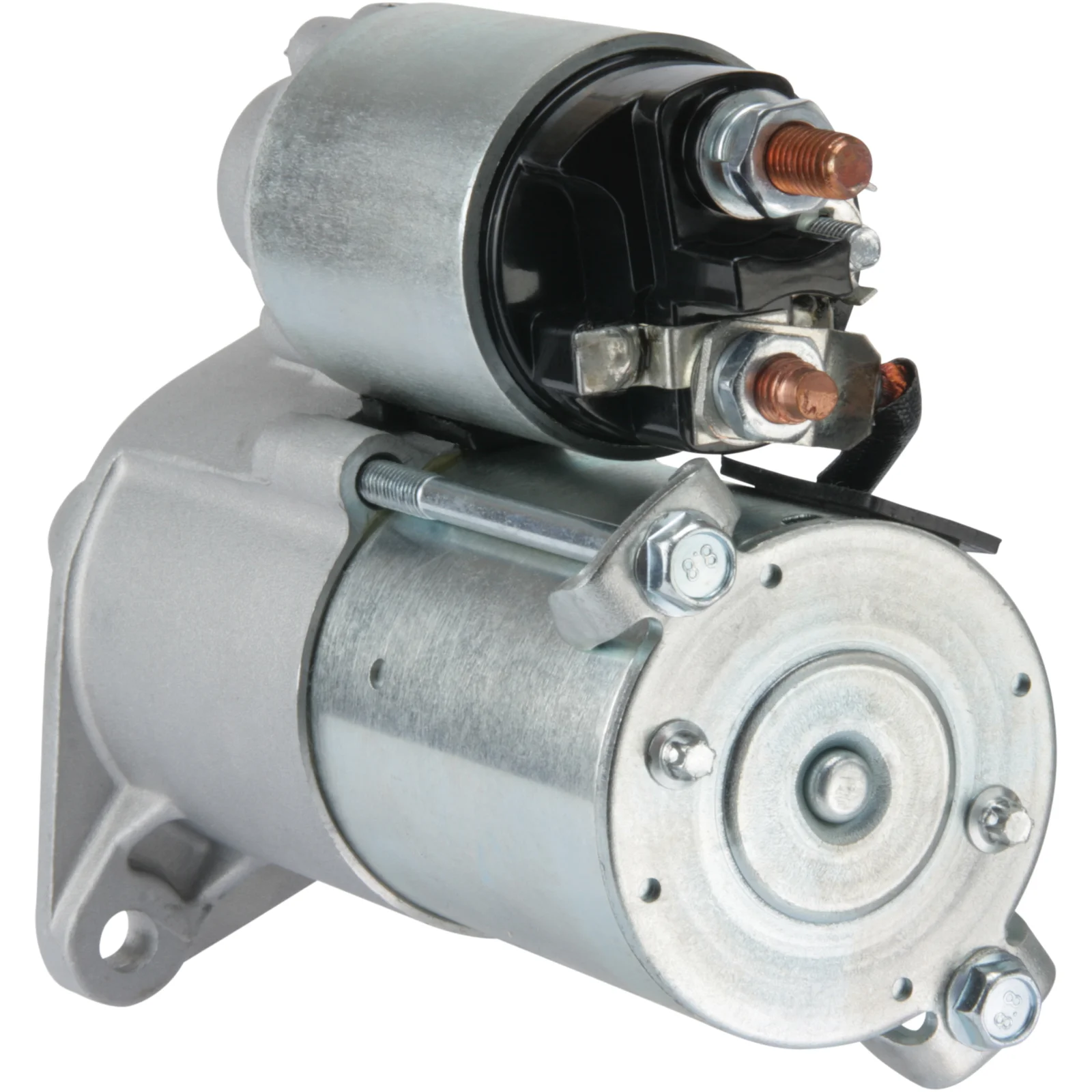

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.1, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.1
Mounting flange: 68.00
Drive distance: 17.50
Mounting hole 2 mm: 8.50
Mounting hole 1 mm: 8.50
Distance/back: 145.50
Distance/front: 56.50
Number of/teeth: 9
B+: M8
Position/50: 15
Terminal 50: M6
Gear type: GR
Distance mm: 105.00
Rotation: CW
Total length mm: 199.00
Drive type: Steel
Product info: BN
Number of/mounting holes: 2 (0)

Files

  • OEM
    cs1438, F032114298, RGO 114298, 1986S01162, 1202218, 6202084, 8000048, 8000387, 9025295, 24106343, 55556092, 55576980, 71748653, 96831615

  • Normalised article numbler
    cs1438, cst60130, drs3987, drs3987n, f032114298, f042200166, f042202004, lrs02317, rgo114298, s1098delco, s1098s, s9062, 8ea012527661, 1986s01162, 3146, 6939n, 6946n, 6946r, 6978n, 101438, 106896, 220609, 220609a, 253489, 442370, 446768, 460233, 1202218, 6202084, 8000048, 8000387, 8080259, 8212738, 9025295, 11090127, 24106343, 42023660, 55556092, 55576980, 71748653, 96831615, 328063092, 0986022071, 0986022073, 0986023660
  • Description
    Voltage: 12
    kW: 1.1
    Mounting flange: 68.00
    Drive distance: 17.50
    Mounting hole 2 mm: 8.50
    Mounting hole 1 mm: 8.50
    Distance/back: 145.50
    Distance/front: 56.50
    Number of/teeth: 9
    B+: M8
    Position/50: 15
    Terminal 50: M6
    Gear type: GR
    Distance mm: 105.00
    Rotation: CW
    Total length mm: 199.00
    Drive type: Steel
    Product info: BN
    Number of/mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs1438, F032114298, RGO 114298, 1986S01162, 1202218, 6202084, 8000048, 8000387, 9025295, 24106343, 55556092, 55576980, 71748653, 96831615

    • Normalised article numbler
      cs1438, cst60130, drs3987, drs3987n, f032114298, f042200166, f042202004, lrs02317, rgo114298, s1098delco, s1098s, s9062, 8ea012527661, 1986s01162, 3146, 6939n, 6946n, 6946r, 6978n, 101438, 106896, 220609, 220609a, 253489, 442370, 446768, 460233, 1202218, 6202084, 8000048, 8000387, 8080259, 8212738, 9025295, 11090127, 24106343, 42023660, 55556092, 55576980, 71748653, 96831615, 328063092, 0986022071, 0986022073, 0986023660
