Article no.: F032113509

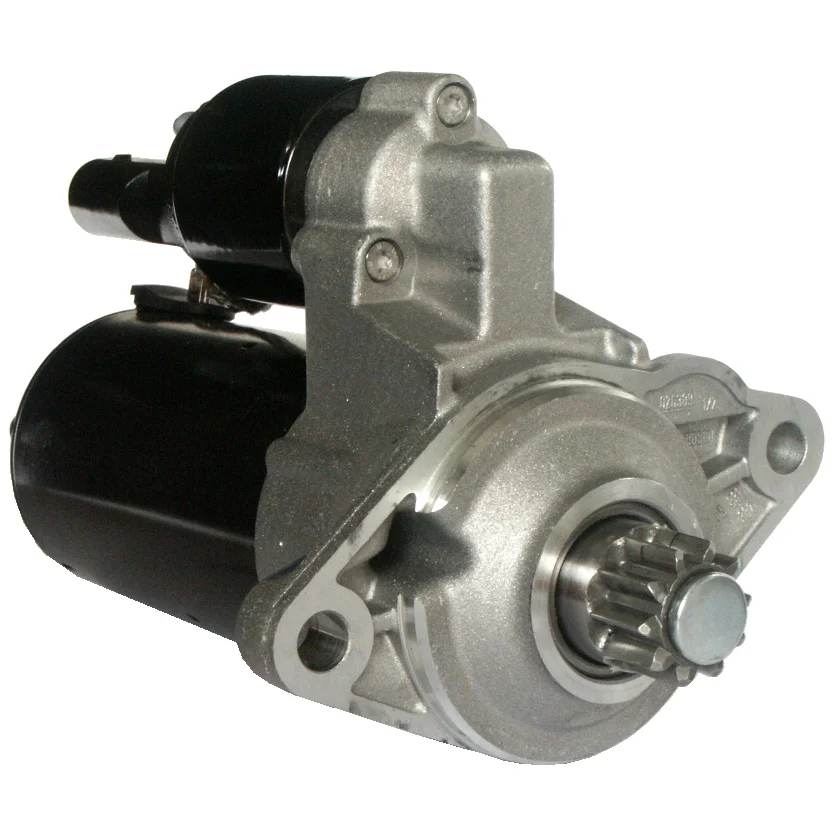

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.7, No./teeth: 10, Rotation: CCW

Description

VAG Diesel Starter motor 12V-2.0kW 12V - 2.0KW, 10 teeth, CCW A - 76mm, B - 42.5mm VW/Seat - Automatic transmission. Except VW Passat as it is mixed. Audi A3 - for vehicles with dual clutch. Audi TT/Skoda - some models Automatic For Yourex product order 91-620-2028

Voltage: 12
kW: 1.7
Mounting flange: 76.20
Drive distance: 42.50
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance/back: 183.00
Distance/front: 46.50
Number of teeth: 10
B+: M8
Position/50: 15
Terminal 50: 4.80
Gear type: GR
Distance mm: 119.00
Rotation: CCW
Total length mm: 242.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number of mounting holes: 2 (0)

Files

  • OEM
    CS1286, CST10256, DRT0280, DRT0280X, DSN3008, F032113509, F042S0H054, LRS01672, MSN2106, S0253, S0253PR, S0253R, STR-H054, STR50252, 0001 123 016, 0001 123 017, 0001 123 036, 02E 911 023H, 02E 911 023L, 02E911023H, 02E911023HX, 02E911023LX, 2E911023H, 2E911023HX, 8EA012526-191, 25-3218, 311.203.102, 0986 020 280, 1986S00803, 3041, 17971N, 17971R, 101286, 105281, 113509, 201060, 220606, 220606A, 0001123016, 0001123017, 8020280, 42020280, 0986020280, 0986020287, 063521230160, 944280202800

  • Normalised article numbler
    cs1286, cst10256, drt0280, drt0280x, dsn3008, f032113509, f042s0h054, lrs01672, msn2106, s0253, s0253pr, s0253r, str50252, strh054, 02e911023h, 02e911023hx, 02e911023l, 02e911023lx, 2e911023h, 2e911023hx, 8ea012526191, 1986s00803, 3041, 17971n, 17971r, 101286, 105281, 113509, 201060, 220606, 220606a, 253218, 0001123016, 0001123017, 0001123036, 8020280, 42020280, 311203102, 0986020280, 0986020287, 063521230160, 944280202800
  • Description
    VAG Diesel Starter motor 12V-2.0kW 12V - 2.0KW, 10 teeth, CCW A - 76mm, B - 42.5mm VW/Seat - Automatic transmission. Except VW Passat as it is mixed. Audi A3 - for vehicles with dual clutch. Audi TT/Skoda - some models Automatic For Yourex product order 91-620-2028

    Voltage: 12
    kW: 1.7
    Mounting flange: 76.20
    Drive distance: 42.50
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance/back: 183.00
    Distance/front: 46.50
    Number of teeth: 10
    B+: M8
    Position/50: 15
    Terminal 50: 4.80
    Gear type: GR
    Distance mm: 119.00
    Rotation: CCW
    Total length mm: 242.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number of mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      CS1286, CST10256, DRT0280, DRT0280X, DSN3008, F032113509, F042S0H054, LRS01672, MSN2106, S0253, S0253PR, S0253R, STR-H054, STR50252, 0001 123 016, 0001 123 017, 0001 123 036, 02E 911 023H, 02E 911 023L, 02E911023H, 02E911023HX, 02E911023LX, 2E911023H, 2E911023HX, 8EA012526-191, 25-3218, 311.203.102, 0986 020 280, 1986S00803, 3041, 17971N, 17971R, 101286, 105281, 113509, 201060, 220606, 220606A, 0001123016, 0001123017, 8020280, 42020280, 0986020280, 0986020287, 063521230160, 944280202800

    • Normalised article numbler
      cs1286, cst10256, drt0280, drt0280x, dsn3008, f032113509, f042s0h054, lrs01672, msn2106, s0253, s0253pr, s0253r, str50252, strh054, 02e911023h, 02e911023hx, 02e911023l, 02e911023lx, 2e911023h, 2e911023hx, 8ea012526191, 1986s00803, 3041, 17971n, 17971r, 101286, 105281, 113509, 201060, 220606, 220606a, 253218, 0001123016, 0001123017, 0001123036, 8020280, 42020280, 311203102, 0986020280, 0986020287, 063521230160, 944280202800
