HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032114216

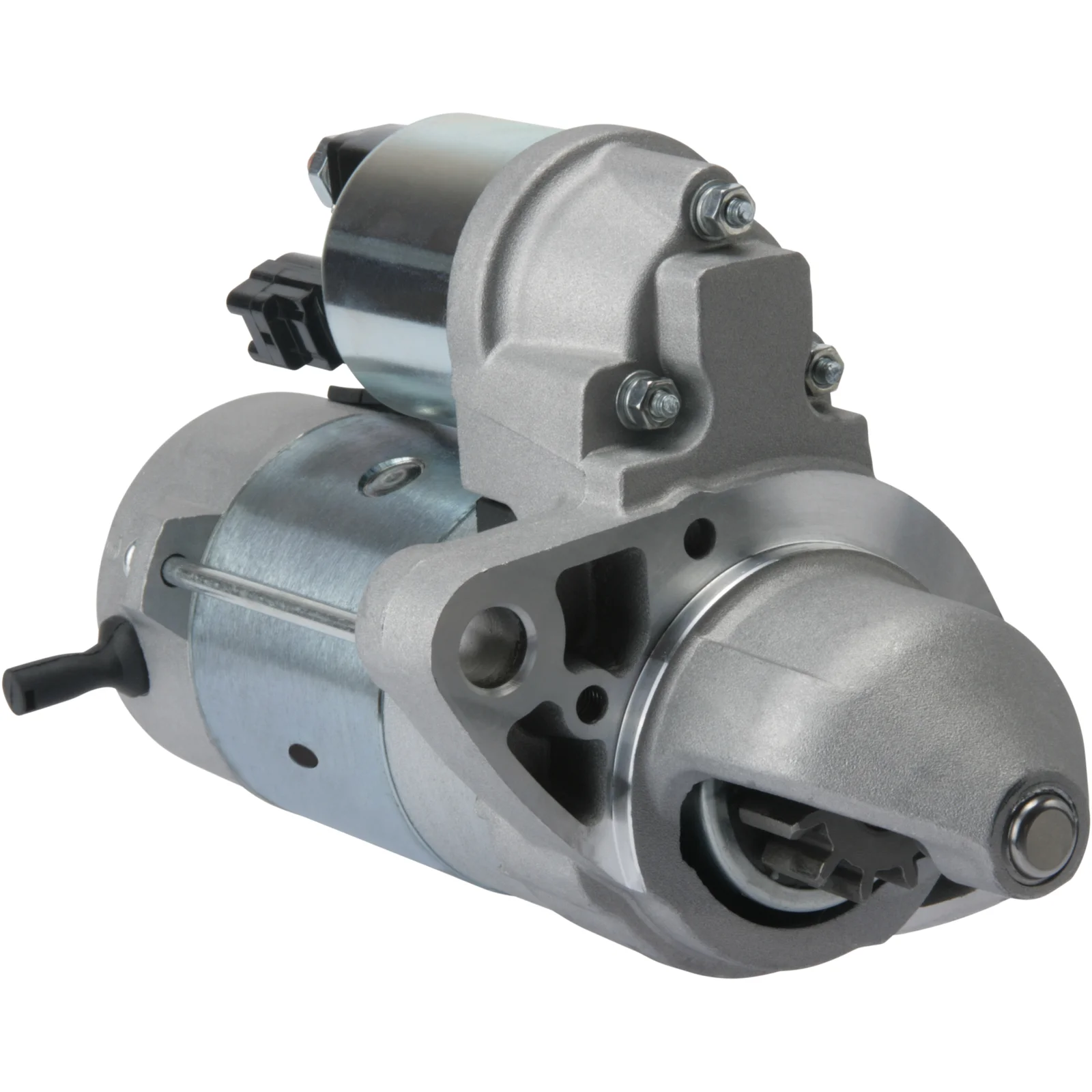

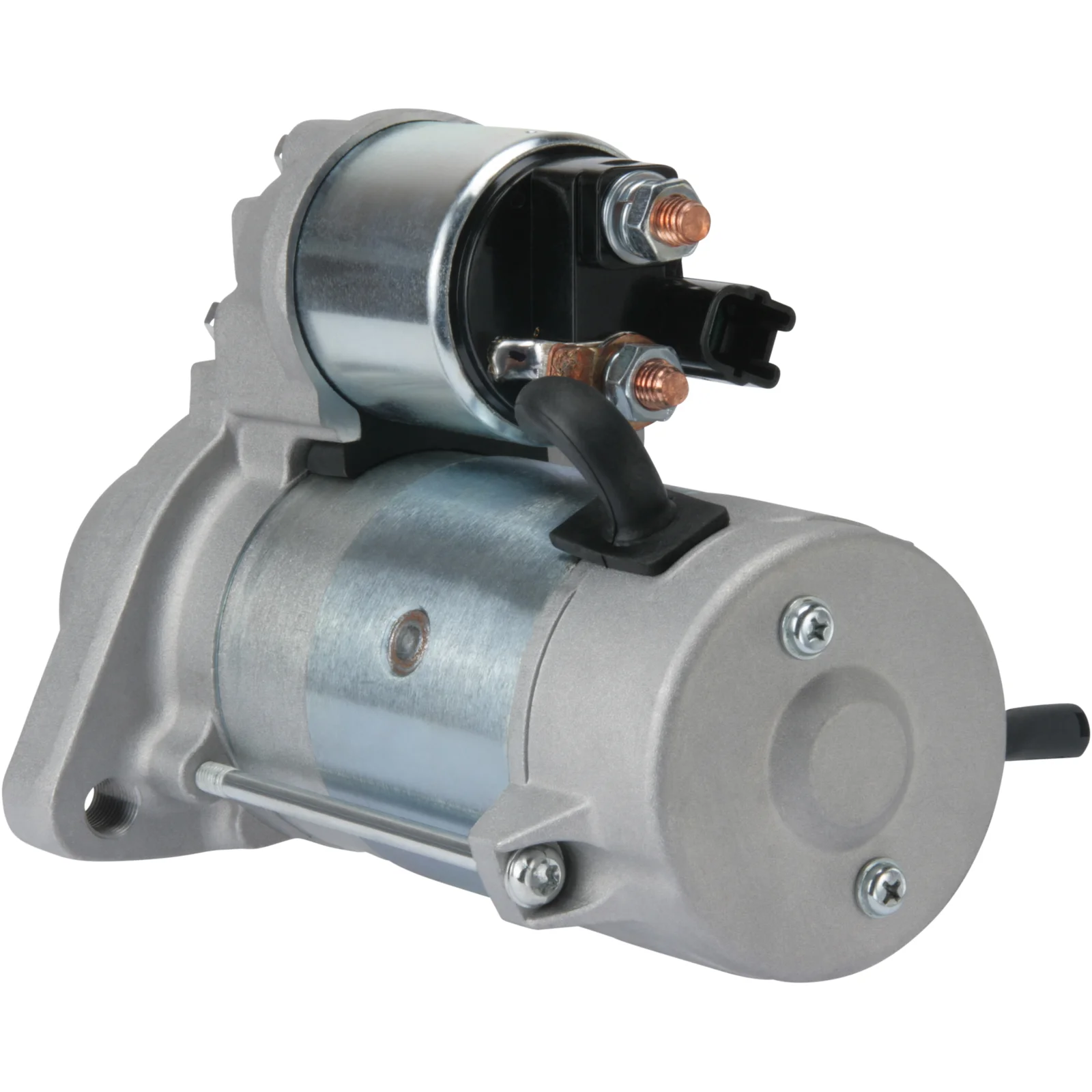

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 2.0
Mounting flange: 74.00
Drive distance: 24.00
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: M12-1.25
Distance/back: 174.50
Distance/front: 62.50
Number/teeth: 11
B+: M8
Position/50: 20
Terminal 50: 4.80
Gear type: GR
Distance in mm: 121.50
Rotation: CW
Total length in mm: 232.50
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 2 (1)

Files

  • OEM
    F032114216, js1369, RGO 114216, 1986S00924, 28100-0G040, 28100-0r010, 28100-0R030, 428000-3180, 428000-4920

  • Normalised article numbler
    cst40249, drs0288, dsn984, f032114216, f042s0h103, js1369, lrs02265, rgo114216, s4042, s6248denso, s6248s, strh103, 8ea012527711, 8ea738259041, 1986s00924, 9732, 33265n, 106849, 201369, 220664, 220664a, 253436, 281000g040, 281000r010, 281000r030, 8080257, 063280059, 335216112, 0986023240, 4280003180, 4280004920, 063280059010
  • Description
    Voltage: 12
    kW: 2.0
    Mounting flange: 74.00
    Drive distance: 24.00
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: M12-1.25
    Distance/back: 174.50
    Distance/front: 62.50
    Number/teeth: 11
    B+: M8
    Position/50: 20
    Terminal 50: 4.80
    Gear type: GR
    Distance in mm: 121.50
    Rotation: CW
    Total length in mm: 232.50
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      F032114216, js1369, RGO 114216, 1986S00924, 28100-0G040, 28100-0r010, 28100-0R030, 428000-3180, 428000-4920

    • Normalised article numbler
      cst40249, drs0288, dsn984, f032114216, f042s0h103, js1369, lrs02265, rgo114216, s4042, s6248denso, s6248s, strh103, 8ea012527711, 8ea738259041, 1986s00924, 9732, 33265n, 106849, 201369, 220664, 220664a, 253436, 281000g040, 281000r010, 281000r030, 8080257, 063280059, 335216112, 0986023240, 4280003180, 4280004920, 063280059010
