Article no.: F032111189

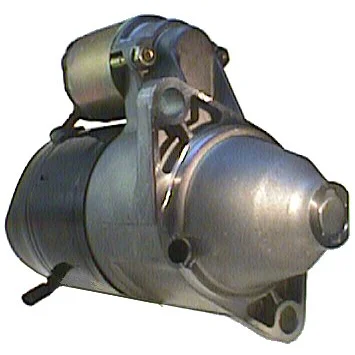

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.8, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 0.8
Mount. flange: 74.00
Drive distance: 20.00
Mount. hole 2 mm: 11.20
Mount. hole 1 mm: 11.20
Distance / back: 172.50
Distance / front: 57.50
Number / teeth: 9
B+: M8
Position / B+: 55
Position / 50: 45
Terminal 50: 6.30
Gear type: DD
Distance mm: 115.00
Rotation: CW
Total length mm: 231.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number / mount. holes: 2 (0)

Files

  • OEM
    F032111189, 28100-23800-71, 128000-8130

  • Normalised article numbler
    cst40243, f032111189, lrs01287, sr4301x, str30044, 8ea737134001, 4345, 18183, 18183n, 20933, 252004, 170517092, 635015092, 1280008130, 281002380071
  • Description
    Voltage: 12
    kW: 0.8
    Mount. flange: 74.00
    Drive distance: 20.00
    Mount. hole 2 mm: 11.20
    Mount. hole 1 mm: 11.20
    Distance / back: 172.50
    Distance / front: 57.50
    Number / teeth: 9
    B+: M8
    Position / B+: 55
    Position / 50: 45
    Terminal 50: 6.30
    Gear type: DD
    Distance mm: 115.00
    Rotation: CW
    Total length mm: 231.50
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number / mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032111189, 28100-23800-71, 128000-8130

    • Normalised article numbler
      cst40243, f032111189, lrs01287, sr4301x, str30044, 8ea737134001, 4345, 18183, 18183n, 20933, 252004, 170517092, 635015092, 1280008130, 281002380071
