Article no.: F032111190

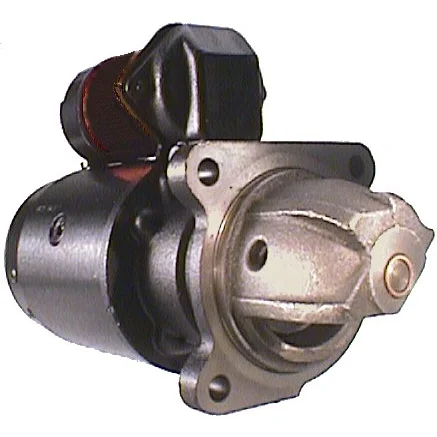

HC-Cargo Starter motor

Technical info:

Voltage: 12, No./teeth: 9, Rotation: CW, Mount. flange: 89.00

Description

Voltage: 12
Mounting flange: 89.00
Drive distance: 21.00
Mounting hole 3 mm: 10.70
Mounting hole 2 mm: 10.70
Mounting hole 1 mm: 10.70
Distance / back: 244.00
Distance / front: 61.00
Number / teeth: 9
B+: 3/8" UNF
Position / 15a: 55
Terminal 15a: M4
Position / 50: 20
Terminal 50: M4
Gear type: DD
Distance 2: 90.00
Distance 3: 90.00
Distance mm: 126.50
Rotation: CW
Total length mm: 305.00
Clutch type: Wet
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: Yes
Remarks: Replacing: 10MT.
Number / mounting holes: 3 (0)

Files

  • OEM
    F032111190, 7n8404, 8n1694, 1107308, 1107379, 1108508, 1109087, 1109088, 1109422, 1998210, 2200071-46, 2355692, 4841605, 10455332

  • Normalised article numbler
    cst40223, drs0328, drz5171, f032111190, lrs01464, ts1283, 7n8404, 8ea732859001, 8n1694, 3876, 4202, 4224, 4406, 4438, 33814, 60867, 252399, 351926, 1107308, 1107379, 1108508, 1109087, 1109088, 1109422, 1998210, 2355692, 3001010, 3004585, 4841605, 10455332, 91014203, 91014232, 220007146, 692003092, 692008092
  • Description
    Voltage: 12
    Mounting flange: 89.00
    Drive distance: 21.00
    Mounting hole 3 mm: 10.70
    Mounting hole 2 mm: 10.70
    Mounting hole 1 mm: 10.70
    Distance / back: 244.00
    Distance / front: 61.00
    Number / teeth: 9
    B+: 3/8" UNF
    Position / 15a: 55
    Terminal 15a: M4
    Position / 50: 20
    Terminal 50: M4
    Gear type: DD
    Distance 2: 90.00
    Distance 3: 90.00
    Distance mm: 126.50
    Rotation: CW
    Total length mm: 305.00
    Clutch type: Wet
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: Yes
    Remarks: Replacing: 10MT.
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032111190, 7n8404, 8n1694, 1107308, 1107379, 1108508, 1109087, 1109088, 1109422, 1998210, 2200071-46, 2355692, 4841605, 10455332

    • Normalised article numbler
      cst40223, drs0328, drz5171, f032111190, lrs01464, ts1283, 7n8404, 8ea732859001, 8n1694, 3876, 4202, 4224, 4406, 4438, 33814, 60867, 252399, 351926, 1107308, 1107379, 1108508, 1109087, 1109088, 1109422, 1998210, 2355692, 3001010, 3004585, 4841605, 10455332, 91014203, 91014232, 220007146, 692003092, 692008092
